SAP ABAP Table KABOUTPUT_TABLEVIEW (Output Structure for Kanban Board Table View)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM (Application Component) Customer Relationship Management
     ⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
       ⤷ MD05 (Package) Development class KANBAN

Basic Data

Table Category	INTTAB	Structure

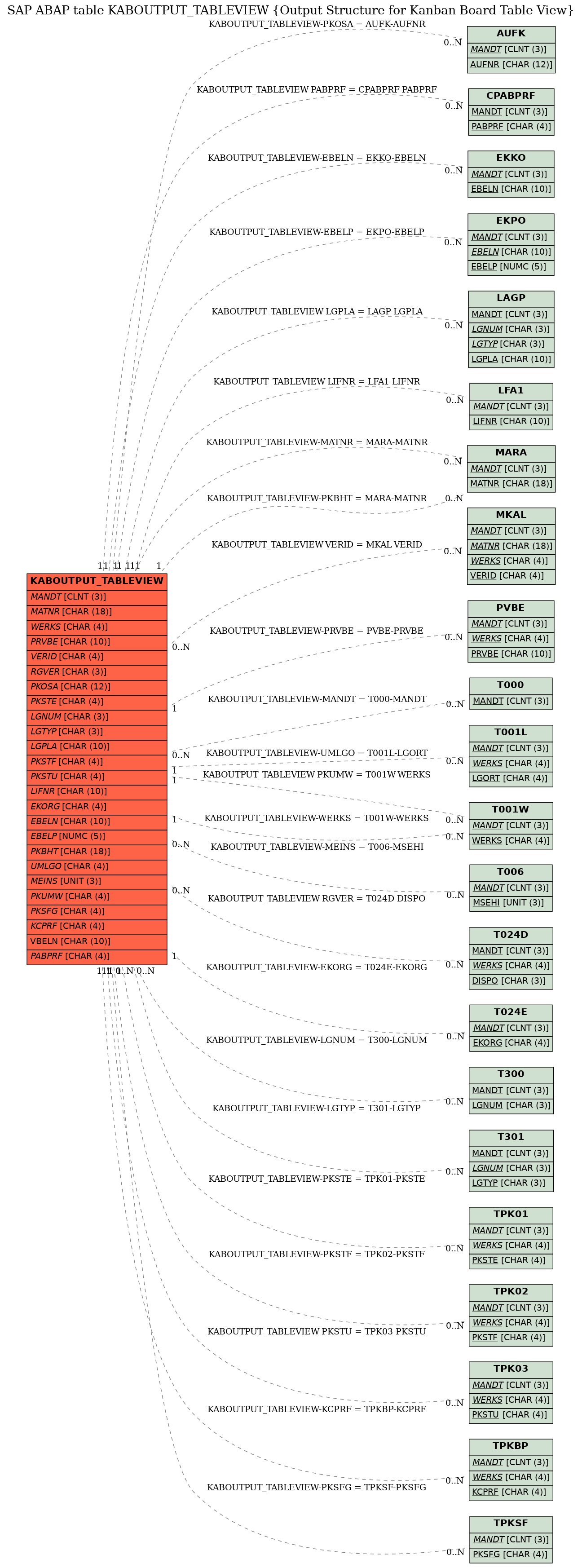

Structure	KABOUTPUT_TABLEVIEW	Table Relationship Diagram
Short Description	Output Structure for Kanban Board Table View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Control Cycle
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	PKNUM	☐	PKNUM	PKNUM	CHAR	7	0	Control cycle number	*
4	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	MARA
5	WERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
6	PRVBE	☐	PRVBE	PRVBE	CHAR	10	0	Production Supply Area	PVBE
7	BEHAZ	☐	BEHAZ	BEHAZ	NUMC	3	0	Number of Kanban Containers
8	BEHMG	☐	BEHMG	MENG13	QUAN	13	3	Kanban Quantity
9	VERID	☐	VERID	VERID	CHAR	4	0	Production Version	MKAL
10	SIGAZ	☐	SIGAZ	BEHAZ	NUMC	3	0	Maximum Number of Empty Kanban Containers
11	RGVER	☐	QUVER	DISPO	CHAR	3	0	Person Responsible for Supply Source	T024D
12	PKOSA	☐	PKOSA_D	AUFNR	CHAR	12	0	Cost collector for production process PROCNR	AUFK
13	PKSTE	☐	PKSTE	PKSTS	CHAR	4	0	Control Cycle Replenishment Strategy for In-House Production	TPK01
14	BERKZ	☐	BERKZ	LVS_BERKZ	CHAR	1	0	Material Staging Indicator for Production Supply
15	LGNUM	☐	LGNUM	LGNUM	CHAR	3	0	Warehouse Number / Warehouse Complex	T300
16	LGTYP	☐	LGTYP	LGTYP	CHAR	3	0	Storage Type	T301
17	LGPLA	☐	LGPLA	LGPLA	CHAR	10	0	Storage Bin	LAGP
18	NKDYN	☐	T333_NKDYN	XFELD	CHAR	1	0	Indicator: dynamic destination bin
19	PKSTF	☐	PKSTF	PKSTF	CHAR	4	0	Replenishment Strategy of Control Cycle - Ext. Procurement	TPK02
20	PKSTU	☐	PKSTU	PKSTU	CHAR	4	0	Control Cycle Replenishment Strategy for Stock Transfer	TPK03
21	LIFNR	☐	ELIFN	LIFNR	CHAR	10	0	Vendor's account number	LFA1
22	EKORG	☐	EKORG	EKORG	CHAR	4	0	Purchasing organization	T024E
23	EBELN	☐	EVRTN	EBELN	CHAR	10	0	Agreement Number	EKKO
24	EBELP	☐	EVRTP	EBELP	NUMC	5	0	Agreement Item	EKPO
25	ANSWB	☐	ANSWB	XFELD	CHAR	1	0	Replenishment Controlled Independently By Supply Source
26	PKBHT	☐	PKBHT	MATNR	CHAR	18	0	Kanban Container	MARA
27	QUFKT	☐	QUFKT	XFELD	CHAR	1	0	Separate GR If Status Changed to Full
28	UMLGO	☐	LGORT_D	LGORT	CHAR	4	0	Storage location	T001L
29	MEINS	☐	MEINS	MEINS	UNIT	3	0	Base Unit of Measure	T006
30	RKSTA	☐	RKSTAT	RKSTA	CHAR	1	0	Control Cycle Category
31	KOSTL	☐	KOSTL	KOSTL	CHAR	10	0	Cost Center	*
32	VBPRN	☐	SYPDEST	RSPOPNAME	CHAR	4	0	Spool Output Device	*
33	PKDRS	☐	PKDRS	PKDRS	CHAR	1	0	Kanban Card Print Control
34	PKUMW	☐	PKUMW	WERKS	CHAR	4	0	Issuing Plant in Kanban Processing	T001W
35	PKADR	☐	PKADR	AD_ADDRNUM	CHAR	10	0	Kanban delivery address	*
36	PKSFG	☐	PKSFG	PKSFG	CHAR	4	0	Status Sequence Kanban	TPKSF
37	PKLOG	☐	PKLOG	PKLOG	CHAR	1	0	Logic for Setting Kanban to Empty
38	ALSMG	☐	ALSMG	MENG13	QUAN	13	3	Kanban Trigger Quantity
39	ABLAD	☐	STLPL	TEXT25	CHAR	25	0	Storing Position
40	KCART	☐	KCART	KCART	CHAR	1	0	Ind.: Whether and How a Kanban Control Cycle is Calculated
41	KCSAF	☐	KCSAF	DEC2_3	DEC	5	3	Safety Factor for Kanban Calculation
42	KCCON	☐	KCCON	INT1	INT1	3	0	Constant for Kanban Calculation
43	PKRMG	☐	PKRMG	MENG13	QUAN	13	3	Rounding Quantity
44	PKFMG	☐	PKFMG	MENG13	QUAN	13	3	Fixed Kanban Quantity
45	KCPRF	☐	KCPRF	KCPRF	CHAR	4	0	Kanban Calculation Profile	TPKBP
46	KWBZD	☐	KWBZD	DEC3	DEC	3	0	Replenishment Lead Time in Workdays
47	KWBZM	☐	KWBZM	TSTRDURAN	DEC	11	0	Replenishment Lead Time in Hours/Minutes
48	VBELN	☐	VBELN_PK	VBELN	CHAR	10	0	SD Scheduling Agreement (Sales Doc.) in Kanban Processing	*
49	VBELP	☐	VBELP_PK	POSNR	NUMC	6	0	SD Scheduling Agreement Item in Kanban Processing	*
50	QUPVB	☐	QUPVB	PRVBE	CHAR	10	0	Source Production Supply Area for Kanban Stock Transfers	*
51	PABPRF	☐	PABPRF	PABPRF	CHAR	4	0	JIT Call Profile	CPABPRF
52	PACKV	☐	PL_PACKNR	SYSUUID_22	CHAR	22	0	Unique internal packing object number
53	ANZLT	☐	ANZLT	ANZLT	NUMC	3	0	Number of Load Carriers
54	RKFORM	☐	RKFORM	TDFORM	CHAR	16	0	Card for Printing Control Cycle Data
55	.INCLUDE	☐				0	0
56	ZPUNKT	☐	SA_ZPUNKT	VORNR	CHAR	4	0	Reporting Point
57	LCM_STATUS	☐	LCM_STATUS	LCM_STATUS	CHAR	1	0	Lifecycle Status of Control Cycle
58	CRE_DATE	☐	CRE_DATE	DATUM	DATS	8	0	Creation Date of Control Cycle
59	RLS_DATE	☐	RLS_DATE	DATUM	DATS	8	0	Release Date for Control Cycle
60	OBS_DATE	☐	OBS_DATE	DATUM	DATS	8	0	Control Cycle Lock Date
61	PINTVD	☐	PINTVD	DEC3	DEC	3	0	Pull Interval in Workdays
62	PINTVM	☐	PINTVM	TSTRDURAN	DEC	11	0	Pull Interval in Hours and Minutes
63	KNFZD	☐	KNFZD	DEC03_2	DEC	5	2	Refill Time in Days
64	KNFZM	☐	KNFZM	TSTRDURAN	DEC	11	0	Refill Time in Hours/Minutes
65	KWTZD	☐	KWTZD	DEC03_2	DEC	5	2	Wait Time in Days
66	KWTZM	☐	KWTZM	TSTRDURAN	DEC	11	0	Wait Time in Hours/Minutes
67	KITZD	☐	KITZD	DEC03_2	DEC	5	2	Transportation Time in Days
68	KITZM	☐	KITZM	TSTRDURAN	DEC	11	0	Transportation Time in Hours/Minutes
69	KDMBUF	☐	KDMBUF	DEC3	DEC	3	0	Requirement Buffer in Percent
70	KSPBUF	☐	KSPBUF	DEC3	DEC	3	0	Supply Source Buffer in Percent
71	NTREL	☐	NTREL	BEHAZ	NUMC	3	0	Number of Kanbans Flagged for Unlocking
72	TRIGAZ	☐	TRIGAZ	BEHAZ	NUMC	3	0	Trigger Point for Waiting Kanbans
73	TRIGGR	☐	TRIGGR	TRIGGR	CHAR	10	0	Trigger Group
74	CAPA_WRKCT	☐	PK_CAPA_WRKCT	ARBPL	CHAR	8	0	Work Center for Consideration of Capacity
75	FAZUS	☐	FAZUS	XFELD	CHAR	1	0	Combine Production Order
76	PKURG1	☐	PKURG1	DRING	DEC	4	3	Priority with limit "maximum empty"
77	PKURG2	☐	PKURG2	DRING	DEC	4	3	Priority without limit "Maximum empty"
78	PKUSER1	☐	PKUSER1	TEXT60	CHAR	60	0	First user exit in kanban board
79	PKUSER2	☐	PKUSER2	TEXT60	CHAR	60	0	Second user exit in kanban board
80	PKREST	☐	PKREST	CHAR4	CHAR	4	0	Replenishment Strategy
81	PKRESTT	☐	PKRESTT	TEXT40	CHAR	40	0	Replenishment strategy text
82	UESIG	☐	PK_SIGFLAG	TEXT60	CHAR	60	0	Exceeding of Tracking Limit in Control Cycle
83	PKKEY	☐	PKKEY	PKKEY	NUMC	10	0	Identification Number	*
84	PKPOS	☐	PKPOS	PKPOS	NUMC	3	0	Kanban item number / control cycle item
85	PKBST	☐	PKBST	PKBST	CHAR	1	0	Kanban status
86	BHSKT	☐	BHSKT	BHSKT	CHAR	6	0	Short text - container status Kanban
87	PKIMG	☐	PKIMG	MENG13	QUAN	13	3	Actual quantity
88	SAEDT	☐	SAEDT	DATUM	DATS	8	0	Date of last change
89	SAEUZ	☐	SAEUZ	UZEIT	TIMS	6	0	Time of the last status change
90	SADT2	☐	SAEDT	DATUM	DATS	8	0	Date of last change
91	SAUZ2	☐	SAEUZ	UZEIT	TIMS	6	0	Time of the last status change
92	PLNUM	☐	PLNUM	PLNUM	CHAR	10	0	Planned order number	*
93	AUFNR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	*
94	POSNR	☐	CO_POSNR	CO_POSNR	NUMC	4	0	Order item number
95	ETENR	☐	EETEN	EETEN	NUMC	4	0	Delivery Schedule Line Counter	*
96	RSNUM	☐	RSNUM	RSNUM	NUMC	10	0	Number of reservation/dependent requirements	*
97	RSPOS	☐	RSPOS	RSPOS	NUMC	4	0	Item Number of Reservation / Dependent Requirements
98	TBNUM	☐	TBNUM	TBNUM	NUMC	10	0	Transfer Requirement Number	*
99	TBPOS	☐	TBPOS	TBPOS	NUMC	4	0	Transfer Requirement Item
100	SPKKZ	☐	SPKKZ	XFELD	CHAR	1	0	Blocking indicator for kanban container
101	SPKKT	☐	SPKKT	CHAR46	CHAR	46	0	Kanban is Blocked
102	MBLNR	☐	MBLNR	BELNR	CHAR	10	0	Number of Material Document
103	MBLPO	☐	MBLPO	MBLPO	NUMC	4	0	Item in material document
104	PKLKZ	☐	PKLKZ	XFELD	CHAR	1	0	Deletion Indicator for a Kanban
105	PKLKT	☐	PKLKT	CHAR46	CHAR	46	0	Kanban Has Been Deleted
106	PKBMG	☐	PKBMG	MENG13	QUAN	13	3	Quantity requested
107	PKBSA	☐	PKBSA	PKBST	CHAR	1	0	Previous kanban status
108	PABNUM	☐	PABNUM	PABNUM	CHAR	10	0	JIT Call Number	*
109	PABPOS	☐	PABPOS	PABPOS	NUMC	4	0	JIT call item
110	PKGPZG	☐	PKGPZG	TZNTSTMPS	DEC	15	0	Planned Receipt
111	HDFLG	☐	HDFLG	XFELD	CHAR	1	0	Indicator: Changed Control Cycle Data Available for Kanban
112	MAKTX	☐	MAKTX	TEXT40	CHAR	40	0	Material description
113	PVBTX	☐	PVBTX	TEXT40	CHAR	40	0	Production supply area description
114	AUSSP	☐	AUSSP	AUSSP	NUMC	3	0	Signal locking time in minutes
115	SGR_ICON	☐	KAB_ICON_SGR	CHAR46	CHAR	46	0	Separate GR for kanban has taken place/has not taken place
116	ARBPL	☐	ARBPL	ARBPL	CHAR	8	0	Work center
117	PEBELN	☐	EVRTN	EBELN	CHAR	10	0	Agreement Number	*
118	PEBELP	☐	EVRTP	EBELP	NUMC	5	0	Agreement Item	*
119	PZPUNKT	☐	SA_ZPUNKT	VORNR	CHAR	4	0	Reporting Point
120	PRTNR	☐	PRTNR	PRTNR	NUMC	10	0	Confirmation number	*
121	TERED	☐	TERED	DATUM	DATS	8	0	Finish date for production
122	ETENS	☐	ETENS	NUM04	NUMC	4	0	Sequential Number of Vendor Confirmation

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	KABOUTPUT_TABLEVIEW	EBELN	EKKO	EBELN	KEY	1	CN
2	KABOUTPUT_TABLEVIEW	EBELP	EKPO	EBELP	KEY	1	CN
3	KABOUTPUT_TABLEVIEW	EKORG	T024E	EKORG	KEY	1	CN
4	KABOUTPUT_TABLEVIEW	KCPRF	TPKBP	KCPRF		1	CN
5	KABOUTPUT_TABLEVIEW	LGNUM	T300	LGNUM
6	KABOUTPUT_TABLEVIEW	LGPLA	LAGP	LGPLA	KEY	1	CN
7	KABOUTPUT_TABLEVIEW	LGTYP	T301	LGTYP
8	KABOUTPUT_TABLEVIEW	LIFNR	LFA1	LIFNR	KEY	1	CN
9	KABOUTPUT_TABLEVIEW	MANDT	T000	MANDT
10	KABOUTPUT_TABLEVIEW	MATNR	MARA	MATNR	KEY	1	CN
11	KABOUTPUT_TABLEVIEW	MEINS	T006	MSEHI
12	KABOUTPUT_TABLEVIEW	PABPRF	CPABPRF	PABPRF	KEY	1	CN
13	KABOUTPUT_TABLEVIEW	PKBHT	MARA	MATNR	KEY	1	CN
14	KABOUTPUT_TABLEVIEW	PKOSA	AUFK	AUFNR	KEY	1	CN
15	KABOUTPUT_TABLEVIEW	PKSFG	TPKSF	PKSFG	REF	1	CN
16	KABOUTPUT_TABLEVIEW	PKSTE	TPK01	PKSTE	KEY	1	CN
17	KABOUTPUT_TABLEVIEW	PKSTF	TPK02	PKSTF	KEY	1	CN
18	KABOUTPUT_TABLEVIEW	PKSTU	TPK03	PKSTU	KEY	1	CN
19	KABOUTPUT_TABLEVIEW	PKUMW	T001W	WERKS	KEY	1	CN
20	KABOUTPUT_TABLEVIEW	PRVBE	PVBE	PRVBE	KEY	1	CN
21	KABOUTPUT_TABLEVIEW	RGVER	T024D	DISPO
22	KABOUTPUT_TABLEVIEW	UMLGO	T001L	LGORT	KEY	1	CN
23	KABOUTPUT_TABLEVIEW	VERID	MKAL	VERID
24	KABOUTPUT_TABLEVIEW	WERKS	T001W	WERKS	KEY	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in	605
