SAP ABAP Table NLEI_EXT (IS-H*MED: Enhanced Structure for Transferring Pref. Info)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM (Application Component) Customer Relationship Management
     ⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
       ⤷ NORD (Package) R/3MED: Services processing EDV-G

Basic Data

Table Category	INTTAB	Structure

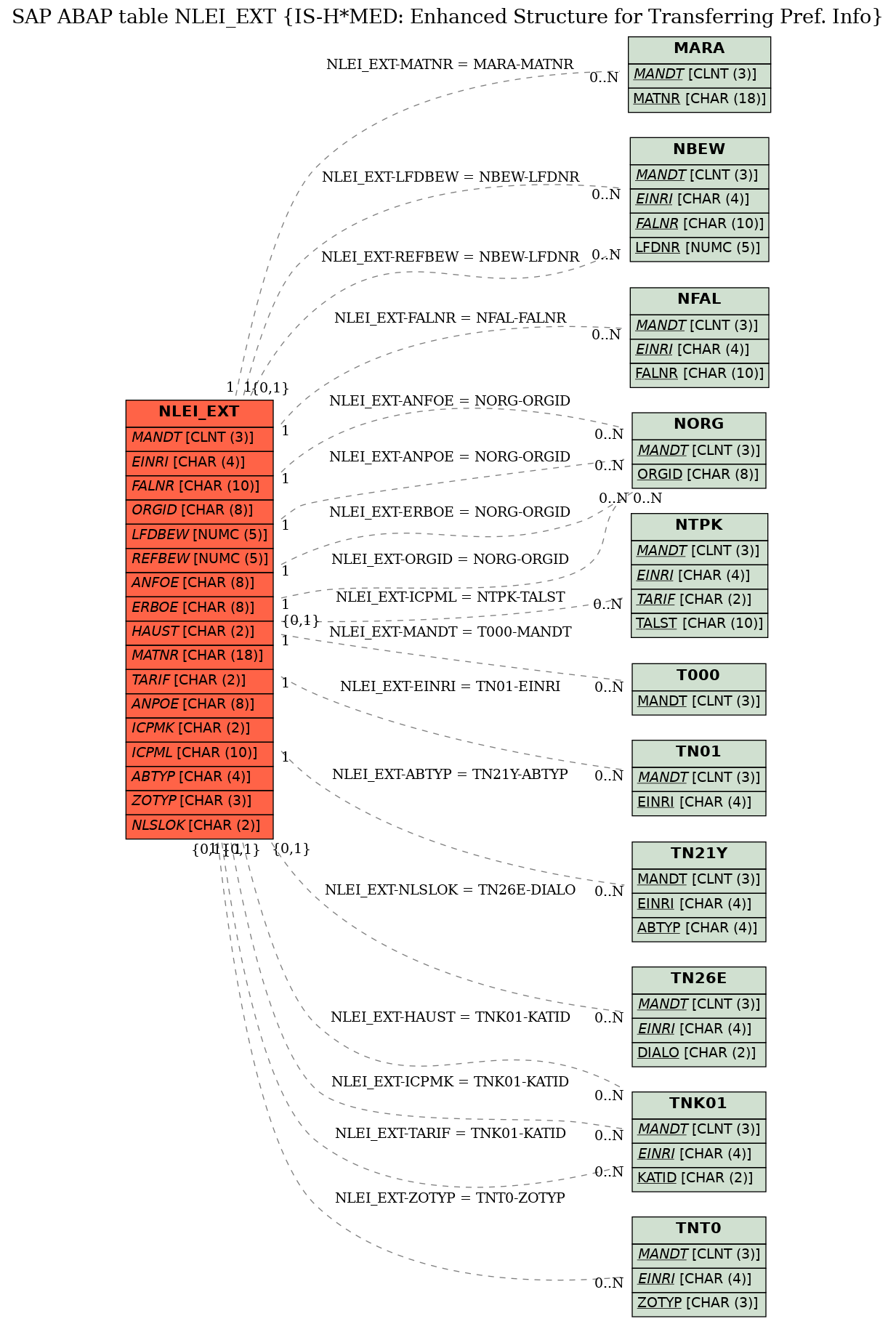

Structure	NLEI_EXT	Table Relationship Diagram
Short Description	IS-H*MED: Enhanced Structure for Transferring Pref. Info

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	IS-H: Services Performed
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	EINRI	☐	EINRI	EINRI	CHAR	4	0	IS-H: Institution	TN01
4	FALNR	☐	FALNR	FALNR	CHAR	10	0	IS-H: Case Number	NFAL
5	ORGID	☐	ORGID_LS	ORGID	CHAR	8	0	IS-H: Org. Unit (for OU-Related Service Entry Only)	NORG
6	LEIST	☐	TARLS	TARLS	CHAR	10	0	IS-H: Service in Service Catalog	*
7	LNRLS	☐	LNRLS	LNRLS	CHAR	10	0	IS-H: Service Sequence Number
8	LFDBEW	☐	LFDBEW	LFDBEW	NUMC	5	0	IS-H: Sequence Number of Movement	NBEW
9	REFBEW	☐	REFBEW	LFDBEW	NUMC	5	0	IS-H: Movement which Caused Service Split	NBEW
10	ERBTY	☐	TYP_ERBR	TYP_ERBR	CHAR	1	0	IS-H: Type of Service Performance
11	ANFOE	☐	ANFOE	ORGID	CHAR	8	0	IS-H: Departmental Org. Unit Requesting Service	NORG
12	ANMAN	☐	MANUELL	XFELD	CHAR	1	0	IS-H: Default Value Changed Manually
13	ERBOE	☐	ERBOE	ORGID	CHAR	8	0	IS-H: Organizational Unit that Performs the Service	NORG
14	ERMAN	☐	MANUELL	XFELD	CHAR	1	0	IS-H: Default Value Changed Manually
15	HAUST	☐	TARID	TARID	CHAR	2	0	IS-H: Service Catalog Identification Key	TNK01
16	PREIS	☐	RI_PREIS	WERT6	CURR	11	2	IS-H: Indiv. Price of Service Different from Service Master
17	MATNR	☐	MATNR_LS	MATNR	CHAR	18	0	IS-H: Material Number of Service	MARA
18	ABRKZ	☐	ABRKZ	ABRKZ_LS	CHAR	1	0	IS-H: Service Can Be Billed for
19	STALS	☐	STATUS_LS	STATUS_LS	CHAR	1	0	IS-H: Service Status (Planned/Performed)
20	IMENG	☐	I_MENG_LS	LEISMENGE	NUMC	4	0	Service Quantity
21	IBGDT	☐	I_BDT_LS	RI_DATUM	DATS	8	0	IS-H: Date when Service Performance Starts (Actual)
22	IENDT	☐	I_EDT_LS	RI_DATUM	DATS	8	0	IS-H: Date when Service Performance Ends (Actual)
23	IBZT	☐	I_BZT_LS	UHRZT	TIMS	6	0	IS-H: Time when Service Performance Starts (Actual)
24	IEZT	☐	I_EZT_LS	UHRZT	TIMS	6	0	IS-H: Time Service Performance Ends (Actual)
25	PMENG	☐	P_MENG_LS	LEISMENGE	NUMC	4	0	IS-H: Service Quantity (Planned)
26	PBGDT	☐	P_BDT_LS	RI_DATUM	DATS	8	0	IS-H: Start Date of Service Performance (PLANNED)
27	PENDT	☐	P_EDT_LS	RI_DATUM	DATS	8	0	IS-H: Date Service Performance Ends (PLANNED)
28	PBZT	☐	P_BZT_LS	UHRZT	TIMS	6	0	IS-H: Time Service Performance Starts (PLANNED)
29	PEZT	☐	P_EZT_LS	UHRZT	TIMS	6	0	IS-H: Time Service Performance Ends (PLANNED)
30	TARIF	☐	TARID	TARID	CHAR	2	0	IS-H: Service Catalog Identification Key	TNK01
31	TARLS	☐	TARLS	TARLS	CHAR	10	0	IS-H: Service in Service Catalog	*
32	TARSP	☐	TARSP	TARSP	CHAR	2	0	IS-H: Column in Service Catalog	*
33	TARAS	☐	TARAS6	ISH_TARAS6	DEC	6	3	IS-H: Multiplication Factor
34	TLMEN	☐	TL_MEN_LS	LEISMENGE	NUMC	4	0	IS-H: Partial Delivery Quantity of Service
35	LEINH	☐	TA_EINH	MEINS	UNIT	3	0	IS-H: Unit of Measure for Service	*
36	LEITX	☐	TEXT_LEI	LEIKTXT	CHAR	40	0	IS-H: Service Short Text (may Differ from Service Master)
37	ERDAT	☐	RI_ERDAT	RI_DATUM	DATS	8	0	IS-H: Date when Record Created
38	ERUSR	☐	RI_ERNAM	USNAM	CHAR	12	0	IS-H: Name of Employee who Created Record
39	UPDAT	☐	RI_UPDAT	RI_DATUM	DATS	8	0	IS-H: Date of Last Change
40	UPUSR	☐	RI_UPNAM	USNAM	CHAR	12	0	IS-H: Name of Person who Last Changed Data
41	STORN	☐	RI_STORN	XFELD	CHAR	1	0	IS-H: Cancellation Indicator
42	STUSR	☐	STORN_USER	USNAM	CHAR	12	0	IS-H: Name of User who Canceled Data Record
43	REFLNR	☐	LFDLEI	LNRLS	CHAR	10	0	IS-H: Sequence Number per Service (Time-Dependent)
44	ZEITR	☐	NZEITRLS	NZEITRLS	CHAR	1	0	IS-H: Indicator for Extended Service
45	BEGTX	☐	BEGRUENDTX	ISH_CHAR40	CHAR	40	0	IS-H: Reason for Multiplication Factor
46	WNDNR	☐	ISH_WNDNR	ISH_WNDNR	CHAR	10	0	IS-H: Wound Number
47	REMRK	☐	ISH_REMRK	ISH_REMRK	CHAR	40	0	IS-H: User's Comment on Service
48	REFNR	☐	ISH_REFNR	ISH_REFNR	CHAR	10	0	_
49	KZBCP	☐	ISH_KZBCP	ISH_KZBCP	CHAR	1	0	_
50	BILLP	☐	ISH_BILLP	ISH_BILLP	CHAR	1	0	IS-H NL: Invoicing Party (Hospital or Physician)
51	ANPOE	☐	ANPOE	ORGID	CHAR	8	0	IS-H: Nursing Org. Unit Requesting Service	NORG
52	APMAN	☐	MANUELL	XFELD	CHAR	1	0	IS-H: Default Value Changed Manually
53	REMKZ	☐	SPRAS	SPRAS	LANG	1	0	Language Key	*
54	ICPMK	☐	ICPM_ID	TARID	CHAR	2	0	IS-H: Identification of Surgical Procedure Coding Catalog	TNK01
55	ICPML	☐	ICPM_LS	TARLS	CHAR	10	0	IS-H: Surgical Procedure Code (Service)	NTPK
56	ICPHC	☐	ICPM_HCODE	XFELD	CHAR	1	0	IS-H: Main Surgical Procedure Code
57	BEGKZ	☐	SPRAS	SPRAS	LANG	1	0	Language Key	*
58	HCOKZ	☐	ISH_HCOKZ	XFELD	CHAR	1	0	IS-H: Service Relevant for CO
59	ANART	☐	ANALYSEART	ANALYSEART	CHAR	1	0	IS-H: Analysis Type for Service (DKG-NT Germany)
60	OTYPL	☐	ISH_OTYPL	ISH_OTYPL	CHAR	1	0	IS-H: Object Type of Service
61	UBVON	☐	ISH_UBVON	RI_DATUM	DATS	8	0	IS-HCO: Start of Transfer
62	UBBIS	☐	ISH_UBBIS	RI_DATUM	DATS	8	0	IS-HCO: End of Transfer
63	UBLKZ	☐	ISH_UBLKZ	ISH_UBLKZ	CHAR	1	0	IS-HCO: Transfer Indicator for Service/Material
64	UMENG	☐	ISH_UMENG	LEISMENGE	NUMC	4	0	IS-HCO: Transferred Service Quantity
65	UAEKZ	☐	ISH_UAEKZ	XFELD	CHAR	1	0	IS-HCO: Service/Material Was Changed after Transfer into CO
66	NUBKZ	☐	ISH_NUBKZ	XFELD	CHAR	1	0	IS-HCO: Ind. that service is permanently not transferable
67	ENTKY	☐	ENTKEY	ENTKEY	CHAR	2	0	Charge Key for Paragraph 301 / DALE-UV
68	ENZKY	☐	NZUSKEY	NZUSKEY	CHAR	1	0	IS-H: Add. Key for Charge Type for FR/Case, Proc.Surcharges
69	ENTG2	☐	ENTGART2	ENTGART2	CHAR	5	0	IS-H: Charge Type According to §301
70	EVENT	☐	LEI_EVENT	ISH_EVENT	NUMC	2	0	IS-H: Event that generates services
71	OBJCT	☐	LEI_OBJECT	ISH_OBJECT	CHAR	10	0	IS-H: Object that generated services
72	KALKZ	☐	ISH_KALKZ	XFELD	CHAR	1	0	IS-H: For Internal Purposes Only, DB Contents Irrelevant
73	EVTUP	☐	LEI_EVT_UP	ISH_EVT_UP	NUMC	2	0	IS-H: Event that Changed Services
74	OBJUP	☐	LEI_OBJ_UP	ISH_OBJ_UP	CHAR	10	0	IS-H: Object that changed services
75	ABTYP	☐	LEI_ABTYP	ISH_ABTYP	CHAR	4	0	IS-H: Billing Category for Individual Billing Control	TN21Y
76	TCODE	☐	ISH_TCODE	TCODE	CHAR	20	0	IS-H: Report Control: Transaction Code for Application	*
77	ABRMA	☐	MANUELL	XFELD	CHAR	1	0	IS-H: Default Value Changed Manually
78	EAUFN	☐	ISH_KAUFN	AUFNR	CHAR	12	0	IS-HCO: Cost Object (Order)	*
79	BZLST	☐	ISH_BZLST	LNRLS	CHAR	10	0	IS-HCO: Sequence Number of Reference Service
80	KTRKZ	☐	ISH_KTRKZ	XFELD	CHAR	1	0	IS-H: Service is Cost Object
81	BFORM	☐	BFORMEL	BFORMEL	CHAR	2	0	IS-H: Valuation Formula for Extended Services
82	ENTGA	☐	ENTGART	ENTGART	CHAR	2	0	IS-H: Charge Type for Service
83	NBGDT	☐	ISH_FDATUM	RI_DATUM	DATS	8	0	IS-H: Date of Next Extended Service
84	NBGZT	☐	ISH_FZEIT	UHRZT	TIMS	6	0	IS-H: Start Time of Subsequent Extended Service
85	ZOTYP	☐	ISH_ZUOTYP	ISH_ZUOTYP	CHAR	3	0	IS-H: Type of Service Assignment	TNT0
86	PZAHL	☐	ISH_PZAHL	ISH_PZAHL	DEC	11	2	IS-H: Charge Factor
87	REFKY	☐	REFKY	ISH_REFKY	CHAR	20	0	IS-H: Reference Code for Service from External System
88	EXCAT	☐	ISH_EXTCAT	ISH_EXTCAT	CHAR	20	0	IS-H: Classification for External Communication
89	USER0	☐	ISH_USER00	ISH_C20	CHAR	20	0	IS-H: Customer-Specific Field 1
90	USER1	☐	ISH_USER01	ISH_C20	CHAR	20	0	IS-H: Customer-Specific Field 2
91	USERDATE1	☐	ISH_USERBEGIN	RI_DATUM	DATS	8	0	IS-H: Customer-Specific Field for Start Date
92	USERDATE2	☐	ISH_USEREND	RI_DATUM	DATS	8	0	IS-H: Customer-Specific Field for End Date
93	USERTIME1	☐	ISH_USERTIME_BEGIN	UHRZT	TIMS	6	0	IS-H: Customer-Specific Field for Start Time
94	USERTIME2	☐	ISH_USERTIME_END	UHRZT	TIMS	6	0	Customer-Specific Field for End Time
95	USERPRICE1	☐	ISH_USERPRICE	WERT6	CURR	11	2	IS-H: Customer-Specific Field for Amount
96	USERAMOUNT1	☐	ISH_USERAMOUNT	MENGE	QUAN	13	3	IS-H: Customer-Specific Field for Quantity
97	USERUNIT1	☐	ISH_USERUNIT	MEINS	UNIT	3	0	IS-H: Customer-Specific Field for Unit	*
98	USERSIGN1	☐	ISH_USERSIGN_1	XFELD	CHAR	1	0	IS-H: Customer-Specific Checkbox 1
99	USERSIGN2	☐	ISH_USERSIGN_2	XFELD	CHAR	1	0	IS-H: Customer-Specific Field for Checkbox 2
100	SEQUE	☐	ISH_INPUT_SEQUENCE	NUMC10	NUMC	10	0	IS-H: Entry Sequence for Object
101	USER2	☐	ISH_USER02	ISH_C20	CHAR	20	0	IS-H: Customer-Specific Field 3
102	USERTEXT1	☐	ISH_USERTEXT1	TEXT_80	CHAR	80	0	IS-H: Customer-Specific Field for Free Text
103	VIEWTYPE	☐	NVIEWTYPE	NVIEWTYPE	CHAR	3	0	View Type
104	FORMNAME	☐	ISH_FORM_NAME		CHAR	15	0	IS-H: Form Name for Service Entry
105	FORMBELNR	☐	ISH_FORM_BELNR		NUMC	2	0	IS-H: Document Number of Service Form
106	NLSLOK	☐	N1LSLOK	N2_DIALO	CHAR	2	0	Localization of Service	TN26E
107	MDIND	☐	NWCH_MDIND	XFELD	CHAR	1	0	IS-H: Service for Medical Indication
108	BGMAN	☐	ISH_BGMAN	XFELD	CHAR	1	0	IS-H: Manually Set Service Start
109	EDMAN	☐	ISH_EDMAN	XFELD	CHAR	1	0	IS-H: Manually Set Service End
110	BEWMAN	☐	ISH_BEWMAN	XFELD	CHAR	1	0	IS-H: Movement Assignment Set Manually
111	TIMESTAMP	☐	ISH_TIMESTAMP	TZNTSTMPS	DEC	15	0	IS-H: Time Stamp in Short Form (YYYYMMDDhhmmss)
112	DBCNR	☐	ISH_NL_DBCNR	ISH_NL_DBCNR	NUMC	10	0	Laufende Nummer DBC-code
113	CONVSIGN	☐	ISH_CONVSIGN	XFELD	CHAR	1	0	IS-H: Indicator that Service Generated by Remapping
114	WISSCD	☐	NWCH_WISSCODE	NWCH_WISSCODE	CHAR	2	0	IS-H: EA Wissenschaftlichkeitscode einer Leistung
115	MEDUNIT	☐	NWCH_MEDUNIT	MEINS	UNIT	3	0	IS-H: Verabreichungseinheit	*
116	LNRLM	☐	ISH_LNRLP	ISH_LNRLM	CHAR	10	0	IS-H MM: Sequence Number of Material Consumption
117	.INCLUDE	☐				0	0	Erbrachte Leistungen (Zusatzfelder Österreich)
118	HIC_FREE	☐	NWAT_HIC_FREE	ISH_ON_OFF	CHAR	1	0	Kennzeichen Kassenfreie Leistung
119	ORDNR	☐	ISH_ORDNR_C20	ISH_C20	CHAR	20	0	Auftragsnummer (20 stellig)
120	.INCLUDE	☐				0	0	Erbrachte Leistungen (Zusatzfelder Schweiz)
121	LABTYP	☐	NWCH_LABTYP	NWCH_LABTYP	CHAR	1	0	IS-H CH: Typ des leistungserbringenden Labors
122	BEAG	☐	NWCH_BEAG	XFELD	CHAR	1	0	IS-H CH: Kennzeichen, betrieblich externer Auftraggeber
123	LAAMB	☐	ISH_LAAMB	ISH_LAAMB	CHAR	2	0	Service Type P301 Outpatient
124	LSCHL	☐	ISH_LSCHL		CHAR	20	0	Service Code P301 Outpatient
125	ABRTX	☐	ISH_BILLING_REASON	ISH_TXT70	CHAR	70	0	IS-H: Billing Reason
126	ENTGAMB	☐	ISH_ENTGAMB		CHAR	8	0	Charge Type P301 for Outpatient Institutions
127	EVENT_EVENT	☐	N1_RADEREIGNIS	N1_RADEREIGNIS	NUMC	2	0	RAD Event
128	EVENT_LNRLS	☐	LNRLS	LNRLS	CHAR	10	0	IS-H: Service Sequence Number
129	EVENT_ERBOE	☐	ERBOE	ORGID	CHAR	8	0	IS-H: Organizational Unit that Performs the Service	*
130	EVENT_ANFOE	☐	ANFOE	ORGID	CHAR	8	0	IS-H: Departmental Org. Unit Requesting Service	*
131	EVENT_DATUM	☐	I_BDT_LS	RI_DATUM	DATS	8	0	IS-H: Date when Service Performance Starts (Actual)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	NLEI_EXT	ABTYP	TN21Y	ABTYP	REF	1	CN
2	NLEI_EXT	ANFOE	NORG	ORGID	REF	1	CN
3	NLEI_EXT	ANPOE	NORG	ORGID	REF	1	CN
4	NLEI_EXT	EINRI	TN01	EINRI	KEY	1	CN
5	NLEI_EXT	ERBOE	NORG	ORGID	REF	1	CN
6	NLEI_EXT	FALNR	NFAL	FALNR	KEY	1	CN
7	NLEI_EXT	HAUST	TNK01	KATID	REF	1	CN
8	NLEI_EXT	ICPMK	TNK01	KATID	REF	C	CN
9	NLEI_EXT	ICPML	NTPK	TALST	REF	C	CN
10	NLEI_EXT	LFDBEW	NBEW	LFDNR	REF	1	CN
11	NLEI_EXT	MANDT	T000	MANDT	KEY	1	CN
12	NLEI_EXT	MATNR	MARA	MATNR	KEY	1	CN
13	NLEI_EXT	NLSLOK	TN26E	DIALO	REF	C	CN
14	NLEI_EXT	ORGID	NORG	ORGID	KEY	1	CN
15	NLEI_EXT	REFBEW	NBEW	LFDNR	REF	C	CN
16	NLEI_EXT	TARIF	TNK01	KATID	REF	C	CN
17	NLEI_EXT	ZOTYP	TNT0	ZOTYP	KEY	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
