SAP ABAP Table CAUV_CLEAR (CAUFVD fields, that are initialised for order with ref.)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-CIC (Application Component) Interaction Center WinClient
     ⤷ CO (Package) R/3 Application development: PP Production orders

Basic Data

Table Category	INTTAB	Structure

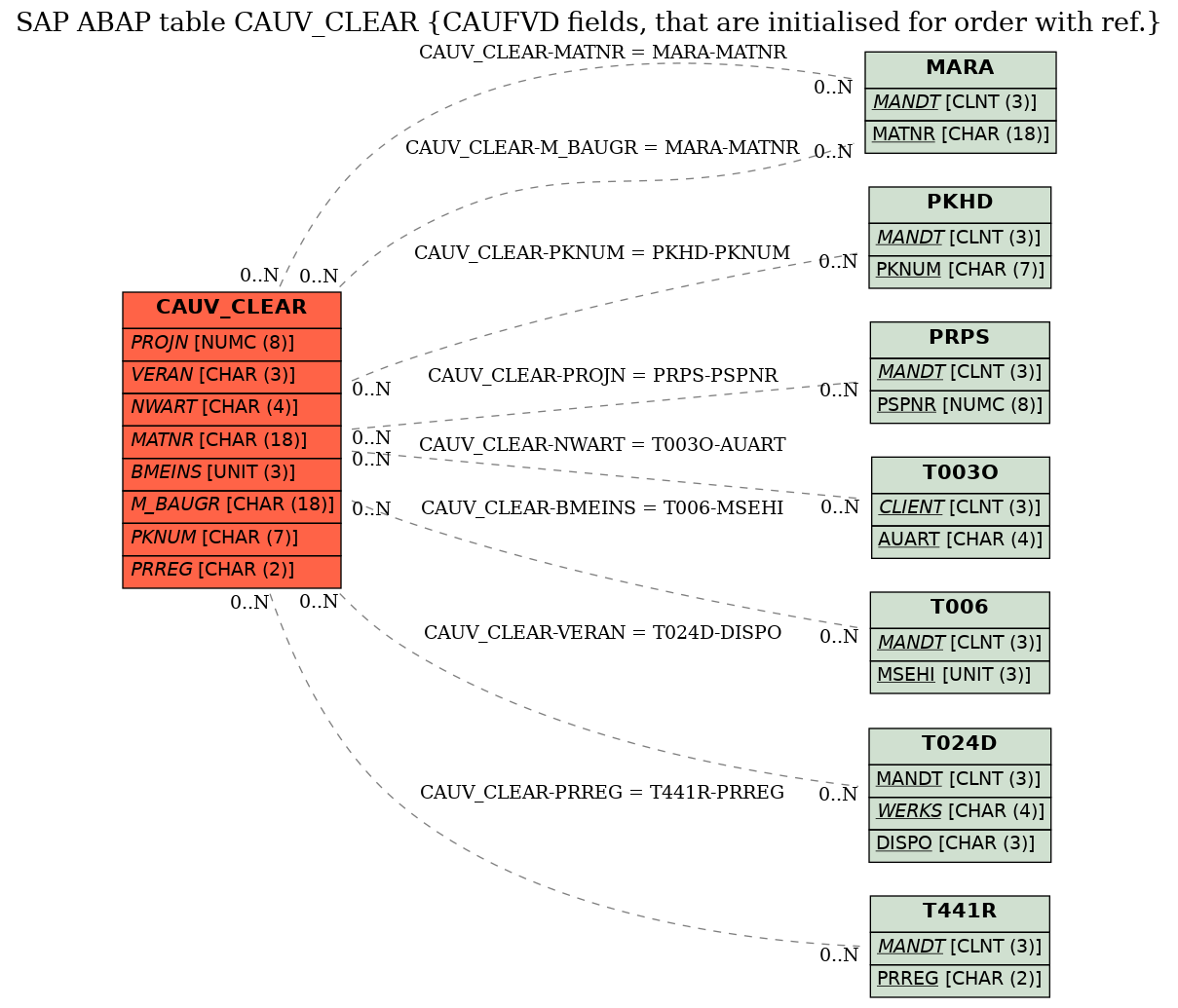

Structure	CAUV_CLEAR	Table Relationship Diagram
Short Description	CAUFVD fields, that are initialised for order with ref.

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Further data fields for order header
2	MATXT	☐	CO_MATXT	TEXT40	CHAR	40	0	Material description
3	KONTI	☐	CO_KONTI	KREUZ	CHAR	1	0	Account assignment
4	STTXT	☐	CO_STTXT	CHAR40	CHAR	40	0	System Status
5	ASTEX	☐	CO_ASTEX	KREUZ	CHAR	1	0	User status active
6	TXTKZ	☐	CO_LTEXT	XFELD	CHAR	1	0	Long text exists
7	STDNR	☐	PLNNR_REF	PLNNR	CHAR	8	0	Number of standard networks to be copied
8	AVOUEB	☐	AVOUEB	CHAR1	CHAR	1	0	Indicator: Display operation overview
9	PRTRV	☐	PRTRV	XFELD	CHAR	1	0	Indicator: Project date definition
10	PROJN	☐	PS_PSP_PNR	PS_POSNR	NUMC	8	0	Work Breakdown Structure Element (WBS Element)	PRPS
11	SLDTV	☐	CO_SDATV	DATUM	DATS	8	0	From selection date
12	SLDTB	☐	CO_SDATB	DATUM	DATS	8	0	To selection date
13	FLG_TERM	☐	FLG_TERM	XFELD	CHAR	1	0	Indicator: Scheduling must take data changes into account
14	FLG_TERDIA	☐	FLG_TERDIA	CHAR1	CHAR	1	0	Indicator: Refill dialog table for scheduling
15	FLG_DIRECT	☐	FLG_DIRECT	CHAR1	CHAR	1	0	Indicator: Direct function call
16	FLG_TRMV	☐	FLG_TRMV	KREUZ	CHAR	1	0	Indicator: Operation changes relevant to scheduling
17	FLG_TRME	☐	FLG_TRME	KREUZ	CHAR	1	0	Indicator: Scheduling is carried out at least once
18	GWEMG	☐	CO_GWEMG	MENG13	QUAN	13	3	Delivered quantity
19	GIAMG	☐	CO_GIAMG	MENG13	QUAN	13	3	Expected variance from planned qty to be delivered to stock
20	MIMEZ	☐	CO_MIMEZ	MENGV13	QUAN	13	3	Expected yield variance
21	APROZ	☐	CO_APROZ	DEC3_2	DEC	5	2	Scrap percentage
22	IAPRZ	☐	CO_APROZ	DEC3_2	DEC	5	2	Scrap percentage
23	VERAN	☐	VANTW	DISPO	CHAR	3	0	Person/Group responsible for the network	T024D
24	NWART	☐	NWART	AUFART	CHAR	4	0	Type of network	T003O
25	POSNR	☐	CO_POSNR	CO_POSNR	NUMC	4	0	Order item number
26	REDKZ_TX	☐	REDKZ_TX	TEXT40	CHAR	40	0	Description of reduction indicator
27	TERKZ_TX	☐	TERMKZ_TXT	TEXT30	CHAR	30	0	Description of scheduling type
28	TRKZP_TX	☐	TERMKZ_TXT	TEXT30	CHAR	30	0	Description of scheduling type
29	PLART_TX	☐	PLART_TX	TEXT40	CHAR	40	0	Description of the basis for scheduling
30	TMBAS	☐	PS_TERMBAS	PS_PLART	CHAR	1	0	Set of dates for network
31	TMBAS_TX	☐	TMBAS_TX	TEXT40	CHAR	40	0	Description of the planning type
32	MATNR	☐	CO_MATNR	MATNR	CHAR	18	0	Material Number for Order	MARA
33	FLG_PRINT	☐	FLG_PRINT	KREUZ	CHAR	1	0	Indicator: Order still to be printed (internal field)
34	ARTTEXT	☐	TEXT40	TEXT40	CHAR	40	0	Text, 40 Characters Long
35	ASTTX	☐	CO_ASTTX	CHAR40	CHAR	40	0	Field displaying user status
36	KORRK	☐	CO_KORRK	XFELD	CHAR	1	0	Order conversion with the possibility of making corrections
37	FREIKZ	☐	CO_FREIKZ	XFELD	CHAR	1	0	Indicator: Release order immediately
38	PLAFKZ	☐	CO_PLAFKZ	CHAR1	CHAR	1	0	Indicator: Convert planned order with RSNUM
39	UMSKZ	☐	CO_UMSKZ	CHAR1	CHAR	1	0	Indicator: Collective conversion of planned orders
40	BMEINS	☐	MEINS	MEINS	UNIT	3	0	Base Unit of Measure	T006
41	BMENGE	☐	BASMN	MENG13	QUAN	13	3	Base quantity
42	BAUMNG	☐	BASMN	MENG13	QUAN	13	3	Base quantity
43	FLG_CALC	☐	FLG_CALC	KREUZ	CHAR	1	0	Indicator: Order (network etc.) still to be calculated
44	LOSGR	☐	CK_LOSGR	MENG13	QUAN	13	3	Costing lot size
45	TYPKZ	☐	TYPKZ	TYPKZ	CHAR	1	0	Type of object causing the load (order category)
46	CREA_APL	☐	CREA_APL	CHAR1	CHAR	1	0	Application code, where the order/network was created
47	INDBT	☐	TABIX_D	TABIX	INT4	10	0	Field defined as in SY-TABIX
48	O_SALDO	☐	O_SALDO	WERTV8	CURR	15	2	Order balance in order currency
49	K_SALDO	☐	K_SALDO	WERTV8	CURR	15	2	Order balance in controlling-area currency
50	M_BAUGR	☐	CO_MBAUGR	MATNR	CHAR	18	0	Superior assembly	MARA
51	FLG_RUCK	☐	FLG_RUCK	XFELD	CHAR	1	0	Ind: Confirmation to be saved
52	FLG_SERV	☐	FLG_SERV	XFELD	CHAR	1	0	Ind: Services must be updated
53	PSPNR	☐	PS_SPS_ELE	PS_SPSNR	NUMC	8	0	Standard WBS element	*
54	FLG_LVS	☐	FLG_LVS	KREUZ	CHAR	1	0	Indicator: WM relevant change made
55	FLG_ADDR	☐	FLG_ADDR	XFELD	CHAR	1	0	Ind: Address update must be called up
56	FLG_LFINF	☐	FLG_LFINF	XFELD	CHAR	1	0	Ind.: Book delivery information
57	AUCOST	☐	CO_AUCOST	KREUZ	CHAR	1	0	Indicator: Cost automatically
58	AUTERM	☐	CO_AUTERM	KREUZ	CHAR	1	0	Indicator: Schedule automatically
59	FLG_FREI	☐	CO_TM_FREI	CHAR1	CHAR	1	0	Indicator: Order is (partially) released
60	FLG_TABG	☐	CO_TM_TABG	CHAR1	CHAR	1	0	Indicator: Order is technically completed
61	FLG_PARENT	☐	FLG_PARENT	KREUZ	CHAR	1	0	Indicator: Order has dependent orders
62	NSTART_TRM	☐	NSTART_TRM	DATUM	DATS	8	0	Scheduled start date of collective order (date)
63	NSTT_TRM	☐	NSTT_TRM	UHRZT	TIMS	6	0	Scheduled start collective order (time)
64	NEND_TRM	☐	NEND_TRM	DATUM	DATS	8	0	Scheduled finish date of collective order (date)
65	NENT_TRM	☐	NENT_TRM	UHRZT	TIMS	6	0	Scheduled finish collective order (time)
66	NSTART_IST	☐	NSTART_IST	DATUM	DATS	8	0	Actual start collective order (date)
67	NSTT_IST	☐	NSTT_IST	UHRZT	TIMS	6	0	Actual start collective order (time)
68	NEND_IST	☐	NEND_IST	DATUM	DATS	8	0	Actual finish for collective order (date)
69	NENT_IST	☐	NENT_IST	UHRZT	TIMS	6	0	Actual finish collective order (time)
70	AUKBED	☐	AUKBED	XFELD	CHAR	1	0	Indicator: Calculate capacity requirements
71	AUDISP	☐	AUDISP_PLUS	AUDISP	CHAR	1	0	Reservation Relevance/Generation of Purchase Requisition
72	CONV_FEHL	☐	XFELD	XFELD	CHAR	1	0	Checkbox
73	PKNUM	☐	PKNUM	PKNUM	CHAR	7	0	Control cycle number	PKHD
74	PKPOS	☐	PKPOS	PKPOS	NUMC	3	0	Kanban item number / control cycle item
75	FEHL	☐	XFELD	XFELD	CHAR	1	0	Checkbox
76	PRREG	☐	PRREG	PRREG	CHAR	2	0	Checking rule for the availability check	T441R
77	FLG_CRPROJ	☐	FLAG	FLAG	CHAR	1	0	General Flag
78	MA_UNBW	☐	FLAG	FLAG	CHAR	1	0	General Flag
79	KZAVC	☐	KZAVC	KZAVC	CHAR	1	0	Indicator for type of availability check
80	PRMBD	☐	CO_PRMBD	CHAR1	CHAR	1	0	Check with requirements
81	VBELN	☐	CO_KDAUF	VBELN	CHAR	10	0	Sales order number	*
82	VBELP	☐	CO_KDPOS	POSNR	NUMC	6	0	Sales order item	*
83	KONSI	☐	CO_KONSI	CHAR1	CHAR	1	0	Selection: Consignment stock
84	LEIHG	☐	CO_LEIHG	CHAR1	CHAR	1	0	Selection: Returnable packaging
85	FLG_IMMO	☐	AEKNZ	FLAG	CHAR	1	0	Change indicator
86	FLG_HHM	☐	AEKNZ	FLAG	CHAR	1	0	Change indicator
87	FLG_AIPP	☐	AEKNZ	FLAG	CHAR	1	0	Change indicator
88	FLG_ASS	☐	AEKNZ	FLAG	CHAR	1	0	Change indicator
89	FLG_AIB	☐	AEKNZ	FLAG	CHAR	1	0	Change indicator
90	FLG_AFAS	☐	AEKNZ	FLAG	CHAR	1	0	Change indicator
91	FLG_PMSD	☐	AEKNZ	FLAG	CHAR	1	0	Change indicator
92	FLGSER	☐	FLGSER	XFELD	CHAR	1	0	Serial Number with Incomplete Equipment
93	AUFKT	☐	AFAKT	AFAKT	DEC	3	0	Execution Factor
94	LINE	☐	LD_LINE	ARBPL	CHAR	8	0	Line hierarchy
95	TXCHG	☐	TXCHG	XFELD	CHAR	1	0	Indicator: long text changed
96	FLG_COMMUNICATION	☐	AEKNZ	FLAG	CHAR	1	0	Change indicator
97	ACT_CHANGED	☐	XFELD	XFELD	CHAR	1	0	Checkbox
98	FLG_MD	☐	CO_FLGMD	COFLGMD	NUMC	1	0	FAUF: Reading of master data executed
99	MDSTP	☐	TIMESTAMPL	TZNTSTMPL	DEC	21	7	UTC Time Stamp in Long Form (YYYYMMDDhhmmssmmmuuun)
100	NPLDA	☐	NPLDA	DATUM	DATS	8	0	Next planned date
101	IGMNG	☐	CO_IGMNG	MENG13	QUAN	13	3	Yield confirmed from order confirmation
102	IASMG	☐	CO_IASMG	MENG13	QUAN	13	3	Scrap confirmed for order
103	ABARB	☐	CO_ABARB	CO_ABARB	NUMC	3	0	Confirmation: Degree of processing
104	PLAUF	☐	CO_PLAUF	DATUM	DATS	8	0	Date for routing transfer
105	TRMS	☐	CO_FTRMS	DATUM	DATS	8	0	Scheduled release date
106	FTRMS	☐	CO_FTRMS	DATUM	DATS	8	0	Scheduled release date
107	FTRMI	☐	CO_FTRMI	DATUM	DATS	8	0	Actual release date
108	FTRMP	☐	CO_FTRMP	DATUM	DATS	8	0	Planned release date
109	GLTRP	☐	CO_GLTRP	DATUM	DATS	8	0	Basic finish date
110	GSTRP	☐	CO_GSTRP	DATUM	DATS	8	0	Basic start date
111	GLTRS	☐	CO_GLTRS	DATUM	DATS	8	0	Scheduled finish
112	GSTRS	☐	CO_GSTRS	DATUM	DATS	8	0	Scheduled start
113	GSTRI	☐	CO_GSTRI	DATUM	DATS	8	0	Actual start date
114	GLTRI	☐	CO_GLTRI	DATUM	DATS	8	0	Actual finish date
115	GETRI	☐	CO_GETRI	DATUM	DATS	8	0	Confirmed Order Finish Date
116	REDKZ	☐	REDKZ	REDKZ	CHAR	1	0	Reduction indicator for scheduling
117	ERNAM	☐	AUFERFNAM	USNAM	CHAR	12	0	Entered by
118	ERDAT	☐	AUFERFDAT	DATUM	DATS	8	0	Created on
119	AENAM	☐	AUFAENAM	USNAM	CHAR	12	0	Last changed by
120	AEDAT	☐	AUFAEDAT	DATUM	DATS	8	0	Change date for Order Master
121	ERFZEIT	☐	CO_INS_TIME	UZEIT	TIMS	6	0	Time created
122	AEZEIT	☐	CO_CHG_TIME	UZEIT	TIMS	6	0	Changed at
123	LOEKZ	☐	AUFLOEKZ	XFELD	CHAR	1	0	Deletion flag
124	CCKEY	☐	CCKEY	CCKEY	CHAR	23	0	Cost collector key
125	OBJID	☐	CCOBJID	CHAR1	CHAR	1	0	Object ID
126	PLGKZ	☐	PLGKZ	XFELD	CHAR	1	0	Identifier for planning with line items
127	PRUEFLOS	☐	QPLOS	QPLOS	NUMC	12	0	Inspection Lot Number	*
128	GLTPP	☐	CO_GLTPP	DATUM	DATS	8	0	Finish date (forecast)
129	GSTPP	☐	CO_GSTPP	DATUM	DATS	8	0	Forecast start date
130	GLTPS	☐	CO_GLTPS	DATUM	DATS	8	0	Scheduled forecast finish
131	GSTPS	☐	CO_GSTPS	DATUM	DATS	8	0	Scheduled forecast start
132	FTRPS	☐	CO_FTRPS	DATUM	DATS	8	0	Scheduled release date (forecast)
133	RDKZP	☐	REDKZP	REDKZ	CHAR	1	0	Reduction indicator for scheduling (forecast)
134	KUNUM	☐	KUNUM	KUNNR	CHAR	10	0	Customer Number	*
135	BEDID	☐	BEDID	BEDID	NUMC	12	0	ID of the capacity requirements record	*
136	AUFNT	☐	CO_TEILNET	AUFNR	CHAR	12	0	Number of superior network	*
137	AUFPT	☐	CO_AUFPL	AUFPL	NUMC	10	0	Routing number of operations in the order
138	APLZT	☐	CO_APLZL	CO_APLZL	NUMC	8	0	General counter for order	*
139	PSPEL	☐	PS_PSP_PNR	PS_POSNR	NUMC	8	0	Work Breakdown Structure Element (WBS Element)	*
140	PRONR	☐	PS_PSP_PRO	PS_PSPNR	NUMC	8	0	Project definition	*
141	RUECK	☐	CO_RUECK	CO_RUECK	NUMC	10	0	Completion confirmation number for the operation
142	RMZHL	☐	CIM_COUNT	CIM_COUNT	NUMC	8	0	Internal counter
143	STATS	☐	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	*
144	GLUZS	☐	CO_GLUZS	UHRZT	TIMS	6	0	Scheduled finish time
145	GSUZS	☐	CO_GSUZS	ATIME	TIMS	6	0	Scheduled Start (Time)
146	GLUZP	☐	CO_GLUZP	UHRZT	TIMS	6	0	Basic finish (time)
147	GSUZP	☐	CO_GSUZP	UHRZT	TIMS	6	0	Basic start time
148	GSUZI	☐	CO_GSUZI	UHRZT	TIMS	6	0	Actual start time
149	GEUZI	☐	CO_GEUZI	UHRZT	TIMS	6	0	Confirmed order finish (time)
150	GLUPP	☐	CO_GLUPP	UHRZT	TIMS	6	0	Forecast finish (time)
151	GSUPP	☐	CO_GSUPP	UHRZT	TIMS	6	0	Forecast start (time)
152	GLUPS	☐	CO_GLUPS	UHRZT	TIMS	6	0	Scheduled forecast finish time
153	GSUPS	☐	CO_GSUPS	UHRZT	TIMS	6	0	Scheduled start time (Forecast)
154	PNETSTART	☐	CO_PSTARTT	ATIME	TIMS	6	0	Start time of a collective order
155	PNETENDT	☐	CO_PENDT	ATIME	TIMS	6	0	Outline finish time
156	TRMDT	☐	TRMDT	DATUM	DATS	8	0	Date of the last scheduling
157	PNETSTARTD	☐	CO_PSTARTD	DATUM	DATS	8	0	Outline start of collective network (date)
158	PNETENDD	☐	CO_PENDD	DATUM	DATS	8	0	Outline finish of collective order (date)
159	IDAT2	☐	AUFIDAT2	DATUM	DATS	8	0	Technical completion date
160	PROTY	☐	CKML_PROZESS_TYP	CKML_PROZESS_TYP	CHAR	4	0	Process Category (Procurement/Consumption)	*
161	PROCNR	☐	CKML_F_PROCNR	CK_KALNR	NUMC	12	0	Production Process	*
162	PKOSA	☐	PKOSA_D	AUFNR	CHAR	12	0	Cost collector for production process PROCNR	*
163	.INCLUDE	☐				0	0	Include structure order header for versions
164	VSNMR	☐	VSNMR	VSNMR	CHAR	12	0	Number or description of a version
165	ORGKEY	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	*
166	EXT_AUFNR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	*
167	INACT	☐	VSINACT	XFELD	CHAR	1	0	Version inactive indicator
168	RMNGA	☐	RMNGA	MENGV13	QUAN	13	3	Total confirmed rework quantity

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CAUV_CLEAR	BMEINS	T006	MSEHI
2	CAUV_CLEAR	MATNR	MARA	MATNR
3	CAUV_CLEAR	M_BAUGR	MARA	MATNR
4	CAUV_CLEAR	NWART	T003O	AUART
5	CAUV_CLEAR	PKNUM	PKHD	PKNUM
6	CAUV_CLEAR	PROJN	PRPS	PSPNR
7	CAUV_CLEAR	PRREG	T441R	PRREG
8	CAUV_CLEAR	VERAN	T024D	DISPO

History

Last changed by/on	SAP	20130529
SAP Release Created in
