SAP ABAP Table CATSHRLST (CATSHR + light)

Hierarchy

☛ SAP_HRRXX (Software Component) Sub component SAP_HRRXX of SAP_HR
   ⤷ PT-RC-AA (Application Component) Attendances/Absences
     ⤷ PTCA (Package) HR Time Management Cross-Application Components

Basic Data

Table Category	INTTAB	Structure

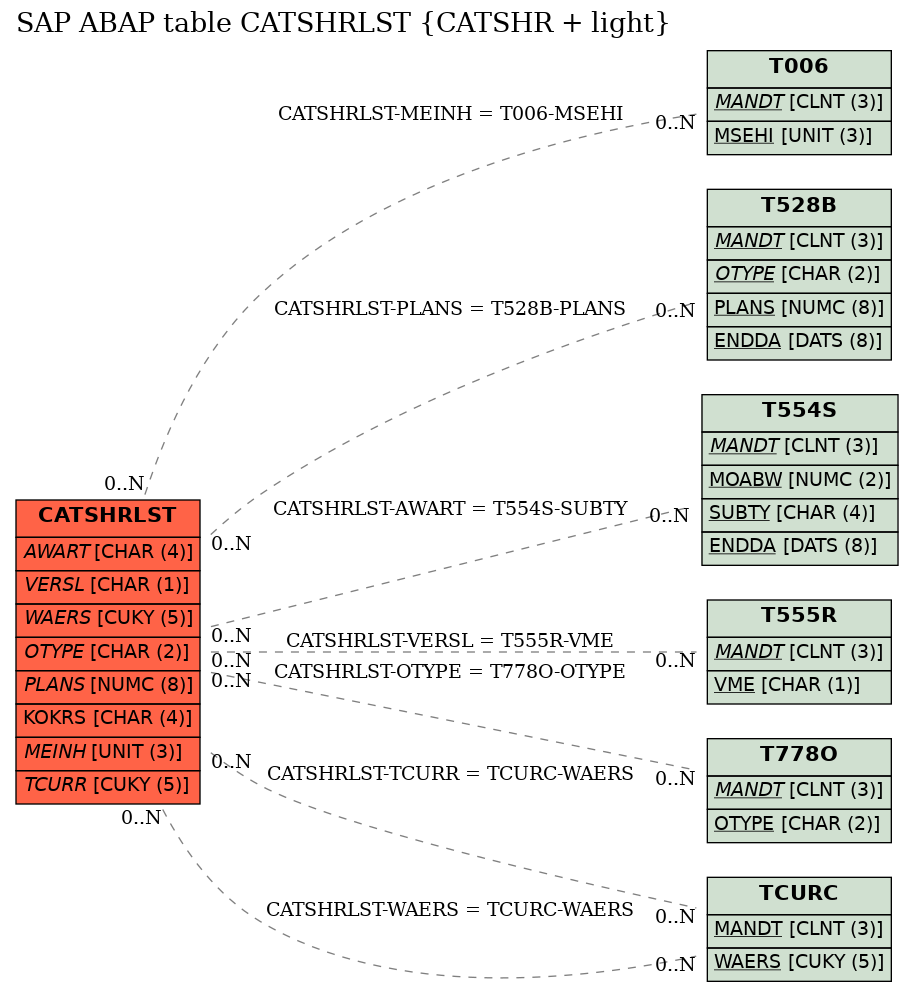

Structure	CATSHRLST	Table Relationship Diagram
Short Description	CATSHR + light

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Cross-Application Time Sheet (CATS): Transfer to HR
2	.INCLUDE	☐				0	0	CATS: Key fields
3	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
4	COUNTER	☐	CATSCOUNTE	CHAR12	CHAR	12	0	Counter for Records in Time Recording
5	STOKZ	☐	CO_STOKZ	FLAG	CHAR	1	0	Indicator: Document Has Been Reversed
6	.INCLUDE	☐				0	0	CATS: Secondary key
7	PERNR	☐	PERNR_D	PERNR	NUMC	8	0	Personnel Number
8	WORKDATE	☐	CATSDATE	DATUM	DATS	8	0	Date
9	.INCLUDE	☐				0	0	Substructure of Interface File for Log
10	UNAME1	☐	PW_UNAME1	UNAME	CHAR	12	0	User who wrote record to interface
11	DATUM1	☐	PW_DATUM1	DATUM	DATS	8	0	Date on which record was written to interface
12	UZEIT1	☐	PW_UZEIT1	UZEIT	TIMS	6	0	Time at which record was written to interface
13	PGMID1	☐	PW_PGMID1	PROGNAME	CHAR	40	0	Write Record to Interface Report
14	UNAME2	☐	PW_UNAME2	UNAME	CHAR	12	0	Name of user who initially accessed record
15	DATUM2	☐	PW_DATUM2	DATUM	DATS	8	0	Date on which record was initially accessed
16	UZEIT2	☐	PW_UZEIT2	UZEIT	TIMS	6	0	Time at which record was initially accessed
17	PGMID2	☐	PW_PGMID2	PROGNAME	CHAR	40	0	Report used to access record initially
18	STATU2	☐	PW_STATU2	PW_STATU	CHAR	1	0	Log status when record was first accessed
19	UNAME3	☐	PW_UNAME3	UNAME	CHAR	12	0	Last user to access record
20	DATUM3	☐	PW_DATUM3	DATUM	DATS	8	0	Date on which record was last accessed
21	UZEIT3	☐	PW_UZEIT3	UZEIT	TIMS	6	0	Time at which record was last accessed
22	PGMID3	☐	PW_PGMID3	PROGNAME	CHAR	40	0	Last Used to Access Record Program
23	STATU3	☐	PW_STATU3	PW_STATU	CHAR	1	0	Log status when record was last accessed
24	UNAME4	☐	PW_UNAME4	UNAME	CHAR	12	0	User who first retrieved the record successfully
25	DATUM4	☐	PW_DATUM4	DATUM	DATS	8	0	Date on which record was first retrieved successfully
26	UZEIT4	☐	PW_UZEIT4	UZEIT	TIMS	6	0	Time at which record was first retrieved successfully
27	PGMID4	☐	PW_PGMID4	PROGNAME	CHAR	40	0	Report first used to retrieve record successfully
28	SKOSTL	☐	SKOSTL	KOSTL	CHAR	10	0	Sender Cost Center	*
29	LSTAR	☐	LSTAR	LSTAR	CHAR	6	0	Activity Type	*
30	SEBELN	☐	SEBELN	EBELN	CHAR	10	0	Sending purchase order	*
31	SEBELP	☐	SEBELP	EBELP	NUMC	5	0	Sending purchase order item	*
32	LSTNR	☐	LSTNR	MATNR	CHAR	18	0	Service number	*
33	SPRZNR	☐	SPRZNR	CO_PRZNR	CHAR	12	0	Sender Business Process	*
34	RKOSTL	☐	EKOSTL	KOSTL	CHAR	10	0	Receiver Cost Center	*
35	RPROJEXT	☐	PS_POSID	PS_POSID	CHAR	24	0	Work Breakdown Structure Element (WBS Element)
36	RAUFNR	☐	EAUFNR	AUFNR	CHAR	12	0	Receiver Order	*
37	RNPLNR	☐	NW_AUFNR	AUFNR	CHAR	12	0	Network number	*
38	VORNR	☐	VORNR	VORNR	CHAR	4	0	Operation/Activity Number
39	UVORN	☐	UVORN	VORNR	CHAR	4	0	Suboperation
40	RKDAUF	☐	EKDAU	VBELN	CHAR	10	0	Receiver sales order	*
41	RKDPOS	☐	EKDPO	POSNR	NUMC	6	0	Item number in receiver sales order	*
42	RKSTR	☐	EKSTR	KSTRG	CHAR	12	0	Receiver cost object	*
43	RPRZNR	☐	EPRZNR	CO_PRZNR	CHAR	12	0	Receiver business process	*
44	AWART	☐	AWART	AWART	CHAR	4	0	Attendance or Absence Type	T554S
45	LGART	☐	LGART	LGART	CHAR	4	0	Wage Type	*
46	REINR	☐	REINR	REINR	NUMC	10	0	Trip Number
47	VERSL	☐	VRSCH	VRSCH	CHAR	1	0	Overtime Compensation Type	T555R
48	BWGRL	☐	CATSBWGRL	WERTV7	CURR	13	2	Valuation basis
49	WAERS	☐	WAERS	WAERS	CUKY	5	0	Currency Key	TCURC
50	AUFKZ	☐	AUFKN	AUFKN	CHAR	1	0	Extra Pay Indicator
51	TRFGR	☐	TRFGR	TRFGR	CHAR	8	0	Pay Scale Group	*
52	TRFST	☐	TRFST	TRFST	CHAR	2	0	Pay Scale Level	*
53	PRAKN	☐	PRAKN	PRAKN	CHAR	2	0	Premium Number	*
54	PRAKZ	☐	PRAKZ	PRAKZ	NUMC	4	0	Premium Indicator
55	OTYPE	☐	OTYPE	OTYPE	CHAR	2	0	Object Type	T778O
56	PLANS	☐	PLANS	PLANS	NUMC	8	0	Position	T528B
57	KOKRS	☐	KOKRS	CACCD	CHAR	4	0	Controlling Area	*
58	MEINH	☐	MEINH	MEINS	UNIT	3	0	Unit of Measure for Display	T006
59	TCURR	☐	TWAER	WAERS	CUKY	5	0	Transaction Currency	TCURC
60	PRICE	☐	CATSPRICE	WERTV6	CURR	11	2	Price in Transaction Currency
61	ARBID	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
62	WERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	*
63	.INCLUDE	☐				0	0	CATS: Include structure for statistical information
64	ERSDA	☐	CATS_ERSDA	DATUM	DATS	8	0	Created on
65	ERSTM	☐	CATS_CPUTM	UZEIT	TIMS	6	0	Time of Entry
66	ERNAM	☐	CATS_ERNAM	USNAM	CHAR	12	0	User Who Created Record
67	LAEDA	☐	CATS_LAEDA	DATUM	DATS	8	0	Date of Last Change
68	LAETM	☐	CATS_LAETM	UZEIT	TIMS	6	0	Time of Last Change
69	AENAM	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
70	APNAM	☐	CATSAPNAM	UNAME	CHAR	12	0	Name of person who approved data
71	APDAT	☐	CATSAPDAT	DATUM	DATS	8	0	Date of Approval
72	WORKITEMID	☐	SWW_WIID	SWW_WIID	NUMC	12	0	Work item ID	*
73	LOGSYS	☐	LOGSYS	LOGSYS	CHAR	10	0	Logical system	*
74	STATUS	☐	CATSSTATUS	CATSSTATUS	CHAR	2	0	Processing status
75	REFCOUNTER	☐	CATSREFCOU	CHAR12	CHAR	12	0	Reference Counter for Record to be Changed
76	REASON	☐	CATSREASON	CATSREASON	CHAR	4	0	Reason for Rejection	*
77	BELNR	☐	CATSBELNR	BELNR	CHAR	10	0	Document number
78	EXTSYSTEM	☐	HR_AWSYS	LOGSYS	CHAR	10	0	Logical system of source document	*
79	EXTAPPLICATION	☐	HR_AWTYP	HR_AWTYP	CHAR	5	0	External Application
80	EXTDOCUMENTNO	☐	HR_AWKEY	AWKEY	CHAR	20	0	Document number
81	TASKCOUNTER	☐	CATSTASKCOUNTER	BELNR	CHAR	10	0	CATS: Task Counter
82	CATSHOURS	☐	CATSHOURS	CATSHOURS	QUAN	4	2	Hours
83	BEGUZ	☐	CATSBEGUZ	UZEIT	TIMS	6	0	Start time
84	ENDUZ	☐	CATSENDUZ	UZEIT	TIMS	6	0	End time
85	VTKEN	☐	VTKEN	XFELD	CHAR	1	0	Previous Day Indicator
86	ALLDF	☐	ALLDF	XFELD	CHAR	1	0	Record is for Full Day
87	LTXA1	☐	CATSSHORTT	TEXT40	CHAR	40	0	Short Text
88	.INCLUDE	☐				0	0
89	LIGHTS	☐	LIGHTS	AUFKN	CHAR	1	0	Stoplight Flag

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CATSHRLST	AWART	T554S	SUBTY
2	CATSHRLST	MEINH	T006	MSEHI
3	CATSHRLST	OTYPE	T778O	OTYPE
4	CATSHRLST	PLANS	T528B	PLANS
5	CATSHRLST	TCURR	TCURC	WAERS
6	CATSHRLST	VERSL	T555R	VME
7	CATSHRLST	WAERS	TCURC	WAERS

History

Last changed by/on	SAP	20130529
SAP Release Created in
