SAP ABAP Table WTYBRF_RCL_HDR (BRF Data Source: Recall Header)
Hierarchy
☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ LO-WTY (Application Component) Warranty Claim Processing
     ⤷ ISAUTO_WTY (Package) Warranty Processing
Basic Data
Table Category INTTAB    Structure

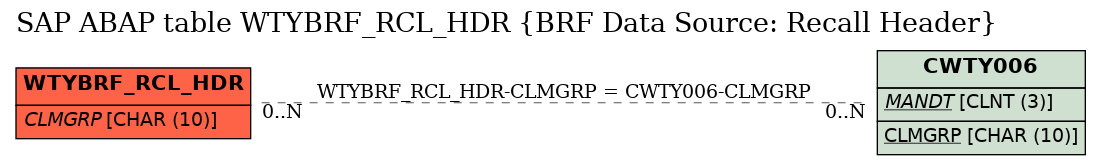

Structure WTYBRF_RCL_HDR   Table Relationship Diagram
Short Description BRF Data Source: Recall Header
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 .INCLUDE       0   0   Dialog Structure Warranty Claim Header
2 .INCLUDE       0   0   Warranty Claim Header (PVS Node)
3 MANDT MANDT MANDT CLNT 3   0   Client *
4 PNGUID WTY_PNGUID SYSUUID RAW 16   0   Internal Number of iPPE Node
5 PNCNT WTY_COUNT NUMC8 NUMC 8   0   Internal Counter
6 .INCLUDE       0   0   Time-Dependent Data Fields: PVS Component Node
7 PNTXCNT WTY_TXTCOUNT NUMC5 NUMC 5   0   Counter for Text Tables
8 .INCLUDE       0   0   Application Table Warranty Claim Header
9 CLMNO WTY_CLMNO WTY_CLMNO CHAR 12   0   Number of Warranty Claim
10 CLMTY WTY_CLMTY WTY_CLMTY CHAR 4   0   Warranty Claim Type *
11 REFDT WTY_REFDT DATE DATS 8   0   Reference Date
12 REFNO WTY_REFNO CHAR40 CHAR 40   0   External Number of Claim
13 OLDCN WTY_OLDCN WTY_CLMNO CHAR 12   0   Number of Preceding Warranty Claim
14 AUTNO WTY_AUTNO CHAR12 CHAR 12   0   Authorization Number
15 AUTNA WTY_AUTNA CHAR12 CHAR 12   0   Name of Authorizer
16 CLERK WTY_CLERK UNAME CHAR 12   0   Person Responsible
17 RELTY WTY_RELTY WTY_RELTY CHAR 4   0   Type of Warranty Object *
18 RELOB_EXT WTY_RELOB_EXT WTY_RELOB CHAR 40   0   External Object Number
19 RELOB WTY_RELOB WTY_RELOB CHAR 40   0   Internal Object Number
20 RELOT WTY_RELOT CHAR4 CHAR 4   0   Object Grouping
21 RELDT WTY_RELDT DATUM DATS 8   0   Date for Warranty Object
22 PARNR WTY_PARNR WTY_PARNR CHAR 10   0   Partner
23 PARVW WTY_PARVW WTY_PARVW CHAR 2   0   Partner Role *
24 OBJNR WTY_OBJNR WTY_OBJNR CHAR 22   0   Object Number for Status Management *
25 ASTATE WTY_ASTATE WTY_ASTATE CHAR 4   0   Processing Status of Warranty Claim
26 WERKS WTY_WERKS WTY_WERKS CHAR 4   0   Plant *
27 QMNUM WTY_QMNUM WTY_QMNUM CHAR 12   0   Notification Number *
28 LOG_HANDLE BALLOGHNDL SYSUUID_22 CHAR 22   0   Application Log: Log Handle
29 LOG_MESSAGE BALLOGHNDL SYSUUID_22 CHAR 22   0   Application Log: Log Handle
30 CLMGRP WTY_CLMGRP WTY_CLMGRP CHAR 10   0   Warranty Claim Group CWTY006
31 RESULT_OUT_MWTY WTY_CHECK_RESULT WTY_CHECK_RESULT NUMC 2   0   Result of Object Warranty Check (Customer)
32 RESULT_IN_MWTY WTY_CHECK_RESULT2 WTY_CHECK_RESULT NUMC 2   0   Result of Warranty Check for Object (Vendor)
33 RELTY2 WTY_RELTY WTY_RELTY CHAR 4   0   Type of Warranty Object *
34 RELOB_EXT2 WTY_RELOB_EXT WTY_RELOB CHAR 40   0   External Object Number
35 RELOB2 WTY_RELOB WTY_RELOB CHAR 40   0   Internal Object Number
36 SERNO WTY_SERNO GERNR CHAR 18   0   Serial Number
37 SERNO2 WTY_SERNO GERNR CHAR 18   0   Serial Number
38 CBACTIONDT WTY_RCL_VALID_TO DATS DATS 8   0   Recall Valid To
39 OR_DUMMY WTY_OR_DUMMY   INT1 3   0   Dummy Data Element for Online Reporting
40 CLOSE_DATE WTY_CLOSE_DATE DATE DATS 8   0   Date on Which Claim Was Completed
41 ARCHIV_FLAG WTY_ARCH_FLAG WTY_ARCH_FLAG CHAR 1   0   Archiving Indicator
42 .INCLUDE       0   0   Fields Defined by Customer in Warranty Claim Header
43 H_DUMMY DUMMY DUMMY CHAR 1   0   Dummy function in length 1
44 .INCLUDE       0   0   Warranty Claim Status Indicators Header
45 CTR_MODE WTY_MODE WTY_MODE CHAR 1   0   Processing Mode of Warranty Claim
46 NEW_HEADER WTY_STATUS_NEW WTY_STATUS CHAR 1   0   New Status
47 MANUAL WTY_MANUAL FLAG CHAR 1   0   Warranty Claim to Manual Processing
48 CLOSED WTY_CLOSED FLAG CHAR 1   0   Warranty Claim Processing Completed
49 .INCLUDE       0   0   Administration Data WTY Tables
50 TIMSTMP WTY_TIMSTMP TZNTSTMPL DEC 21   7   UTC Time Stamp in Long Form (YYYYMMDDhhmmss,mmmuuun)
51 CREADAT WTY_CREADAT DATUM DATS 8   0   Date of Application
52 CREABY WTY_CREABY USNAM CHAR 12   0   User Who Created Record
53 CHNGDAT WTY_CHNGDAT DATUM DATS 8   0   Date of Last Change
54 CHNGBY WTY_CHNGBY USNAM CHAR 12   0   Name of Person Responsible Who Changed Object
55 H_PNTEXT WTY_PNHTX CHAR60 CHAR 60   0   Text in Warranty Claim Header
56 LOGSYS LOGSYS LOGSYS CHAR 10   0   Logical system *
57 .INCLUDE       0   0   Dynamic Fields Warranty Claim Header
58 .INCLUDE       0   0   Dynamic Fields Warranty Claim Header RFC (Unicode)
59 DISTANCE WTY_DISTANCE FLTP_INOUT CHAR 22   0   Measurement Reading for Version
60 D_UNIT WTY_UNIT MSEC6 CHAR 6   0   Unit of Measurement *
61 EQUNR WTY_EQUNR WTY_EQUNR CHAR 18   0   Equipment Number *
62 CLMTY_DES WTY_CLMTY_DES TXT40 CHAR 40   0   Description of Warranty Claim Type
63 MODTX WTY_MODTX TEXT40 CHAR 40   0   Description of Model / Object
64 OBJCT_TXT2 WTY_MODTX TEXT40 CHAR 40   0   Description of Model / Object
65 OBJCT_TXT WTY_MODTX TEXT40 CHAR 40   0   Description of Model / Object
66 ASTATE_TXT WTY_ABDES TXT40 CHAR 40   0   Description of Processing Status of Warranty Claim
67 VALIC WTY_VALIC WERTV7 CURR 13   2   Amount Claimed by Claimant
68 VALIC_CRNCY WTY_CRNCY WAERS CUKY 5   0   Version Currency *
69 VALOV WTY_VALOV WERTV7 CURR 13   2   Amount Claimed by Reimburser
70 VALOV_CRNCY WTY_CRNCY WAERS CUKY 5   0   Version Currency *
71 VALIV WTY_VALIV WERTV7 CURR 13   2   Amount Approved by Reimburser
72 VALIV_CRNCY WTY_CRNCY WAERS CUKY 5   0   Version Currency *
73 VALOC WTY_VALOC WERTV7 CURR 13   2   Amount Approved to Claimant
74 VALOC_CRNCY WTY_CRNCY WAERS CUKY 5   0   Version Currency *
75 TEXT_EXISTS WTY_FLAG DDFLAG CHAR 1   0   Copy Price
76 FI_DOC_EXIST WTY_FI_DOC_FLAG DDFLAG CHAR 1   0   Version Posted to Accounting
77 QMART     CHAR 2   0
78 CLMGRPTX TEXT40 TEXT40 CHAR 40   0   Text, 40 Characters Long
79 ADRNR ADRNR ADRNR CHAR 10   0   Address *
80 KUNNR WTY_PARNR WTY_PARNR CHAR 10   0   Partner
81 CHANGE_FLAG WTY_CHANGE_FLAG WTY_CHANGE_FLAG CHAR 1   0   Change Indicator
82 .INCLUDE       0   0   Dynamic Fields Warranty Claim Header (No Screen Fields)
83 MEASURE_POINT     CHAR 12   0
84 BUKRS BUKRS BUKRS CHAR 4   0   Company Code *
85 LOG_MEMO_HEAD MEMORYID MEMORYID CHAR 20   0   Set/Get parameter ID *
86 REVERSAL_POST     CHAR 1   0
87 POSKT_GRP WTY_POSKT_GRP WTY_POSKT_GRP CHAR 2   0   Item Type Group
88 ORT01 WTY_ORT01 TEXT35 CHAR 35   0   Location
89 LAND1 WTY_LAND1 LAND1 CHAR 3   0   Country Key *
90 NAME1 WTY_NAME1 NAME CHAR 35   0   Name
91 VHCLE WTY_VHCLE CHAR40 CHAR 40   0   Internal Vehicle Number
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 WTYBRF_RCL_HDR CLMGRP CWTY006 CLMGRP
History
Last changed by/on SAP  20130529
SAP Release Created in 600
