SAP ABAP Table STR_CIAP_OBJ_NF (CIAP Object Structure)

Hierarchy

☛ SAP_FIN (Software Component) SAP_FIN
   ⤷ FI-LOC (Application Component) Localization
     ⤷ ID-CIAP-BR (Package) CIAP solution for Brasil

Basic Data

Table Category	INTTAB	Structure

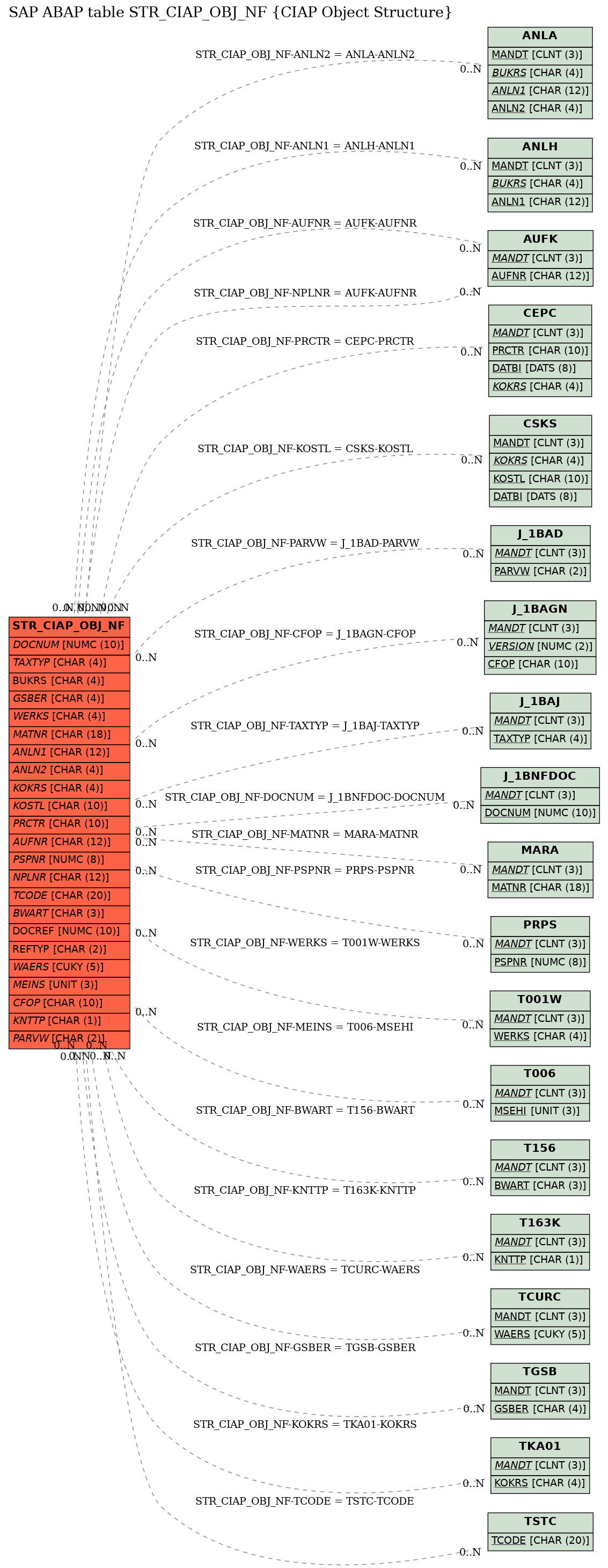

Structure	STR_CIAP_OBJ_NF	Table Relationship Diagram
Short Description	CIAP Object Structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	CIAP document data
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
3	.INCLUDE	☐				0	0	CIAP_DATA_KEY
4	GJAHR	☐	GJAHR	GJAHR	NUMC	4	0	Fiscal Year
5	DOCNUM	☐	J_1BDOCNUM	J_1BDOCNUM	NUMC	10	0	Document Number	J_1BNFDOC
6	ITMNUM	☐	J_1BITMNUM	J_1BITMNUM	NUMC	6	0	Document Item Number
7	TAXTYP	☐	J_1BTAXTYP	J_1BTAXTYP	CHAR	4	0	Tax Type	J_1BAJ
8	SERNO	☐	J_1BSERNO		NUMC	4	0	CIAP Document Number
9	.INCLUDE	☐				0	0	What and where is the CIAP object currently?
10	KNTYP	☐	J_1BKNTYP		CHAR	35	0	Object Assignment Type
11	CONDNO	☐	J_1BCIAPCNT	J_1BCIAPCNT	NUMC	2	0	CIAP Condition Number
12	BUKRS	☐	BUKRS	BUKRS	CHAR	4	0	Company Code	*
13	GSBER	☐	GSBER	GSBER	CHAR	4	0	Business Area	TGSB
14	REGIO	☐	REGIO	REGIO	CHAR	3	0	Region (State, Province, County)	*
15	BRANCH	☐	J_1BBRANC_	J_1BBRANCH	CHAR	4	0	Business Place	*
16	WERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
17	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	MARA
18	ANLN1	☐	ANLN1	ANLN1	CHAR	12	0	Main Asset Number	ANLH
19	ANLN2	☐	ANLN2	ANLN2	CHAR	4	0	Asset Subnumber	ANLA
20	KOKRS	☐	KOKRS	CACCD	CHAR	4	0	Controlling Area	TKA01
21	KOSTL	☐	KOSTL	KOSTL	CHAR	10	0	Cost Center	CSKS
22	PRCTR	☐	PRCTR	PRCTR	CHAR	10	0	Profit Center	CEPC
23	AUFNR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	AUFK
24	PSPNR	☐	PS_PSP_PNR	PS_POSNR	NUMC	8	0	Work Breakdown Structure Element (WBS Element)	PRPS
25	NPLNR	☐	NPLNR	AUFNR	CHAR	12	0	Network Number for Account Assignment	AUFK
26	KOART	☐	KOART	KOART	CHAR	1	0	Account type
27	SUP_KEY_TYPES1	☐	SUP_KEY_TYPES1	J_1BCIAPOBJ	CHAR	10	0	Additional Key 1
28	SUP_KEY_VALUE1	☐	SUP_KEY_VALUE1	J_1BCIAPVAL	CHAR	25	0	Value for Additional Key 1
29	SUP_KEY_TYPES2	☐	SUP_KEY_TYPES2	J_1BCIAPOBJ	CHAR	10	0	Additional Key 2
30	SUP_KEY_VALUE2	☐	SUP_KEY_VALUE2	J_1BCIAPVAL	CHAR	25	0	Value for Additional Key 2
31	.INCLUDE	☐				0	0	Stores the CIAP relevant line data
32	CIAP_VALUE_START	☐	J_1BCIAP_VALUE_START	DATUM	DATS	8	0	Start Date of CIAP Value in Current CIAP Document
33	CIAP_VALUE_STOP	☐	J_1BCIAP_VALUE_STOP	DATUM	DATS	8	0	End Date of CIAP Value in Current CIAP Document
34	CIAP_START_DATE	☐	J_1BCIAP_CIAP_START	DATUM	DATS	8	0	Initial Start Date of the Current CIAP Object
35	SHKZG	☐	SHKZG	SHKZG	CHAR	1	0	Debit/Credit Indicator
36	TAXVAL	☐	J_1B_CIAP_TAXVAL	J_1BTAXVAL	CURR	15	2	Tax Value
37	MENGE	☐	MENGE_D	MENG13	QUAN	13	3	Quantity
38	RET_SALE_LOSS	☐	J_1BCIAP_RET_SALE_LOSS	J_1BCIAP_RET_SALE_LOSS	CHAR	2	0	Describes how a CIAP object was deactivated
39	.INCLUDE	☐				0	0	Ciap document data
40	BLDAT	☐	BLDAT	DATUM	DATS	8	0	Document Date in Document
41	BUDAT	☐	BUDAT	DATUM	DATS	8	0	Posting Date in the Document
42	BU_TM	☐	CPUTM	UZEIT	TIMS	6	0	Time of data entry
43	ERNAM	☐	ERNAM	USNAM	CHAR	12	0	Name of Person who Created the Object
44	ERDAT	☐	ERDAT	DATUM	DATS	8	0	Date on which the record was created
45	ERDTM	☐	CPUTM	UZEIT	TIMS	6	0	Time of data entry
46	UPNAM	☐	UPNAM	USNAM	CHAR	12	0	Last Changed By
47	UPDDT	☐	UPDDT	DATUM	DATS	8	0	Date of the Last Document Update
48	UPDTM	☐	CPUTM	UZEIT	TIMS	6	0	Time of data entry
49	VORGN	☐	VORGN	VORGN	CHAR	4	0	Transaction Type for General Ledger
50	TCODE	☐	TCODE	TCODE	CHAR	20	0	Transaction Code	TSTC
51	BWASL	☐	BWASL	BWASL	CHAR	3	0	Asset Transaction Type	*
52	BWART	☐	BWART	BWART	CHAR	3	0	Movement type (inventory management)	T156
53	BELNR	☐	AWREF	AWREF	CHAR	10	0	Reference document number
54	LFDNR	☐	LFDNR4	NUMC4	NUMC	4	0	Sequence number (four characters)
55	BUZEI	☐	BUZEI	BUZEI	NUMC	3	0	Number of Line Item Within Accounting Document
56	AWKEY	☐	AWKEY	AWKEY	CHAR	20	0	Object key
57	AWTYP	☐	AWTYP	AWTYP	CHAR	5	0	Reference procedure	*
58	AWORG	☐	AWORG	AWORG	CHAR	10	0	Reference organisational units
59	AWSYS	☐	LOGSYSTEM	LOGSYS	CHAR	10	0	Logical System	*
60	DOCREF	☐	J_1BDOCREF	J_1BDOCNUM	NUMC	10	0	Reference to NF	*
61	ITMREF	☐	J_1BITMREF	J_1BITMNUM	NUMC	6	0	Reference to item number (Return)
62	REFTYP	☐	J_1BREFTYP	J_1BREFTYP	CHAR	2	0	Reference type	*
63	REFKEY	☐	J_1BREFKEY	J_1BREFKEY	CHAR	35	0	Reference to source document
64	REFITM	☐	J_1BREFITM	J_1BREFITM	NUMC	6	0	Reference item to source document
65	.INCLUDE	☐				0	0	Data set by the CIAP appl and will be used internally
66	LOG_KEY_CHAR35	☐	J_1BLOG_KEY_CHAR35		CHAR	35	0	Sender Key
67	CIAP_OBJ_FLAG	☐	J_1BCIAP_OBJ_FLAG	XFELD	CHAR	1	0	Identified as CIAP Object
68	CIAP_STATUS	☐	J_1BCIAP_STATUS		CHAR	3	0	Internal Status of the CIAP Object Set by the System
69	WAERS	☐	WAERS	WAERS	CUKY	5	0	Currency Key	TCURC
70	MEINS	☐	MEINS	MEINS	UNIT	3	0	Base Unit of Measure	T006
71	TEXT	☐	TEXT50	TEXT50	CHAR	50	0	Text Field
72	.INCLUDE	☐				0	0	Ciap Header Structure
73	CFOP	☐	J_1BCFOP	J_1BCFOP	CHAR	10	0	CFOP code and extension	J_1BAGN
74	MATUSE	☐	J_1BMATUSE	J_1BMATUSE	CHAR	1	0	Usage of the material
75	KNTTP	☐	KNTTP	KNTTP	CHAR	1	0	Account assignment category	T163K
76	PARVW	☐	J_1BPARVW	J_1BPARVW	CHAR	2	0	Nota Fiscal Partner Function	J_1BAD
77	PARID	☐	J_1BPARID	J_1BPARID	CHAR	10	0	Partner ID (Customer, Vendor, Business Place)
78	PARTYP	☐	J_1BPARTYP	J_1BPARTYP	CHAR	1	0	Nota Fiscal Partner Type
79	MODEL	☐	J_1BMODEL	J_1BMODEL	NUMC	2	0	Model of Nota Fiscal
80	SERIES	☐	J_1BSERIES	J_1BSERIES	CHAR	3	0	Series
81	SUBSER	☐	J_1BSUBSER	J_1BSUBSER	CHAR	2	0	Sub series
82	NFNUM	☐	J_1BNFNUMB	J_1BNFNUMB	NUMC	6	0	Nota Fiscal Number
83	DOCDAT	☐	J_1BDOCDAT	DATUM	DATS	8	0	Document date
84	PSTDAT	☐	J_1BPSTDAT	DATUM	DATS	8	0	Posting date

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	STR_CIAP_OBJ_NF	ANLN1	ANLH	ANLN1
2	STR_CIAP_OBJ_NF	ANLN2	ANLA	ANLN2
3	STR_CIAP_OBJ_NF	AUFNR	AUFK	AUFNR
4	STR_CIAP_OBJ_NF	BWART	T156	BWART
5	STR_CIAP_OBJ_NF	CFOP	J_1BAGN	CFOP
6	STR_CIAP_OBJ_NF	DOCNUM	J_1BNFDOC	DOCNUM
7	STR_CIAP_OBJ_NF	GSBER	TGSB	GSBER
8	STR_CIAP_OBJ_NF	KNTTP	T163K	KNTTP
9	STR_CIAP_OBJ_NF	KOKRS	TKA01	KOKRS
10	STR_CIAP_OBJ_NF	KOSTL	CSKS	KOSTL
11	STR_CIAP_OBJ_NF	MATNR	MARA	MATNR
12	STR_CIAP_OBJ_NF	MEINS	T006	MSEHI
13	STR_CIAP_OBJ_NF	NPLNR	AUFK	AUFNR
14	STR_CIAP_OBJ_NF	PARVW	J_1BAD	PARVW
15	STR_CIAP_OBJ_NF	PRCTR	CEPC	PRCTR
16	STR_CIAP_OBJ_NF	PSPNR	PRPS	PSPNR
17	STR_CIAP_OBJ_NF	TAXTYP	J_1BAJ	TAXTYP
18	STR_CIAP_OBJ_NF	TCODE	TSTC	TCODE
19	STR_CIAP_OBJ_NF	WAERS	TCURC	WAERS
20	STR_CIAP_OBJ_NF	WERKS	T001W	WERKS

History

Last changed by/on	SAP	20130529
SAP Release Created in	600
