SAP ABAP Table RPLM_TS_QI_INSP_CHAR_LEVEL (RPLM QI - Info for Insp. Result - Char. Level ( Tol. Check))

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ EP-PCT-MAN-QI (Application Component) Business Package for Quality Inspector
     ⤷ RPLM_QI_BE (Package) Quality Inspector Backend

Basic Data

Table Category	INTTAB	Structure

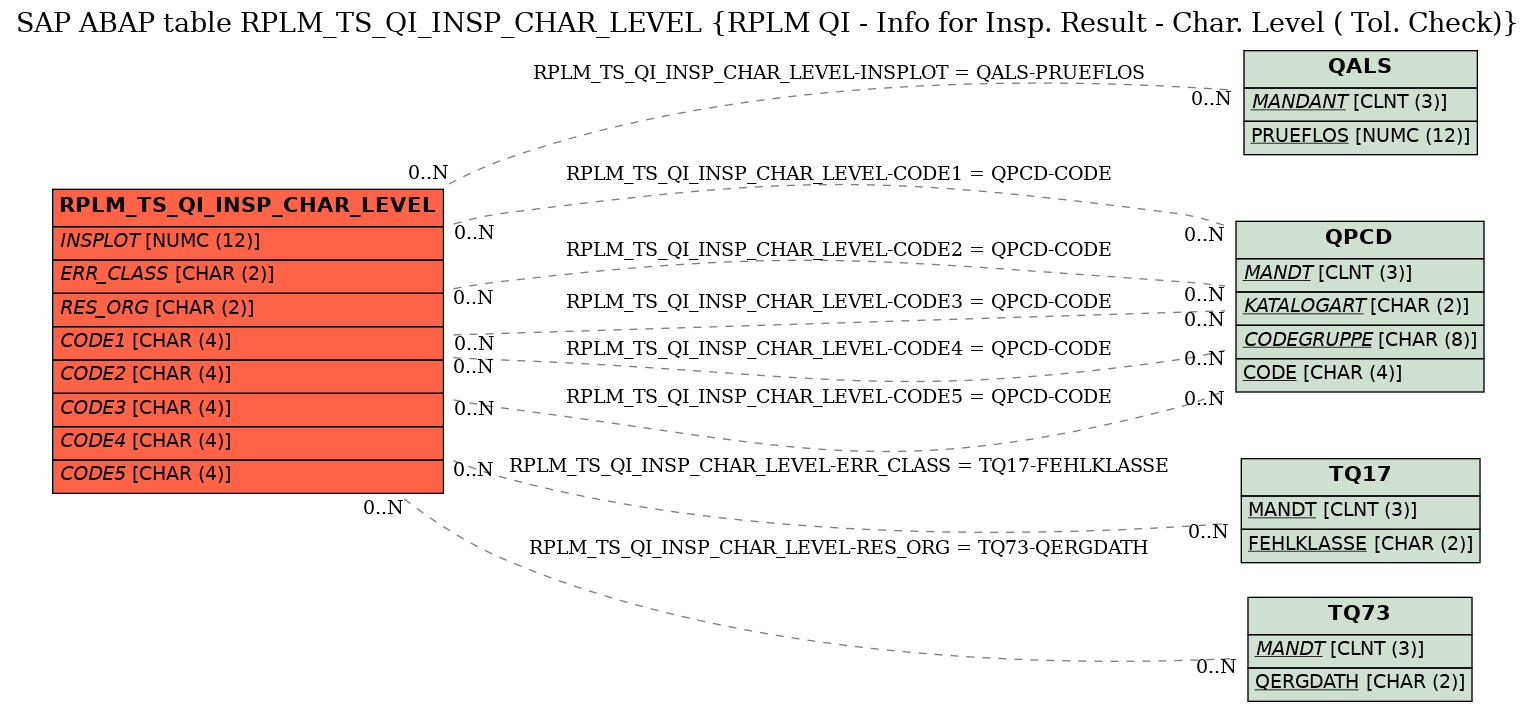

Structure	RPLM_TS_QI_INSP_CHAR_LEVEL	Table Relationship Diagram
Short Description	RPLM QI - Info for Insp. Result - Char. Level ( Tol. Check)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Insp. Result - Characteristic Level (with Tolerance Check)
2	.INCLUDE	☐				0	0	Inspection Result - Characteristic Level
3	INSPLOT	☐	QIBPLOSNR	QPLOS	NUMC	12	0	Inspection Lot Number	QALS
4	INSPOPER	☐	QIBPVORNR	VORNR	CHAR	4	0	Inspection Lot Operation Number
5	INSPCHAR	☐	QIBPMERKNR	NUMC4	NUMC	4	0	Insp. Lot Charac. No.
6	CLOSED	☐	QEIFABSCHL	QKZ	CHAR	1	0	Close Characteristic or Sample
7	EVALUATED	☐	QEIFBEWE	QKZ	CHAR	1	0	Copy Valuation from External System
8	CHAR_ATTR	☐	QATTRIBUT	QATTRIBUT	CHAR	1	0	Attribute of the Results Record (Valid, Invalid,...)
9	CHAR_INVAL	☐	QRES_INVAL	CHAR1	CHAR	1	0	Invalid Result
10	EVALUATION	☐	QMBEWERTG	QEEBEWERTG	CHAR	1	0	Inspection Result Valuation
11	ERR_CLASS	☐	QFEHLKLAS	QFEHLKLAS	CHAR	2	0	Defect class	TQ17
12	VALID_VALS	☐	QEIFAWERTG	CHAR7	CHAR	7	0	No. of Valid Values for Char. Results Upload to QM Subsys.
13	NONCONF	☐	QEIFAFEEH	CHAR7	CHAR	7	0	No. of Nonconforming Units for Char. Confirmation via QM-IDI
14	DEFECTS	☐	QEIFAFEHL	CHAR7	CHAR	7	0	Number of Defects for Confirmation of Charac. via QM-IDI
15	VALS_ABOVE	☐	QEIFAWRTO	CHAR7	CHAR	7	0	Number of Values Above the Tolerance Limit (Characteristic)
16	VALS_BELOW	☐	QEIFAWRTU	CHAR7	CHAR	7	0	Number of Values Below the Tolerance Limit (Characteristic)
17	MEAN_VALUE	☐	QMEAN_VAL	QIFLTP	CHAR	22	0	Mean Value
18	VARIANCE	☐	QVARIANCE	QIFLTP	CHAR	22	0	Variance
19	MAXIMUM	☐	QMAX_VAL	QIFLTP	CHAR	22	0	Maximum
20	MINIMUM	☐	QMIN_VAL	QIFLTP	CHAR	22	0	Minimum
21	START_DATE	☐	QEIFPRDATV	DATUM	DATS	8	0	Inspection Start Date (QM Subsystem Interface)
22	START_TIME	☐	QEIFPRZTV	QZEIT	TIMS	6	0	Inspection Start Time (QM Subsystem Interface)
23	END_DATE	☐	QEIFPRDATB	DATUM	DATS	8	0	Inspection End Date (QM Subsystem Interface)
24	END_TIME	☐	QEIFPRZTB	QZEIT	TIMS	6	0	Inspection End Time (QM Subsystem Interface)
25	INSPECTOR	☐	QINSPECTOR	TEXT20	CHAR	20	0	Name of the Inspector
26	RES_ORG	☐	QRES_ORG	QERGDATH	CHAR	2	0	Data Origin	TQ73
27	REMARK	☐	QRES_REMAR	TEXT40	CHAR	40	0	Inspection Description for Single Value
28	CODE1	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
29	CODE_GRP1	☐	QCODE_GROU	CHAR8	CHAR	8	0	Code Group
30	CODE2	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
31	CODE_GRP2	☐	QCODE_GROU	CHAR8	CHAR	8	0	Code Group
32	CODE3	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
33	CODE_GRP3	☐	QCODE_GROU	CHAR8	CHAR	8	0	Code Group
34	CODE4	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
35	CODE_GRP4	☐	QCODE_GROU	CHAR8	CHAR	8	0	Code Group
36	CODE5	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
37	CODE_GRP5	☐	QCODE_GROU	CHAR8	CHAR	8	0	Code Group
38	ORIGINAL_INPUT	☐	QORIGINAL_INPUT	CHAR25	CHAR	25	0	Original Value Before Input Processing
39	INPPROC_READY	☐	QINPPROC_READY	QKZ	CHAR	1	0	Input Processing Successfully Completed
40	DIFF_DEC_PLACES	☐	QDIFF_DEC_PLACES	INT2	INT2	5	0	Different Number of Decimal Places
41	TOLERANCE_STATUS	☐	RPLM_TT_QI_TOLERANCE_CHECK		TTYP	0	0
42	INSPECTED	☐	QANZWERTG4	QANZAHL4	INT4	10	0	Number of Inspected Sample Units
43	INFO_FIELD1	☐	QTXT10	QTXT10	CHAR	10	0	Text Line for Additional Information
44	INFO_FIELD2	☐	QTXT20	QTXT20	CHAR	20	0	Text Line for Additional Information
45	INFO_FIELD3	☐	QTXT40	QTXT40	CHAR	40	0	Text Line for Additional Information
46	INSP_METHOD	☐	QPMETHODE	QPMETHODE	CHAR	8	0	Inspection Method	*
47	INSP_METHOD_VERSION_NO	☐	QVERSNRPM	QVERSNR	CHAR	6	0	Version Number of the Inspection Method
48	CATALOG_TYPE	☐	QKATAUSW	QKATART	CHAR	1	0	Catalog Type of Assigned Code Group or Selected Set	*
49	SEL_SET	☐	QCGRAUSW	QCGRAUSW	CHAR	8	0	Assigned Code Group or Selected Set
50	SEL_SET_PLANT	☐	QWERKAUSW	WERKS	CHAR	4	0	Plant of the Assigned Selected Set	*
51	TEST_EQUI_DOCUMENT	☐	BAPI_DOC_KEYS		STRU	0	0
52	DOCUMENTTYPE	☐	DOKAR	DOKAR	CHAR	3	0	Document Type
53	DOCUMENTNUMBER	☐	DOKNR	DOKNR	CHAR	25	0	Document number
54	DOCUMENTVERSION	☐	DOKVR	DOKVR	CHAR	2	0	Document version
55	DOCUMENTPART	☐	DOKTL_D	DOKTL	CHAR	3	0	Document part
56	QPMK_WERKS	☐	QZAEHLER	QZAEHLER	CHAR	4	0	Plant for the Master Inspection Characteristic
57	VERWMERKM	☐	QMERKNR	QMERKNR	CHAR	8	0	Master Inspection Characteristics	*
58	MKVERSION	☐	QVERSNRMK	QVERSNR	CHAR	6	0	Version Number of the Master Inspection Characteristic
59	.INCLUDE	☐				0	0	Additional Info for Inspection Results -Characteristic Level
60	STATUS	☐	QBEASTATUS	QSTATUS	CHAR	1	0	Results Record Status	*
61	ADDITIONAL_INFOS	☐	QMASCHINE	QEQUNR	CHAR	18	0	General Information
62	STD_DEVIATION	☐	QSTDAWC	QSTATWERTC	CHAR	16	0	Standard Deviation of Valid Measured Values
63	CP_INDEX	☐	QQRKCPC	QSTATWERTC	CHAR	16	0	Process Capability Index (cp)
64	CPK_INDEX	☐	QQRKCPKC	QSTATWERTC	CHAR	16	0	Process Capability Index (cpk)
65	MEAN_VALUE_F	☐	QMITTELWRT	QSTATWERT	FLTP	16	16	Arithmetic Mean of Valid Measured Values
66	STD_DEVIATION_F	☐	QSTDAW	QSTATWERT	FLTP	16	16	Standard Deviation of Valid Measured Values
67	.INCLUDE	☐				0	0	Additional Info for Inspection Results -Characteristic Level
68	CHARACTERISTIC_TEXT	☐	QTXT_CHA	QKURZTEXT	CHAR	40	0	Short Text for Inspection Characteristic
69	SPECIFICATIONS	☐	QTOLGRENZE	CHAR40	CHAR	40	0	Specifications Display
70	INSPECT	☐	QGESUMF	QANZAHL4	INT4	10	0	Sample Size that Has to Be Inspected for a Characteristic
71	WEIGHTING	☐	QMERKGEW	QMERKKLAS	CHAR	2	0	Weighting of the Characteristic	*
72	INSP_METHOD_DOCS	☐	QDOKPMETHODE	QKZ	CHAR	1	0	Document for Inspection Method Available
73	CATALOG_IS_SELSET	☐	QKTTAB	QKTTAB	CHAR	1	0	Catalog Entry Is a Selected Set
74	TEST_EQUI_KEY	☐	RPLM_TS_QI_PRT_KEYS		STRU	0	0
75	FHMAR	☐	FHMAR	FHMAR	CHAR	1	0	Production resources/tools category	*
76	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number
77	FHWRK	☐	FHWRK	WERKS	CHAR	4	0	Production resources/tools in plant	*
78	PSNFH	☐	PSNFH	PSNFH	NUMC	4	0	Item Number for Production Resource/Tool
79	SFHNR	☐	SFHNR	SFHNR	CHAR	18	0	Production resources and tools
80	DOKAR	☐	DOKAR	DOKAR	CHAR	3	0	Document Type	*
81	DOKNR	☐	DOKNR	DOKNR	CHAR	25	0	Document number	*
82	DOKTL	☐	DOKTL_D	DOKTL	CHAR	3	0	Document part
83	DOKVR	☐	DOKVR	DOKVR	CHAR	2	0	Document version
84	MGVGW	☐	MGVGW	MENG9	QUAN	9	3	Standard value for the PRT quantity
85	MGEINH	☐	MGEINH	MEINS	UNIT	3	0	Quantity unit of production resource/tool	*
86	FHKTX	☐	FHKTX	TEXT40	CHAR	40	0	Description of the production resource/tool
87	EQUNR	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number
88	FHMAR_EXT	☐	FHMAR_EXT	FHMAR_EXT	CHAR	1	0	Production resource/tool category
89	FAKTX	☐	FAKTX	TEXT40	CHAR	40	0	Language-dependent description of the PRT category
90	FHMNR	☐	FHMNR	FHMNR	CHAR	33	0	Production resource/tool number
91	FORMULA	☐	QKZFORMEL	QKZFORMEL	CHAR	1	0	Calculated Characteristic
92	TARGET_VALUE_F	☐	QSOLLWERTE	QSOLLWERTE	FLTP	16	16	Target Value for a Quantitative Characteristic
93	UP_TOL_LMT_F	☐	QTOLOB	QSOLLWERTE	FLTP	16	16	Upper Specification Limit
94	LW_TOL_LMT_F	☐	QTOLUN	QSOLLWERTE	FLTP	16	16	Lower Tolerance Limit
95	UP_TOL_LMT_NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
96	LW_TOL_LMT_NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
97	TARGET_VALUE_NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RPLM_TS_QI_INSP_CHAR_LEVEL	CODE1	QPCD	CODE
2	RPLM_TS_QI_INSP_CHAR_LEVEL	CODE2	QPCD	CODE
3	RPLM_TS_QI_INSP_CHAR_LEVEL	CODE3	QPCD	CODE
4	RPLM_TS_QI_INSP_CHAR_LEVEL	CODE4	QPCD	CODE
5	RPLM_TS_QI_INSP_CHAR_LEVEL	CODE5	QPCD	CODE
6	RPLM_TS_QI_INSP_CHAR_LEVEL	ERR_CLASS	TQ17	FEHLKLASSE
7	RPLM_TS_QI_INSP_CHAR_LEVEL	INSPLOT	QALS	PRUEFLOS
8	RPLM_TS_QI_INSP_CHAR_LEVEL	RES_ORG	TQ73	QERGDATH

History

Last changed by/on	SAP	20130529
SAP Release Created in	600
