SAP ABAP Table BAPIBUS20001_PARTNER_INS (BO BusProcessND: Process Partner for a Transaction Create())
Hierarchy
☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF (Application Component) Basic Functions for Business Transactions
     ⤷ CRM_ORDER (Package) CRM Order: General Order Processing
Basic Data
Table Category INTTAB    Structure

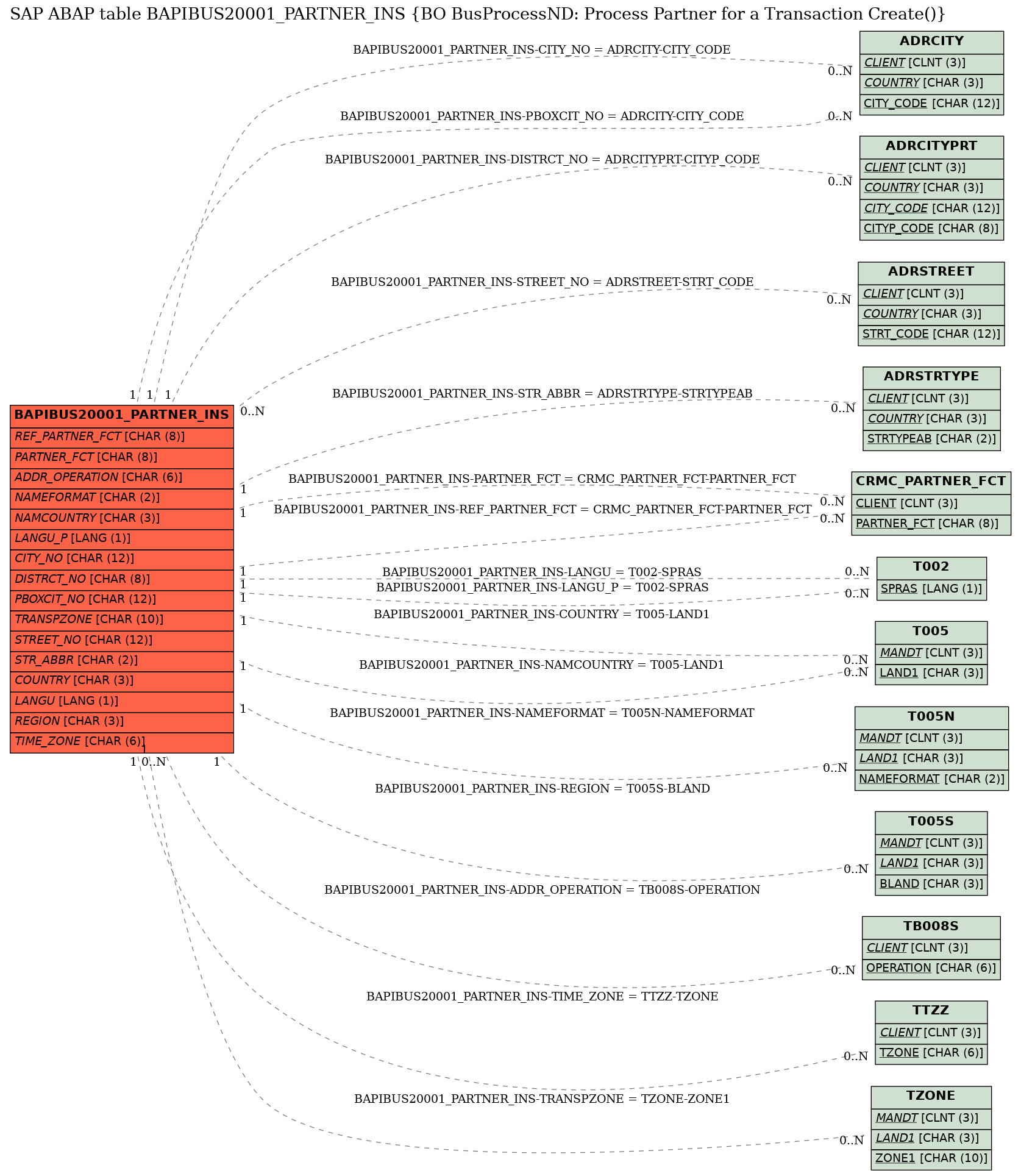

Structure BAPIBUS20001_PARTNER_INS   Table Relationship Diagram
Short Description BO BusProcessND: Process Partner for a Transaction Create()
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 REF_GUID GUID_32 SYSUUID_C CHAR 32   0   GUID in 'CHAR' Format in Uppercase
2 REF_HANDLE CRMT_HANDLE   NUMC 10   0   Handle
3 REF_KIND CRMT_OBJECT_KIND CRM_OBJECTKIND CHAR 1   0   Object Type
4 REF_PARTNER_HANDLE NUMC4 NUMC4 NUMC 4   0   Count parameters
5 REF_PARTNER_FCT CRMT_PARTNER_FCT COM_PARTNER_FCT CHAR 8   0   Partner Function CRMC_PARTNER_FCT
6 REF_PARTNER_NO CRMT_PARTNER_NUMBER CRM_PARTNER_NUMBER CHAR 20   0   Partner Number for Use Outside Partner Processing
7 REF_NO_TYPE CRMT_PARTNER_NO_TYPE COMT_PARTNER_NO_TYPE CHAR 2   0   Partner Number Type (e.g. GUID, Pers. No., ...), Internal
8 REF_DISPLAY_TYPE CRMT_PARTNER_DISPLAY_TYPE COMT_PARTNER_NO_TYPE CHAR 2   0   Object Type, for Which Partner Number is to be Shown
9 PARTNER_FCT CRMT_PARTNER_FCT COM_PARTNER_FCT CHAR 8   0   Partner Function CRMC_PARTNER_FCT
10 PARTNER_NO CRMT_PARTNER_NO CRM_PARTNER_NO CHAR 32   0   Partner Number
11 NO_TYPE CRMT_PARTNER_NO_TYPE COMT_PARTNER_NO_TYPE CHAR 2   0   Partner Number Type (e.g. GUID, Pers. No., ...), Internal
12 DISPLAY_TYPE CRMT_PARTNER_DISPLAY_TYPE COMT_PARTNER_NO_TYPE CHAR 2   0   Object Type, for Which Partner Number is to be Shown
13 KIND_OF_ENTRY CRMT_PARTNER_KIND_OF_ENTRY CRM_PARTNER_KIND_OF_ENTRY CHAR 1   0   Source of a partner in a transaction
14 MAINPARTNER CRMT_PARTNER_MAIN CRM_BOOLEAN CHAR 1   0   Main Partner (For Ambiguous Partner Functions)
15 RELATION_PARTNER GUID_32 SYSUUID_C CHAR 32   0   GUID in 'CHAR' Format in Uppercase
16 BUSINESSPARTNERGUID BU_PARTNER_GUID_BAPI SYSUUID_C CHAR 32   0   GUID of a Business Partner in CHAR 32 Format for BAPIs
17 ADDRESS_GUID BAD_ADDRESS_GUID32 SYSUUID_C CHAR 32   0   GUID for an Address Object in BAPI Format
18 ADDR_NR AD_ADDRNUM AD_ADDRNUM CHAR 10   0   Address number *
19 ADDR_NP AD_PERSNUM AD_PERSNUM CHAR 10   0   Person number *
20 ADDR_TYPE AD_ADRTYPE AD_ADRTYPE CHAR 1   0   Address type (1=Organization, 2=Person, 3=Contact person)
21 ADDR_ORIGIN CRMT_ADDR_ORIGIN CRM_ADDR_ORIGIN CHAR 1   0   Origin of a Partner Address
22 STD_BP_ADDRESS CRMT_PARTNER_STD_BP_ADDRESS XFELD CHAR 1   0   Standard Business Partner Address (Depending on Addr.Type)
23 ADDR_OPERATION BU_OPERATION BU_OPERATION CHAR 6   0   Transaction for BP Address Determination TB008S
24 CALENDAR CRMT_PARTNER_CALENDAR CRM_BOOLEAN CHAR 1   0   Maintain Calendar for the Partner?
25 DISABLED CRMT_PARTNER_DISABLED CRM_BOOLEAN CHAR 1   0   No INBOX Selection for the Partner
26 TITLE_P AD_TITLETX TEXT30 CHAR 30   0   Title text
27 FIRSTNAME AD_NAMEFIR TEXT40 CHAR 40   0   First name
28 LASTNAME AD_NAMELAS TEXT40 CHAR 40   0   Last name
29 BIRTH_NAME AD_NAME2_P TEXT40 CHAR 40   0   Name of person at birth
30 MIDDLENAME AD_NAMEMID TEXT40 CHAR 40   0   Middle name or second forename of a person
31 SECONDNAME AD_NAMLAS2 TEXT40 CHAR 40   0   Second surname of a person
32 FULLNAME AD_NAMTEXT TEXT80 CHAR 80   0   Full Name of Person
33 FULLNAME_X AD_NAMCONV AD_NAMCONV CHAR 1   0   Status of Field 'Full Name' NAME_TEXT
34 TITLE_ACA1 AD_TITLE1T TEXT20 CHAR 20   0   Academic Title: Written Form
35 TITLE_ACA2 AD_TITLE1T TEXT20 CHAR 20   0   Academic Title: Written Form
36 PREFIX1 AD_PREFIXT TEXT20 CHAR 20   0   Name prefix
37 PREFIX2 AD_PREFIXT TEXT20 CHAR 20   0   Name prefix
38 TITLE_SPPL AD_TITLEST TEXT20 CHAR 20   0   Name supplement, e.g. noble title (written form)
39 NICKNAME AD_NICKNAM TEXT40 CHAR 40   0   Nickname or name used
40 INITIALS AD_INITS CHAR10 CHAR 10   0   "Middle Initial" or personal initials
41 NAMEFORMAT AD_FORMAT AD_NAMFORM CHAR 2   0   Name format T005N
42 NAMCOUNTRY AD_NAMCTRY LAND1 CHAR 3   0   Country for name format rule T005
43 LANGU_P SPRAS SPRAS LANG 1   0   Language Key T002
44 LANGUP_ISO LAISO LAISO CHAR 2   0   2-Character SAP Language Code
45 SORT1_P AD_SORT1 CHAR20 CHAR 20   0   Search Term 1
46 SORT2_P AD_SORT2 CHAR20 CHAR 20   0   Search Term 2
47 DEPARTMENT AD_DPRTMNT TEXT40 CHAR 40   0   Department
48 FUNCTION AD_FNCTN TEXT40 CHAR 40   0   Function
49 BUILDING_P AD_BLDNG_P TEXT10 CHAR 10   0   Building (number or code)
50 FLOOR_P AD_FLOOR TEXT10 CHAR 10   0   Floor in building
51 ROOM_NO_P AD_ROOMNUM TEXT10 CHAR 10   0   Room or Appartment Number
52 INITS_SIG AD_ID_CODE TEXT10 CHAR 10   0   Short name for correspondence
53 INHOUSE_ML AD_IH_MAIL TEXT10 CHAR 10   0   Int. mail postal code
54 COMM_TYPE AD_COMM AD_COMM CHAR 3   0   Communication Method (Key) (Business Address Services) *
55 TITLE AD_TITLETX TEXT30 CHAR 30   0   Title text
56 NAME AD_NAME1 TEXT40 CHAR 40   0   Name 1
57 NAME_2 AD_NAME2 TEXT40 CHAR 40   0   Name 2
58 NAME_3 AD_NAME3 TEXT40 CHAR 40   0   Name 3
59 NAME_4 AD_NAME4 TEXT40 CHAR 40   0   Name 4
60 C_O_NAME AD_NAME_CO TEXT40 CHAR 40   0   c/o name
61 CITY AD_CITY1 TEXT40 CHAR 40   0   City
62 DISTRICT AD_CITY2 TEXT40 CHAR 40   0   District
63 CITY_NO AD_CITYNUM CITY_CODE CHAR 12   0   City code for city/street file ADRCITY
64 DISTRCT_NO AD_CITYPNM CITYP_CODE CHAR 8   0   District code for City and Street file ADRCITYPRT
65 CHCKSTATUS AD_CHECKST AD_CHECKST CHAR 1   0   City file test status
66 POSTL_COD1 AD_PSTCD1 CHAR10 CHAR 10   0   City postal code
67 POSTL_COD2 AD_PSTCD2 CHAR10 CHAR 10   0   PO Box postal code
68 POSTL_COD3 AD_PSTCD3 CHAR10 CHAR 10   0   Company postal code (for large customers)
69 PO_BOX AD_POBX CHAR10 CHAR 10   0   PO Box
70 PO_BOX_CIT AD_POBXLOC TEXT40 CHAR 40   0   PO Box city
71 PBOXCIT_NO AD_CIT2NUM CITY_CODE CHAR 12   0   City PO box code (City file) ADRCITY
72 DELIV_DIS AD_PSTLAR TEXT15 CHAR 15   0   (Not Supported) Post Delivery District
73 TRANSPZONE LZONE ZONE CHAR 10   0   Transportation zone to or from which the goods are delivered TZONE
74 STREET AD_STREET TEXT60 CHAR 60   0   Street
75 STREET_NO AD_STRNUM STRT_CODE CHAR 12   0   Street Number for City/Street File ADRSTREET
76 STR_ABBR AD_STRABBR STRTYPEAB CHAR 2   0   (Not Supported) Abbreviation of Street Name ADRSTRTYPE
77 HOUSE_NO AD_HSNM1 TEXT10 CHAR 10   0   House Number
78 HOUSE_NO2 AD_HSNM2 TEXT10 CHAR 10   0   House number supplement
79 STR_SUPPL1 AD_STRSPP1 TEXT40 CHAR 40   0   Street 2
80 STR_SUPPL2 AD_STRSPP2 TEXT40 CHAR 40   0   Street 3
81 STR_SUPPL3 AD_STRSPP3 TEXT40 CHAR 40   0   Street 4
82 LOCATION AD_LCTN TEXT40 CHAR 40   0   Street 5
83 BUILDING AD_BLD_OLD TEXT10 CHAR 10   0   old: building (no. or abbreviation)
84 FLOOR AD_FLOOR TEXT10 CHAR 10   0   Floor in building
85 ROOM_NO AD_ROOMNUM TEXT10 CHAR 10   0   Room or Appartment Number
86 COUNTRY LAND1 LAND1 CHAR 3   0   Country Key T005
87 COUNTRYISO INTCA INTCA CHAR 2   0   Country ISO code
88 LANGU SPRAS SPRAS LANG 1   0   Language Key T002
89 LANGU_ISO LAISO LAISO CHAR 2   0   2-Character SAP Language Code
90 REGION REGIO REGIO CHAR 3   0   Region (State, Province, County) T005S
91 SORT1 AD_SORT1 CHAR20 CHAR 20   0   Search Term 1
92 SORT2 AD_SORT2 CHAR20 CHAR 20   0   Search Term 2
93 TIME_ZONE AD_TZONE TZNZONE CHAR 6   0   Address time zone TTZZ
94 TAXJURCODE AD_TXJCD AD_TXJCD CHAR 15   0   Tax Jurisdiction
95 ADR_NOTES AD_REMARK1 TEXT50 CHAR 50   0   Address notes
96 TEL1_NUMBR AD_TLNMBR1 CHAR30 CHAR 30   0   First telephone no.: dialling code+number
97 TEL1_EXT AD_TLXTNS1 CHAR10 CHAR 10   0   First Telephone No.: Extension
98 FAX_NUMBER AD_FXNMBR1 CHAR30 CHAR 30   0   First fax no.: dialling code+number
99 FAX_EXTENS AD_FXXTNS1 CHAR10 CHAR 10   0   First fax no.: extension
100 E_MAIL AD_SMTPADR AD_SMTPADR CHAR 241   0   E-Mail Address
101 BUILD_LONG AD_BLDNG TEXT20 CHAR 20   0   Building (Number or Code)
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 BAPIBUS20001_PARTNER_INS ADDR_OPERATION TB008S OPERATION KEY   CN
2 BAPIBUS20001_PARTNER_INS CITY_NO ADRCITY CITY_CODE KEY 1 CN
3 BAPIBUS20001_PARTNER_INS COUNTRY T005 LAND1 KEY 1 CN
4 BAPIBUS20001_PARTNER_INS DISTRCT_NO ADRCITYPRT CITYP_CODE KEY 1 CN
5 BAPIBUS20001_PARTNER_INS LANGU T002 SPRAS KEY 1 CN
6 BAPIBUS20001_PARTNER_INS LANGU_P T002 SPRAS KEY 1 CN
7 BAPIBUS20001_PARTNER_INS NAMCOUNTRY T005 LAND1 KEY 1 CN
8 BAPIBUS20001_PARTNER_INS NAMEFORMAT T005N NAMEFORMAT KEY 1 CN
9 BAPIBUS20001_PARTNER_INS PARTNER_FCT CRMC_PARTNER_FCT PARTNER_FCT KEY 1 CN
10 BAPIBUS20001_PARTNER_INS PBOXCIT_NO ADRCITY CITY_CODE KEY 1 CN
11 BAPIBUS20001_PARTNER_INS REF_PARTNER_FCT CRMC_PARTNER_FCT PARTNER_FCT KEY 1 CN
12 BAPIBUS20001_PARTNER_INS REGION T005S BLAND KEY 1 CN
13 BAPIBUS20001_PARTNER_INS STREET_NO ADRSTREET STRT_CODE
14 BAPIBUS20001_PARTNER_INS STR_ABBR ADRSTRTYPE STRTYPEAB KEY 1 CN
15 BAPIBUS20001_PARTNER_INS TIME_ZONE TTZZ TZONE KEY 1 CN
16 BAPIBUS20001_PARTNER_INS TRANSPZONE TZONE ZONE1 KEY 1 CN
History
Last changed by/on SAP  20140117
SAP Release Created in
