SAP ABAP Table RSDTM_FILESTRUC (Metadata Information for Structure of Mining Data)

Hierarchy

☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-BEX (Application Component) Business Explorer
     ⤷ RSDM (Package) Data Mining

Basic Data

Table Category	INTTAB	Structure

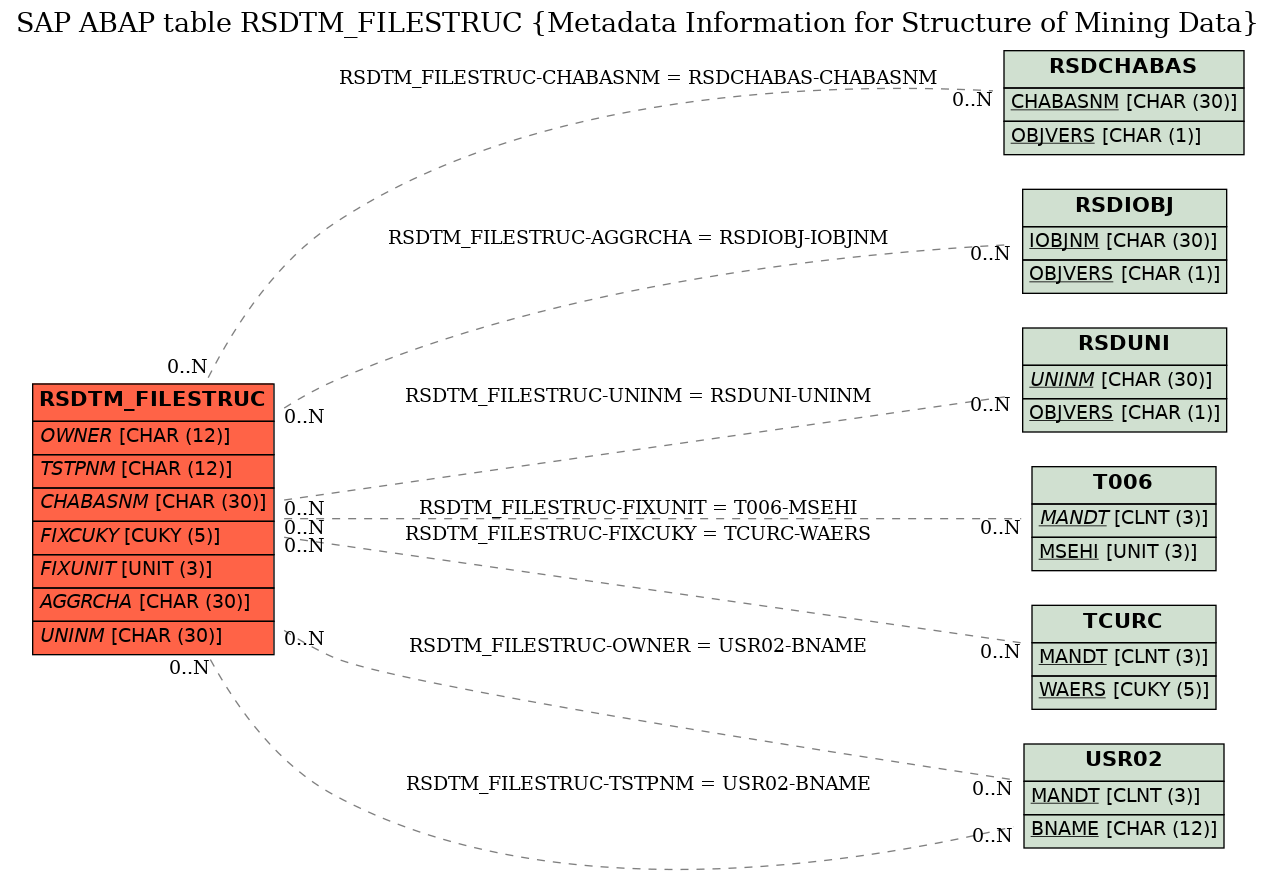

Structure	RSDTM_FILESTRUC	Table Relationship Diagram
Short Description	Metadata Information for Structure of Mining Data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	InfoObjects - Details
2	INFOOBJECT	☐	RSIOBJNM	RSIOBJNM	CHAR	30	0	InfoObject
3	VERSION	☐	RSOBJVERS	RSOBJVERS	CHAR	1	0	Object version
4	TYPE	☐	RSIOBJTP	RSIOBJTP	CHAR	3	0	Type of an InfoObject
5	OBJSTAT	☐	RSOBJSTAT	RSOBJSTAT	CHAR	3	0	Object Status
6	ACTIVFL	☐	RSACTIVFL	XFELD	CHAR	1	0	Active and revised version do not agree
7	FIELDNM	☐	RSDIOBJFIELDNM	FDNAME	CHAR	30	0	Field Name InfoObject In Structures (Not in database table)	*
8	CONTREL	☐	RSCONTREL	CHAR6	CHAR	6	0	Content release
9	ATRONLYFL	☐	RSATRONLYFL	XFELD	CHAR	1	0	InfoObject is Exclusively an Attribute (Not Used in ICs)
10	LOGSYS	☐	CHAR10	CHAR10	CHAR	10	0	Character Field Length = 10
11	OWNER	☐	RSOWNER	XUBNAME	CHAR	12	0	Owner (Person Responsible)	USR02
12	TSTPNM	☐	RSTSTPNM	XUBNAME	CHAR	12	0	Last changed by	USR02
13	TIMESTMP	☐	RSTIMESTMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
14	TEXTSHORT	☐	RSTXTSH	TEXT20	CHAR	20	0	Short description
15	TEXTLONG	☐	RSTXTLG	TEXT60	CHAR	60	0	Long description
16	CHACONST	☐	RSCHACONST	RSCHAVL	CHAR	60	0	Characteristic Constant
17	CHAPRSNT	☐	RSCHAPRSNT	RSCHAPRSNT	CHAR	1	0	Display for Characteristics and Units
18	CHANAV	☐	RSCHANAV	RSCHANAV	CHAR	1	0	Navigation Indicator for Characteristics and Units
19	CHASEL	☐	RSCHASEL	RSCHASEL	CHAR	1	0	Selection restriction for characteristics
20	CHABASNM	☐	RSCHABASNM	RSCHABASNM	CHAR	30	0	Reference characteristic	RSDCHABAS
21	NOVALFL	☐	RSNOVALFL	X	CHAR	1	0	Characteristic does not have a check table
22	BCHREFFL	☐	RSBCHREFFL	XFELD	CHAR	1	0	Characteristic references another basic characteristic(flag)
23	CMPSTA	☐	RSCMPSTA	RSCMPSTA	CHAR	1	0	Compound status
24	ATTRIBFL	☐	RSATTRIBFL	XFELD	CHAR	1	0	Attributes (flag) exist for the characteristic
25	TIMDEPFL	☐	RSTIMDEPFL	XFELD	CHAR	1	0	Flag: Master data is time-dependent
26	NOLANGU	☐	RSNOLANGU	XFELD	CHAR	1	0	Master data texts are language independent (flag)
27	TXTSHFL	☐	RSTXTSHFL	XFELD	CHAR	1	0	Short text exists (flag)
28	TXTMDFL	☐	RSTXTMDFL	XFELD	CHAR	1	0	Medium length text exists (flag)
29	TXTLGFL	☐	RSTXTLGFL	XFELD	CHAR	1	0	Long text exists (flag)
30	DBROUTID	☐	RSDBROUTID	RSUNIIDC25	CHAR	25	0	ID for database routines for basic char.
31	HIETABFL	☐	RSHIETABFL	XFELD	CHAR	1	0	Characteristic with hierarchies
32	HIEVERFL	☐	RSHIEVERFL	XFELD	CHAR	1	0	Hierarchies can have several versions
33	HIENMTFL	☐	RSDHIENMTFL	XFELD	CHAR	1	0	Entire hierarchy is time-dependent
34	HIENDTFL	☐	RSHIENDTFL	XFELD	CHAR	1	0	Hierarchy structure is time-dependent
35	HIEINTFL	☐	RSHIEINTFL	XFELD	CHAR	1	0	Intervals permitted in hierarchy
36	DATATP	☐	DATATYPE_D	DATATYPE	CHAR	4	0	Data Type in ABAP Dictionary
37	INTLEN	☐	RSDINTLEN	DDLENG	NUMC	6	0	Internal Length of InfoObjects in BW - see Docu
38	CONVEXIT	☐	CONVEXIT	CONVEXIT	CHAR	5	0	Conversion Routine
39	FVALEX	☐	RSFVALEX	XFELD	CHAR	1	0	Domain fixed values exist (flag)
40	LOWERCASE	☐	LOWERCASE	AS4FLAG	CHAR	1	0	Lowercase letters allowed/not allowed
41	KYFTP	☐	RSKYFTP	RSKYFTP	CHAR	3	0	Key figure type
42	NCUMFL	☐	RSNCUMFL	RSNCUMFL	CHAR	1	0	Non-cumulative value (flag)
43	FIXCUKY	☐	RSFIXCUKY	WAERS	CUKY	5	0	Fixed currency	TCURC
44	FIXUNIT	☐	RSFIXUNIT	MEINS	UNIT	3	0	Fixed Unit of Measure	T006
45	AGGRGEN	☐	RSDAGGRGEN	RSDAGGRGEN	CHAR	3	0	Usual Aggregation
46	AGGREXC	☐	RSAGGREXC	RSAGGREXC	CHAR	3	0	Exception aggregation
47	AGGRCHA	☐	RSAGGRCHA	RSIOBJNM	CHAR	30	0	Reference characteristic for exception aggregation	RSDIOBJ
48	KYFDECIM	☐	RSKYFDECIM	RSKYFDECIM	CHAR	1	0	Decimal places (of a key figure)
49	KYFPRSNT	☐	RSKYFPRSNT	RSKYFPRSNT	CHAR	1	0	Display (of a key figure)
50	KYFNAV	☐	RSKYFNAV	RSKYFNAV	CHAR	1	0	Navigation indicator for key figures
51	UNINM	☐	RSUNINM	RSIOBJNM	CHAR	30	0	Unit InfoObject (currency/unit)	RSDUNI
52	CHKTAB	☐	RSDCHKVIEW	AS4TAB	CHAR	30	0	View of master data tables	*
53	DKFTP	☐	RSDKFTP	RSDKFTP	CHAR	1	0	Derived key figure type
54	UNITP	☐	RSUNITP	RSUNITP	CHAR	3	0	Unit type
55	PROTECFL	☐	XFELD	XFELD	CHAR	1	0	Checkbox
56	CONTTIMESTMP	☐	RSCONTTIMESTMP	TZNTSTMPS	DEC	15	0	Content time stamp: Last modification to the object by SAP
57	BWAPPL	☐	RSBWAPPL		CHAR	10	0	BW Application (Namespace)
58	AUTHRELFL	☐	RSDAUTHRELFL	XFELD	CHAR	1	0	Characteristic is relevant for authorization check
59	BDSFL	☐	RSDDOCFL	XFELD	CHAR	1	0	Characteristic is allowed as attribute of documents
60	ODSFL	☐	RSDODSFL	XFELD	CHAR	1	0	InfoObject is an ODS InfoObject (Flag)
61	DEFMEMBER	☐	RSDDEFMEMBER	RSCHAVL	CHAR	60	0	Default Characteristic Value
62	TXTDEF	☐	RSTXTDEF	RSTXTDEF	CHAR	1	0	Business Explorer Description
63	GISTP	☐	RSGISTP	RSGISTP	NUMC	1	0	Geographical type for a characteristic
64	GISATTRINM	☐	RSGISATTRINM	FDNAME	CHAR	30	0	Geographical attribute	*
65	APPLNM	☐	RSAPPLNM	RSAPPLNM	CHAR	30	0	Application Component
66	TXTTIMFL	☐	RSDTXTTIMFL	RSDCNVFL	CHAR	1	0	Texts are time-dep.
67	TXTTABFL	☐	RSDTXTTABFL	RSDCNVFL	CHAR	1	0	Text Table Exists
68	IOBJROUT	☐	RSIOBJROUT	RSUNIIDX	CHAR	25	0	Global transfer routine for InfoObjects
69	NUMBRANR	☐	RSNUMBRANR	CHAR7	CHAR	7	0	Number of the number range object of a characteristic
70	CNVSTATE	☐	RSDCNVSTATE_API	CHAR1	CHAR	1	0	Conversion Status (Use in BAPIs)
71	SIDCONVERT	☐	RSDSIDCONVERT	RSDSIDCONVERT	CHAR	1	0	Conversion type for SID
72	SIDMONFL	☐	RSDSIDMONFL	RS_BOOL	CHAR	1	0	Flag indicating whether SID retains the order
73	OUTPUTLEN	☐	OUTPUTLEN	DDLENG	NUMC	6	0	Output Length
74	IOBJSIZCAT	☐	RSIOBJSIZCAT	TABKAT	CHAR	2	0	BW: Size category for InfoObject tables (master data/hier.)
75	IOBJDATCLS	☐	RSIOBJDATCLS	TABART	CHAR	5	0	BW: Data class for InfoObject tables(master data/ hierarch.)	*
76	CHNTAB	☐	RSCHNTAB	AS4TAB	CHAR	30	0	Master data table (time-independent)	*
77	CHTTAB	☐	RSCHTTAB	AS4TAB	CHAR	30	0	Master data table (time-dependent)	*
78	TXTTAB	☐	RSTXTTAB	AS4TAB	CHAR	30	0	Text table (of a character.)	*
79	HIETAB	☐	RSHIETAB	AS4TAB	CHAR	30	0	Hierarchy table (of a characteristic)	*
80	HINTAB	☐	RSHINTAB	AS4TAB	CHAR	30	0	Hierarchy interval table (of a characteristic)	*
81	F4QUERYEXEC	☐	RSF4QUERYEXEC	RSF4QUERYEXEC	CHAR	1	0	Selection of Filter Values for Query Execution
82	MASTAUTHFL	☐	RSDMASTAUTHFL	XFELD	CHAR	1	0	Maintenance of master data is relevant for authorization
83	INFOAREA	☐	RSINFOAREA	RSINFOAREA	CHAR	30	0	InfoArea	*
84	EXPDSOURCEFL	☐	RSEXPDSOURCEFL	XFELD	CHAR	1	0	The characteristic is used as export data source
85	HIESIGNCH	☐	RSSHSIGNCH	RSSHSIGNCH	CHAR	1	0	Reverse Sign for Hierarchy Nodes
86	CHECKODS	☐	RSDCHECKODS	RSDODSOBJECT	CHAR	30	0	DataStore Object for Checking Characteristic Values	*
87	PACKFL	☐	RSDPACKFL	XFELD	CHAR	1	0	Key Figure is Edited with Maximum Precision
88	AUTHFIELD	☐	RSDAUTHFIELD	XUFIELD	CHAR	10	0	Authorization Field for Reporting Authorizations
89	LENG	☐	DDLENG	DDLENG	NUMC	6	0	Length (No. of Characters)
90	DECIMALS	☐	DECIMALS	DDLENG	NUMC	6	0	Number of Decimal Places
91	PRIVATEFL	☐	RSPRIVATEFL	XFELD	CHAR	1	0	InfoObject is Private
92	CHATP	☐	RSCHATP	RSCHATP	CHAR	3	0	Characteristc Type Based on Master Data Access
93	MDRCLNM	☐	RSMDCLNM	SEOCLSNAME	CHAR	30	0	Name of Master Data Read Class
94	MDRCLPA	☐	RSMDRCLPA	CHAR100	CHAR	100	0	Parameters for Master Data Read Class
95	TREXFL	☐	RSTREXFL	XFELD	CHAR	1	0	Characteristic Uses TREX Search
96	HIETJOINFL	☐	RSHIETJOINFL	XFELD	CHAR	1	0	Use Temporal Hierarchy Join
97	COLUMNLEN	☐	DDLENG	DDLENG	NUMC	6	0	Length (No. of Characters)
98	OFFSET	☐	DOFFSET	DOFFSET	NUMC	6	0	Field Offset in Work Area
99	POSITION	☐	TABFDPOS	AS4POS	NUMC	4	0	Position of the field in the table
100	TLEVEL	☐	RSTLEVEL	RSTLEVEL	NUMC	2	0	Level of a hierarchy node

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RSDTM_FILESTRUC	AGGRCHA	RSDIOBJ	IOBJNM	REF	CN
2	RSDTM_FILESTRUC	CHABASNM	RSDCHABAS	CHABASNM	KEY	CN
3	RSDTM_FILESTRUC	FIXCUKY	TCURC	WAERS		CN
4	RSDTM_FILESTRUC	FIXUNIT	T006	MSEHI		CN
5	RSDTM_FILESTRUC	OWNER	USR02	BNAME	REF	CN
6	RSDTM_FILESTRUC	TSTPNM	USR02	BNAME	KEY	CN
7	RSDTM_FILESTRUC	UNINM	RSDUNI	UNINM	REF	CN

History

Last changed by/on	SAP	20100820
SAP Release Created in	30A
