SAP ABAP Table PPSFC_OBJECT_AFFHD_P_PDF (Structure for AFFHD_P)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-CIC (Application Component) Interaction Center WinClient
     ⤷ CO (Package) R/3 Application development: PP Production orders

Basic Data

Table Category	INTTAB	Structure

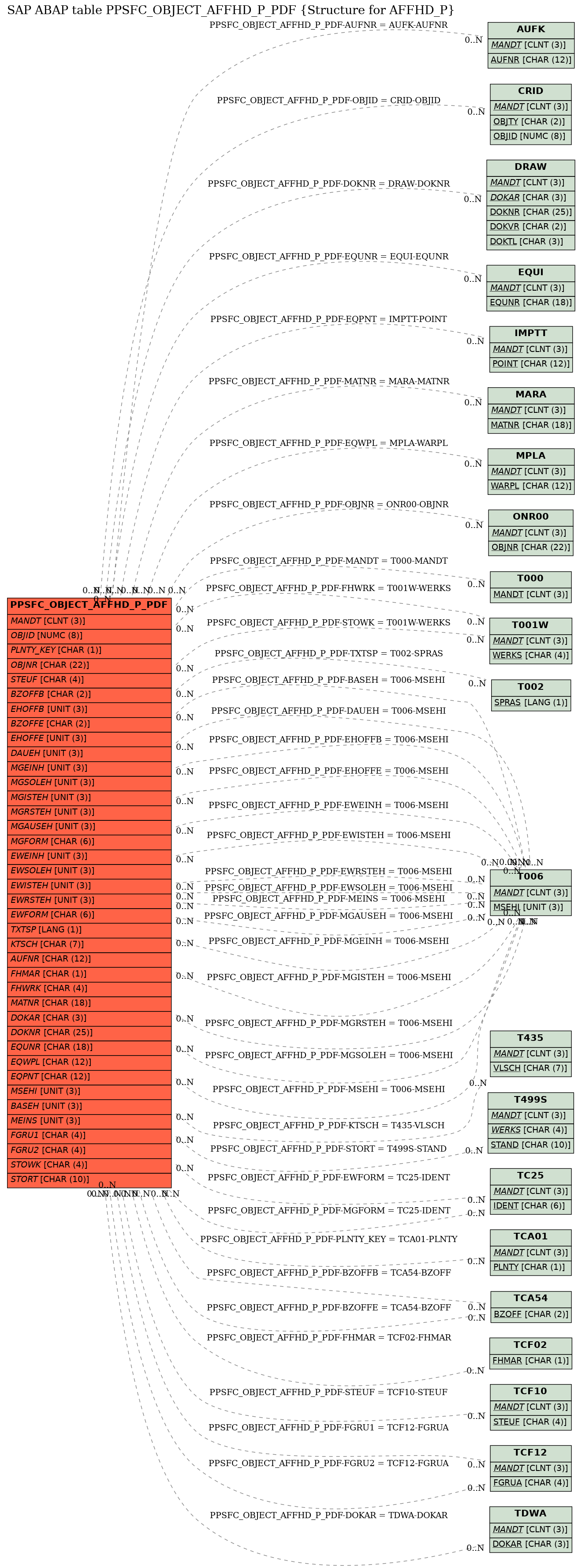

Structure	PPSFC_OBJECT_AFFHD_P_PDF	Table Relationship Diagram
Short Description	Structure for AFFHD_P

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Production resources/tools for use in print reports
2	.INCLUDE	☐				0	0	Structure of the PRTs in orders
3	.INCLUDE	☐				0	0	PRT assignment data for the work order
4	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
5	AUFPL	☐	CO_AUFPL	AUFPL	NUMC	10	0	Routing number of operations in the order
6	PZLFH	☐	PZLFH	PZLFH	NUMC	8	0	Item counter for production resources/tools
7	.INCLUDE	☐				0	0	PRT assignment data for the work order
8	LOEKZ	☐	LKENZ	XFELD	CHAR	1	0	Deletion Indicator
9	PARKZ	☐	PARKZ	XFELD	CHAR	1	0	Indicator: inactive changes
10	DATUI	☐	ANDAT	DATUM	DATS	8	0	Date Record Created on
11	USERI	☐	ANNAM	USNAM	CHAR	12	0	User Who Created Record
12	DATUC	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
13	USERC	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
14	OBJTY	☐	CR_OBJTY	CR_OBJTY	CHAR	2	0	Object types of the CIM resource
15	OBJID	☐	CR_OBJID	CR_OBJID	NUMC	8	0	Object ID of the resource	CRID
16	PLNTY_KEY	☐	PLNTY	PLNTY	CHAR	1	0	Task List Type	TCA01
17	PLNNR_KEY	☐	PLNNR	PLNNR	CHAR	8	0	Key for Task List Group
18	PZLFH_KEY	☐	PZLFH	PZLFH	NUMC	8	0	Item counter for production resources/tools
19	ZAEHL_KEY	☐	CIM_COUNT	CIM_COUNT	NUMC	8	0	Internal counter
20	OBJCT	☐	OBJCT_D	OBJKT	CHAR	1	0	Object of a task list
21	APLZL	☐	CIM_COUNT	CIM_COUNT	NUMC	8	0	Internal counter
22	PSNFH	☐	PSNFH	PSNFH	NUMC	4	0	Item Number for Production Resource/Tool
23	OBJNR	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	ONR00
24	STEUF	☐	STEUF	STEUF	CHAR	4	0	Control key for management of production resources/tools	TCF10
25	KZKBL	☐	KZKBL	XFELD	CHAR	1	0	Indicator: Create load records for prod. resources/tools
26	BZOFFB	☐	BZOFFB	CP_BZOFF	CHAR	2	0	Reference date to start of production resource/tool usage	TCA54
27	OFFSTB	☐	OFFSTB	VNZTV	QUAN	5	0	Offset to start of production resource/tool usage
28	EHOFFB	☐	EHOFFB	MEINS	UNIT	3	0	Offset unit for start of prod. resource/tool usage	T006
29	BZOFFE	☐	BZOFFE	CP_BZOFF	CHAR	2	0	Reference date for end of production resource/tool usage	TCA54
30	OFFSTE	☐	OFFSTE	VNZTV	QUAN	5	0	Offset to finish of production resource/tool usage
31	EHOFFE	☐	EHOFFE	MEINS	UNIT	3	0	Offset unit for end of production resource/tool usage	T006
32	FSFHD	☐	CF_FSFHD	DATUM	DATS	8	0	Earliest scheduled start (date) for PRT usage
33	FSFHZ	☐	CF_FSFHZ	UZEIT	TIMS	6	0	Earliest scheduled start (time) for PRT usage
34	FEFHD	☐	CF_FEFHD	DATUM	DATS	8	0	Earliest scheduled finish (date) of PRT usage
35	FEFHZ	☐	CF_FEFHZ	UZEIT	TIMS	6	0	Earliest scheduled end (time) of PRT usage
36	SSFHD	☐	CF_SSFHD	DATUM	DATS	8	0	Latest scheduled start (date) for PRT usage
37	SSFHZ	☐	CF_SSFHZ	UZEIT	TIMS	6	0	Latest scheduled start (time) for PRT usage
38	SEFHD	☐	CF_SEFHD	DATUM	DATS	8	0	Latest scheduled finish (date) of PRT usage
39	SEFHZ	☐	CF_SEFHZ	UZEIT	TIMS	6	0	Latest scheduled end (time) for PRT usage
40	ISFHD	☐	CF_ISFHD	DATUM	DATS	8	0	Actual start (date) of PRT usage
41	ISFHZ	☐	CF_ISFHZ	UZEIT	TIMS	6	0	Actual start (time) of PRT usage
42	IEFHD	☐	CF_IEFHD	DATUM	DATS	8	0	Actual finish (date) of PRT usage
43	IEFHZ	☐	CF_IEFHZ	UZEIT	TIMS	6	0	Actual finish (time) of PRT usage
44	DAUFL	☐	CF_DAUFL	CX_ZEIT	FLTP	16	16	Duration of PRT usage
45	DAUEH	☐	CF_DAUEH	MEINS	UNIT	3	0	Time unit for duration of PRT usage	T006
46	MGEINH	☐	MGEINH	MEINS	UNIT	3	0	Quantity unit of production resource/tool	T006
47	MGVGW	☐	MGVGW	MENG9	QUAN	9	3	Standard value for the PRT quantity
48	MGSOLEH	☐	MGEINH	MEINS	UNIT	3	0	Quantity unit of production resource/tool	T006
49	MGSOL	☐	MGSOL	MENG9	QUAN	9	3	Total planned quantity of production resource/tool
50	MGISTEH	☐	MGEINH	MEINS	UNIT	3	0	Quantity unit of production resource/tool	T006
51	MGIST	☐	MGIST	MENG9	QUAN	9	3	Confirmed quantity of production resource/tool
52	MGRSTEH	☐	MGEINH	MEINS	UNIT	3	0	Quantity unit of production resource/tool	T006
53	MGRST	☐	MGRST	MENG9	QUAN	9	3	Remaining quantity of the production resource/tool
54	MGAUSEH	☐	MGEINH	MEINS	UNIT	3	0	Quantity unit of production resource/tool	T006
55	MGAUS	☐	MGAUS	MENG9	QUAN	9	3	Quantity of checked-out production resources/tools
56	MGFORM	☐	CF_MGFORM	AP_FORMEL	CHAR	6	0	Formula for calculating the total quantity of PRT	TC25
57	EWEINH	☐	EWEINH	MEINS	UNIT	3	0	Usage value unit of the production resource/tool	T006
58	EWVGW	☐	EWVGW	MENG9	QUAN	9	3	Standard usage value for production resources/tools
59	EWSOLEH	☐	EWEINH	MEINS	UNIT	3	0	Usage value unit of the production resource/tool	T006
60	EWSOL	☐	EWSOL	MENG9	QUAN	9	3	Total planned usage value of production resource/tool
61	EWISTEH	☐	EWEINH	MEINS	UNIT	3	0	Usage value unit of the production resource/tool	T006
62	EWIST	☐	EWIST	MENG9	QUAN	9	3	Actual usage value for production resource/tool
63	EWRSTEH	☐	EWEINH	MEINS	UNIT	3	0	Usage value unit of the production resource/tool	T006
64	EWRST	☐	EWRST	MENG9	QUAN	9	3	Remaining usage value of the production resource/tool
65	EWFORM	☐	CF_EWFORM	AP_FORMEL	CHAR	6	0	Formula for calculating the total usage value of PRT	TC25
66	TXTSP	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
67	KTSCH	☐	CF_KTSCH	KTSCH	CHAR	7	0	Standard text key for production resources/tools	T435
68	TXTZ1	☐	TXTZ1	TEXT40	CHAR	40	0	First line of text for production resources/tools
69	OBJTYPE	☐	OCM_OBJ_TYPE	OCM_OBJ_TYPE	CHAR	1	0	Change indicator
70	CH_PROC	☐	OCM_CH_PROC	OCM_CH_PROC	CHAR	1	0	Process that has lead to the change of an object
71	AENNR	☐	AENNR	AENNR	CHAR	12	0	Change Number	*
72	DAUSE	☐	CF_DAUSE	DAUER_4_1	QUAN	5	1	Duration of the PRT usage
73	AUFNR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	AUFK
74	FHMAR	☐	FHMAR	FHMAR	CHAR	1	0	Production resources/tools category	TCF02
75	FHMNR	☐	FHMNR	FHMNR	CHAR	33	0	Production resource/tool number
76	FHWRK	☐	FHWRK	WERKS	CHAR	4	0	Production resources/tools in plant	T001W
77	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	MARA
78	SFHNR	☐	SFHNR	SFHNR	CHAR	18	0	Production resources and tools
79	DOKAR	☐	DOKAR	DOKAR	CHAR	3	0	Document Type	TDWA
80	DOKNR	☐	DOKNR	DOKNR	CHAR	25	0	Document number	DRAW
81	DOKVR	☐	DOKVR	DOKVR	CHAR	2	0	Document version
82	DOKTL	☐	DOKTL_D	DOKTL	CHAR	3	0	Document part
83	EQUNR	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number	EQUI
84	EQWPL	☐	WARPL	WARPL	CHAR	12	0	Maintenance Plan	MPLA
85	EQWTX	☐	WPTXT	TEXT40	CHAR	40	0	Maintenance Plan Text
86	EQPNT	☐	IMRC_POINT	IMRC_POINT	CHAR	12	0	Measuring Point	IMPTT
87	EQPTX	☐	IMRC_PTTXT	TEXT40	CHAR	40	0	Description of Measuring Point
88	ATNAM	☐	ATNAM	ATNAM	CHAR	30	0	Characteristic Name
89	ATVOR	☐	IMRC_INEGV	X	CHAR	1	0	Indicator: Negative Values Allowed
90	MSEHI	☐	MSEHI	MEINS	UNIT	3	0	Unit of Measurement	T006
91	ATDIM	☐	ATDIM	EXP10	INT2	5	0	Exponent display
92	ANZDZ	☐	ANZDZ	ANZDZ	INT2	5	0	Number of Decimal Places
93	FHKTX	☐	FHKTX	TEXT40	CHAR	40	0	Description of the production resource/tool
94	BASEH	☐	CF_BASEH	MEINS	UNIT	3	0	Base unit of measure for production resources/tools	T006
95	MEINS	☐	MEINS	MEINS	UNIT	3	0	Base Unit of Measure	T006
96	FGRU1	☐	FGRUA	FGRUA	CHAR	4	0	Grouping key 1 for production resources/tools	TCF12
97	FGRU2	☐	FGRUB	FGRUA	CHAR	4	0	Grouping key 2 for production resources/tools	TCF12
98	STOWK	☐	CF_STOWK	WERKS	CHAR	4	0	Plant location of the production resource/tool	T001W
99	STORT	☐	CF_STORT	AP_STAND	CHAR	10	0	Location of a production resource or tool	T499S
100	FSTTXT	☐	CO_STTXT	CHAR40	CHAR	40	0	System Status
101	CF_KZSVS	☐	CF_KZSVS	XFELD	CHAR	1	0	Indicator for start of PRT usage: Offset to Operation start
102	CF_KZSVE	☐	CF_KZSVE	XFELD	CHAR	1	0	Indicator for start of PRT usage: Offset to op. finish
103	CF_KZEVS	☐	CF_KZEVS	XFELD	CHAR	1	0	Indicator for end of PRT usage: Offset to operation start
104	CF_KZEVE	☐	CF_KZEVE	XFELD	CHAR	1	0	Indicator for end of PRT usage: Offset to operation finish
105	STEUF_REF	☐	CF_STKZR	XFELD	CHAR	1	0	Control key cannot be changed
106	KTSCH_REF	☐	CF_KTKZR	XFELD	CHAR	1	0	Reference Key Cannot be Changed
107	BZOFFB_REF	☐	CF_BBKZR	XFELD	CHAR	1	0	Start reference date cannot be changed
108	OFFSTB_REF	☐	CF_OBKZR	XFELD	CHAR	1	0	Offset to start cannot be changed
109	BZOFFE_REF	☐	CF_BEKZR	XFELD	CHAR	1	0	End reference date cannot be changed
110	OFFSTE_REF	☐	CF_OEKZR	XFELD	CHAR	1	0	Offset to end cannot be changed
111	MGFORM_REF	☐	CF_MFKZR	XFELD	CHAR	1	0	Formula for calculating the total quantity cannot be changed
112	EWFORM_REF	☐	CF_EFKZR	XFELD	CHAR	1	0	Formula to calculate entire usage value cannot be changed
113	TXTKZ	☐	CF_TXTKZ	FLAG	CHAR	1	0	Indicator: Long text exists
114	INDBT	☐	TABIX_D	TABIX	INT4	10	0	Field defined as in SY-TABIX
115	COMP_RES	☐	OCM_COMP_RES	OCM_COMP_RES	CHAR	1	0	OCM: Result of comparison of two order objects
116	.INCLUDE	☐				0	0	Version information about production resources/tools
117	VSNMR	☐	VSNMR	VSNMR	CHAR	12	0	Number or description of a version
118	.INCLUDE	☐				0	0	Original key for production resources/tools (versions)
119	ORGAUFPL	☐	CO_AUFPL	AUFPL	NUMC	10	0	Routing number of operations in the order
120	ORGPZLFH	☐	PZLFH	PZLFH	NUMC	8	0	Item counter for production resources/tools
121	INDEX_ITAB	☐	INDEX_ITAB	TABIX	INT4	10	0	Line number of an entry in index table ITAB
122	FLG_PR	☐	FLG_PROBJ	KREUZ	CHAR	1	0	Indicator: Object is to be printed (internal field)
123	VORNR	☐	VORNR	VORNR	CHAR	4	0	Operation/Activity Number
124	PLNFL	☐	PLNFOLGE	PLNFOLGE	CHAR	6	0	Sequence
125	COUNTER	☐	COUNTER1	COUNTER1	INT1	3	0	Counter
126	TDLINE	☐	TDLINE	TDSTXLLINE	CHAR	132	0	Text Line

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	PPSFC_OBJECT_AFFHD_P_PDF	AUFNR	AUFK	AUFNR
2	PPSFC_OBJECT_AFFHD_P_PDF	BASEH	T006	MSEHI
3	PPSFC_OBJECT_AFFHD_P_PDF	BZOFFB	TCA54	BZOFF
4	PPSFC_OBJECT_AFFHD_P_PDF	BZOFFE	TCA54	BZOFF
5	PPSFC_OBJECT_AFFHD_P_PDF	DAUEH	T006	MSEHI
6	PPSFC_OBJECT_AFFHD_P_PDF	DOKAR	TDWA	DOKAR
7	PPSFC_OBJECT_AFFHD_P_PDF	DOKNR	DRAW	DOKNR
8	PPSFC_OBJECT_AFFHD_P_PDF	EHOFFB	T006	MSEHI
9	PPSFC_OBJECT_AFFHD_P_PDF	EHOFFE	T006	MSEHI
10	PPSFC_OBJECT_AFFHD_P_PDF	EQPNT	IMPTT	POINT
11	PPSFC_OBJECT_AFFHD_P_PDF	EQUNR	EQUI	EQUNR
12	PPSFC_OBJECT_AFFHD_P_PDF	EQWPL	MPLA	WARPL
13	PPSFC_OBJECT_AFFHD_P_PDF	EWEINH	T006	MSEHI
14	PPSFC_OBJECT_AFFHD_P_PDF	EWFORM	TC25	IDENT
15	PPSFC_OBJECT_AFFHD_P_PDF	EWISTEH	T006	MSEHI
16	PPSFC_OBJECT_AFFHD_P_PDF	EWRSTEH	T006	MSEHI
17	PPSFC_OBJECT_AFFHD_P_PDF	EWSOLEH	T006	MSEHI
18	PPSFC_OBJECT_AFFHD_P_PDF	FGRU1	TCF12	FGRUA
19	PPSFC_OBJECT_AFFHD_P_PDF	FGRU2	TCF12	FGRUA
20	PPSFC_OBJECT_AFFHD_P_PDF	FHMAR	TCF02	FHMAR
21	PPSFC_OBJECT_AFFHD_P_PDF	FHWRK	T001W	WERKS
22	PPSFC_OBJECT_AFFHD_P_PDF	KTSCH	T435	VLSCH
23	PPSFC_OBJECT_AFFHD_P_PDF	MANDT	T000	MANDT
24	PPSFC_OBJECT_AFFHD_P_PDF	MATNR	MARA	MATNR
25	PPSFC_OBJECT_AFFHD_P_PDF	MEINS	T006	MSEHI
26	PPSFC_OBJECT_AFFHD_P_PDF	MGAUSEH	T006	MSEHI
27	PPSFC_OBJECT_AFFHD_P_PDF	MGEINH	T006	MSEHI
28	PPSFC_OBJECT_AFFHD_P_PDF	MGFORM	TC25	IDENT
29	PPSFC_OBJECT_AFFHD_P_PDF	MGISTEH	T006	MSEHI
30	PPSFC_OBJECT_AFFHD_P_PDF	MGRSTEH	T006	MSEHI
31	PPSFC_OBJECT_AFFHD_P_PDF	MGSOLEH	T006	MSEHI
32	PPSFC_OBJECT_AFFHD_P_PDF	MSEHI	T006	MSEHI
33	PPSFC_OBJECT_AFFHD_P_PDF	OBJID	CRID	OBJID
34	PPSFC_OBJECT_AFFHD_P_PDF	OBJNR	ONR00	OBJNR
35	PPSFC_OBJECT_AFFHD_P_PDF	PLNTY_KEY	TCA01	PLNTY
36	PPSFC_OBJECT_AFFHD_P_PDF	STEUF	TCF10	STEUF
37	PPSFC_OBJECT_AFFHD_P_PDF	STORT	T499S	STAND
38	PPSFC_OBJECT_AFFHD_P_PDF	STOWK	T001W	WERKS
39	PPSFC_OBJECT_AFFHD_P_PDF	TXTSP	T002	SPRAS

History

Last changed by/on	SAP	20130529
SAP Release Created in	600
