SAP ABAP Table KOMKBON (Output determination communication area header appl. ON)

Hierarchy

☛ IS-OIL (Software Component) IS-OIL
   ⤷ IS-OIL-DS-TSW (Application Component) Trader's and Scheduler's Workbench
     ⤷ OIJ (Package) TSW Traders and Schedulers Workbench

Basic Data

Table Category	INTTAB	Structure

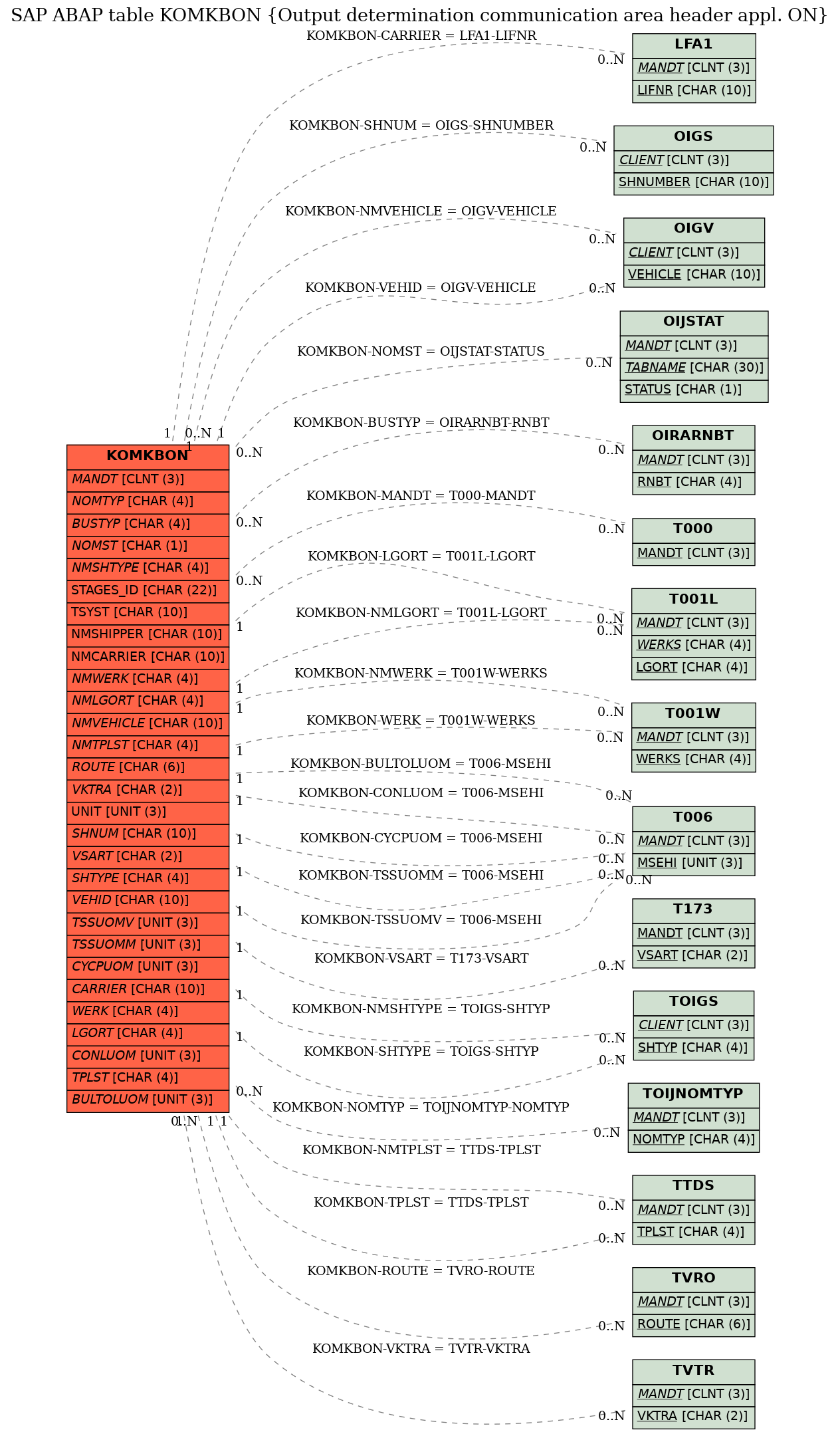

Structure	KOMKBON	Table Relationship Diagram
Short Description	Output determination communication area header appl. ON

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Nomination Header
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	NOMTK	☐	OIJ_NOMTK	OIJ_NOMTK	CHAR	20	0	Nomination (technical) Key	*
4	.INCLUDE	☐				0	0	Nomination Header Basic Fields
5	NOMCL	☐	OIJ_NOMCL	OIJ_NOMCL	CHAR	2	0	Nomination Class
6	NOMTYP	☐	OIJ_NOMTYP	OIJ_NOMTYP	CHAR	4	0	Nomination type	TOIJNOMTYP
7	BUSTYP	☐	OIRA_RNBT	OIRA_RNBT	CHAR	4	0	Business type	OIRARNBT
8	NOMNR	☐	OIJ_NOMNR	OIJ_NOMNR	CHAR	20	0	Nomination number
9	NOMST	☐	OIJ_NOMST	OIJ_ISTAT	CHAR	1	0	Nomination header status	OIJSTAT
10	NMSHTYPE	☐	OIG_TDSTYP	OIG_TDSTYP	CHAR	4	0	TD shipment type	TOIGS
11	NMBALCH	☐	OIJ_BALCH	XFELD	CHAR	1	0	Balance check indicator (default)
12	STAGES_ID	☐	GUID_22	SYSUUID_22	CHAR	22	0	GUID in 'CHAR' format with upper-/lowercase (!)	*
13	WORKLIST	☐	OIJ_WORKLT	XFELD	CHAR	1	0	Worklist entry indicator
14	SENTDAT	☐	OIJ_SENDAT	DATUM	DATS	8	0	Last header action date
15	SENTTIME	☐	OIJ_SENTIM	UZEIT	TIMS	6	0	Last header action time
16	SENTNAM	☐	OIJ_SENNAM	USNAM	CHAR	12	0	Last user who worked on object
17	ITEMS	☐	OIJ_ITEMCOUNTER	NUM04	NUMC	4	0	Nomination item counter
18	COUNTER1	☐	OIJ_PLANNEDITEMS	NUM04	NUMC	4	0	Nomination planned item Counter
19	COUNTER2	☐	OIJ_SCHEDULEDITEMS	NUM04	NUMC	4	0	Nomination scheduled Item Counter
20	COUNTER3	☐	OIJ_REJECTEDITEMS	NUM04	NUMC	4	0	Nomination rejected Item Counter
21	COUNTER4	☐	OIJ_CONFIRMEDITEMS	NUM04	NUMC	4	0	Nomination confirmed Item Counter
22	COUNTER5	☐	OIJ_PARTCOMPLETEITEMS	NUM04	NUMC	4	0	Nomination partially complete Item Counter
23	COUNTER6	☐	OIJ_COMPLETEDITEMS	NUM04	NUMC	4	0	Nomination completed Item Counter
24	APO_SHIPMENT_ID	☐	GUID_22	SYSUUID_22	CHAR	22	0	GUID in 'CHAR' format with upper-/lowercase (!)
25	APO_SHIPMENT_NUM	☐	TKNUM	TKNUM	CHAR	10	0	Shipment Number	*
26	NMBLOCK	☐	OIJ_BLOIND	XFELD	CHAR	1	0	Blocking indicator
27	.INCLUDE	☐				0	0	Nomination Header Default Fields
28	TSYST	☐	OIJ_TSYST	OIJ_TSYST	CHAR	10	0	Transport system	*
29	NMSHIPPER	☐	OIJ_SHIPNR	LIFNR	CHAR	10	0	Shipper	*
30	NMCARRIER	☐	OIJ_CARRNR	LIFNR	CHAR	10	0	Transport system Carrier	*
31	CYCLE	☐	OIJ_CYCLE	CHAR10	CHAR	10	0	Nomination Pipeline cycle ID
32	NMWERK	☐	OIJ_WERK	WERKS	CHAR	4	0	Transport system In-transit Plant	T001W
33	NMLGORT	☐	OIJ_LGORT	LGORT	CHAR	4	0	Transport system In-transit Storage Location	T001L
34	NMVEHICLE	☐	OIG_VHLNMR	OIG_VHLNMR	CHAR	10	0	TD Vehicle Number	OIGV
35	NMVESSEL	☐	OIG_VEHID	OIG_LICNMR	CHAR	18	0	TD vehicle identifier
36	NMTPLST	☐	TPLST	TPLST	CHAR	4	0	Transportation planning point	TTDS
37	ROUTE	☐	ROUTE	ROUTE	CHAR	6	0	Route	TVRO
38	BOOKTS	☐	OIJ_BOOKTS	XFELD	CHAR	1	0	Book TS indicator
39	EV_GROUP	☐	OIG_EVGRP	OIG_EVGRP	CHAR	4	0	TD - event default group
40	VKTRA	☐	VKTRA	VKTRA	CHAR	2	0	Mode of transport	TVTR
41	QTYIN	☐	OIJ_QTYIN	MENG13	QUAN	13	3	Qty received in TS
42	QTYOUT	☐	OIJ_QTYOUT	MENG13	QUAN	13	3	Qty delivered from TS
43	UNIT	☐	OIJ_NMUNIT	MEINS	UNIT	3	0	Nomination(pipe) UoM	*
44	TST_FROM_MIN	☐	OIJ_SCHED_F	TZNTSTMPS	DEC	15	0	Scheduled / Acceptance / Pipe Batch Start Timestamp
45	TST_TO_MAX	☐	OIJ_SCHED_T	TZNTSTMPS	DEC	15	0	Scheduled / Acceptance / Pipe Batch End Timestamp
46	.INCLUDE	☐				0	0	Nomination Header Control Fields
47	BLOIND	☐	OIJ_BLOIND	XFELD	CHAR	1	0	Blocking indicator
48	DELIND	☐	OIJ_DELIND	XFELD	CHAR	1	0	Deletion indicator
49	SHNUM	☐	OIG_SHNUM	OIG_SHNUM	CHAR	10	0	TD shipment number	OIGS
50	.INCLUDE	☐				0	0	Nomination Header Administration Fields
51	ERDAT	☐	ERDAT	DATUM	DATS	8	0	Date on which the record was created
52	ERZEIT	☐	OI0_ERTIM	UZEIT	TIMS	6	0	Time of creation
53	ERNAM	☐	ERNAM	USNAM	CHAR	12	0	Name of Person who Created the Object
54	AEDAT	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
55	AEZEIT	☐	OI0_AETIM	UZEIT	TIMS	6	0	Time of day the record was changed
56	AENAM	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
57	.INCLUDE	☐				0	0	Nomination Header O Fields
58	EV_SEQ_UNI	☐	OIG_EVSEQU	OIG_DLNMCK	CHAR	1	0	TD Event sequence number (unique)
59	VSART	☐	VERSART	VERSART	CHAR	2	0	Shipping type	T173
60	SHTYPE	☐	OIG_TDSTYP	OIG_TDSTYP	CHAR	4	0	TD shipment type	TOIGS
61	VEHID	☐	OIJ_DEFVEH	OIG_VHLNMR	CHAR	10	0	Default vehicle number	OIGV
62	TSSUOMV	☐	OIJ_TSUOMV	MEINS	UNIT	3	0	TS standard volume UoM	T006
63	TSSUOMM	☐	OIJ_TSUOMM	MEINS	UNIT	3	0	TS standard weight UoM	T006
64	CYCPERD	☐	OIJ_CYCDUR	OIJ_CYCPD	QUAN	10	0	TS cycle duration
65	CYCPUOM	☐	OIJ_CYDUOM	MEINS	UNIT	3	0	TS cycle duration UoM	T006
66	CARRIER	☐	OIJ_CARRNR	LIFNR	CHAR	10	0	Transport system Carrier	LFA1
67	WERK	☐	OIJ_WERK	WERKS	CHAR	4	0	Transport system In-transit Plant	T001W
68	LGORT	☐	OIJ_LGORT	LGORT	CHAR	4	0	Transport system In-transit Storage Location	T001L
69	NOMMSK	☐	OIJ_NOMMSK	OIJ_NOMMSK	CHAR	10	0	Nomination mask
70	SHIPPER	☐	OIJ_SHPPER	OIJ_SHPPER	CHAR	10	0	Default TS shipper code
71	CONLTM	☐	OIJ_CONLTM	OIJ_CONLTM	QUAN	3	0	Carrier lead time
72	CONLUOM	☐	OIJ_CONTUM	MEINS	UNIT	3	0	Confirmation lead time UoM	T006
73	TPLST	☐	TPLST	TPLST	CHAR	4	0	Transportation planning point	TTDS
74	UNLIMITED	☐	UEBTK	XFELD	CHAR	1	0	Indicator: Unlimited Overdelivery Allowed
75	BOTOL	☐	OIJ_BOTOL	DEC3_1	DEC	4	1	Quantity tolerance over (percentage)
76	BUTOL	☐	OIJ_BUTOL	DEC3_1	DEC	4	1	Quantity tolerance under (%)
77	BOTOLABS	☐	OIJ_TOLABO	MENG13	QUAN	13	3	Absolute tolerance qty over
78	BUTOLABS	☐	OIJ_TOLABS	MENG13	QUAN	13	3	Absolute tolerance qty under
79	BULTOLUOM	☐	OIJ_TOLUOM	MEINS	UNIT	3	0	Absolute tolerance UoM	T006
80	BALCH	☐	OIJ_BALCH	XFELD	CHAR	1	0	Balance check indicator (default)
81	TRTYP	☐	TRTYP	TRTYP	CHAR	1	0	Transaction type
82	.INCLUDE	☐				0	0	Customer additions to output structure KOMKBON
83	DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	KOMKBON	BULTOLUOM	T006	MSEHI	KEY	1	CN
2	KOMKBON	BUSTYP	OIRARNBT	RNBT
3	KOMKBON	CARRIER	LFA1	LIFNR	KEY	1	CN
4	KOMKBON	CONLUOM	T006	MSEHI	KEY	1	CN
5	KOMKBON	CYCPUOM	T006	MSEHI	KEY	1	CN
6	KOMKBON	LGORT	T001L	LGORT	KEY	1	CN
7	KOMKBON	MANDT	T000	MANDT
8	KOMKBON	NMLGORT	T001L	LGORT	KEY	1	CN
9	KOMKBON	NMSHTYPE	TOIGS	SHTYP	KEY	1	CN
10	KOMKBON	NMTPLST	TTDS	TPLST	KEY	1	CN
11	KOMKBON	NMVEHICLE	OIGV	VEHICLE	KEY	1	CN
12	KOMKBON	NMWERK	T001W	WERKS	KEY	1	CN
13	KOMKBON	NOMST	OIJSTAT	STATUS
14	KOMKBON	NOMTYP	TOIJNOMTYP	NOMTYP
15	KOMKBON	ROUTE	TVRO	ROUTE
16	KOMKBON	SHNUM	OIGS	SHNUMBER
17	KOMKBON	SHTYPE	TOIGS	SHTYP	KEY	1	CN
18	KOMKBON	TPLST	TTDS	TPLST	KEY	1	CN
19	KOMKBON	TSSUOMM	T006	MSEHI	KEY	1	CN
20	KOMKBON	TSSUOMV	T006	MSEHI	KEY	1	CN
21	KOMKBON	VEHID	OIGV	VEHICLE	KEY	1	CN
22	KOMKBON	VKTRA	TVTR	VKTRA	KEY	1	CN
23	KOMKBON	VSART	T173	VSART	KEY	1	CN
24	KOMKBON	WERK	T001W	WERKS	KEY	1	CN

History

Last changed by/on	SAP	20091125
SAP Release Created in
