SAP ABAP Table BEAS_PAR_UI (Structure for Issuing Partner from Table Control)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BE (Application Component) Billing
     ⤷ BEA_PAR (Package) BE Application - Service - Partner Processing

Basic Data

Table Category	INTTAB	Structure

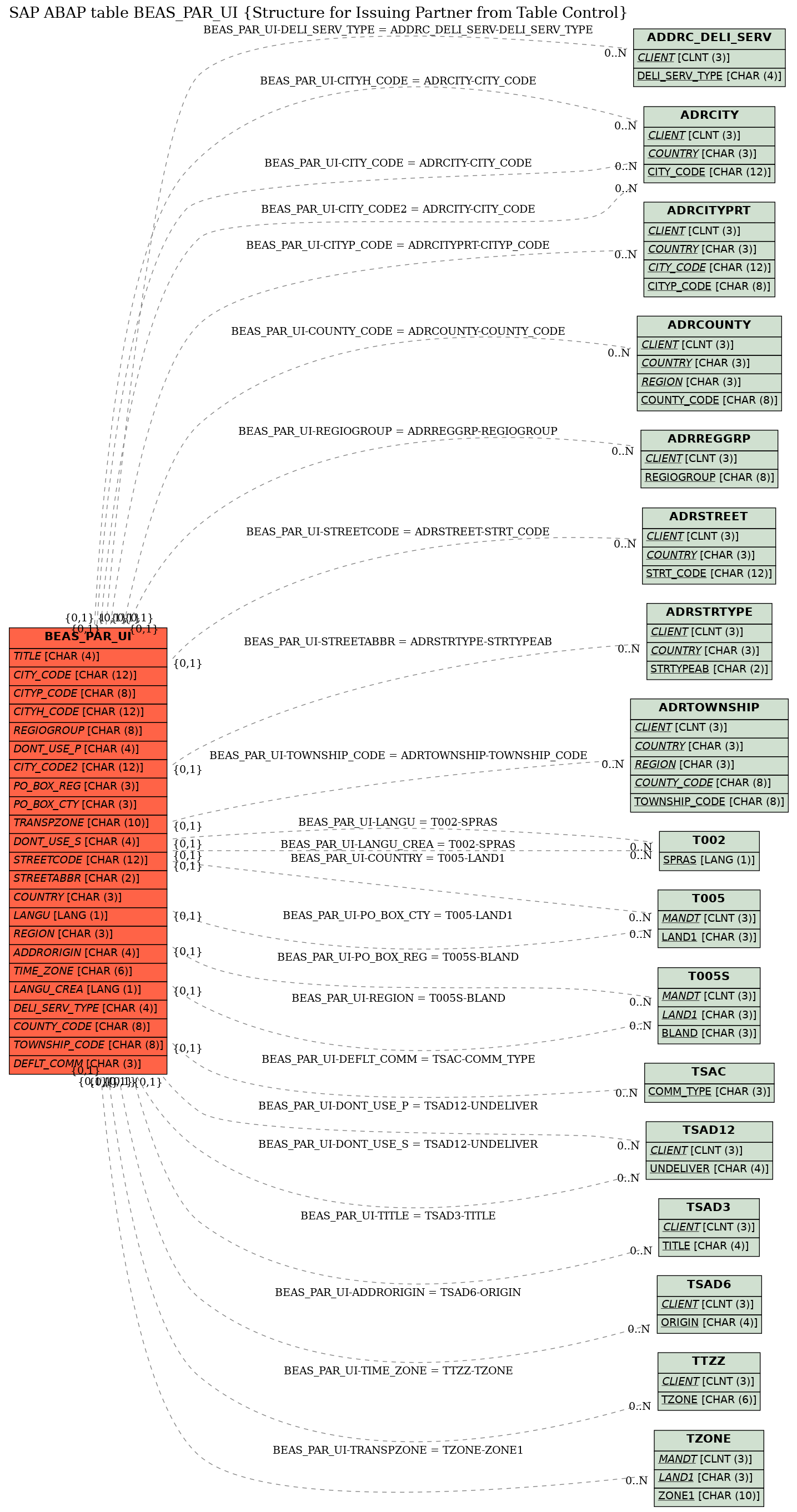

Structure	BEAS_PAR_UI	Table Relationship Diagram
Short Description	Structure for Issuing Partner from Table Control

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Display Structure for Partner Processing
2	SELKZ	☐	XFELD	XFELD	CHAR	1	0	Checkbox
3	PARTNER_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	LOGICAL_KEY	☐	CRMT_LOGICAL_KEY	CRM_LOGICAL_KEY	CHAR	42	0	Logical Key for Subobject
5	PARTNER_FCT	☐	CRMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function
6	FCT_DESCRIPTION	☐	COMT_PARTNER_FCT_DESCRIPTION	TEXT30	CHAR	30	0	Description of a Partner Function
7	PARTNER_NUMBER	☐	COMT_PARTNER_NUMBER	COM_PARTNER_NUMBER	CHAR	20	0	Partner Number for Use Outside Partner Processing
8	NO_TYPE	☐	CRMT_PARTNER_NO_TYPE	COMT_PARTNER_NO_TYPE	CHAR	2	0	Partner Number Type (e.g. GUID, Pers. No., ...), Internal
9	DISPLAY_TYPE	☐	CRMT_PARTNER_DISPLAY_TYPE	COMT_PARTNER_NO_TYPE	CHAR	2	0	Object Type, for Which Partner Number is to be Shown
10	MAINPARTNER	☐	CRMT_PARTNER_MAIN	CRM_BOOLEAN	CHAR	1	0	Main Partner (For Ambiguous Partner Functions)
11	CALENDAR	☐	CRMT_PARTNER_CALENDAR	CRM_BOOLEAN	CHAR	1	0	Maintain Calendar for the Partner?
12	DISABLED	☐	CRMT_PARTNER_DISABLED	CRM_BOOLEAN	CHAR	1	0	No INBOX Selection for the Partner
13	ADDR_NR	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	*
14	ADDR_NP	☐	AD_PERSNUM	AD_PERSNUM	CHAR	10	0	Person number	*
15	ADDR_TYPE	☐	AD_ADRTYPE	AD_ADRTYPE	CHAR	1	0	Address type (1=Organization, 2=Person, 3=Contact person)
16	ERROR_FLAG	☐	XFELD	XFELD	CHAR	1	0	Checkbox
17	RELATION_PARTNER	☐	BU_PARTNER_GUID	SYSUUID	RAW	16	0	Business Partner GUID
18	SHORT	☐	COMT_PARTNER_ADDRESS_WO_STREET	CHAR80	CHAR	80	0	Partner Address Without Street
19	SHORT_WITH_STREET	☐	COMT_PARTNER_ADDRESS_W_STREET	CHAR80S	CHAR	80	0	Partner Address With Street
20	.INCLUDE	☐				0	0	Address transfer structure
21	DATE_FROM	☐	AD_DATE_FR	DATUM	DATS	8	0	Valid-from date - in current Release only 00010101 possible
22	DATE_TO	☐	AD_DATE_TO	DATUM	DATS	8	0	Valid-to date in current Release only 99991231 possible
23	.INCLUDE	☐				0	0	Include structure with name attributes of the ADRC address
24	TITLE	☐	AD_TITLE	AD_TITLE	CHAR	4	0	Form-of-Address Key	TSAD3
25	NAME1	☐	AD_NAME1	TEXT40	CHAR	40	0	Name 1
26	NAME2	☐	AD_NAME2	TEXT40	CHAR	40	0	Name 2
27	NAME3	☐	AD_NAME3	TEXT40	CHAR	40	0	Name 3
28	NAME4	☐	AD_NAME4	TEXT40	CHAR	40	0	Name 4
29	NAME_TXT	☐	AD_NAMETXT	TEXT50	CHAR	50	0	Converted name field (with form of address)
30	.INCLUDE	☐				0	0	Include structure with ADRC attributes without name fields
31	NAME_CO	☐	AD_NAME_CO	TEXT40	CHAR	40	0	c/o name
32	CITY1	☐	AD_CITY1	TEXT40	CHAR	40	0	City
33	CITY2	☐	AD_CITY2	TEXT40	CHAR	40	0	District
34	CITY_CODE	☐	AD_CITYNUM	CITY_CODE	CHAR	12	0	City code for city/street file	ADRCITY
35	CITYP_CODE	☐	AD_CITYPNM	CITYP_CODE	CHAR	8	0	District code for City and Street file	ADRCITYPRT
36	HOME_CITY	☐	AD_CITY3	TEXT40	CHAR	40	0	City (different from postal city)
37	CITYH_CODE	☐	AD_CITYHNM	CITY_CODE	CHAR	12	0	Different city for city/street file	ADRCITY
38	CHCKSTATUS	☐	AD_CHECKST	AD_CHECKST	CHAR	1	0	City file test status
39	REGIOGROUP	☐	REGIOGROUP	REGIOGROUP	CHAR	8	0	Regional structure grouping	ADRREGGRP
40	POST_CODE1	☐	AD_PSTCD1	CHAR10	CHAR	10	0	City postal code
41	POST_CODE2	☐	AD_PSTCD2	CHAR10	CHAR	10	0	PO Box postal code
42	POST_CODE3	☐	AD_PSTCD3	CHAR10	CHAR	10	0	Company postal code (for large customers)
43	PCODE1_EXT	☐	AD_PST1XT	CHAR10	CHAR	10	0	(Not Supported)City Postal Code Extension, e.g. ZIP+4+2 Code
44	PCODE2_EXT	☐	AD_PST2XT	CHAR10	CHAR	10	0	(Not Supported) PO Box Postal Code Extension
45	PCODE3_EXT	☐	AD_PST3XT	CHAR10	CHAR	10	0	(Not Supported) Major Customer Postal Code Extension
46	PO_BOX	☐	AD_POBX	CHAR10	CHAR	10	0	PO Box
47	DONT_USE_P	☐	AD_NO_USEP	AD_NO_USE	CHAR	4	0	PO Box Address Undeliverable Flag	TSAD12
48	PO_BOX_NUM	☐	AD_POBXNUM	XFELD	CHAR	1	0	Flag: PO Box without number
49	PO_BOX_LOC	☐	AD_POBXLOC	TEXT40	CHAR	40	0	PO Box city
50	CITY_CODE2	☐	AD_CIT2NUM	CITY_CODE	CHAR	12	0	City PO box code (City file)	ADRCITY
51	PO_BOX_REG	☐	AD_POBXREG	REGIO	CHAR	3	0	Region for PO Box (Country, State, Province, ...)	T005S
52	PO_BOX_CTY	☐	AD_POBXCTY	LAND1	CHAR	3	0	PO box country	T005
53	POSTALAREA	☐	AD_PSTLAR	TEXT15	CHAR	15	0	(Not Supported) Post Delivery District
54	TRANSPZONE	☐	LZONE	ZONE	CHAR	10	0	Transportation zone to or from which the goods are delivered	TZONE
55	STREET	☐	AD_STREET	TEXT60	CHAR	60	0	Street
56	DONT_USE_S	☐	AD_NO_USES	AD_NO_USE	CHAR	4	0	Street Address Undeliverable Flag	TSAD12
57	STREETCODE	☐	AD_STRNUM	STRT_CODE	CHAR	12	0	Street Number for City/Street File	ADRSTREET
58	STREETABBR	☐	AD_STRABBR	STRTYPEAB	CHAR	2	0	(Not Supported) Abbreviation of Street Name	ADRSTRTYPE
59	HOUSE_NUM1	☐	AD_HSNM1	TEXT10	CHAR	10	0	House Number
60	HOUSE_NUM2	☐	AD_HSNM2	TEXT10	CHAR	10	0	House number supplement
61	HOUSE_NUM3	☐	AD_HSNM3	TEXT10	CHAR	10	0	(Not supported) House Number Range
62	STR_SUPPL1	☐	AD_STRSPP1	TEXT40	CHAR	40	0	Street 2
63	STR_SUPPL2	☐	AD_STRSPP2	TEXT40	CHAR	40	0	Street 3
64	STR_SUPPL3	☐	AD_STRSPP3	TEXT40	CHAR	40	0	Street 4
65	LOCATION	☐	AD_LCTN	TEXT40	CHAR	40	0	Street 5
66	BUILDING	☐	AD_BLDNG	TEXT20	CHAR	20	0	Building (Number or Code)
67	FLOOR	☐	AD_FLOOR	TEXT10	CHAR	10	0	Floor in building
68	ROOMNUMBER	☐	AD_ROOMNUM	TEXT10	CHAR	10	0	Room or Appartment Number
69	COUNTRY	☐	LAND1	LAND1	CHAR	3	0	Country Key	T005
70	LANGU	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
71	REGION	☐	REGIO	REGIO	CHAR	3	0	Region (State, Province, County)	T005S
72	SORT1	☐	AD_SORT1UL	TEXT20	CHAR	20	0	Search Term 1
73	SORT2	☐	AD_SORT2UL	TEXT20	CHAR	20	0	Search Term 2
74	SORT_PHN	☐	AD_SRTPHN	CHAR20	CHAR	20	0	(Not Supported) Phonetic Search Sort Field
75	ADDRORIGIN	☐	AD_ORIGINA	AD_ORIGIN	CHAR	4	0	(Not Supported) Address Data Source (Key)	TSAD6
76	EXTENSION1	☐	AD_EXTENS1	TEXT40	CHAR	40	0	Extension (only for data conversion) (e.g. data line)
77	EXTENSION2	☐	AD_EXTENS2	TEXT40	CHAR	40	0	Extension (only for data conversion) (e.g. telebox)
78	TIME_ZONE	☐	AD_TZONE	TZNZONE	CHAR	6	0	Address time zone	TTZZ
79	TAXJURCODE	☐	AD_TXJCD	AD_TXJCD	CHAR	15	0	Tax Jurisdiction
80	ADDRESS_ID	☐	AD_ADDR_ID	AD_ADDR_ID	CHAR	10	0	(Not supported) Physical address ID
81	REMARK	☐	AD_REMARK1	TEXT50	CHAR	50	0	Address notes
82	LANGU_CREA	☐	AD_LANGUCR	SPRAS	LANG	1	0	Address record creation original language	T002
83	PO_BOX_LOBBY	☐	AD_PO_BOX_LBY	TEXT40	CHAR	40	0	PO Box Lobby
84	DELI_SERV_TYPE	☐	AD_DELIVERY_SERVICE_TYPE	AD_DELIVERY_SERVICE_TYPE	CHAR	4	0	Type of Delivery Service	ADDRC_DELI_SERV
85	DELI_SERV_NUMBER	☐	AD_DELIVERY_SERVICE_NUMBER	CHAR10	CHAR	10	0	Number of Delivery Service
86	COUNTY_CODE	☐	AD_CNTYNUM	CNTY_CODE	CHAR	8	0	County code for county	ADRCOUNTY
87	COUNTY	☐	AD_COUNTY	TEXT40	CHAR	40	0	County
88	TOWNSHIP_CODE	☐	AD_TWSHPNUM	TWSHP_CODE	CHAR	8	0	Township code for Township	ADRTOWNSHIP
89	TOWNSHIP	☐	AD_TOWNSHIP	TEXT40	CHAR	40	0	Township
90	DEFLT_COMM	☐	AD_COMM	AD_COMM	CHAR	3	0	Communication Method (Key) (Business Address Services)	TSAC
91	CUST_ATTRIBUTES	☐	COMT_PARTNER_CUST_ATTRIBUTES_T		TTYP	0	0
92	CUST_RELATIONS	☐	COMT_PARTNER_CUST_RELATIONS_T		TTYP	0	0
93	ATTRIBUTE_VALUES	☐	COMT_PARTNER_ATTR		STRU	0	0
94	PARTNER_GUID	☐	COMT_PARTNER_GUID	SYSUUID	RAW	16	0	GUID for an Individual Partner
95	COMT_ATTR_TERRITORY	☐	COMT_ATTR_TERRITORY		STRU	0	0
96	PATH_GUID	☐	GUID_16	SYSUUID	RAW	16	0	GUID in 'RAW' format
97	PATH_ID	☐	CRMT_TERRITORY_PATH_ID	CRM_TERRITORY_PATH_ID	CHAR	30	0	Territory Hierarchy ID
98	COMT_ATTR_SCORING	☐	COMT_ATTR_SCORING		STRU	0	0
99	SCORE	☐	CRMT_SCORE	CRM_SCORE	CHAR	10	0	Result Value of an Internal Creditworthiness Check
100	DATE_FROM	☐	DATUV	DATUM	DATS	8	0	Valid-From Date
101	DATE_TO	☐	DATBI	DATUM	DATS	8	0	Valid To Date
102	TERRITORY_DESC	☐	CRMT_TERRITORY_DESCRIPTION	TEXT40	CHAR	40	0	Territory Description
103	.INCLUDE	☐				0	0	Communication for Partner Processing
104	PARTNER_NAME	☐	COMT_BSP_BP_PARTNER_NAME	TEXT80	CHAR	80	0	Contains Business Partner's Full Name
105	PARTNER_ADDRESS	☐	COMT_BSP_BP_PARTNER_ADDRESS	CHAR80	CHAR	80	0	Business Partner Address
106	PARTNER_PHONE	☐	AD_TELNRLG	CHAR30	CHAR	30	0	Complete number: dialling code+number+extension
107	PARTNER_EMAIL	☐	AD_SMTPADR	AD_SMTPADR	CHAR	241	0	E-Mail Address
108	PARTNER_URL	☐	BSP_AD_URISCR	AD_URISCR	CHAR	132	0	URL, for Example, Homepage or ftp Address
109	.INCLUDE	☐				0	0	EEW Include
110	PARTNER_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
111	SFLAG	☐	BEA_BOOLEAN	BEA_BOOLEAN	CHAR	1	0	Boolean Variable

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BEAS_PAR_UI	ADDRORIGIN	TSAD6	ORIGIN	REF	C	CN
2	BEAS_PAR_UI	CITYH_CODE	ADRCITY	CITY_CODE	REF	C	CN
3	BEAS_PAR_UI	CITYP_CODE	ADRCITYPRT	CITYP_CODE	REF	C	CN
4	BEAS_PAR_UI	CITY_CODE	ADRCITY	CITY_CODE	REF	C	CN
5	BEAS_PAR_UI	CITY_CODE2	ADRCITY	CITY_CODE	REF	C	CN
6	BEAS_PAR_UI	COUNTRY	T005	LAND1	REF	C	CN
7	BEAS_PAR_UI	COUNTY_CODE	ADRCOUNTY	COUNTY_CODE	REF	C	CN
8	BEAS_PAR_UI	DEFLT_COMM	TSAC	COMM_TYPE	REF	C	CN
9	BEAS_PAR_UI	DELI_SERV_TYPE	ADDRC_DELI_SERV	DELI_SERV_TYPE		1	CN
10	BEAS_PAR_UI	DONT_USE_P	TSAD12	UNDELIVER	KEY	C	CN
11	BEAS_PAR_UI	DONT_USE_S	TSAD12	UNDELIVER	REF	C	CN
12	BEAS_PAR_UI	LANGU	T002	SPRAS	REF	C	CN
13	BEAS_PAR_UI	LANGU_CREA	T002	SPRAS	REF	C	CN
14	BEAS_PAR_UI	PO_BOX_CTY	T005	LAND1	REF	C	CN
15	BEAS_PAR_UI	PO_BOX_REG	T005S	BLAND	REF	C	CN
16	BEAS_PAR_UI	REGIOGROUP	ADRREGGRP	REGIOGROUP	REF	C	CN
17	BEAS_PAR_UI	REGION	T005S	BLAND	REF	C	CN
18	BEAS_PAR_UI	STREETABBR	ADRSTRTYPE	STRTYPEAB	REF	C	CN
19	BEAS_PAR_UI	STREETCODE	ADRSTREET	STRT_CODE	REF	C	CN
20	BEAS_PAR_UI	TIME_ZONE	TTZZ	TZONE	REF	C	CN
21	BEAS_PAR_UI	TITLE	TSAD3	TITLE	REF	C	CN
22	BEAS_PAR_UI	TOWNSHIP_CODE	ADRTOWNSHIP	TOWNSHIP_CODE	REF	C	CN
23	BEAS_PAR_UI	TRANSPZONE	TZONE	ZONE1	REF	C	CN

History

Last changed by/on	SAP	20141013
SAP Release Created in	30A
