SAP ABAP Table BAPI_ACT_STRUCTURE (BAPI structure network activity)

Hierarchy

☛ SAP_APPL (Software Component) Logistics and Accounting
   ⤷ PS-ST-OPR (Application Component) Operative Structures
     ⤷ CNIF (Package) External 'Interface for Project Management System (PS)'

Basic Data

Table Category	INTTAB	Structure

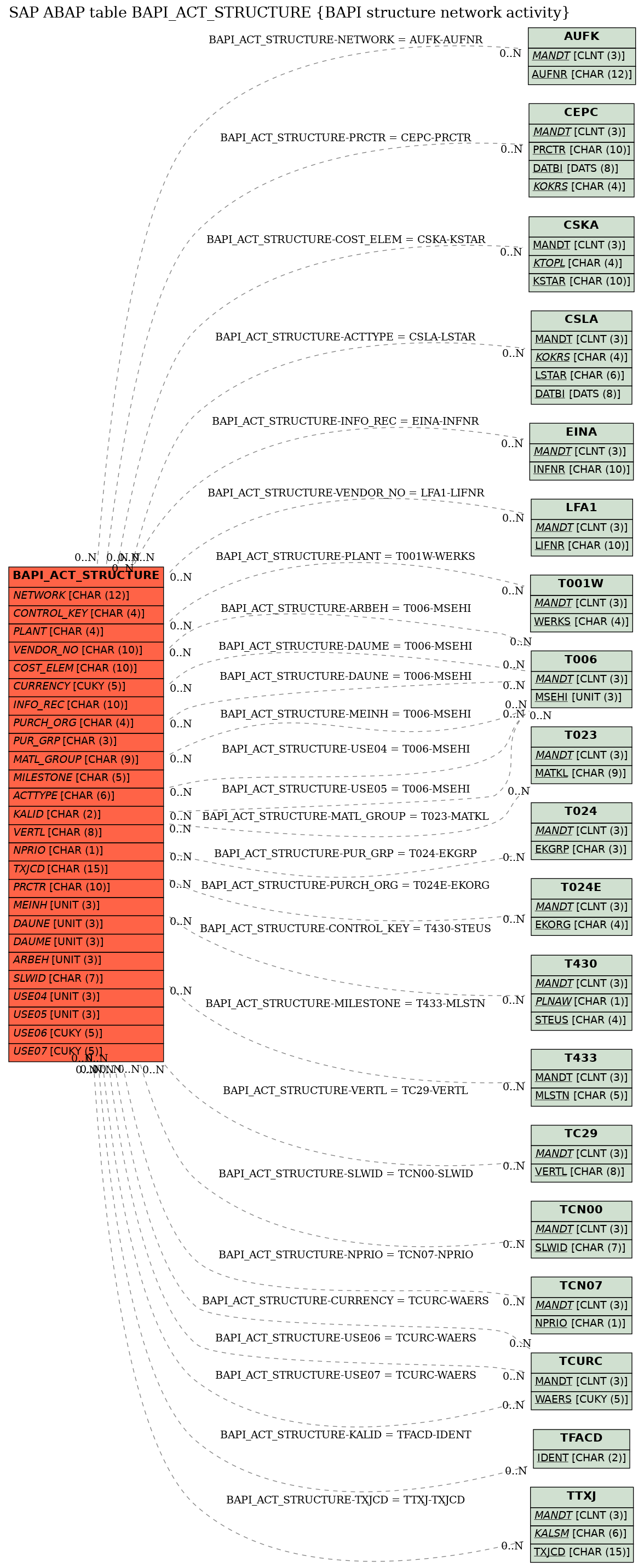

Structure	BAPI_ACT_STRUCTURE	Table Relationship Diagram
Short Description	BAPI structure network activity

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	NETWORK	☐	NW_AUFNR	AUFNR	CHAR	12	0	Network number	AUFK
2	ACTIVITY_NUMBER	☐	CN_VORNR	VORNR	CHAR	4	0	Activity number in network and standard network
3	CONTROL_KEY	☐	STEUS	STEUS	CHAR	4	0	Control key	T430
4	WORK_CNTR	☐	ARBPL	ARBPL	CHAR	8	0	Work center
5	PLANT	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
6	DESCRIPTION	☐	LTXA1	TEXT40	CHAR	40	0	Operation short text
7	VENDOR_NO	☐	LIFNR	LIFNR	CHAR	10	0	Account Number of Vendor or Creditor	LFA1
8	PRICE	☐	PREIS	WERT11	CURR	11	2	Price
9	PRICE_UNIT	☐	PEINH	PACK3	DEC	5	0	Price unit
10	COST_ELEM	☐	KSTAR	KSTAR	CHAR	10	0	Cost Element	CSKA
11	CURRENCY	☐	WAERS	WAERS	CUKY	5	0	Currency Key	TCURC
12	INFO_REC	☐	INFNR	INFNR	CHAR	10	0	Number of purchasing info record	EINA
13	PURCH_ORG	☐	EKORG	EKORG	CHAR	4	0	Purchasing organization	T024E
14	PUR_GRP	☐	EKGRP	EKGRP	CHAR	3	0	Purchasing group	T024
15	MATL_GROUP	☐	MATKL	MATKL	CHAR	9	0	Material Group	T023
16	FLEXIBLE_DURATION	☐	DAUDEHN	X	CHAR	1	0	Indicator: flexible duration
17	NUMB_OF_CAPACITIES	☐	ANZKAP	INT1	INT1	3	0	Number of capacities required
18	PERCENT_OF_WORK	☐	APROZENT	INT1	INT1	3	0	Work percentage
19	MILESTONE	☐	MILESTONE	MILESTONE	CHAR	5	0	Usage	T433
20	ACTTYPE	☐	LSTAR	LSTAR	CHAR	6	0	Activity Type	CSLA
21	ACTIVITY_COSTS	☐	PRKST	PRKST	CURR	11	2	Costs in the activity
22	PSPID	☐	PS_PSPID	PS_PSPID	CHAR	24	0	Project definition
23	POSID	☐	PS_POSID	PS_POSID	CHAR	24	0	Work Breakdown Structure Element (WBS Element)
24	KALID	☐	WFCID	WFCID	CHAR	2	0	Factory Calendar	TFACD
25	VERTL	☐	CR_VERTN	CR_VERTL	CHAR	8	0	Distr.cap.reqmts (plant maint.,process order, network)	TC29
26	NPRIO	☐	NW_PRIO	NW_PRIO	CHAR	1	0	Priority	TCN07
27	TXJCD	☐	TXJCD	TXJCD	CHAR	15	0	Tax Jurisdiction	TTXJ
28	SCOPE	☐	SCOPE_CV	SCOPE_CV	CHAR	2	0	Object Class
29	PRCTR	☐	PRCTR	PRCTR	CHAR	10	0	Profit Center	CEPC
30	NO_DISP	☐	NODISP	XFELD	CHAR	1	0	Ind: Reserv. not applicable to MRP;Purc. req. not created
31	CLASF	☐	CLASF	XFELD	CHAR	1	0	Ind.: Take Activity Into Account for Project Summarization
32	MEINH	☐	VORME	MEINS	UNIT	3	0	Unit of measure for activity	T006
33	PLIFZ	☐	PLIFZ	DEC3	DEC	3	0	Planned delivery time in days
34	DAUNO	☐	DAUNOR	DAUER_4_1	QUAN	5	1	Normal duration of the activity
35	DAUNE	☐	DAUNORE	MEINS	UNIT	3	0	Normal duration/unit	T006
36	DAUMI	☐	DAUMIN	DAUER_4_1	QUAN	5	1	Minimum activity duration
37	DAUME	☐	DAUMINE	MEINS	UNIT	3	0	Unit for the minimum duration	T006
38	EINSA	☐	EINSCHRA	RESTRIKSTR	CHAR	1	0	Constraint on the basic start date for the activity
39	EINSE	☐	EINSCHRE	RESTRIKEND	CHAR	1	0	Constraint on the finish date of the activity
40	ARBEI	☐	ARBEIT	ARBEIT	QUAN	7	1	Work involved in the activity
41	ARBEH	☐	ARBEITE	MEINS	UNIT	3	0	Unit for work	T006
42	FSAVD	☐	FSAVD	DATUM	DATS	8	0	Earliest scheduled start: Execution (date)
43	FSAVZ	☐	FSAVZ	ATIME	TIMS	6	0	Earliest scheduled start: Execution (time)
44	FSEDD	☐	FSEDD	DATUM	DATS	8	0	Earliest scheduled finish: Execution (date)
45	FSEDZ	☐	FSEDZ	ATIME	TIMS	6	0	Earliest scheduled finish: Execution (time)
46	SSAVD	☐	SSAVD	DATUM	DATS	8	0	Latest scheduled start: Execution (date)
47	SSAVZ	☐	SSAVZ	ATIME	TIMS	6	0	Latest scheduled start: Execution (time)
48	SSEDD	☐	SSEDD	DATUM	DATS	8	0	Latest scheduled finish: Execution (date)
49	SSEDZ	☐	SSEDZ	ATIME	TIMS	6	0	Latest scheduled finish: Execution (time)
50	PUFFR	☐	PUFFR_FREI	PUFFER	DEC	3	0	Free float
51	PUFGS	☐	PUFFR_GESM	PUFFER	DEC	3	0	Total float
52	NTANF	☐	VORGABESTD	VORGABESTR	DATS	8	0	Constraint for activity start (Basic)
53	NTANZ	☐	VORGABESTZ	ATIME	TIMS	6	0	Constraint for activity start time (Basic)
54	NTEND	☐	VORGABEEND	VORGABEEND	DATS	8	0	Constraint for finish of activity (Basic)
55	NTENZ	☐	VORGABEENZ	ATIME	TIMS	6	0	Basic finish time of the activity
56	SLWID	☐	SLWID	SLWID	CHAR	7	0	Key word ID for user-defined fields	TCN00
57	USR00	☐	USRCHAR20	USRCHAR20	CHAR	20	0	User field with 20 characters
58	USR01	☐	USRCHAR20	USRCHAR20	CHAR	20	0	User field with 20 characters
59	USR02	☐	USRCHAR10	USRCHAR10	CHAR	10	0	User field with 10 characters
60	USR03	☐	USRCHAR10	USRCHAR10	CHAR	10	0	User field with 10 characters
61	USR04	☐	USRQUAN13	USRQUAN13	QUAN	13	3	User field for quantity (length 10.3)
62	USE04	☐	USRUNIT	MEINS	UNIT	3	0	User field: Unit for quantity fields	T006
63	USR05	☐	USRQUAN13	USRQUAN13	QUAN	13	3	User field for quantity (length 10.3)
64	USE05	☐	USRUNIT	MEINS	UNIT	3	0	User field: Unit for quantity fields	T006
65	USR06	☐	USRCURR13	USRCURR13	CURR	13	3	User-defined field for values (length 10,3)
66	USE06	☐	USRCUKY	WAERS	CUKY	5	0	User field: Unit for value fields	TCURC
67	USR07	☐	USRCURR13	USRCURR13	CURR	13	3	User-defined field for values (length 10,3)
68	USE07	☐	USRCUKY	WAERS	CUKY	5	0	User field: Unit for value fields	TCURC
69	USR08	☐	USRDATE	USRDATE	DATS	8	0	User field for date
70	USR09	☐	USRDATE	USRDATE	DATS	8	0	User field for date
71	USR10	☐	USRFLAG	FLAG	CHAR	1	0	User-defined field: Indicator for reports
72	USR11	☐	USRFLAG	FLAG	CHAR	1	0	User-defined field: Indicator for reports
73	.INCLUDE	☐				0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAPI_ACT_STRUCTURE	ACTTYPE	CSLA	LSTAR
2	BAPI_ACT_STRUCTURE	ARBEH	T006	MSEHI
3	BAPI_ACT_STRUCTURE	CONTROL_KEY	T430	STEUS
4	BAPI_ACT_STRUCTURE	COST_ELEM	CSKA	KSTAR
5	BAPI_ACT_STRUCTURE	CURRENCY	TCURC	WAERS
6	BAPI_ACT_STRUCTURE	DAUME	T006	MSEHI
7	BAPI_ACT_STRUCTURE	DAUNE	T006	MSEHI
8	BAPI_ACT_STRUCTURE	INFO_REC	EINA	INFNR
9	BAPI_ACT_STRUCTURE	KALID	TFACD	IDENT
10	BAPI_ACT_STRUCTURE	MATL_GROUP	T023	MATKL
11	BAPI_ACT_STRUCTURE	MEINH	T006	MSEHI
12	BAPI_ACT_STRUCTURE	MILESTONE	T433	MLSTN
13	BAPI_ACT_STRUCTURE	NETWORK	AUFK	AUFNR
14	BAPI_ACT_STRUCTURE	NPRIO	TCN07	NPRIO
15	BAPI_ACT_STRUCTURE	PLANT	T001W	WERKS
16	BAPI_ACT_STRUCTURE	PRCTR	CEPC	PRCTR
17	BAPI_ACT_STRUCTURE	PURCH_ORG	T024E	EKORG
18	BAPI_ACT_STRUCTURE	PUR_GRP	T024	EKGRP
19	BAPI_ACT_STRUCTURE	SLWID	TCN00	SLWID
20	BAPI_ACT_STRUCTURE	TXJCD	TTXJ	TXJCD
21	BAPI_ACT_STRUCTURE	USE04	T006	MSEHI
22	BAPI_ACT_STRUCTURE	USE05	T006	MSEHI
23	BAPI_ACT_STRUCTURE	USE06	TCURC	WAERS
24	BAPI_ACT_STRUCTURE	USE07	TCURC	WAERS
25	BAPI_ACT_STRUCTURE	VENDOR_NO	LFA1	LIFNR
26	BAPI_ACT_STRUCTURE	VERTL	TC29	VERTL

History

Last changed by/on	SAP	20130529
SAP Release Created in
