SAP ABAP Table RQMSP (QM: material specification internal structure)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM (Application Component) Customer Relationship Management
     ⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
       ⤷ QM (Package) QM inspection specifications

Basic Data

Table Category	INTTAB	Structure

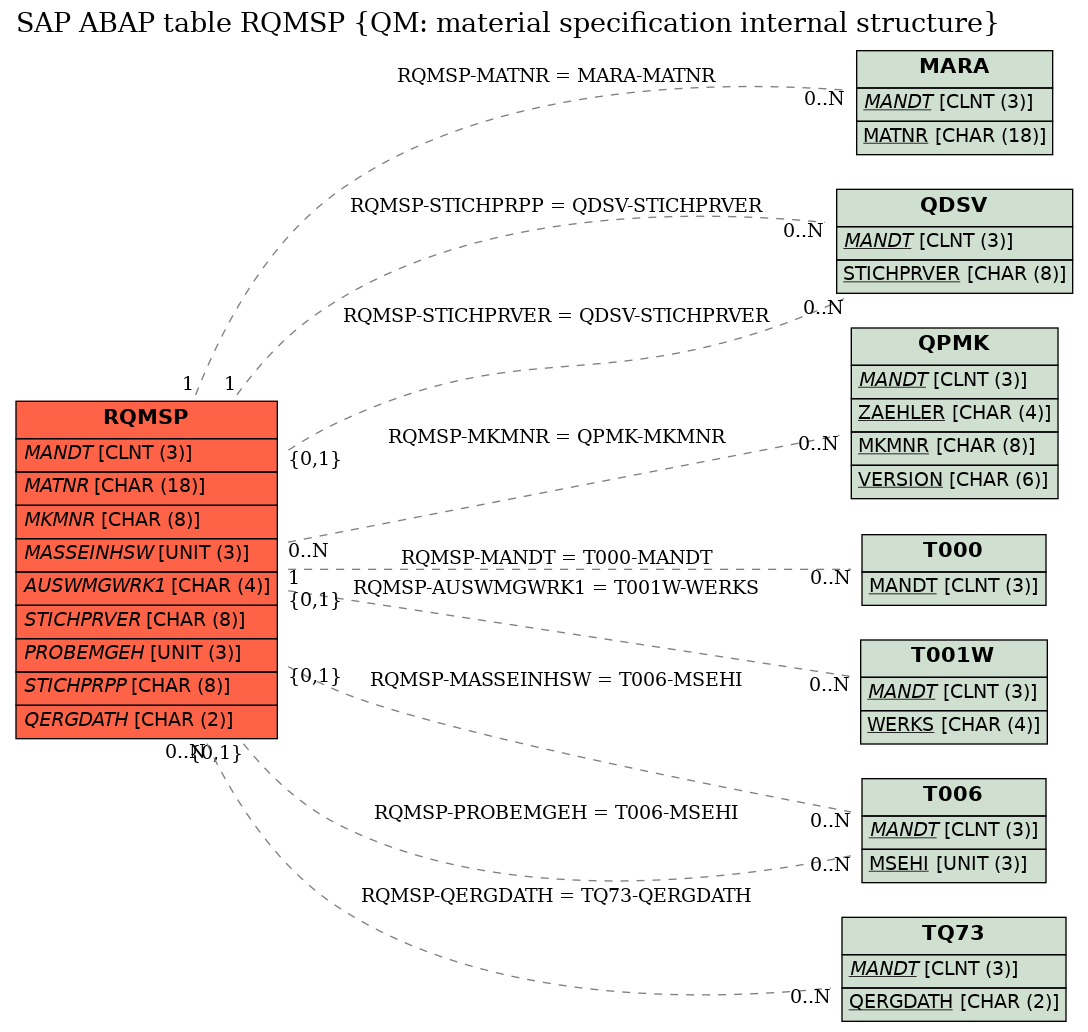

Structure	RQMSP	Table Relationship Diagram
Short Description	QM: material specification internal structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	QM: material specification
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	MARA
4	ZAEHLER	☐	Q_COUNT	Q_COUNT	NUMC	6	0	Internal Counter for DB Objects
5	DATUV	☐	QPLANDAT	DATUM	DATS	8	0	Date, for Which the Change Is Planned
6	ATINN	☐	ATINN	ATINN	NUMC	10	0	Internal characteristic	*
7	WERKS	☐	QZAEHLER	QZAEHLER	CHAR	4	0	Plant for the Master Inspection Characteristic
8	MKMNR	☐	QMERKNR	QMERKNR	CHAR	8	0	Master Inspection Characteristics	QPMK
9	VERSION	☐	QVERSNRMK	QVERSNR	CHAR	6	0	Version Number of the Master Inspection Characteristic
10	SOLLWERT	☐	QSOLLWERTE	QSOLLWERTE	FLTP	16	16	Target Value for a Quantitative Characteristic
11	SOLLWNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
12	TOLERANZOB	☐	QTOLOB	QSOLLWERTE	FLTP	16	16	Upper Specification Limit
13	TOLOBNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
14	TOLERANZUN	☐	QTOLUN	QSOLLWERTE	FLTP	16	16	Lower Tolerance Limit
15	TOLUNNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
16	MASSEINHSW	☐	QMASSEH	MEINS	UNIT	3	0	Unit of Measurement, in Which Quantitative Data Is Stored	T006
17	STELLEN	☐	QSTELLEN	QSTELLEN	INT1	3	0	Number of Places to the Right of a Decimal Point (Accuracy)
18	AUSWMENGE1	☐	QCGRAUSW	QCGRAUSW	CHAR	8	0	Assigned Code Group or Selected Set
19	AUSWMGWRK1	☐	QWERKAUSW	WERKS	CHAR	4	0	Plant of the Assigned Selected Set	T001W
20	VERSION1	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
21	STEUERKZ	☐	QMKCONTROL	QMKCONTROL	CHAR	30	0	Cntrl Indicator String for Insp. Char./Master Insp. Char.
22	STICHPRVER	☐	QSTICHVERF	QSTPRVER	CHAR	8	0	Sampling Procedure in Inspection Characteristic	QDSV
23	PROBEMGEH	☐	QPROBME	MEINS	UNIT	3	0	Sample Unit of Measure	T006
24	PRUEFEINH	☐	QPROBEFAK	QPROBEFAK	DEC	5	2	Sample Quantity Factor for Sample(Mult. Sample Unit of Msr.)
25	REFERAMK	☐	QREFERAMK	QKZ	CHAR	1	0	Values Are Referenced in the Specification
26	STICHPRPP	☐	QSTICHPNKT	QSTPRVER	CHAR	8	0	Sampling Procedure for Inspection Point Processing	QDSV
27	QERGDATH	☐	QERGDATHPL	QERGDATH	CHAR	2	0	Planned Results Data Origin	TQ73
28	CHARACT_ID1	☐	QCHARACT_ID1	QCHARACT_ID	CHAR	40	0	Characteristic Description for Quality Data Exchange
29	ATCOD	☐	ATCOD	ATCOD	CHAR	1	0	Code for value dependency
30	ATNAM	☐	ATNAM	ATNAM	CHAR	30	0	Characteristic Name
31	ATBEZ	☐	ATBEZ	TEXT30	CHAR	30	0	Characteristic description
32	KURZTEXT	☐	QTXT_CHA	QKURZTEXT	CHAR	40	0	Short Text for Inspection Characteristic
33	KURZTEXTAM	☐	QKTEXTAM	QKURZTEXT	CHAR	40	0	Short Description of the Selected Set
34	STICHPRTXT	☐	QTXTSMPPRO	QKURZTEXT	CHAR	40	0	Short Text for the Sampling Procedure
35	STICHPPTXT	☐	QTXTSMPPRO	QKURZTEXT	CHAR	40	0	Short Text for the Sampling Procedure
36	SEL_FLG	☐	SEL_FLG	FLG_SEL	CHAR	1	0	Field for selecting records
37	LOEKZ	☐	QKZ	QKZ	CHAR	1	0	X and Blank (Indicator)
38	QUANTITAT	☐	QKZQUNMK	QKZ	CHAR	1	0	Quantitative Characteristic
39	ANZST	☐	ANZST	ANZST	INT2	5	0	Number of Characters
40	ANZDZ	☐	ANZDZ	ANZDZ	INT2	5	0	Number of Decimal Places
41	ATERF	☐	ATERF	ATXFE	CHAR	1	0	Entry Required
42	ATFOR	☐	ATFOR	ATFOR	CHAR	4	0	Data type of characteristic
43	ATFLV	☐	ATFLV	FLTP	FLTP	16	16	Internal floating point from
44	ATFLVNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
45	ATFLB	☐	ATFLB	FLTP	FLTP	16	16	Internal floating point value to
46	ATFLBNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
47	MSEHI	☐	MSEHI	MEINS	UNIT	3	0	Unit of Measurement	*
48	WERKAMK	☐	WERKS_D	WERKS	CHAR	4	0	Plant	*
49	KATALOGART	☐	QKATART	QKATART	CHAR	1	0	Catalog	*
50	AUSWAHLMGE	☐	QAUSWAHLMG	QAUSWAHLMG	CHAR	8	0	Selected Set	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RQMSP	AUSWMGWRK1	T001W	WERKS	REF	C	CN
2	RQMSP	MANDT	T000	MANDT	KEY	1	CN
3	RQMSP	MASSEINHSW	T006	MSEHI	REF	C	CN
4	RQMSP	MATNR	MARA	MATNR	KEY	1	CN
5	RQMSP	MKMNR	QPMK	MKMNR
6	RQMSP	PROBEMGEH	T006	MSEHI	REF	C	CN
7	RQMSP	QERGDATH	TQ73	QERGDATH
8	RQMSP	STICHPRPP	QDSV	STICHPRVER		1	CN
9	RQMSP	STICHPRVER	QDSV	STICHPRVER	REF	C	CN

History

Last changed by/on	SAP	20100310
SAP Release Created in
