SAP ABAP Table OIJNOMHVB (Nomination Header for Logging)

Hierarchy

☛ IS-OIL (Software Component) IS-OIL
   ⤷ IS-OIL-DS-TSW (Application Component) Trader's and Scheduler's Workbench
     ⤷ OIJ_EL (Package) TSW Trader's and Scheduler's Workbench - Execution Layer

Basic Data

Table Category	INTTAB	Structure

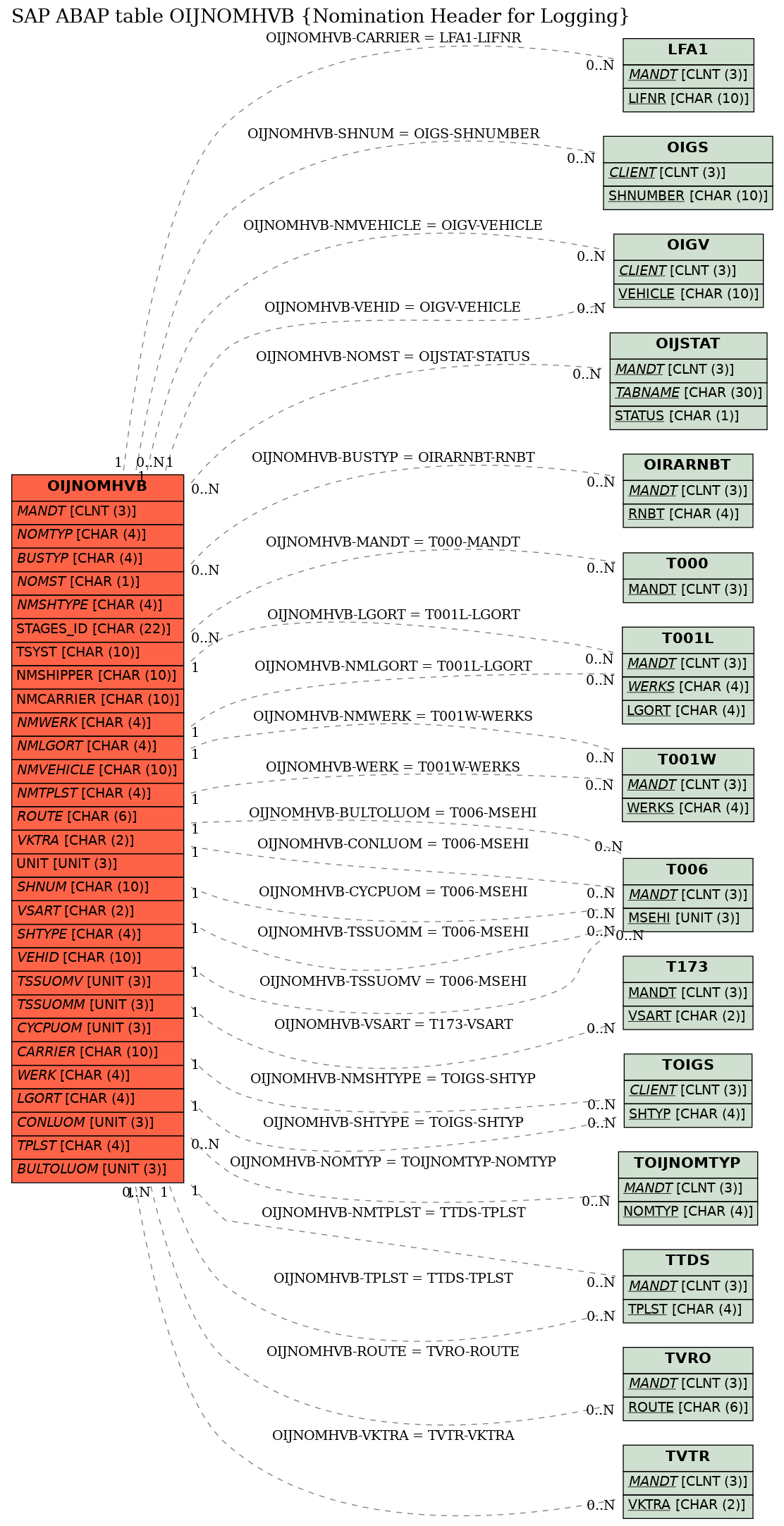

Structure	OIJNOMHVB	Table Relationship Diagram
Short Description	Nomination Header for Logging

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Nomination Header
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	NOMTK	☐	OIJ_NOMTK	OIJ_NOMTK	CHAR	20	0	Nomination (technical) Key	*
4	.INCLUDE	☐				0	0	Nomination Header Basic Fields
5	NOMCL	☐	OIJ_NOMCL	OIJ_NOMCL	CHAR	2	0	Nomination Class
6	NOMTYP	☐	OIJ_NOMTYP	OIJ_NOMTYP	CHAR	4	0	Nomination type	TOIJNOMTYP
7	BUSTYP	☐	OIRA_RNBT	OIRA_RNBT	CHAR	4	0	Business type	OIRARNBT
8	NOMNR	☐	OIJ_NOMNR	OIJ_NOMNR	CHAR	20	0	Nomination number
9	NOMST	☐	OIJ_NOMST	OIJ_ISTAT	CHAR	1	0	Nomination header status	OIJSTAT
10	NMSHTYPE	☐	OIG_TDSTYP	OIG_TDSTYP	CHAR	4	0	TD shipment type	TOIGS
11	NMBALCH	☐	OIJ_BALCH	XFELD	CHAR	1	0	Balance check indicator (default)
12	STAGES_ID	☐	GUID_22	SYSUUID_22	CHAR	22	0	GUID in 'CHAR' format with upper-/lowercase (!)	*
13	WORKLIST	☐	OIJ_WORKLT	XFELD	CHAR	1	0	Worklist entry indicator
14	SENTDAT	☐	OIJ_SENDAT	DATUM	DATS	8	0	Last header action date
15	SENTTIME	☐	OIJ_SENTIM	UZEIT	TIMS	6	0	Last header action time
16	SENTNAM	☐	OIJ_SENNAM	USNAM	CHAR	12	0	Last user who worked on object
17	ITEMS	☐	OIJ_ITEMCOUNTER	NUM04	NUMC	4	0	Nomination item counter
18	COUNTER1	☐	OIJ_PLANNEDITEMS	NUM04	NUMC	4	0	Nomination planned item Counter
19	COUNTER2	☐	OIJ_SCHEDULEDITEMS	NUM04	NUMC	4	0	Nomination scheduled Item Counter
20	COUNTER3	☐	OIJ_REJECTEDITEMS	NUM04	NUMC	4	0	Nomination rejected Item Counter
21	COUNTER4	☐	OIJ_CONFIRMEDITEMS	NUM04	NUMC	4	0	Nomination confirmed Item Counter
22	COUNTER5	☐	OIJ_PARTCOMPLETEITEMS	NUM04	NUMC	4	0	Nomination partially complete Item Counter
23	COUNTER6	☐	OIJ_COMPLETEDITEMS	NUM04	NUMC	4	0	Nomination completed Item Counter
24	APO_SHIPMENT_ID	☐	GUID_22	SYSUUID_22	CHAR	22	0	GUID in 'CHAR' format with upper-/lowercase (!)
25	APO_SHIPMENT_NUM	☐	TKNUM	TKNUM	CHAR	10	0	Shipment Number	*
26	NMBLOCK	☐	OIJ_BLOIND	XFELD	CHAR	1	0	Blocking indicator
27	.INCLUDE	☐				0	0	Nomination Header Default Fields
28	TSYST	☐	OIJ_TSYST	OIJ_TSYST	CHAR	10	0	Transport system	*
29	NMSHIPPER	☐	OIJ_SHIPNR	LIFNR	CHAR	10	0	Shipper	*
30	NMCARRIER	☐	OIJ_CARRNR	LIFNR	CHAR	10	0	Transport system Carrier	*
31	CYCLE	☐	OIJ_CYCLE	CHAR10	CHAR	10	0	Nomination Pipeline cycle ID
32	NMWERK	☐	OIJ_WERK	WERKS	CHAR	4	0	Transport system In-transit Plant	T001W
33	NMLGORT	☐	OIJ_LGORT	LGORT	CHAR	4	0	Transport system In-transit Storage Location	T001L
34	NMVEHICLE	☐	OIG_VHLNMR	OIG_VHLNMR	CHAR	10	0	TD Vehicle Number	OIGV
35	NMVESSEL	☐	OIG_VEHID	OIG_LICNMR	CHAR	18	0	TD vehicle identifier
36	NMTPLST	☐	TPLST	TPLST	CHAR	4	0	Transportation planning point	TTDS
37	ROUTE	☐	ROUTE	ROUTE	CHAR	6	0	Route	TVRO
38	BOOKTS	☐	OIJ_BOOKTS	XFELD	CHAR	1	0	Book TS indicator
39	EV_GROUP	☐	OIG_EVGRP	OIG_EVGRP	CHAR	4	0	TD - event default group
40	VKTRA	☐	VKTRA	VKTRA	CHAR	2	0	Mode of transport	TVTR
41	QTYIN	☐	OIJ_QTYIN	MENG13	QUAN	13	3	Qty received in TS
42	QTYOUT	☐	OIJ_QTYOUT	MENG13	QUAN	13	3	Qty delivered from TS
43	UNIT	☐	OIJ_NMUNIT	MEINS	UNIT	3	0	Nomination(pipe) UoM	*
44	TST_FROM_MIN	☐	OIJ_SCHED_F	TZNTSTMPS	DEC	15	0	Scheduled / Acceptance / Pipe Batch Start Timestamp
45	TST_TO_MAX	☐	OIJ_SCHED_T	TZNTSTMPS	DEC	15	0	Scheduled / Acceptance / Pipe Batch End Timestamp
46	.INCLUDE	☐				0	0	Nomination Header Control Fields
47	BLOIND	☐	OIJ_BLOIND	XFELD	CHAR	1	0	Blocking indicator
48	DELIND	☐	OIJ_DELIND	XFELD	CHAR	1	0	Deletion indicator
49	SHNUM	☐	OIG_SHNUM	OIG_SHNUM	CHAR	10	0	TD shipment number	OIGS
50	.INCLUDE	☐				0	0	Nomination Header Administration Fields
51	ERDAT	☐	ERDAT	DATUM	DATS	8	0	Date on which the record was created
52	ERZEIT	☐	OI0_ERTIM	UZEIT	TIMS	6	0	Time of creation
53	ERNAM	☐	ERNAM	USNAM	CHAR	12	0	Name of Person who Created the Object
54	AEDAT	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
55	AEZEIT	☐	OI0_AETIM	UZEIT	TIMS	6	0	Time of day the record was changed
56	AENAM	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
57	.INCLUDE	☐				0	0	Nomination Header O Fields
58	EV_SEQ_UNI	☐	OIG_EVSEQU	OIG_DLNMCK	CHAR	1	0	TD Event sequence number (unique)
59	VSART	☐	VERSART	VERSART	CHAR	2	0	Shipping type	T173
60	SHTYPE	☐	OIG_TDSTYP	OIG_TDSTYP	CHAR	4	0	TD shipment type	TOIGS
61	VEHID	☐	OIJ_DEFVEH	OIG_VHLNMR	CHAR	10	0	Default vehicle number	OIGV
62	TSSUOMV	☐	OIJ_TSUOMV	MEINS	UNIT	3	0	TS standard volume UoM	T006
63	TSSUOMM	☐	OIJ_TSUOMM	MEINS	UNIT	3	0	TS standard weight UoM	T006
64	CYCPERD	☐	OIJ_CYCDUR	OIJ_CYCPD	QUAN	10	0	TS cycle duration
65	CYCPUOM	☐	OIJ_CYDUOM	MEINS	UNIT	3	0	TS cycle duration UoM	T006
66	CARRIER	☐	OIJ_CARRNR	LIFNR	CHAR	10	0	Transport system Carrier	LFA1
67	WERK	☐	OIJ_WERK	WERKS	CHAR	4	0	Transport system In-transit Plant	T001W
68	LGORT	☐	OIJ_LGORT	LGORT	CHAR	4	0	Transport system In-transit Storage Location	T001L
69	NOMMSK	☐	OIJ_NOMMSK	OIJ_NOMMSK	CHAR	10	0	Nomination mask
70	SHIPPER	☐	OIJ_SHPPER	OIJ_SHPPER	CHAR	10	0	Default TS shipper code
71	CONLTM	☐	OIJ_CONLTM	OIJ_CONLTM	QUAN	3	0	Carrier lead time
72	CONLUOM	☐	OIJ_CONTUM	MEINS	UNIT	3	0	Confirmation lead time UoM	T006
73	TPLST	☐	TPLST	TPLST	CHAR	4	0	Transportation planning point	TTDS
74	UNLIMITED	☐	UEBTK	XFELD	CHAR	1	0	Indicator: Unlimited Overdelivery Allowed
75	BOTOL	☐	OIJ_BOTOL	DEC3_1	DEC	4	1	Quantity tolerance over (percentage)
76	BUTOL	☐	OIJ_BUTOL	DEC3_1	DEC	4	1	Quantity tolerance under (%)
77	BOTOLABS	☐	OIJ_TOLABO	MENG13	QUAN	13	3	Absolute tolerance qty over
78	BUTOLABS	☐	OIJ_TOLABS	MENG13	QUAN	13	3	Absolute tolerance qty under
79	BULTOLUOM	☐	OIJ_TOLUOM	MEINS	UNIT	3	0	Absolute tolerance UoM	T006
80	BALCH	☐	OIJ_BALCH	XFELD	CHAR	1	0	Balance check indicator (default)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	OIJNOMHVB	BULTOLUOM	T006	MSEHI	KEY	1	CN
2	OIJNOMHVB	BUSTYP	OIRARNBT	RNBT
3	OIJNOMHVB	CARRIER	LFA1	LIFNR	KEY	1	CN
4	OIJNOMHVB	CONLUOM	T006	MSEHI	KEY	1	CN
5	OIJNOMHVB	CYCPUOM	T006	MSEHI	KEY	1	CN
6	OIJNOMHVB	LGORT	T001L	LGORT	KEY	1	CN
7	OIJNOMHVB	MANDT	T000	MANDT
8	OIJNOMHVB	NMLGORT	T001L	LGORT	KEY	1	CN
9	OIJNOMHVB	NMSHTYPE	TOIGS	SHTYP	KEY	1	CN
10	OIJNOMHVB	NMTPLST	TTDS	TPLST	KEY	1	CN
11	OIJNOMHVB	NMVEHICLE	OIGV	VEHICLE	KEY	1	CN
12	OIJNOMHVB	NMWERK	T001W	WERKS	KEY	1	CN
13	OIJNOMHVB	NOMST	OIJSTAT	STATUS
14	OIJNOMHVB	NOMTYP	TOIJNOMTYP	NOMTYP
15	OIJNOMHVB	ROUTE	TVRO	ROUTE
16	OIJNOMHVB	SHNUM	OIGS	SHNUMBER
17	OIJNOMHVB	SHTYPE	TOIGS	SHTYP	KEY	1	CN
18	OIJNOMHVB	TPLST	TTDS	TPLST	KEY	1	CN
19	OIJNOMHVB	TSSUOMM	T006	MSEHI	KEY	1	CN
20	OIJNOMHVB	TSSUOMV	T006	MSEHI	KEY	1	CN
21	OIJNOMHVB	VEHID	OIGV	VEHICLE	KEY	1	CN
22	OIJNOMHVB	VKTRA	TVTR	VKTRA	KEY	1	CN
23	OIJNOMHVB	VSART	T173	VSART	KEY	1	CN
24	OIJNOMHVB	WERK	T001W	WERKS	KEY	1	CN

History

Last changed by/on	SAP	20091125
SAP Release Created in	46C
