SAP ABAP Table EAMS_S_SP_PRT_HEADER (EAMS PRT master data)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PM (Application Component) Plant Maintenance
     ⤷ EAMS_MDP_MISC (Package) Miscellaneous for Master Data Provider

Basic Data

Table Category	INTTAB	Structure

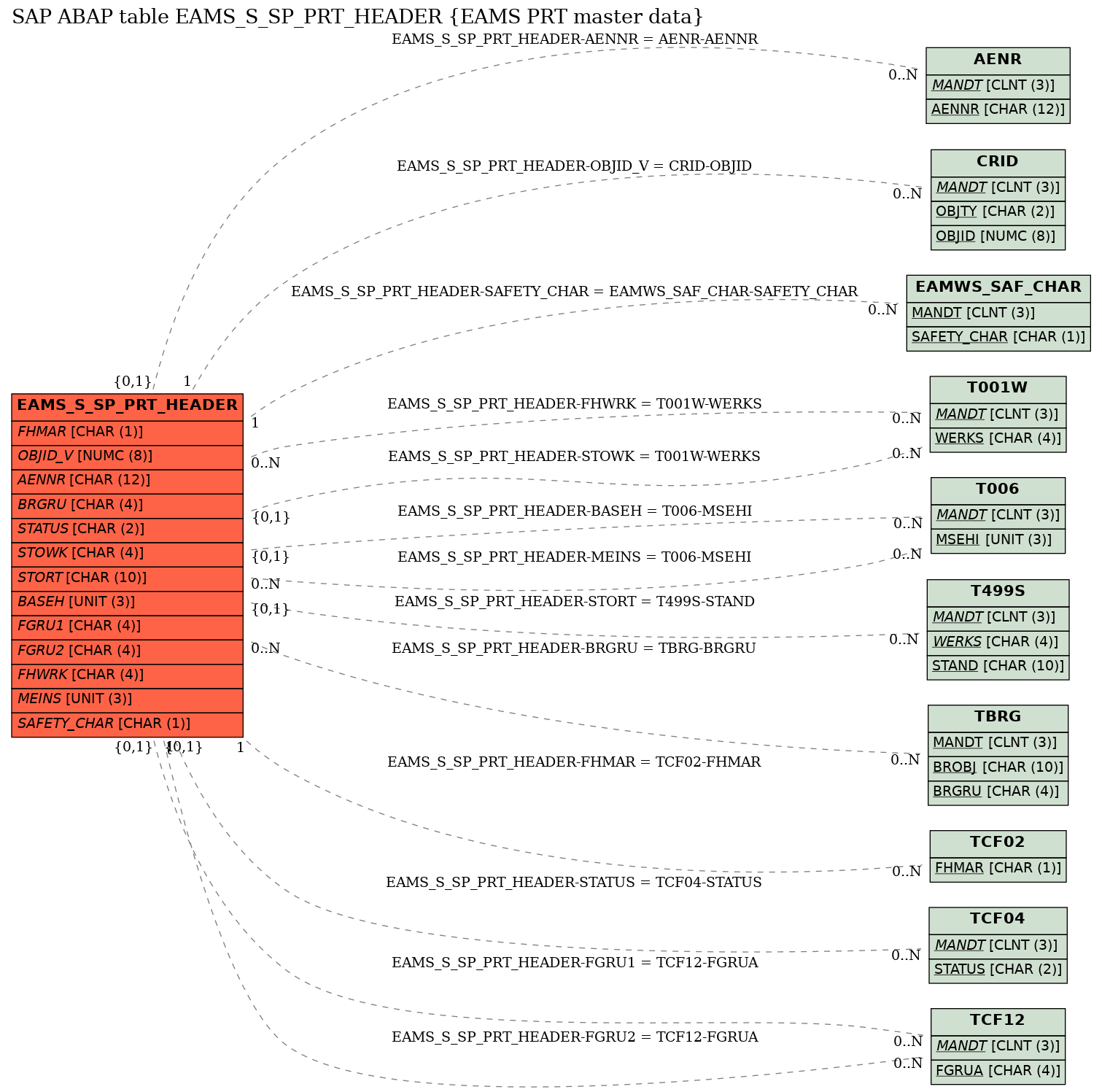

Structure	EAMS_S_SP_PRT_HEADER	Table Relationship Diagram
Short Description	EAMS PRT master data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	PRT ID structure
2	EAMS_PRT_OBJTY	☐	CR_OBJTY	CR_OBJTY	CHAR	2	0	Object types of the CIM resource
3	EAMS_PRT_OBJID	☐	CR_OBJID	CR_OBJID	NUMC	8	0	Object ID of the resource	*
4	ZAEHL	☐	CIM_COUNT	CIM_COUNT	NUMC	8	0	Internal counter
5	FHMAR	☐	FHMAR	FHMAR	CHAR	1	0	Production resources/tools category	TCF02
6	OBJTY_V	☐	CR_OBJTY	CR_OBJTY	CHAR	2	0	Object types of the CIM resource
7	OBJID_V	☐	CR_OBJID	CR_OBJID	NUMC	8	0	Object ID of the resource	CRID
8	LOEKZ	☐	CF_LOEKZ	XFLAG	CHAR	1	0	Deletion indicator for production resources/tools master
9	DATUV	☐	DATUV	DATUM	DATS	8	0	Valid-From Date
10	DATUB	☐	DATUB	DATUM	DATS	8	0	Valid-to date
11	AENNR	☐	AENNR	AENNR	CHAR	12	0	Change Number	AENR
12	ANNAM	☐	ANNAM	USNAM	CHAR	12	0	User Who Created Record
13	ANDAT	☐	ANDAT	DATUM	DATS	8	0	Date Record Created on
14	AENAM	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
15	AEDAT	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
16	BRGRU	☐	BRGRU	BRGRU	CHAR	4	0	Authorization Group	TBRG
17	STATUS	☐	CF_CRFHST	CF_CRFHST	CHAR	2	0	Production resources/tools master: Status	TCF04
18	KZKBL	☐	KZKBL	XFELD	CHAR	1	0	Indicator: Create load records for prod. resources/tools
19	STOWK	☐	CF_STOWK	WERKS	CHAR	4	0	Plant location of the production resource/tool	T001W
20	STORT	☐	CF_STORT	AP_STAND	CHAR	10	0	Location of a production resource or tool	T499S
21	BASEH	☐	CF_BASEH	MEINS	UNIT	3	0	Base unit of measure for production resources/tools	T006
22	FGRU1	☐	FGRUA	FGRUA	CHAR	4	0	Grouping key 1 for production resources/tools	TCF12
23	FGRU2	☐	FGRUB	FGRUA	CHAR	4	0	Grouping key 2 for production resources/tools	TCF12
24	PLANV	☐	FH_PLANV	AP_PLANV	CHAR	3	0	Production resource/tool usage	*
25	FHWRK	☐	FHWRK	WERKS	CHAR	4	0	Production resources/tools in plant	T001W
26	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	*
27	SFHNR	☐	SFHNR	SFHNR	CHAR	18	0	Production resources and tools
28	DOKAR	☐	DOKAR	DOKAR	CHAR	3	0	Document Type	*
29	DOKNR	☐	DOKNR	DOKNR	CHAR	25	0	Document number	*
30	DOKVR	☐	DOKVR	DOKVR	CHAR	2	0	Document version
31	DOKTL	☐	DOKTL_D	DOKTL	CHAR	3	0	Document part
32	EQUNR	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number	*
33	FHKTX	☐	FHKTX	TEXT40	CHAR	40	0	Description of the production resource/tool
34	MMSTA	☐	MMSTA	MMSTA	CHAR	2	0	Plant-Specific Material Status	*
35	DOKST	☐	DOKST	DOKST	CHAR	2	0	Document Status	*
36	DOKAS	☐	DAENR	AENNR	CHAR	12	0	Change Number	*
37	DOKGV	☐	DATUV	DATUM	DATS	8	0	Valid-From Date
38	EQSTO	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	*
39	EQTYP	☐	EQTYP	EQTYP	CHAR	1	0	Equipment Category	*
40	EQWPL	☐	WARPL	WARPL	CHAR	12	0	Maintenance Plan	*
41	EQWTX	☐	WPTXT	TEXT40	CHAR	40	0	Maintenance Plan Text
42	EQPNT	☐	IMRC_POINT	IMRC_POINT	CHAR	12	0	Measuring Point	*
43	EQPTX	☐	IMRC_PTTXT	TEXT40	CHAR	40	0	Description of Measuring Point
44	MEINS	☐	MEINS	MEINS	UNIT	3	0	Base Unit of Measure	T006
45	FHMNR	☐	FHMNR	FHMNR	CHAR	33	0	Production resource/tool number
46	BRGRU_TXT	☐	BEZEI20	TEXT20	CHAR	20	0	Description
47	STATUS_TXT	☐	CF_CRSTTXT	TEXT40	CHAR	40	0	PRT master: Status description
48	PLANV_TXT	☐	VWTEXT	TEXT30	CHAR	30	0	Description of the usage key
49	BASEH_TXT	☐	MSEHL	TEXT30	CHAR	30	0	Unit of Measurement Text (Maximum 30 Characters)
50	STOWK_TXT	☐	NAME1	TEXT30	CHAR	30	0	Name
51	STORT_TXT	☐	TEXT40	TEXT40	CHAR	40	0	Text, 40 Characters Long
52	FGRU1_TXT	☐	FGRTXT	TEXT40	CHAR	40	0	Text for the production resources/tools group key
53	FGRU2_TXT	☐	FGRTXT	TEXT40	CHAR	40	0	Text for the production resources/tools group key
54	FAKTX	☐	FAKTX	TEXT40	CHAR	40	0	Language-dependent description of the PRT category
55	.INCLU--AP	☐				0	0	Worker safety data for SP PRT
56	.INCLUDE	☐				0	0	Safety Data for One Object
57	SAFETY_CHAR	☐	EAMWS_SAFETY_CHARACTERISTIC	EAMWS_SAFETY_CHARACTERISTIC	CHAR	1	0	Safety Relevance/Action	EAMWS_SAF_CHAR
58	PRT_IND	☐	EAMWS_PRTKZ	CHAR1	CHAR	1	0	Object Is a Production Resource/Tool
59	SAFETY_CHAR_TXT	☐	EAMWS_SAFETY_CHARACTERISTIC_TX	TEXT30	CHAR	30	0	Safety Relevance/Action Description

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	EAMS_S_SP_PRT_HEADER	AENNR	AENR	AENNR	REF	C	CN
2	EAMS_S_SP_PRT_HEADER	BASEH	T006	MSEHI	REF	C	CN
3	EAMS_S_SP_PRT_HEADER	BRGRU	TBRG	BRGRU
4	EAMS_S_SP_PRT_HEADER	FGRU1	TCF12	FGRUA	REF	C	CN
5	EAMS_S_SP_PRT_HEADER	FGRU2	TCF12	FGRUA	REF	C	CN
6	EAMS_S_SP_PRT_HEADER	FHMAR	TCF02	FHMAR	REF	1	CN
7	EAMS_S_SP_PRT_HEADER	FHWRK	T001W	WERKS
8	EAMS_S_SP_PRT_HEADER	MEINS	T006	MSEHI
9	EAMS_S_SP_PRT_HEADER	OBJID_V	CRID	OBJID	REF	1	CN
10	EAMS_S_SP_PRT_HEADER	SAFETY_CHAR	EAMWS_SAF_CHAR	SAFETY_CHAR	KEY	1	CN
11	EAMS_S_SP_PRT_HEADER	STATUS	TCF04	STATUS	REF	1	CN
12	EAMS_S_SP_PRT_HEADER	STORT	T499S	STAND	REF	C	CN
13	EAMS_S_SP_PRT_HEADER	STOWK	T001W	WERKS	REF	C	CN

History

Last changed by/on	SAP	20110901
SAP Release Created in	605
