SAP ABAP Table EAMS_S_BO_EQUI_HIERARCHY (Equipment Hierarchy information)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PM (Application Component) Plant Maintenance
     ⤷ EAMS_BO_MISC (Package) Miscellaneous for Business Object

Basic Data

Table Category	INTTAB	Structure

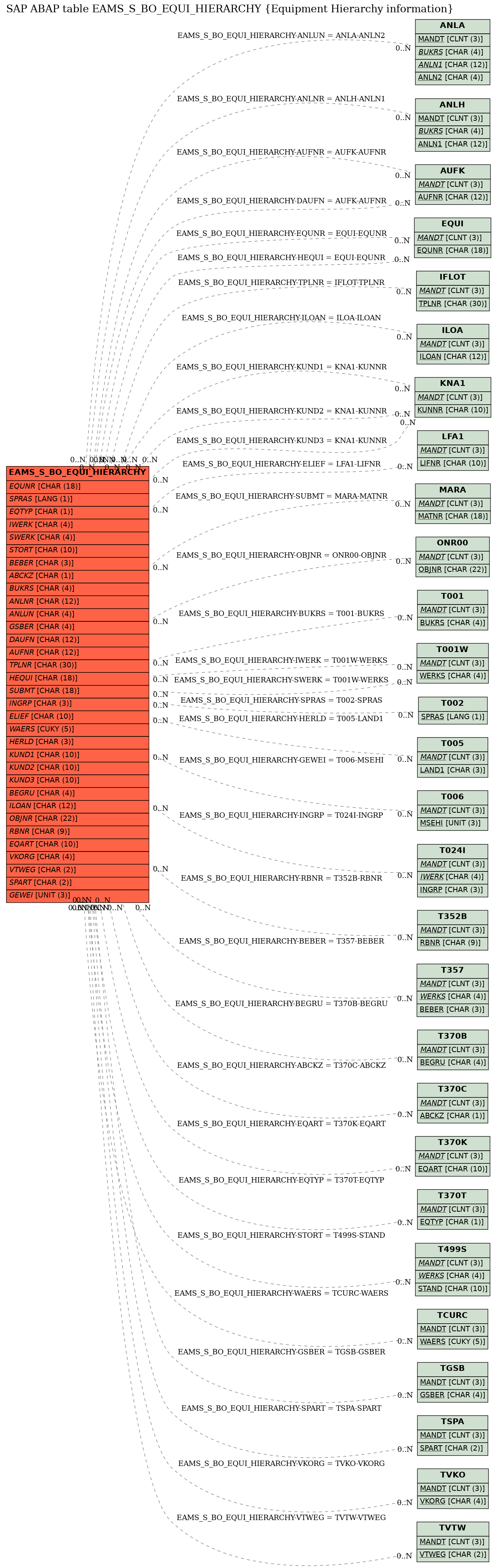

Structure	EAMS_S_BO_EQUI_HIERARCHY	Table Relationship Diagram
Short Description	Equipment Hierarchy information

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Business Object Equipment - Identification
2	EAMS_EQUNR	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number	*
3	.INCLUDE	☐				0	0	Transfer data for equipment hierarchy
4	EQUNR	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number	EQUI
5	SPRAS	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
6	EQKTX	☐	KTX01	TEXT40	CHAR	40	0	Description of technical object
7	EQTYP	☐	EQTYP	EQTYP	CHAR	1	0	Equipment Category	T370T
8	IWERK	☐	IWERK	WERKS	CHAR	4	0	Maintenance Planning Plant	T001W
9	SWERK	☐	SWERK	WERKS	CHAR	4	0	Maintenance Plant	T001W
10	STORT	☐	STORT	AP_STAND	CHAR	10	0	Asset location	T499S
11	MSGRP	☐	RAUMNR	CHAR8	CHAR	8	0	Room
12	BEBER	☐	BEBER	BEBER	CHAR	3	0	Organizational Area	T357
13	ABCKZ	☐	ABCKZ	ABCKZ	CHAR	1	0	ABC Indicator for Technical Object	T370C
14	EQFNR	☐	EQFNR	CHAR30	CHAR	30	0	Sort Field
15	BUKRS	☐	BUKRS	BUKRS	CHAR	4	0	Company Code	T001
16	ANLNR	☐	ANLN1	ANLN1	CHAR	12	0	Main Asset Number	ANLH
17	ANLUN	☐	ANLN2	ANLN2	CHAR	4	0	Asset Subnumber	ANLA
18	GSBER	☐	GSBER	GSBER	CHAR	4	0	Business Area	TGSB
19	KOSTL	☐	KOSTL	KOSTL	CHAR	10	0	Cost Center	*
20	DAUFN	☐	DAUFN	AUFNR	CHAR	12	0	Standing order number	AUFK
21	AUFNR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	AUFK
22	TPLNR	☐	TPLNR	TPLNR	CHAR	30	0	Functional Location	IFLOT
23	TIDNR	☐	TIDNR	TIDNR	CHAR	25	0	Technical identification number
24	HEQUI	☐	HEQUI	EQUNR	CHAR	18	0	Superordinate Equipment	EQUI
25	HEQNR	☐	HEQNR	CHAR4	CHAR	4	0	Equipment position at InstallLoc (Superior Equip./FunctLoc)
26	SUBMT	☐	SUBMT	MATNR	CHAR	18	0	Construction Type Material of the Object	MARA
27	SERNR	☐	GERNR	GERNR	CHAR	18	0	Serial Number
28	MAPAR	☐	MAPAR	MAPAR	CHAR	30	0	Manufacturer part number
29	INGRP	☐	INGRP	INGRP	CHAR	3	0	Planner Group for Customer Service and Plant Maintenance	T024I
30	ELIEF	☐	ELIEF	LIFNR	CHAR	10	0	Vendor number	LFA1
31	ANSWT	☐	ANSWT	WERT	CURR	13	2	Acquisition Value
32	KRFKZ	☐	KRFKZ	X	CHAR	1	0	Referenced Configuration
33	WAERS	☐	WAERS	WAERS	CUKY	5	0	Currency Key	TCURC
34	INVNR	☐	INVNR	INVNR_ANLA	CHAR	25	0	Inventory number
35	GROES	☐	GROSS	GROES	CHAR	18	0	Size/dimension
36	BRGEW	☐	BRGEW	MENG13	QUAN	13	3	Gross weight
37	BAUJJ	☐	BAUJJ	CJAHR	CHAR	4	0	Year of construction
38	BAUMM	☐	BAUMM	BAUMM	CHAR	2	0	Month of construction
39	HERST	☐	HERST	TEXT30	CHAR	30	0	Manufacturer of asset
40	HERLD	☐	HERLD	LAND1	CHAR	3	0	Country of manufacture	T005
41	HZEIN	☐	HZEIN	HZEIN	CHAR	30	0	Manufacturer drawing number
42	SERGE	☐	SERGE	CHAR30	CHAR	30	0	Manufacturer serial number
43	KUND1	☐	KUND1	KUNNR	CHAR	10	0	Customer No.	KNA1
44	KUND2	☐	KUND2	KUNNR	CHAR	10	0	End customer number	KNA1
45	KUND3	☐	KUND3	KUNNR	CHAR	10	0	Operator	KNA1
46	LIZNR	☐	LIZNR	CHAR20	CHAR	20	0	Equipment license number
47	ARBPL	☐	ARBPL	ARBPL	CHAR	8	0	Work center
48	GEWRK	☐	GEWRK	ARBPL	CHAR	8	0	Main work center for maintenance tasks
49	ERDAT	☐	ERDAT	DATUM	DATS	8	0	Date on which the record was created
50	ERNAM	☐	ERNAM	USNAM	CHAR	12	0	Name of Person who Created the Object
51	AEDAZ	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
52	AENAZ	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
53	DATAB	☐	DATAB	DATUM	DATS	8	0	Valid-From Date
54	BEGRU	☐	IAUTG	IAUTG	CHAR	4	0	Authorization Group for Technical Object	T370B
55	KMATN	☐	KMATN	MATNR	CHAR	18	0	Configurable Material	*
56	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	*
57	WERK	☐	WERKS_D	WERKS	CHAR	4	0	Plant	*
58	TYPBZ	☐	TYPBZ	TYPBZ	CHAR	20	0	Manufacturer model number
59	LAGER	☐	LGORT_D	LGORT	CHAR	4	0	Storage location	*
60	CHARGE	☐	CHARG_D	CHARG	CHAR	10	0	Batch Number	*
61	KUNDE	☐	KUNDSE	KUNNR	CHAR	10	0	Customer to Whom Serial Number was Delivered	*
62	DATBI	☐	DATBI	DATUM	DATS	8	0	Valid To Date
63	STTXT	☐	J_STEXT	TEXT40	CHAR	40	0	System status line
64	ILOAN	☐	ILOAN	ILOAN	CHAR	12	0	Location and account assignment for technical object	ILOA
65	USTXT	☐	J_ATEXT	TEXT40	CHAR	40	0	User Status Line
66	OBJNR	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	ONR00
67	RBNR	☐	RBNR	RBNR	CHAR	9	0	Report layout	T352B
68	PROID	☐	I_PM_POSID	CHAR24	CHAR	24	0	Work Breakdown Structure Element (WBS Element) for List
69	EQART	☐	EQART	EQART	CHAR	10	0	Type of Technical Object	T370K
70	ANSDT	☐	ANDTI	DATUM	DATS	8	0	Acquisition date
71	VKORG	☐	VKORG	VKORG	CHAR	4	0	Sales Organization	TVKO
72	VTWEG	☐	VTWEG	VTWEG	CHAR	2	0	Distribution Channel	TVTW
73	SPART	☐	SPART	SPART	CHAR	2	0	Division	TSPA
74	ADRNR	☐	CADNR	CADRNR	CHAR	10	0	Addresses: Address Number	*
75	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
76	.INCLUDE	☐				0	0	Display Structure Reporting PM Address Data
77	NAME_LIST	☐	I_NAME_LST	NAME	CHAR	35	0	Name for list displays
78	TEL_NUMBER	☐	AD_TLNMBR1	CHAR30	CHAR	30	0	First telephone no.: dialling code+number
79	POST_CODE1	☐	AD_PSTCD1	CHAR10	CHAR	10	0	City postal code
80	CITY1	☐	AD_CITY1	TEXT40	CHAR	40	0	City
81	CITY2	☐	AD_CITY2	TEXT40	CHAR	40	0	District
82	COUNTRY	☐	LAND1	LAND1	CHAR	3	0	Country Key	*
83	REGION	☐	REGIO	REGIO	CHAR	3	0	Region (State, Province, County)	*
84	STREET	☐	AD_STREET	TEXT60	CHAR	60	0	Street
85	RKEOBJNR	☐	RKEOBJNR	RKEOBJNR	NUMC	10	0	Profitability Segment Number (CO-PA)
86	CUOBJ	☐	CUOBJ	CUOBJ	NUMC	18	0	Configuration (internal object number)
87	GEWEI	☐	GEWEI	MEINS	UNIT	3	0	Weight Unit	T006
88	KOKRS	☐	KOKRS	CACCD	CHAR	4	0	Controlling Area	*
89	.INCLUDE	☐				0	0	Warranty Data for Technical Object List EditingPM/SM
90	GWLDT_K	☐	IGWLDT_K	DATUM	DATS	8	0	Customer Warranty Start
91	GWLEN_K	☐	IGWLEN_K	DATUM	DATS	8	0	Warranty End for Customer
92	MGANR_K	☐	IMGANR_K	MGANR	CHAR	20	0	Master Warranty Number for Customer	*
93	GARTX_K	☐	IGARTXL_K	TXT40	CHAR	40	0	Customer Warranty Description
94	GWLDT_L	☐	IGWLDT_L	DATUM	DATS	8	0	Vendor Warranty Start
95	GWLEN_L	☐	IGWLEN_L	DATUM	DATS	8	0	Warranty End for Vendor
96	MGANR_L	☐	IMGANR_L	MGANR	CHAR	20	0	Master Warranty Number for Vendor	*
97	GARTX_L	☐	IGARTXL_L	TXT40	CHAR	40	0	Vendor Warranty Description
98	AULDT	☐	AULDT	DATUM	DATS	8	0	First delivery date of the equipment
99	INBDT	☐	INBDT	DATUM	DATS	8	0	First start-up date
100	EQLFN	☐	EQLFN	NUM03	NUMC	3	0	Consecutive numbering of EquipUsagePeriods on same day
101	SUBMTKTX	☐	SUBMTKTX	TXT40	CHAR	40	0	Construction Type Description
102	EQUZ_ERDAT	☐	EQUZ_ERDAT	DATUM	DATS	8	0	Date on which the time segment was created
103	EQUZ_ERNAM	☐	EQUZ_ERNAM	USNAM	CHAR	12	0	Name of person who created time segment
104	EQUZ_AEDAT	☐	EQUZ_AEDAT	DATUM	DATS	8	0	Date on which time segment was changed
105	EQUZ_AENAM	☐	EQUZ_AENAM	USNAM	CHAR	12	0	Name of person who changed the time segment
106	EQUZN	☐	EQNNR	NUM03	NUMC	3	0	Number of next EquipUsagePeriod on same day
107	TIMBI	☐	TIMBI	ZEITBI	TIMS	6	0	Equipment usage period time stamp
108	.INCLU--AP	☐				0	0	Item Unique Identification Fields for RIHEQUI
109	UII	☐	UII_CHAR72	UII_CHAR72	CHAR	72	0	Unique Item Identifier
110	IUID_TYPE	☐	IUID_TYPE	IUID_TYPE	CHAR	10	0	Structure Type of UII	*
111	UII_PLANT	☐	UII_PLANT	WERKS	CHAR	4	0	Plant Responsible for UII	*
112	HMORE	☐	HEQ_MORE	XFELD	CHAR	1	0	Indicator showing sub-pieces of equipment exist

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	EAMS_S_BO_EQUI_HIERARCHY	ABCKZ	T370C	ABCKZ
2	EAMS_S_BO_EQUI_HIERARCHY	ANLNR	ANLH	ANLN1
3	EAMS_S_BO_EQUI_HIERARCHY	ANLUN	ANLA	ANLN2
4	EAMS_S_BO_EQUI_HIERARCHY	AUFNR	AUFK	AUFNR
5	EAMS_S_BO_EQUI_HIERARCHY	BEBER	T357	BEBER
6	EAMS_S_BO_EQUI_HIERARCHY	BEGRU	T370B	BEGRU
7	EAMS_S_BO_EQUI_HIERARCHY	BUKRS	T001	BUKRS
8	EAMS_S_BO_EQUI_HIERARCHY	DAUFN	AUFK	AUFNR
9	EAMS_S_BO_EQUI_HIERARCHY	ELIEF	LFA1	LIFNR
10	EAMS_S_BO_EQUI_HIERARCHY	EQART	T370K	EQART
11	EAMS_S_BO_EQUI_HIERARCHY	EQTYP	T370T	EQTYP
12	EAMS_S_BO_EQUI_HIERARCHY	EQUNR	EQUI	EQUNR
13	EAMS_S_BO_EQUI_HIERARCHY	GEWEI	T006	MSEHI
14	EAMS_S_BO_EQUI_HIERARCHY	GSBER	TGSB	GSBER
15	EAMS_S_BO_EQUI_HIERARCHY	HEQUI	EQUI	EQUNR
16	EAMS_S_BO_EQUI_HIERARCHY	HERLD	T005	LAND1
17	EAMS_S_BO_EQUI_HIERARCHY	ILOAN	ILOA	ILOAN
18	EAMS_S_BO_EQUI_HIERARCHY	INGRP	T024I	INGRP
19	EAMS_S_BO_EQUI_HIERARCHY	IWERK	T001W	WERKS
20	EAMS_S_BO_EQUI_HIERARCHY	KUND1	KNA1	KUNNR
21	EAMS_S_BO_EQUI_HIERARCHY	KUND2	KNA1	KUNNR
22	EAMS_S_BO_EQUI_HIERARCHY	KUND3	KNA1	KUNNR
23	EAMS_S_BO_EQUI_HIERARCHY	OBJNR	ONR00	OBJNR
24	EAMS_S_BO_EQUI_HIERARCHY	RBNR	T352B	RBNR
25	EAMS_S_BO_EQUI_HIERARCHY	SPART	TSPA	SPART
26	EAMS_S_BO_EQUI_HIERARCHY	SPRAS	T002	SPRAS
27	EAMS_S_BO_EQUI_HIERARCHY	STORT	T499S	STAND
28	EAMS_S_BO_EQUI_HIERARCHY	SUBMT	MARA	MATNR
29	EAMS_S_BO_EQUI_HIERARCHY	SWERK	T001W	WERKS
30	EAMS_S_BO_EQUI_HIERARCHY	TPLNR	IFLOT	TPLNR
31	EAMS_S_BO_EQUI_HIERARCHY	VKORG	TVKO	VKORG
32	EAMS_S_BO_EQUI_HIERARCHY	VTWEG	TVTW	VTWEG
33	EAMS_S_BO_EQUI_HIERARCHY	WAERS	TCURC	WAERS

History

Last changed by/on	SAP	20130529
SAP Release Created in	605
