SAP ABAP Table DMS_DOCUMENT_HIERARCHIE (Document hierarchy)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CA-DMS (Application Component) Document Management System
     ⤷ CV (Package) Application Development: R/3 Document Management

Basic Data

Table Category	INTTAB	Structure

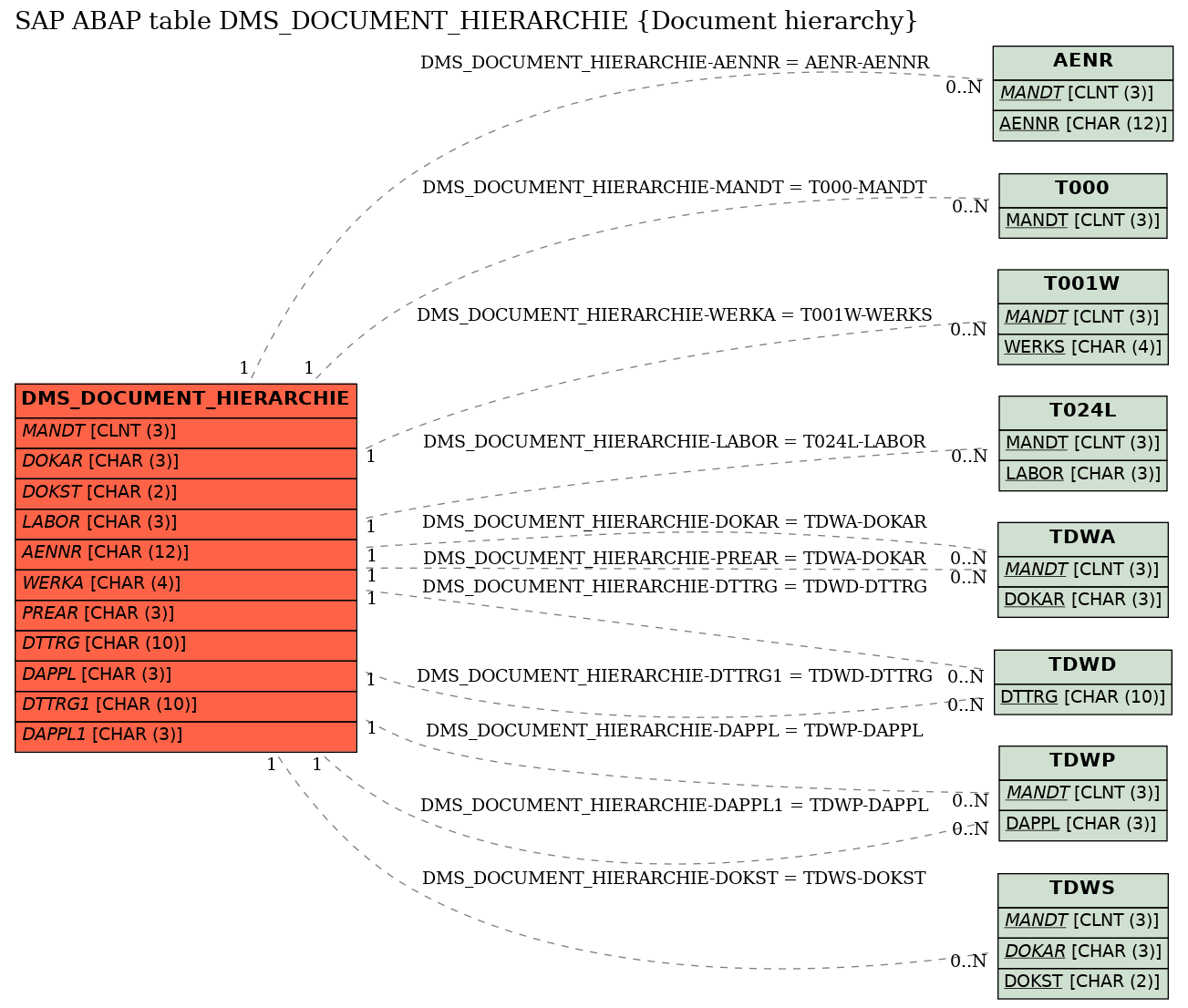

Structure	DMS_DOCUMENT_HIERARCHIE	Table Relationship Diagram
Short Description	Document hierarchy

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	STEP	☐			INT2	5	0
2	.INCLUDE	☐				0	0	Document Info Record
3	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
4	DOKAR	☐	DOKAR	DOKAR	CHAR	3	0	Document Type	TDWA
5	DOKNR	☐	DOKNR	DOKNR	CHAR	25	0	Document number	*
6	DOKVR	☐	DOKVR	DOKVR	CHAR	2	0	Document version
7	DOKTL	☐	DOKTL_D	DOKTL	CHAR	3	0	Document part
8	DWNAM	☐	DWNAM	DWNAM	CHAR	12	0	Name of person responsible
9	DOKST	☐	DOKST	DOKST	CHAR	2	0	Document Status	TDWS
10	LABOR	☐	LABOR	LABOR	CHAR	3	0	Laboratory/design office	T024L
11	AENNR	☐	DAENR	AENNR	CHAR	12	0	Change Number	AENR
12	WERKA	☐	WERKA	WERKS	CHAR	4	0	Plant	T001W
13	LOEDK	☐	LOEDK	XFELD	CHAR	1	0	Deletion indicator
14	CADKZ	☐	CADKZ	XFELD	CHAR	1	0	CAD Indicator
15	PRENR	☐	PRENR	DOKNR	CHAR	25	0	Document number of superior document	*
16	PREVR	☐	PREVR	DOKVR	CHAR	2	0	Document version of superior document
17	PRETL	☐	PRETL	DOKTL	CHAR	3	0	Document Part of Superior Document
18	PREAR	☐	PREAR	DOKAR	CHAR	3	0	Document type of the superior document	TDWA
19	BEGRU	☐	BEGRU	BEGRU	CHAR	4	0	Authorization Group
20	FILEP	☐	FILEP	TEXT255	CHAR	255	0	Original of document
21	DTTRG	☐	DTTRG	DTTRG	CHAR	10	0	Name of Data Carrier	TDWD
22	DAPPL	☐	DAPPL	DAPPL	CHAR	3	0	Application	TDWP
23	FILEP1	☐	FILEP	TEXT255	CHAR	255	0	Original of document
24	DTTRG1	☐	DTTRG	DTTRG	CHAR	10	0	Name of Data Carrier	TDWD
25	DAPPL1	☐	DAPPL	DAPPL	CHAR	3	0	Application	TDWP
26	VRLDAT	☐	VRLDAT	DATUM	DATS	8	0	Due Date
27	VPRIOR	☐	VPRIOR	NUMC01	NUMC	1	0	Processing priority
28	RES1	☐	RESDRAW	CHAR14	CHAR	14	0	Reserve field DRAW
29	RES2	☐	RESDRAW	CHAR14	CHAR	14	0	Reserve field DRAW
30	RES3	☐	RESDRAW	CHAR14	CHAR	14	0	Reserve field DRAW
31	RES4	☐	RESDRAW	CHAR14	CHAR	14	0	Reserve field DRAW
32	MRK_FILEP	☐	FILEP	TEXT255	CHAR	255	0	Original of document
33	MRK_DTTRG	☐	DTTRG	DTTRG	CHAR	10	0	Name of Data Carrier	*
34	MRK_FILEP1	☐	FILEP	TEXT255	CHAR	255	0	Original of document
35	MRK_DTTRG1	☐	DTTRG	DTTRG	CHAR	10	0	Name of Data Carrier	*
36	ADATUM	☐	ADATUM	DATUM	DATS	8	0	Output date for document
37	DOKNR_VL	☐	DOKNR_VL	DOKNR	CHAR	25	0	Document Number of Source Document	*
38	DOKTL_VL	☐	DOKTL_VL	DOKTL	CHAR	3	0	Document part of source document
39	DOKVR_VL	☐	DOKVR_VL	DOKVR	CHAR	2	0	Document version of source document
40	FILELEN	☐	ORLN	NUM12	NUMC	12	0	File length of original
41	FILELEN1	☐	ORLN	NUM12	NUMC	12	0	File length of original
42	CM_RELEVANCE	☐	DE_CM_RELEVANCE_FLAG	DO_CM_RELEVANCE_FLAG	CHAR	1	0	Relevant for Configuration Management
43	CM_FIXED	☐	DMS_CM_FIXED	XFELD	CHAR	1	0	Document fixed

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	DMS_DOCUMENT_HIERARCHIE	AENNR	AENR	AENNR	KEY	1	CN
2	DMS_DOCUMENT_HIERARCHIE	DAPPL	TDWP	DAPPL	KEY	1	CN
3	DMS_DOCUMENT_HIERARCHIE	DAPPL1	TDWP	DAPPL	KEY	1	CN
4	DMS_DOCUMENT_HIERARCHIE	DOKAR	TDWA	DOKAR	KEY	1	CN
5	DMS_DOCUMENT_HIERARCHIE	DOKST	TDWS	DOKST	KEY	1	CN
6	DMS_DOCUMENT_HIERARCHIE	DTTRG	TDWD	DTTRG	KEY	1	CN
7	DMS_DOCUMENT_HIERARCHIE	DTTRG1	TDWD	DTTRG	KEY	1	CN
8	DMS_DOCUMENT_HIERARCHIE	LABOR	T024L	LABOR	KEY	1	CN
9	DMS_DOCUMENT_HIERARCHIE	MANDT	T000	MANDT	KEY	1	CN
10	DMS_DOCUMENT_HIERARCHIE	PREAR	TDWA	DOKAR	KEY	1	CN
11	DMS_DOCUMENT_HIERARCHIE	WERKA	T001W	WERKS	KEY	1	CN

History

Last changed by/on	SAP	20140121
SAP Release Created in	470
