SAP ABAP Table DIPLAB (Output structure relationships task lists)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM (Application Component) Customer Relationship Management
     ⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
       ⤷ IPRM (Package) Application Development R/3 Preventive Maintenance

Basic Data

Table Category	INTTAB	Structure

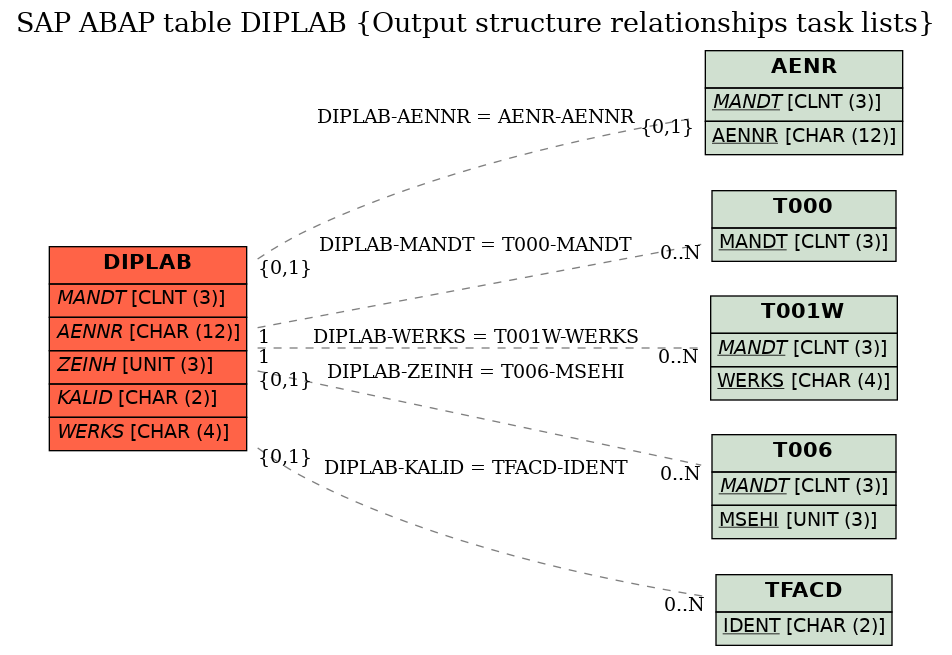

Structure	DIPLAB	Table Relationship Diagram
Short Description	Output structure relationships task lists

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Relationships I/O Table
2	.INCLUDE	☐				0	0	Relationships
3	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
4	PLNTY	☐	PLNTY	PLNTY	CHAR	1	0	Task List Type	*
5	PLNNR	☐	AOB_PLNNR	PLNNR	CHAR	8	0	Number of the Standard Network
6	PLNAL	☐	PLNAL	ALTNR	CHAR	2	0	Group Counter
7	PLNKN	☐	PLNKN	KNTNR	NUMC	8	0	Number of the task list node
8	PLNRN	☐	AOB_PLNNR	PLNNR	CHAR	8	0	Number of the Standard Network
9	ALNRN	☐	PLNAL	ALTNR	CHAR	2	0	Group Counter
10	KNNRN	☐	PLNKN	KNTNR	NUMC	8	0	Number of the task list node
11	AOBAR	☐	AOBAR	AOBAR	CHAR	2	0	Type of relationship
12	MIMAX	☐	DAUMIMAX	XFELD	CHAR	1	0	Indicates whether maximum time interval will be considered
13	ZAEHL	☐	CIM_COUNT	CIM_COUNT	NUMC	8	0	Internal counter
14	DATUV	☐	CIM_DATE	DATUM	DATS	8	0	Valid-from date
15	TECHV	☐	TECHV	TECHS	CHAR	12	0	Technical status from
16	AENNR	☐	AENNR	AENNR	CHAR	12	0	Change Number	AENR
17	ZEINH	☐	AOBDAUEH	MEINS	UNIT	3	0	Unit for the time interval between relationships	T006
18	DAUER	☐	AOBDAUER	AOBDAUER	QUAN	5	1	Time interval between relationships
19	DAUKZ	☐	AOBDAUKZ	AOBDAUKZ	CHAR	1	0	Indicator for the duration of the relationship
20	VORNC	☐	VORG_NACH	XFELD	CHAR	1	0	Indicator: maintained after successor
21	NCVOR	☐	NACH_VORG	XFELD	CHAR	1	0	Indicates whether data after predecessor is maintained
22	LOEKZ	☐	LOEKZ	XFELD	CHAR	1	0	Asset class marked for deletion
23	KALID	☐	WFCID	WFCID	CHAR	2	0	Factory Calendar	TFACD
24	PRZNT	☐	AOB_PRZNT	AOB_PRZNT	NUMC	3	0	% used to calc. time interval between predecessor/successor
25	PROVG	☐	AOB_PROVG	AOB_PROVG	CHAR	1	0	Key for defining time intervals in a relationship
26	ARBID	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
27	WERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
28	ANDAT	☐	ANDAT	DATUM	DATS	8	0	Date Record Created on
29	ANNAM	☐	ANNAM	USNAM	CHAR	12	0	User Who Created Record
30	AEDAT	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
31	AENAM	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
32	DAUERMAX	☐	AOBDAUERM	AOBDAUER	QUAN	5	1	Maximum time interval for relationship
33	.INCLUDE	☐				0	0	Additional fields for PLAB
34	VBKZ	☐	VBKZ	VERBUCHER	CHAR	1	0	Update indicator
35	VORNR	☐	VORNR	VORNR	CHAR	4	0	Operation/Activity Number
36	LTXA1	☐	LTXA1	TEXT40	CHAR	40	0	Operation short text
37	NCHKZ	☐	NCHKZ	XFELD	CHAR	1	0	Indicator: Activity is successor to selected activity
38	VORN1	☐	VORNR	VORNR	CHAR	4	0	Operation/Activity Number
39	LTXN1	☐	LTXA1	TEXT40	CHAR	40	0	Operation short text
40	VORN2	☐	VORNR	VORNR	CHAR	4	0	Operation/Activity Number
41	LTXN2	☐	LTXA1	TEXT40	CHAR	40	0	Operation short text
42	KTXN1	☐	PLANTEXT	TEXT40	CHAR	40	0	Task list description
43	KTXN2	☐	PLANTEXT	TEXT40	CHAR	40	0	Task list description
44	AOBTX	☐	AOBTX	TEXT20	CHAR	20	0	Short text for the type of relationship
45	KALTX	☐	KALTX	TEXT20	CHAR	20	0	Description of the factory calendar
46	VORG_DUMY1	☐	VORG_DUMY1	VORNR	CHAR	4	0	Number for general costs element or work element
47	VORG_DUMY2	☐	VORG_DUMY2	VORNR	CHAR	4	0	Number for general costs element or work element
48	ARBPL	☐	ARBPL	ARBPL	CHAR	8	0	Work center
49	PLNUM	☐	PLNNR	PLNNR	CHAR	8	0	Key for Task List Group
50	PLALT	☐	STDAL	ALTNR	CHAR	2	0	Standard network alternative
51	PVZNR	☐	PVZNR	VORNR	CHAR	4	0	Superior Operation
52	PVZN1	☐	PVZNR	VORNR	CHAR	4	0	Superior Operation
53	PVZN2	☐	PVZNR	VORNR	CHAR	4	0	Superior Operation
54	PHFLG	☐	PHFLG	XFELD	CHAR	1	0	Indicator: Phase
55	PHFL1	☐	PHFLG	XFELD	CHAR	1	0	Indicator: Phase
56	PHFL2	☐	PHFLG	XFELD	CHAR	1	0	Indicator: Phase
57	DATUB	☐	DATUB	DATUM	DATS	8	0	Valid-to date
58	.INCLUDE	☐				0	0	Scheduling results: relationship
59	FSABD	☐	FSABD	DATUM	DATS	8	0	Earliest start date for the relationship
60	FSABZ	☐	FSABZ	ATIME	TIMS	6	0	Earliest start time for the relationship
61	SSABD	☐	SSABD	DATUM	DATS	8	0	Latest start date of the relationship
62	SSABZ	☐	SSABZ	ATIME	TIMS	6	0	Latest start time of the relationship
63	FEABD	☐	FEABD	DATUM	DATS	8	0	Earliest finish date for the relationship
64	FEABZ	☐	FEABZ	ATIME	TIMS	6	0	Earliest finish time for the relationship
65	SEABD	☐	SEABD	DATUM	DATS	8	0	Latest finish date of the relationship
66	SEABZ	☐	SEABZ	ATIME	TIMS	6	0	Latest finish time of the relationship
67	DAUTM	☐	DAUTM	CX_DAUERS	INT4	10	0	Relationship duration (in seconds) as result of scheduling
68	INDBT	☐	TABIX_D	TABIX	INT4	10	0	Field defined as in SY-TABIX

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	DIPLAB	AENNR	AENR	AENNR	REF	C	C
2	DIPLAB	KALID	TFACD	IDENT	REF	C	CN
3	DIPLAB	MANDT	T000	MANDT	KEY	1	CN
4	DIPLAB	WERKS	T001W	WERKS	REF	1	CN
5	DIPLAB	ZEINH	T006	MSEHI	REF	C	CN

History

Last changed by/on	SAP	20110901
SAP Release Created in
