SAP ABAP Table CRMT_PARTNER_ADDRSEL_INFO_GUID (Selection Structure for Address Selection with GUID)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BTIL_OBJ (Package) Objects of the Transaction Interaction Layer

Basic Data

Table Category	INTTAB	Structure

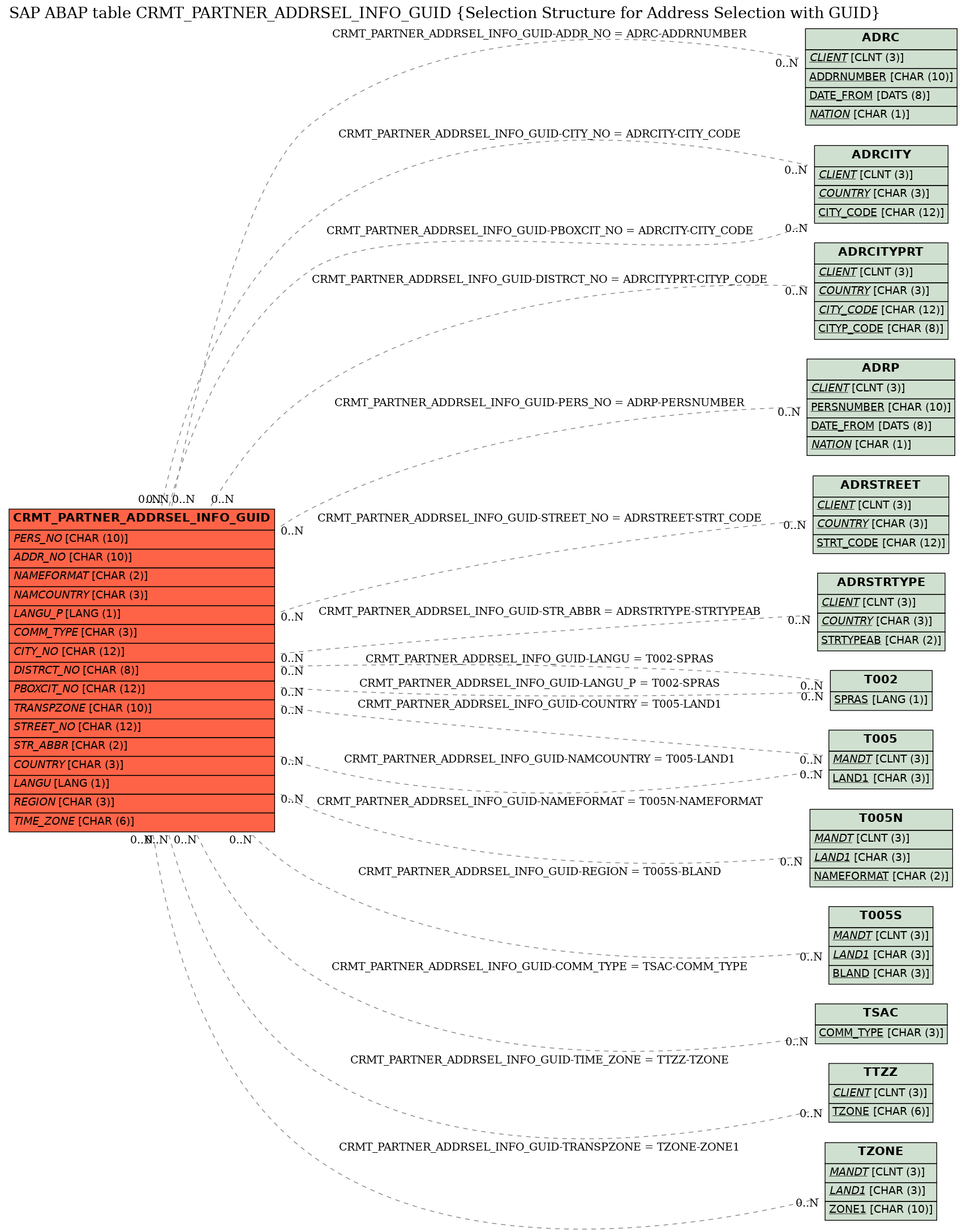

Structure	CRMT_PARTNER_ADDRSEL_INFO_GUID	Table Relationship Diagram
Short Description	Selection Structure for Address Selection with GUID

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
2	.INCLUDE	☐				0	0	Logical Key for Identifying a Partner
3	REF_PARTNER_HANDLE	☐	NUMC4	NUMC4	NUMC	4	0	Count parameters
4	REF_PARTNER_FCT	☐	COMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function
5	REF_PARTNER_NO	☐	COMT_PARTNER_NUMBER	COM_PARTNER_NUMBER	CHAR	20	0	Partner Number for Use Outside Partner Processing
6	REF_NO_TYPE	☐	COMT_PARTNER_NO_TYPE	COMT_PARTNER_NO_TYPE	CHAR	2	0	Type of Partner Number
7	REF_DISPLAY_TYPE	☐	COMT_PARTNER_DISPLAY_TYPE	COMT_PARTNER_NO_TYPE	CHAR	2	0	Object Type for which Partner Number is to be Shown
8	PARTNER_GUID	☐	TEXT40	TEXT40	CHAR	40	0	Text, 40 Characters Long
9	PARTNER_FCT	☐	COMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function
10	DESCRIPTION	☐	TEXT255	TEXT255	CHAR	255	0	Text, 255 Characters
11	PARTNER_ID	☐	TEXT30	TEXT30	CHAR	30	0	Text (30 Characters)
12	ICON_NAME	☐	TV_IMAGE	TV_IMAGE	CHAR	46	0	Tree Control: Icon / Image
13	ADRESS	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
14	ADRESS_WITH_STREET	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
15	RELATION_PARTNER	☐	BU_PARTNER_GUID	SYSUUID	RAW	16	0	Business Partner GUID
16	REL_PARTNER_NAME	☐	COMT_PARTNER_REL_PARTNER_NAME	TEXT40	CHAR	40	0	Name of Applicable Company (for Contact Partner Adresses)
17	ADDR_NR	☐	ADRNR	ADRNR	CHAR	10	0	Address	*
18	ADDR_NP	☐	ADRNP	ADRNR	CHAR	10	0	Private address	*
19	ADDR_TYPE	☐	ADDR_TYPE	ADDR_TYPE	CHAR	1	0	Addresses: Address type
20	ADDR_ORIGIN	☐	ADDR_ORIGIN	ADDR_ORIGIN	CHAR	1	0	Origin of an address
21	ADR_OPERATION	☐	BU_OPERATION	BU_OPERATION	CHAR	6	0	Transaction for BP Address Determination	*
22	ADR_OPERATION_DESCRIPTION	☐	COMT_PARTNER_OPERATION_DESC	TEXT50	CHAR	50	0	Transaction for Address
23	WAS_DEFAULT	☐	XFELD	XFELD	CHAR	1	0	Checkbox
24	STD_BP_ADDRESS	☐	COMT_PARTNER_STD_BP_ADDRESS	XFELD	CHAR	1	0	Standard Business Partner Address(Dependent On Address Type)
25	.INCLUDE	☐				0	0	BAPI reference structure for addresses (contact person)
26	PERS_NO	☐	AD_PERSNUM	AD_PERSNUM	CHAR	10	0	Person number	ADRP
27	ADDR_NO	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	ADRC
28	TITLE_P	☐	AD_TITLETX	TEXT30	CHAR	30	0	Title text
29	FIRSTNAME	☐	AD_NAMEFIR	TEXT40	CHAR	40	0	First name
30	LASTNAME	☐	AD_NAMELAS	TEXT40	CHAR	40	0	Last name
31	BIRTH_NAME	☐	AD_NAME2_P	TEXT40	CHAR	40	0	Name of person at birth
32	MIDDLENAME	☐	AD_NAMEMID	TEXT40	CHAR	40	0	Middle name or second forename of a person
33	SECONDNAME	☐	AD_NAMLAS2	TEXT40	CHAR	40	0	Second surname of a person
34	FULLNAME	☐	AD_NAMTEXT	TEXT80	CHAR	80	0	Full Name of Person
35	FULLNAME_X	☐	AD_NAMCONV	AD_NAMCONV	CHAR	1	0	Status of Field 'Full Name' NAME_TEXT
36	TITLE_ACA1	☐	AD_TITLE1T	TEXT20	CHAR	20	0	Academic Title: Written Form
37	TITLE_ACA2	☐	AD_TITLE2T	TEXT20	CHAR	20	0	2nd academic title: written form
38	PREFIX1	☐	AD_PREFIXT	TEXT20	CHAR	20	0	Name prefix
39	PREFIX2	☐	AD_PREFX2T	TEXT20	CHAR	20	0	2nd name prefix
40	TITLE_SPPL	☐	AD_TITLEST	TEXT20	CHAR	20	0	Name supplement, e.g. noble title (written form)
41	NICKNAME	☐	AD_NICKNAM	TEXT40	CHAR	40	0	Nickname or name used
42	INITIALS	☐	AD_INITS	CHAR10	CHAR	10	0	"Middle Initial" or personal initials
43	NAMEFORMAT	☐	AD_FORMAT	AD_NAMFORM	CHAR	2	0	Name format	T005N
44	NAMCOUNTRY	☐	AD_NAMCTRY	LAND1	CHAR	3	0	Country for name format rule	T005
45	LANGU_P	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
46	LANGUP_ISO	☐	LAISO	LAISO	CHAR	2	0	2-Character SAP Language Code
47	SORT1_P	☐	AD_SORT1	CHAR20	CHAR	20	0	Search Term 1
48	SORT2_P	☐	AD_SORT2	CHAR20	CHAR	20	0	Search Term 2
49	DEPARTMENT	☐	AD_DPRTMNT	TEXT40	CHAR	40	0	Department
50	FUNCTION	☐	AD_FNCTN	TEXT40	CHAR	40	0	Function
51	BUILDING_P	☐	AD_BLDNG_P	TEXT10	CHAR	10	0	Building (number or code)
52	FLOOR_P	☐	AD_FLOOR	TEXT10	CHAR	10	0	Floor in building
53	ROOM_NO_P	☐	AD_ROOMNUM	TEXT10	CHAR	10	0	Room or Appartment Number
54	INITS_SIG	☐	AD_ID_CODE	TEXT10	CHAR	10	0	Short name for correspondence
55	INHOUSE_ML	☐	AD_IH_MAIL	TEXT10	CHAR	10	0	Int. mail postal code
56	COMM_TYPE	☐	AD_COMM	AD_COMM	CHAR	3	0	Communication Method (Key) (Business Address Services)	TSAC
57	TITLE	☐	AD_TITLETX	TEXT30	CHAR	30	0	Title text
58	NAME	☐	AD_NAME1	TEXT40	CHAR	40	0	Name 1
59	NAME_2	☐	AD_NAME2	TEXT40	CHAR	40	0	Name 2
60	NAME_3	☐	AD_NAME3	TEXT40	CHAR	40	0	Name 3
61	NAME_4	☐	AD_NAME4	TEXT40	CHAR	40	0	Name 4
62	C_O_NAME	☐	AD_NAME_CO	TEXT40	CHAR	40	0	c/o name
63	CITY	☐	AD_CITY1	TEXT40	CHAR	40	0	City
64	DISTRICT	☐	AD_CITY2	TEXT40	CHAR	40	0	District
65	CITY_NO	☐	AD_CITYNUM	CITY_CODE	CHAR	12	0	City code for city/street file	ADRCITY
66	DISTRCT_NO	☐	AD_CITYPNM	CITYP_CODE	CHAR	8	0	District code for City and Street file	ADRCITYPRT
67	CHCKSTATUS	☐	AD_CHECKST	AD_CHECKST	CHAR	1	0	City file test status
68	POSTL_COD1	☐	AD_PSTCD1	CHAR10	CHAR	10	0	City postal code
69	POSTL_COD2	☐	AD_PSTCD2	CHAR10	CHAR	10	0	PO Box postal code
70	POSTL_COD3	☐	AD_PSTCD3	CHAR10	CHAR	10	0	Company postal code (for large customers)
71	PO_BOX	☐	AD_POBX	CHAR10	CHAR	10	0	PO Box
72	PO_BOX_CIT	☐	AD_POBXLOC	TEXT40	CHAR	40	0	PO Box city
73	PBOXCIT_NO	☐	AD_CIT2NUM	CITY_CODE	CHAR	12	0	City PO box code (City file)	ADRCITY
74	DELIV_DIS	☐	AD_PSTLAR	TEXT15	CHAR	15	0	(Not Supported) Post Delivery District
75	TRANSPZONE	☐	LZONE	ZONE	CHAR	10	0	Transportation zone to or from which the goods are delivered	TZONE
76	STREET	☐	AD_STREET	TEXT60	CHAR	60	0	Street
77	STREET_NO	☐	AD_STRNUM	STRT_CODE	CHAR	12	0	Street Number for City/Street File	ADRSTREET
78	STR_ABBR	☐	AD_STRABBR	STRTYPEAB	CHAR	2	0	(Not Supported) Abbreviation of Street Name	ADRSTRTYPE
79	HOUSE_NO	☐	AD_HSNM1	TEXT10	CHAR	10	0	House Number
80	HOUSE_NO2	☐	AD_HSNM2	TEXT10	CHAR	10	0	House number supplement
81	STR_SUPPL1	☐	AD_STRSPP1	TEXT40	CHAR	40	0	Street 2
82	STR_SUPPL2	☐	AD_STRSPP2	TEXT40	CHAR	40	0	Street 3
83	STR_SUPPL3	☐	AD_STRSPP3	TEXT40	CHAR	40	0	Street 4
84	LOCATION	☐	AD_LCTN	TEXT40	CHAR	40	0	Street 5
85	BUILDING	☐	AD_BLD_OLD	TEXT10	CHAR	10	0	old: building (no. or abbreviation)
86	FLOOR	☐	AD_FLOOR	TEXT10	CHAR	10	0	Floor in building
87	ROOM_NO	☐	AD_ROOMNUM	TEXT10	CHAR	10	0	Room or Appartment Number
88	COUNTRY	☐	LAND1	LAND1	CHAR	3	0	Country Key	T005
89	COUNTRYISO	☐	INTCA	INTCA	CHAR	2	0	Country ISO code
90	LANGU	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
91	LANGU_ISO	☐	LAISO	LAISO	CHAR	2	0	2-Character SAP Language Code
92	REGION	☐	REGIO	REGIO	CHAR	3	0	Region (State, Province, County)	T005S
93	SORT1	☐	AD_SORT1	CHAR20	CHAR	20	0	Search Term 1
94	SORT2	☐	AD_SORT2	CHAR20	CHAR	20	0	Search Term 2
95	TIME_ZONE	☐	AD_TZONE	TZNZONE	CHAR	6	0	Address time zone	TTZZ
96	TAXJURCODE	☐	AD_TXJCD	AD_TXJCD	CHAR	15	0	Tax Jurisdiction
97	ADR_NOTES	☐	AD_REMARK1	TEXT50	CHAR	50	0	Address notes
98	TEL1_NUMBR	☐	AD_TLNMBR1	CHAR30	CHAR	30	0	First telephone no.: dialling code+number
99	TEL1_EXT	☐	AD_TLXTNS1	CHAR10	CHAR	10	0	First Telephone No.: Extension
100	FAX_NUMBER	☐	AD_FXNMBR1	CHAR30	CHAR	30	0	First fax no.: dialling code+number
101	FAX_EXTENS	☐	AD_FXXTNS1	CHAR10	CHAR	10	0	First fax no.: extension
102	E_MAIL	☐	AD_SMTPADR	AD_SMTPADR	CHAR	241	0	E-Mail Address
103	BUILD_LONG	☐	AD_BLDNG	TEXT20	CHAR	20	0	Building (Number or Code)
104	REGIOGROUP	☐	REGIOGROUP	REGIOGROUP	CHAR	8	0	Regional structure grouping	*
105	HOME_CITY	☐	AD_CITY3	TEXT40	CHAR	40	0	City (different from postal city)
106	HOMECITYNO	☐	AD_CITYHNM	CITY_CODE	CHAR	12	0	Different city for city/street file	*
107	PCODE1_EXT	☐	AD_PST1XT	CHAR10	CHAR	10	0	(Not Supported)City Postal Code Extension, e.g. ZIP+4+2 Code
108	PCODE2_EXT	☐	AD_PST2XT	CHAR10	CHAR	10	0	(Not Supported) PO Box Postal Code Extension
109	PCODE3_EXT	☐	AD_PST3XT	CHAR10	CHAR	10	0	(Not Supported) Major Customer Postal Code Extension
110	PO_W_O_NO	☐	AD_POBXNUM	XFELD	CHAR	1	0	Flag: PO Box without number
111	PO_BOX_REG	☐	AD_POBXREG	REGIO	CHAR	3	0	Region for PO Box (Country, State, Province, ...)	*
112	POBOX_CTRY	☐	AD_POBXCTY	LAND1	CHAR	3	0	PO box country	*
113	PO_CTRYISO	☐	INTCA	INTCA	CHAR	2	0	Country ISO code
114	DONT_USE_S	☐	AD_NO_USES	AD_NO_USE	CHAR	4	0	Street Address Undeliverable Flag	*
115	DONT_USE_P	☐	AD_NO_USEP	AD_NO_USE	CHAR	4	0	PO Box Address Undeliverable Flag	*
116	HOUSE_NO3	☐	AD_HSNM3	TEXT10	CHAR	10	0	(Not supported) House Number Range
117	LANGU_CR_P	☐	AD_LANGUCR	SPRAS	LANG	1	0	Address record creation original language	*
118	LANGUCPISO	☐	LAISO	LAISO	CHAR	2	0	2-Character SAP Language Code
119	PO_BOX_LOBBY	☐	AD_PO_BOX_LBY	TEXT40	CHAR	40	0	PO Box Lobby
120	DELI_SERV_TYPE	☐	AD_DELIVERY_SERVICE_TYPE	AD_DELIVERY_SERVICE_TYPE	CHAR	4	0	Type of Delivery Service	*
121	DELI_SERV_NUMBER	☐	AD_DELIVERY_SERVICE_NUMBER	CHAR10	CHAR	10	0	Number of Delivery Service
122	COUNTY_CODE	☐	AD_CNTYNUM	CNTY_CODE	CHAR	8	0	County code for county	*
123	COUNTY	☐	AD_COUNTY	TEXT40	CHAR	40	0	County
124	TOWNSHIP_CODE	☐	AD_TWSHPNUM	TWSHP_CODE	CHAR	8	0	Township code for Township	*
125	TOWNSHIP	☐	AD_TOWNSHIP	TEXT40	CHAR	40	0	Township
126	EDITABLE	☐	AS4FLAG	AS4FLAG	CHAR	1	0	Flag (X or Blank)
127	CHOSEN	☐	AS4FLAG	AS4FLAG	CHAR	1	0	Flag (X or Blank)
128	FINAL_CALL	☐	AS4FLAG	AS4FLAG	CHAR	1	0	Flag (X or Blank)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_PARTNER_ADDRSEL_INFO_GUID	ADDR_NO	ADRC	ADDRNUMBER
2	CRMT_PARTNER_ADDRSEL_INFO_GUID	CITY_NO	ADRCITY	CITY_CODE
3	CRMT_PARTNER_ADDRSEL_INFO_GUID	COMM_TYPE	TSAC	COMM_TYPE
4	CRMT_PARTNER_ADDRSEL_INFO_GUID	COUNTRY	T005	LAND1
5	CRMT_PARTNER_ADDRSEL_INFO_GUID	DISTRCT_NO	ADRCITYPRT	CITYP_CODE
6	CRMT_PARTNER_ADDRSEL_INFO_GUID	LANGU	T002	SPRAS
7	CRMT_PARTNER_ADDRSEL_INFO_GUID	LANGU_P	T002	SPRAS
8	CRMT_PARTNER_ADDRSEL_INFO_GUID	NAMCOUNTRY	T005	LAND1
9	CRMT_PARTNER_ADDRSEL_INFO_GUID	NAMEFORMAT	T005N	NAMEFORMAT
10	CRMT_PARTNER_ADDRSEL_INFO_GUID	PBOXCIT_NO	ADRCITY	CITY_CODE
11	CRMT_PARTNER_ADDRSEL_INFO_GUID	PERS_NO	ADRP	PERSNUMBER
12	CRMT_PARTNER_ADDRSEL_INFO_GUID	REGION	T005S	BLAND
13	CRMT_PARTNER_ADDRSEL_INFO_GUID	STREET_NO	ADRSTREET	STRT_CODE
14	CRMT_PARTNER_ADDRSEL_INFO_GUID	STR_ABBR	ADRSTRTYPE	STRTYPEAB
15	CRMT_PARTNER_ADDRSEL_INFO_GUID	TIME_ZONE	TTZZ	TZONE
16	CRMT_PARTNER_ADDRSEL_INFO_GUID	TRANSPZONE	TZONE	ZONE1

History

Last changed by/on	SAP	20141013
SAP Release Created in	510
