SAP ABAP Table CRMT_BSP_BC_OJ (Buying center Partners)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure

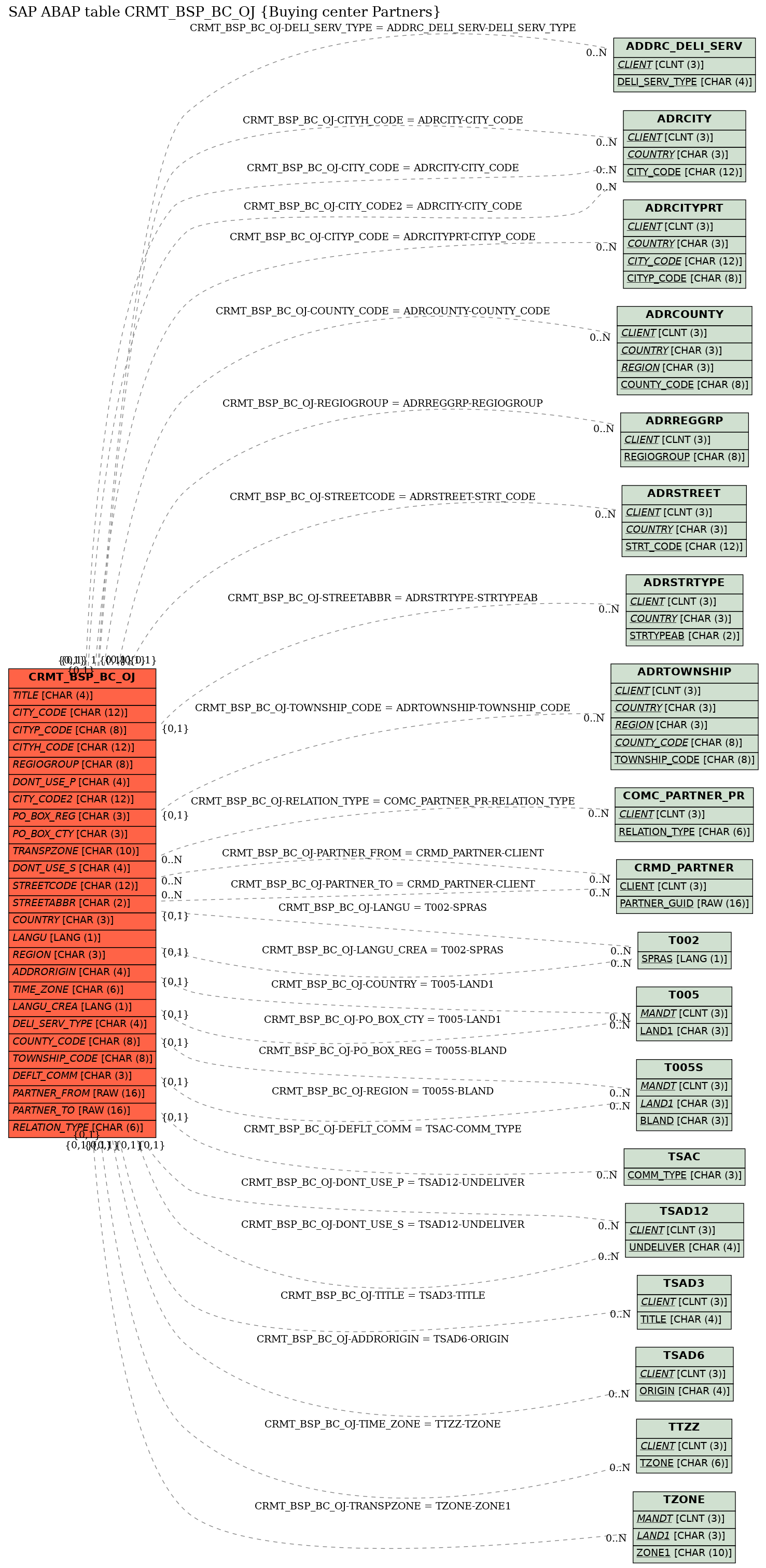

Structure	CRMT_BSP_BC_OJ	Table Relationship Diagram
Short Description	Buying center Partners

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	SELKZ	☐	XFELD	XFELD	CHAR	1	0	Checkbox
2	PARTNER_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
3	LOGICAL_KEY	☐	CRMT_LOGICAL_KEY	CRM_LOGICAL_KEY	CHAR	42	0	Logical Key for Subobject
4	PARTNER_FCT	☐	CRMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function
5	FCT_DESCRIPTION	☐	TEXT30	TEXT30	CHAR	30	0	Text (30 Characters)
6	PARTNER_NUMBER	☐	CRMT_PARTNER_NUMBER	CRM_PARTNER_NUMBER	CHAR	20	0	Partner Number for Use Outside Partner Processing
7	NO_TYPE	☐	CRMT_PARTNER_NO_TYPE	COMT_PARTNER_NO_TYPE	CHAR	2	0	Partner Number Type (e.g. GUID, Pers. No., ...), Internal
8	DISPLAY_TYPE	☐	CRMT_PARTNER_DISPLAY_TYPE	COMT_PARTNER_NO_TYPE	CHAR	2	0	Object Type, for Which Partner Number is to be Shown
9	MAINPARTNER	☐	CRMT_PARTNER_MAIN	CRM_BOOLEAN	CHAR	1	0	Main Partner (For Ambiguous Partner Functions)
10	CALENDAR	☐	CRMT_PARTNER_CALENDAR	CRM_BOOLEAN	CHAR	1	0	Maintain Calendar for the Partner?
11	DISABLED	☐	CRMT_PARTNER_DISABLED	CRM_BOOLEAN	CHAR	1	0	No INBOX Selection for the Partner
12	ADDR_NR	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	*
13	ADDR_NP	☐	AD_PERSNUM	AD_PERSNUM	CHAR	10	0	Person number	*
14	ADDR_TYPE	☐	AD_ADRTYPE	AD_ADRTYPE	CHAR	1	0	Address type (1=Organization, 2=Person, 3=Contact person)
15	ERROR_FLAG	☐	XFELD	XFELD	CHAR	1	0	Checkbox
16	RELATION_PARTNER	☐	BU_PARTNER_GUID	SYSUUID	RAW	16	0	Business Partner GUID
17	SHORT	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
18	SHORT_WITH_STREET	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
19	.INCLUDE	☐				0	0	Address transfer structure
20	DATE_FROM	☐	AD_DATE_FR	DATUM	DATS	8	0	Valid-from date - in current Release only 00010101 possible
21	DATE_TO	☐	AD_DATE_TO	DATUM	DATS	8	0	Valid-to date in current Release only 99991231 possible
22	.INCLUDE	☐				0	0	Include structure with name attributes of the ADRC address
23	TITLE	☐	AD_TITLE	AD_TITLE	CHAR	4	0	Form-of-Address Key	TSAD3
24	NAME1	☐	AD_NAME1	TEXT40	CHAR	40	0	Name 1
25	NAME2	☐	AD_NAME2	TEXT40	CHAR	40	0	Name 2
26	NAME3	☐	AD_NAME3	TEXT40	CHAR	40	0	Name 3
27	NAME4	☐	AD_NAME4	TEXT40	CHAR	40	0	Name 4
28	NAME_TXT	☐	AD_NAMETXT	TEXT50	CHAR	50	0	Converted name field (with form of address)
29	.INCLUDE	☐				0	0	Include structure with ADRC attributes without name fields
30	NAME_CO	☐	AD_NAME_CO	TEXT40	CHAR	40	0	c/o name
31	CITY1	☐	AD_CITY1	TEXT40	CHAR	40	0	City
32	CITY2	☐	AD_CITY2	TEXT40	CHAR	40	0	District
33	CITY_CODE	☐	AD_CITYNUM	CITY_CODE	CHAR	12	0	City code for city/street file	ADRCITY
34	CITYP_CODE	☐	AD_CITYPNM	CITYP_CODE	CHAR	8	0	District code for City and Street file	ADRCITYPRT
35	HOME_CITY	☐	AD_CITY3	TEXT40	CHAR	40	0	City (different from postal city)
36	CITYH_CODE	☐	AD_CITYHNM	CITY_CODE	CHAR	12	0	Different city for city/street file	ADRCITY
37	CHCKSTATUS	☐	AD_CHECKST	AD_CHECKST	CHAR	1	0	City file test status
38	REGIOGROUP	☐	REGIOGROUP	REGIOGROUP	CHAR	8	0	Regional structure grouping	ADRREGGRP
39	POST_CODE1	☐	AD_PSTCD1	CHAR10	CHAR	10	0	City postal code
40	POST_CODE2	☐	AD_PSTCD2	CHAR10	CHAR	10	0	PO Box postal code
41	POST_CODE3	☐	AD_PSTCD3	CHAR10	CHAR	10	0	Company postal code (for large customers)
42	PCODE1_EXT	☐	AD_PST1XT	CHAR10	CHAR	10	0	(Not Supported)City Postal Code Extension, e.g. ZIP+4+2 Code
43	PCODE2_EXT	☐	AD_PST2XT	CHAR10	CHAR	10	0	(Not Supported) PO Box Postal Code Extension
44	PCODE3_EXT	☐	AD_PST3XT	CHAR10	CHAR	10	0	(Not Supported) Major Customer Postal Code Extension
45	PO_BOX	☐	AD_POBX	CHAR10	CHAR	10	0	PO Box
46	DONT_USE_P	☐	AD_NO_USEP	AD_NO_USE	CHAR	4	0	PO Box Address Undeliverable Flag	TSAD12
47	PO_BOX_NUM	☐	AD_POBXNUM	XFELD	CHAR	1	0	Flag: PO Box without number
48	PO_BOX_LOC	☐	AD_POBXLOC	TEXT40	CHAR	40	0	PO Box city
49	CITY_CODE2	☐	AD_CIT2NUM	CITY_CODE	CHAR	12	0	City PO box code (City file)	ADRCITY
50	PO_BOX_REG	☐	AD_POBXREG	REGIO	CHAR	3	0	Region for PO Box (Country, State, Province, ...)	T005S
51	PO_BOX_CTY	☐	AD_POBXCTY	LAND1	CHAR	3	0	PO box country	T005
52	POSTALAREA	☐	AD_PSTLAR	TEXT15	CHAR	15	0	(Not Supported) Post Delivery District
53	TRANSPZONE	☐	LZONE	ZONE	CHAR	10	0	Transportation zone to or from which the goods are delivered	TZONE
54	STREET	☐	AD_STREET	TEXT60	CHAR	60	0	Street
55	DONT_USE_S	☐	AD_NO_USES	AD_NO_USE	CHAR	4	0	Street Address Undeliverable Flag	TSAD12
56	STREETCODE	☐	AD_STRNUM	STRT_CODE	CHAR	12	0	Street Number for City/Street File	ADRSTREET
57	STREETABBR	☐	AD_STRABBR	STRTYPEAB	CHAR	2	0	(Not Supported) Abbreviation of Street Name	ADRSTRTYPE
58	HOUSE_NUM1	☐	AD_HSNM1	TEXT10	CHAR	10	0	House Number
59	HOUSE_NUM2	☐	AD_HSNM2	TEXT10	CHAR	10	0	House number supplement
60	HOUSE_NUM3	☐	AD_HSNM3	TEXT10	CHAR	10	0	(Not supported) House Number Range
61	STR_SUPPL1	☐	AD_STRSPP1	TEXT40	CHAR	40	0	Street 2
62	STR_SUPPL2	☐	AD_STRSPP2	TEXT40	CHAR	40	0	Street 3
63	STR_SUPPL3	☐	AD_STRSPP3	TEXT40	CHAR	40	0	Street 4
64	LOCATION	☐	AD_LCTN	TEXT40	CHAR	40	0	Street 5
65	BUILDING	☐	AD_BLDNG	TEXT20	CHAR	20	0	Building (Number or Code)
66	FLOOR	☐	AD_FLOOR	TEXT10	CHAR	10	0	Floor in building
67	ROOMNUMBER	☐	AD_ROOMNUM	TEXT10	CHAR	10	0	Room or Appartment Number
68	COUNTRY	☐	LAND1	LAND1	CHAR	3	0	Country Key	T005
69	LANGU	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
70	REGION	☐	REGIO	REGIO	CHAR	3	0	Region (State, Province, County)	T005S
71	SORT1	☐	AD_SORT1UL	TEXT20	CHAR	20	0	Search Term 1
72	SORT2	☐	AD_SORT2UL	TEXT20	CHAR	20	0	Search Term 2
73	SORT_PHN	☐	AD_SRTPHN	CHAR20	CHAR	20	0	(Not Supported) Phonetic Search Sort Field
74	ADDRORIGIN	☐	AD_ORIGINA	AD_ORIGIN	CHAR	4	0	(Not Supported) Address Data Source (Key)	TSAD6
75	EXTENSION1	☐	AD_EXTENS1	TEXT40	CHAR	40	0	Extension (only for data conversion) (e.g. data line)
76	EXTENSION2	☐	AD_EXTENS2	TEXT40	CHAR	40	0	Extension (only for data conversion) (e.g. telebox)
77	TIME_ZONE	☐	AD_TZONE	TZNZONE	CHAR	6	0	Address time zone	TTZZ
78	TAXJURCODE	☐	AD_TXJCD	AD_TXJCD	CHAR	15	0	Tax Jurisdiction
79	ADDRESS_ID	☐	AD_ADDR_ID	AD_ADDR_ID	CHAR	10	0	(Not supported) Physical address ID
80	REMARK	☐	AD_REMARK1	TEXT50	CHAR	50	0	Address notes
81	LANGU_CREA	☐	AD_LANGUCR	SPRAS	LANG	1	0	Address record creation original language	T002
82	PO_BOX_LOBBY	☐	AD_PO_BOX_LBY	TEXT40	CHAR	40	0	PO Box Lobby
83	DELI_SERV_TYPE	☐	AD_DELIVERY_SERVICE_TYPE	AD_DELIVERY_SERVICE_TYPE	CHAR	4	0	Type of Delivery Service	ADDRC_DELI_SERV
84	DELI_SERV_NUMBER	☐	AD_DELIVERY_SERVICE_NUMBER	CHAR10	CHAR	10	0	Number of Delivery Service
85	COUNTY_CODE	☐	AD_CNTYNUM	CNTY_CODE	CHAR	8	0	County code for county	ADRCOUNTY
86	COUNTY	☐	AD_COUNTY	TEXT40	CHAR	40	0	County
87	TOWNSHIP_CODE	☐	AD_TWSHPNUM	TWSHP_CODE	CHAR	8	0	Township code for Township	ADRTOWNSHIP
88	TOWNSHIP	☐	AD_TOWNSHIP	TEXT40	CHAR	40	0	Township
89	DEFLT_COMM	☐	AD_COMM	AD_COMM	CHAR	3	0	Communication Method (Key) (Business Address Services)	TSAC
90	.INCLUDE	☐				0	0	Partner Team Relationship
91	.INCLUDE	☐				0	0	Internal Identification Key for a Partner Dependency
92	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
93	PARTNER_REL_GUID	☐	COMT_PARTNER_REL_GUID	SYSUUID	RAW	16	0	GUID for Individual Partner Dependency
94	.INCLUDE	☐				0	0	Externally Influenced Data for a Partner Dependency
95	PARTNER_FROM	☐	COMT_PARTNER_GUID	SYSUUID	RAW	16	0	GUID for an Individual Partner	CRMD_PARTNER
96	PARTNER_TO	☐	COMT_PARTNER_GUID	SYSUUID	RAW	16	0	GUID for an Individual Partner	CRMD_PARTNER
97	RELATION_TYPE	☐	COMT_PARTNER_RELATION	COM_PARTNER_RELATION	CHAR	6	0	Relationship Between Partners	COMC_PARTNER_PR
98	TEAM_GUID	☐	COMT_PARTNER_TEAM_GUID	SYSUUID	RAW	16	0	Partner Team GUID
99	X_POS	☐	BCXPOS	BCXPOSITION	DEC	20	6	Horizontal Position of a BC Partner (Nbr of Bands * Factor)
100	Y_POS	☐	BCYPOS	BCYPOSITION	DEC	20	6	Vertical Position of a BC Partner (Nbr of Bands * Factor)
101	.INCLUDE	☐				0	0	Internally Controlled Data for a Partner Dependency
102	CUST_ATTR_DB	☐	COMT_PARTNER_CUST_ATTRIBUTES	FLAG	CHAR	1	0	Flag: Customizable Attributes Available for Partner

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_BC_OJ	ADDRORIGIN	TSAD6	ORIGIN	REF	C	CN
2	CRMT_BSP_BC_OJ	CITYH_CODE	ADRCITY	CITY_CODE	REF	C	CN
3	CRMT_BSP_BC_OJ	CITYP_CODE	ADRCITYPRT	CITYP_CODE	REF	C	CN
4	CRMT_BSP_BC_OJ	CITY_CODE	ADRCITY	CITY_CODE	REF	C	CN
5	CRMT_BSP_BC_OJ	CITY_CODE2	ADRCITY	CITY_CODE	REF	C	CN
6	CRMT_BSP_BC_OJ	COUNTRY	T005	LAND1	REF	C	CN
7	CRMT_BSP_BC_OJ	COUNTY_CODE	ADRCOUNTY	COUNTY_CODE	REF	C	CN
8	CRMT_BSP_BC_OJ	DEFLT_COMM	TSAC	COMM_TYPE	REF	C	CN
9	CRMT_BSP_BC_OJ	DELI_SERV_TYPE	ADDRC_DELI_SERV	DELI_SERV_TYPE		1	CN
10	CRMT_BSP_BC_OJ	DONT_USE_P	TSAD12	UNDELIVER	KEY	C	CN
11	CRMT_BSP_BC_OJ	DONT_USE_S	TSAD12	UNDELIVER	REF	C	CN
12	CRMT_BSP_BC_OJ	LANGU	T002	SPRAS	REF	C	CN
13	CRMT_BSP_BC_OJ	LANGU_CREA	T002	SPRAS	REF	C	CN
14	CRMT_BSP_BC_OJ	PARTNER_FROM	CRMD_PARTNER	CLIENT
15	CRMT_BSP_BC_OJ	PARTNER_TO	CRMD_PARTNER	CLIENT
16	CRMT_BSP_BC_OJ	PO_BOX_CTY	T005	LAND1	REF	C	CN
17	CRMT_BSP_BC_OJ	PO_BOX_REG	T005S	BLAND	REF	C	CN
18	CRMT_BSP_BC_OJ	REGIOGROUP	ADRREGGRP	REGIOGROUP	REF	C	CN
19	CRMT_BSP_BC_OJ	REGION	T005S	BLAND	REF	C	CN
20	CRMT_BSP_BC_OJ	RELATION_TYPE	COMC_PARTNER_PR	RELATION_TYPE
21	CRMT_BSP_BC_OJ	STREETABBR	ADRSTRTYPE	STRTYPEAB	REF	C	CN
22	CRMT_BSP_BC_OJ	STREETCODE	ADRSTREET	STRT_CODE	REF	C	CN
23	CRMT_BSP_BC_OJ	TIME_ZONE	TTZZ	TZONE	REF	C	CN
24	CRMT_BSP_BC_OJ	TITLE	TSAD3	TITLE	REF	C	CN
25	CRMT_BSP_BC_OJ	TOWNSHIP_CODE	ADRTOWNSHIP	TOWNSHIP_CODE	REF	C	CN
26	CRMT_BSP_BC_OJ	TRANSPZONE	TZONE	ZONE1	REF	C	CN

History

Last changed by/on	SAP	20141013
SAP Release Created in	310
