SAP ABAP Table BBPS_MESSAGE_PARAMETERS (Parameters for mail layout, for archivelink and rendering)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ SRM-EBP (Application Component) Enterprise Buyer
     ⤷ BBP_OUT (Package) Output from EBP

Basic Data

Table Category	INTTAB	Structure

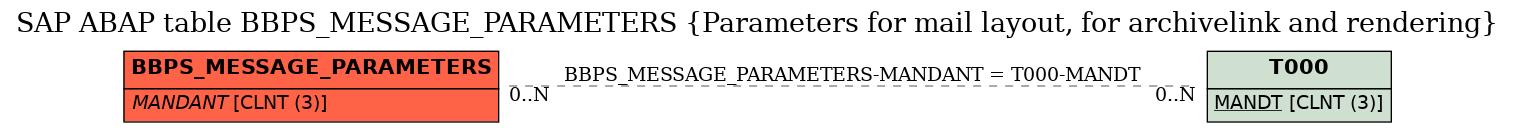

Structure	BBPS_MESSAGE_PARAMETERS	Table Relationship Diagram
Short Description	Parameters for mail layout, for archivelink and rendering

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Parameters to Determine Email Appearance
2	MAIL_FORMAT	☐	SO_OBJ_TP	SO_OBJ_TP	CHAR	3	0	Code for document class	*
3	LANGU	☐	SPRAS	SPRAS	LANG	1	0	Language Key	*
4	URL_IND	☐	XFELD	XFELD	CHAR	1	0	Checkbox
5	ATTACH_IND	☐	XFELD	XFELD	CHAR	1	0	Checkbox
6	SNAPSHOT_IND	☐	XFELD	XFELD	CHAR	1	0	Checkbox
7	DEC_BUTTON_IND	☐	XFELD	XFELD	CHAR	1	0	Checkbox
8	.INCLUDE	☐				0	0	Structure for Transfer of ArchiveLink Parameters
9	.INCLUDE	☐				0	0	SAP ArchiveLink structure of a DARA line
10	FUNCTION	☐	SAEFKTNAME	SADC4	CHAR	4	0	SAP ArchiveLink name of function to be called
11	MANDANT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
12	DEL_DATE	☐	SAEDELDATE	SADDATUM	DATS	8	0	Expiry Date
13	SAP_OBJECT	☐	SAEANWDID	OJ_NAME	CHAR	10	0	SAP ArchiveLink: Object type of business object	*
14	AR_OBJECT	☐	SAEOBJECT	SADC10	CHAR	10	0	SAP ArchiveLink: Object type
15	OBJECT_ID	☐	SAEOBJID	SADC50	CHAR	50	0	SAP ArchiveLink: Object ID (object identifier)
16	FORM_ID	☐	SAEARDOID	SADC40	CHAR	40	0	SAP ArchiveLink: Document ID
17	FORMARCHIV	☐	SAEARCHIV	SADC2	CHAR	2	0	SAP ArchiveLink: Target storage system
18	RESERVE	☐	SAERESERVE	SADC27	CHAR	27	0	SAP ArchiveLink: Reserved for future application
19	NOTIZ	☐	SAENOTIZ	SADCK256	CHAR	256	0	SAP ArchiveLink domain CHARACTER 256
20	ARC_FORMAT	☐	SO_OBJ_TP	SO_OBJ_TP	CHAR	3	0	Code for document class	*
21	ARCHIVE_COPIES	☐	TDARCCOP	TDSFFLAG	CHAR	1	0	Smart Forms: Indicator whether to archive copies
22	ARMOD	☐	SYARMOD	SYARMOD	CHAR	1	0	Print Archive Mode
23	FORM1_ARC_IND	☐	XFELD	XFELD	CHAR	1	0	Checkbox
24	FORM2_ARC_IND	☐	XFELD	XFELD	CHAR	1	0	Checkbox
25	COMMIT	☐	XFELD	XFELD	CHAR	1	0	Checkbox
26	.INCLUDE	☐				0	0	Structure with parameters used at rendering a form
27	CONTROL_PARAMS	☐	SSFCTRLOP		STRU	0	0
28	NO_OPEN	☐	TDSFFLAG	TDSFFLAG	CHAR	1	0	SAP Smart Forms: General Indicator
29	NO_CLOSE	☐	TDSFFLAG	TDSFFLAG	CHAR	1	0	SAP Smart Forms: General Indicator
30	DEVICE	☐	TDDEVICE	TDDEVICE	CHAR	8	0	Output device
31	NO_DIALOG	☐	TDSFFLAG	TDSFFLAG	CHAR	1	0	SAP Smart Forms: General Indicator
32	PREVIEW	☐	TDPREVIEW	TDBOOL	CHAR	1	0	Print preview
33	GETOTF	☐	TDGETOTF	TDBOOL	CHAR	1	0	Return of OTF table. No printing, display, or faxing
34	LANGU	☐	TDSPRAS	SPRAS	LANG	1	0	Language key	*
35	REPLANGU1	☐	TDSPRAS	SPRAS	LANG	1	0	Language key	*
36	REPLANGU2	☐	TDSPRAS	SPRAS	LANG	1	0	Language key	*
37	REPLANGU3	☐	TDSPRAS	SPRAS	LANG	1	0	Language key	*
38	STARTPAGE	☐	TDOBJNAME	TDOBJNAME	CHAR	30	0	SAP Smart Forms: Object name
39	OUTPUT_OPTIONS	☐	SSFCOMPOP		STRU	0	0
40	.INCLUDE	☐				0	0	SAP Smart Forms: Options Smart Composer (Transfer) -> SSFPP
41	.INCLUDE	☐				0	0	Smart Forms: Fax output options
42	TDTELELAND	☐	LAND1	LAND1	CHAR	3	0	Country Key	*
43	TDTELENUM	☐	SKTELNR	TDTELENUM	CHAR	30	0	Telecommunications partner
44	TDTELENUME	☐	SKTELNR	TDTELENUM	CHAR	30	0	Telecommunications partner
45	TDFAXUSER	☐	SO_USR_NAM	USERNAME	CHAR	12	0	SAPoffice user name
46	FAXFORMAT	☐	CHAR3	CHAR3	CHAR	3	0	3-Byte field
47	TDSCHEDULE	☐	SKSCHEDULE	SKSCHEDULE	CHAR	3	0	Send time request
48	TDSENDDATE	☐	SKDATE	SKDATE	DATS	8	0	Requested send date
49	TDSENDTIME	☐	SKTIME	SKTIME	TIMS	6	0	Requested send time
50	BCS_REQST	☐	BCS_RQST	BCS_RQST	CHAR	1	0	Requested Status
51	BCS_STATUS	☐	BCS_STML	BCS_STML	CHAR	1	0	Setting for Which Statuses Are Reported by Mail
52	BCS_COMMIT	☐	BCS_COMMIT	BCS_COMMIT	CHAR	1	0	Indicator for COMMIT WORK in Dialog Mode
53	BCS_LANGU	☐	TDSPRAS	SPRAS	LANG	1	0	Language key	*
54	.INCLUDE	☐				0	0	SAP Smart Forms: Archiving options
55	TDARMOD	☐	SYARMOD	SYARMOD	CHAR	1	0	Print Archive Mode
56	TDNOARMCH	☐	TDNOARMCH	TDBOOL	CHAR	1	0	No changes by user in the archiving mode
57	TDARCCOP	☐	TDARCCOP	TDSFFLAG	CHAR	1	0	Smart Forms: Indicator whether to archive copies
58	.INCLUDE	☐				0	0	Smart Forms: Options for print preview and dialog
59	TDTITLE	☐	TDTITLE	TDTITLE	CHAR	50	0	Title in dialog box
60	TDNOPREV	☐	TDNOPREV	TDBOOL	CHAR	1	0	No print preview
61	TDNOPRINT	☐	TDNOPRINT	TDBOOL	CHAR	1	0	No printing from print preview
62	TDNOARCH	☐	TDNOARCH	TDBOOL	CHAR	1	0	No archiving from print preview
63	TDIEXIT	☐	TDIMMEXIT	TDBOOL	CHAR	1	0	Immediate exit after printing/faxing from print preview
64	.INCLUDE	☐				0	0	Smart Forms: Texts for Output Request
65	TDDATASET	☐	RSPO0NAME	CHAR6	CHAR	6	0	Spool request: Name
66	TDSUFFIX1	☐	RSPO1NAME	CHAR4	CHAR	4	0	Spool request: Suffix 1
67	TDSUFFIX2	☐	RSPO2NAME	CHAR12	CHAR	12	0	Spool request: Suffix 2
68	TDCOVTITLE	☐	SYPRTXT	SYCHAR68K	CHAR	68	0	Spool Description
69	.INCLUDE	☐				0	0	Smart Forms: Spool control options
70	TDDEST	☐	RSPOPNAME	RSPOPNAME	CHAR	4	0	Spool: Output device	*
71	TDPRINTER	☐	RSPOPTYPE	RSPOPTYPE	CHAR	8	0	Spool: Device type name	*
72	RQPOSNAME	☐	RSPOPRNAME	TEXT50	CHAR	50	0	Spool: Long name of printers for host spooler
73	TDNEWID	☐	SYPRNEW	SYCHAR01	CHAR	1	0	New Spool Request
74	TDIMMED	☐	SYPRIMM	SYCHAR01	CHAR	1	0	Immediate Spool Print
75	TDDELETE	☐	SYPRREL	SYCHAR01	CHAR	1	0	Immediate Spool Deletion
76	TDLIFETIME	☐	SYPEXPI	SYNUM01	NUMC	1	0	Spool Retention Period
77	TDAUTORITY	☐	SYPRBER	SYCHAR12	CHAR	12	0	Print: Authorization
78	TDFINAL	☐	RSPOFINAL	CHAR1	CHAR	1	0	Spool request completed
79	SPONUMIV	☐	NRNR	CHAR2	CHAR	2	0	Number range number
80	PRINTTICKET	☐	POSS_PRINTTICKETNAME		CHAR	30	0	Name of a print ticket
81	.INCLUDE	☐				0	0	Smart Forms: Cover sheet options
82	TDCOVER	☐	SYPRSAP	SYPRSAP	CHAR	1	0	Print SAP Cover Page
83	TDRECEIVER	☐	SYPRREC	SYCHAR12	CHAR	12	0	Spool Recipient Name
84	TDDIVISION	☐	SYPRABT	SYCHAR12K	CHAR	12	0	Spool Department Name
85	.INCLUDE	☐				0	0	Smart Forms: Page Selection and Copies
86	TDCOPIES	☐	TDSFCOPIES	TDCOPIES	NUMC	3	0	Number of Copies
87	TDGROUP	☐	TDGROUP	TDGROUP	CHAR	1	0	Grouping Copies
88	TDPAGESLCT	☐	TDPAGESLCT	TDPAGESLCT	CHAR	60	0	Pages selected for printing
89	.INCLUDE	☐				0	0	SAP Smart Forms: Options for URL Evaluation
90	URLCALL	☐	RS38L_FNAM	FUNCNAME	CHAR	30	0	Name of Function Module	*
91	.INCLUDE	☐				0	0	Smart Forms: XSF Options
92	XSFCMODE	☐	SSFXSFCMOD	SSFXSFCMOD	CHAR	1	0	SAP Smart Forms: XSF/XDF Status set by Caller
93	XSF	☐	SSFXSF	TDBOOL	CHAR	1	0	XSF Output active/inactive
94	XSFOUTMODE	☐	SSFXSFOMOD	SSFXSFOMOD	CHAR	1	0	SAP Smart Forms: XSF output mode
95	XSFOUTDEV	☐	RSPOPNAME	RSPOPNAME	CHAR	4	0	Spool: Output device	*
96	XSFFORMAT	☐	SSFXSFFRMT	TDBOOL	CHAR	1	0	SAP Smart Forms: Formatted XSF Output
97	XSFACTION	☐	SSFACTION	SSFURL	CHAR	255	0	SAP Smart Forms: URL
98	XSFPARS	☐	SSFXSFPT		TTYP	0	0
99	.INCLUDE	☐				0	0	Smart Forms: Options XDF
100	XDFCMODE	☐	SSFXSFCMOD	SSFXSFCMOD	CHAR	1	0	SAP Smart Forms: XSF/XDF Status set by Caller
101	XDF	☐	SSFXDF	TDBOOL	CHAR	1	0	SAP Smart Forms: XDF Output Active
102	XDFOUTMODE	☐	SSFXDFOMOD	SSFXDFOMOD	CHAR	1	0	SAP Smart Forms: XDF Output Mode
103	XDFOUTDEV	☐	RSPOPNAME	RSPOPNAME	CHAR	4	0	Spool: Output device	*
104	.INCLUDE	☐				0	0	Smart Forms: Options XDF2
105	XDF2CMODE	☐	SSFXSFCMOD	SSFXSFCMOD	CHAR	1	0	SAP Smart Forms: XSF/XDF Status set by Caller
106	XDF2	☐	SSFXDF	TDBOOL	CHAR	1	0	SAP Smart Forms: XDF Output Active
107	XDF2OUTMODE	☐	SSFXDFOMOD	SSFXDFOMOD	CHAR	1	0	SAP Smart Forms: XDF Output Mode
108	XDF2OUTDEV	☐	RSPOPNAME	RSPOPNAME	CHAR	4	0	Spool: Output device	*
109	FORM1_RENDER_IND	☐	XFELD	XFELD	CHAR	1	0	Checkbox
110	FORM2_RENDER_IND	☐	XFELD	XFELD	CHAR	1	0	Checkbox

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BBPS_MESSAGE_PARAMETERS	MANDANT	T000	MANDT

History

Last changed by/on	SAP	20130528
SAP Release Created in	550
