SAP ABAP Table /SAPSLL/PF_AGREEMENT_PRN_CTRL (GTS: Communication Structure: Print Control)

Hierarchy

☛ SLL-LEG (Software Component) SLL-LEG 901: Add-On Installation
   ⤷ SLL-LEG (Application Component) Global Trade Services
     ⤷ /SAPSLL/LEGAL_PRE_VDEC (Package) Legal Services: Preference Handling - Vendor Declarations

Basic Data

Table Category	INTTAB	Structure

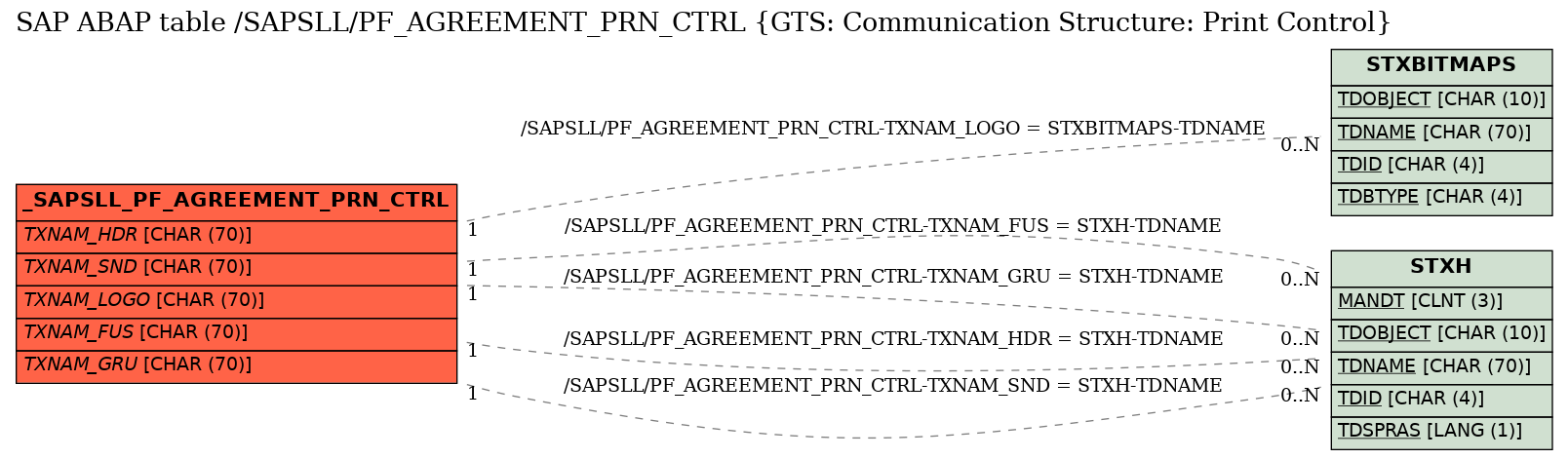

Structure	/SAPSLL/PF_AGREEMENT_PRN_CTRL	Table Relationship Diagram
Short Description	GTS: Communication Structure: Print Control

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CTRLOP	☐	SSFCTRLOP		STRU	0	0
2	NO_OPEN	☐	TDSFFLAG	TDSFFLAG	CHAR	1	0	SAP Smart Forms: General Indicator
3	NO_CLOSE	☐	TDSFFLAG	TDSFFLAG	CHAR	1	0	SAP Smart Forms: General Indicator
4	DEVICE	☐	TDDEVICE	TDDEVICE	CHAR	8	0	Output device
5	NO_DIALOG	☐	TDSFFLAG	TDSFFLAG	CHAR	1	0	SAP Smart Forms: General Indicator
6	PREVIEW	☐	TDPREVIEW	TDBOOL	CHAR	1	0	Print preview
7	GETOTF	☐	TDGETOTF	TDBOOL	CHAR	1	0	Return of OTF table. No printing, display, or faxing
8	LANGU	☐	TDSPRAS	SPRAS	LANG	1	0	Language key
9	REPLANGU1	☐	TDSPRAS	SPRAS	LANG	1	0	Language key
10	REPLANGU2	☐	TDSPRAS	SPRAS	LANG	1	0	Language key
11	REPLANGU3	☐	TDSPRAS	SPRAS	LANG	1	0	Language key
12	STARTPAGE	☐	TDOBJNAME	TDOBJNAME	CHAR	30	0	SAP Smart Forms: Object name
13	COMPOP	☐	SSFCOMPOP		STRU	0	0
14	.INCLUDE	☐				0	0	SAP Smart Forms: Options Smart Composer (Transfer) -> SSFPP
15	.INCLUDE	☐				0	0	Smart Forms: Fax output options
16	TDTELELAND	☐	LAND1	LAND1	CHAR	3	0	Country Key
17	TDTELENUM	☐	SKTELNR	TDTELENUM	CHAR	30	0	Telecommunications partner
18	TDTELENUME	☐	SKTELNR	TDTELENUM	CHAR	30	0	Telecommunications partner
19	TDFAXUSER	☐	SO_USR_NAM	USERNAME	CHAR	12	0	SAPoffice user name
20	FAXFORMAT	☐	CHAR3	CHAR3	CHAR	3	0	3-Byte field
21	TDSCHEDULE	☐	SKSCHEDULE	SKSCHEDULE	CHAR	3	0	Send time request
22	TDSENDDATE	☐	SKDATE	SKDATE	DATS	8	0	Requested send date
23	TDSENDTIME	☐	SKTIME	SKTIME	TIMS	6	0	Requested send time
24	BCS_REQST	☐	BCS_RQST	BCS_RQST	CHAR	1	0	Requested Status
25	BCS_STATUS	☐	BCS_STML	BCS_STML	CHAR	1	0	Setting for Which Statuses Are Reported by Mail
26	BCS_COMMIT	☐	BCS_COMMIT	BCS_COMMIT	CHAR	1	0	Indicator for COMMIT WORK in Dialog Mode
27	BCS_LANGU	☐	TDSPRAS	SPRAS	LANG	1	0	Language key
28	.INCLUDE	☐				0	0	SAP Smart Forms: Archiving options
29	TDARMOD	☐	SYARMOD	SYARMOD	CHAR	1	0	Print Archive Mode
30	TDNOARMCH	☐	TDNOARMCH	TDBOOL	CHAR	1	0	No changes by user in the archiving mode
31	TDARCCOP	☐	TDARCCOP	TDSFFLAG	CHAR	1	0	Smart Forms: Indicator whether to archive copies
32	.INCLUDE	☐				0	0	Smart Forms: Options for print preview and dialog
33	TDTITLE	☐	TDTITLE	TDTITLE	CHAR	50	0	Title in dialog box
34	TDNOPREV	☐	TDNOPREV	TDBOOL	CHAR	1	0	No print preview
35	TDNOPRINT	☐	TDNOPRINT	TDBOOL	CHAR	1	0	No printing from print preview
36	TDNOARCH	☐	TDNOARCH	TDBOOL	CHAR	1	0	No archiving from print preview
37	TDIEXIT	☐	TDIMMEXIT	TDBOOL	CHAR	1	0	Immediate exit after printing/faxing from print preview
38	.INCLUDE	☐				0	0	Smart Forms: Texts for Output Request
39	TDDATASET	☐	RSPO0NAME	CHAR6	CHAR	6	0	Spool request: Name
40	TDSUFFIX1	☐	RSPO1NAME	CHAR4	CHAR	4	0	Spool request: Suffix 1
41	TDSUFFIX2	☐	RSPO2NAME	CHAR12	CHAR	12	0	Spool request: Suffix 2
42	TDCOVTITLE	☐	SYPRTXT	SYCHAR68K	CHAR	68	0	Spool Description
43	.INCLUDE	☐				0	0	Smart Forms: Spool control options
44	TDDEST	☐	RSPOPNAME	RSPOPNAME	CHAR	4	0	Spool: Output device
45	TDPRINTER	☐	RSPOPTYPE	RSPOPTYPE	CHAR	8	0	Spool: Device type name
46	RQPOSNAME	☐	RSPOPRNAME	TEXT50	CHAR	50	0	Spool: Long name of printers for host spooler
47	TDNEWID	☐	SYPRNEW	SYCHAR01	CHAR	1	0	New Spool Request
48	TDIMMED	☐	SYPRIMM	SYCHAR01	CHAR	1	0	Immediate Spool Print
49	TDDELETE	☐	SYPRREL	SYCHAR01	CHAR	1	0	Immediate Spool Deletion
50	TDLIFETIME	☐	SYPEXPI	SYNUM01	NUMC	1	0	Spool Retention Period
51	TDAUTORITY	☐	SYPRBER	SYCHAR12	CHAR	12	0	Print: Authorization
52	TDFINAL	☐	RSPOFINAL	CHAR1	CHAR	1	0	Spool request completed
53	SPONUMIV	☐	NRNR	CHAR2	CHAR	2	0	Number range number
54	PRINTTICKET	☐	POSS_PRINTTICKETNAME		CHAR	30	0	Name of a print ticket
55	.INCLUDE	☐				0	0	Smart Forms: Cover sheet options
56	TDCOVER	☐	SYPRSAP	SYPRSAP	CHAR	1	0	Print SAP Cover Page
57	TDRECEIVER	☐	SYPRREC	SYCHAR12	CHAR	12	0	Spool Recipient Name
58	TDDIVISION	☐	SYPRABT	SYCHAR12K	CHAR	12	0	Spool Department Name
59	.INCLUDE	☐				0	0	Smart Forms: Page Selection and Copies
60	TDCOPIES	☐	TDSFCOPIES	TDCOPIES	NUMC	3	0	Number of Copies
61	TDGROUP	☐	TDGROUP	TDGROUP	CHAR	1	0	Grouping Copies
62	TDPAGESLCT	☐	TDPAGESLCT	TDPAGESLCT	CHAR	60	0	Pages selected for printing
63	.INCLUDE	☐				0	0	SAP Smart Forms: Options for URL Evaluation
64	URLCALL	☐	RS38L_FNAM	FUNCNAME	CHAR	30	0	Name of Function Module
65	.INCLUDE	☐				0	0	Smart Forms: XSF Options
66	XSFCMODE	☐	SSFXSFCMOD	SSFXSFCMOD	CHAR	1	0	SAP Smart Forms: XSF/XDF Status set by Caller
67	XSF	☐	SSFXSF	TDBOOL	CHAR	1	0	XSF Output active/inactive
68	XSFOUTMODE	☐	SSFXSFOMOD	SSFXSFOMOD	CHAR	1	0	SAP Smart Forms: XSF output mode
69	XSFOUTDEV	☐	RSPOPNAME	RSPOPNAME	CHAR	4	0	Spool: Output device
70	XSFFORMAT	☐	SSFXSFFRMT	TDBOOL	CHAR	1	0	SAP Smart Forms: Formatted XSF Output
71	XSFACTION	☐	SSFACTION	SSFURL	CHAR	255	0	SAP Smart Forms: URL
72	XSFPARS	☐	SSFXSFPT		TTYP	0	0
73	.INCLUDE	☐				0	0	Smart Forms: Options XDF
74	XDFCMODE	☐	SSFXSFCMOD	SSFXSFCMOD	CHAR	1	0	SAP Smart Forms: XSF/XDF Status set by Caller
75	XDF	☐	SSFXDF	TDBOOL	CHAR	1	0	SAP Smart Forms: XDF Output Active
76	XDFOUTMODE	☐	SSFXDFOMOD	SSFXDFOMOD	CHAR	1	0	SAP Smart Forms: XDF Output Mode
77	XDFOUTDEV	☐	RSPOPNAME	RSPOPNAME	CHAR	4	0	Spool: Output device
78	.INCLUDE	☐				0	0	Smart Forms: Options XDF2
79	XDF2CMODE	☐	SSFXSFCMOD	SSFXSFCMOD	CHAR	1	0	SAP Smart Forms: XSF/XDF Status set by Caller
80	XDF2	☐	SSFXDF	TDBOOL	CHAR	1	0	SAP Smart Forms: XDF Output Active
81	XDF2OUTMODE	☐	SSFXDFOMOD	SSFXDFOMOD	CHAR	1	0	SAP Smart Forms: XDF Output Mode
82	XDF2OUTDEV	☐	RSPOPNAME	RSPOPNAME	CHAR	4	0	Spool: Output device
83	QALDOC	☐	/SAPSLL/PRE_QALDOC	/SAPSLL/PRE_QALDOC	CHAR	4	0	Preference: Type of Document
84	DELEV	☐	/SAPSLL/DELEV	/SAPSLL/DELEV	CHAR	2	0	Preference: Level of Detail for LTVD Form
85	VDLAN	☐	/SAPSLL/VDLAN	/SAPSLL/VDLAN	CHAR	1	0	Preference: Form Language Control
86	APNAM	☐	UNAME	UNAME	CHAR	12	0	User Name
87	REPEAT	☐	XFELD	XFELD	CHAR	1	0	Checkbox
88	PDFFORM	☐	/SAPSLL/PDFFORM	CHAR30	CHAR	30	0	PDF Form Name
89	VDCPC_NEG	☐	/SAPSLL/VDCPC_NEG	XFELD	CHAR	1	0	VD f. Cust.Purposes (Det.Decl.of Dutiable Prod.Comps)
90	SFNAM	☐	TDSFNAME	TDSFNAME	CHAR	30	0	Smart Forms: Form Name	*
91	TXNAM_LE	☐	/SAPSLL/TXNAM_LE	TDSFNAME	CHAR	30	0	Preference: Text Name for Vendor Declaration Letter	*
92	TXNAM_LENEG	☐	/SAPSLL/TXNAM_LE	TDSFNAME	CHAR	30	0	Preference: Text Name for Vendor Declaration Letter	*
93	TXNAM_VD	☐	/SAPSLL/TXNAM_VD	TDSFNAME	CHAR	30	0	Preference: Name of Form Text for Vendor Declaration	*
94	TXNAM_VDNEG	☐	/SAPSLL/TXNAM_VD	TDSFNAME	CHAR	30	0	Preference: Name of Form Text for Vendor Declaration	*
95	USER_SETTINGS	☐	TDBOOL	TDBOOL	CHAR	1	0	Checkbox (yes or no)
96	.INCLUDE	☐				0	0	Structure for Controlling Print Fields
97	.INCLUDE	☐				0	0	Structure for Controlling Print Fields
98	TXNAM_HDR	☐	/SAPSLL/TXNAM_HDR	TDOBNAME	CHAR	70	0	SAP GTS: Header Text	STXH
99	TXNAM_SND	☐	/SAPSLL/TXNAM_SND	TDOBNAME	CHAR	70	0	SAP GTS: Information on Consignor	STXH
100	TXNAM_LOGO	☐	/SAPSLL/TXNAM_LOGO	TDOBNAME	CHAR	70	0	SAP GTS: Logo for Form	STXBITMAPS
101	LOGO_TYPE	☐	/SAPSLL/LOGO_TYPE	TDBTYPE	CHAR	4	0	Graphic Type
102	TXNAM_LOGO_URL	☐	/SAPSLL/TXNAM_LOGO_URL	/SAPSLL/LOGO_URL	CHAR	255	0	SAP GTS: URL of Logo for Form
103	TXNAM_FUS	☐	/SAPSLL/TXNAM_FUS	TDOBNAME	CHAR	70	0	SAP GTS: Footer for Form	STXH
104	TXNAM_GRU	☐	/SAPSLL/TXNAM_GRU	TDOBNAME	CHAR	70	0	SAP GTS: Closing Line in Form	STXH
105	CUMUL_REMARK	☐	/SAPSLL/CUMULATION	/SAPSLL/CUMULATION	CHAR	1	0	Preference: Cumulation Endorsement
106	LIST_FILL	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPSLL/PF_AGREEMENT_PRN_CTRL	TXNAM_FUS	STXH	TDNAME	KEY	1	CN
2	/SAPSLL/PF_AGREEMENT_PRN_CTRL	TXNAM_GRU	STXH	TDNAME	KEY	1	CN
3	/SAPSLL/PF_AGREEMENT_PRN_CTRL	TXNAM_HDR	STXH	TDNAME	KEY	1	CN
4	/SAPSLL/PF_AGREEMENT_PRN_CTRL	TXNAM_LOGO	STXBITMAPS	TDNAME	KEY	1	CN
5	/SAPSLL/PF_AGREEMENT_PRN_CTRL	TXNAM_SND	STXH	TDNAME	KEY	1	CN

History

Last changed by/on	SAP	20141106
SAP Release Created in	900
