SAP ABAP Table SPFID2 (Static Description of an SAP Instance (Version 2))

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-CCM-CNF-PFL (Application Component) Maintain Profile
     ⤷ SPFL (Package) Profiles

Basic Data

Table Category	INTTAB	Structure

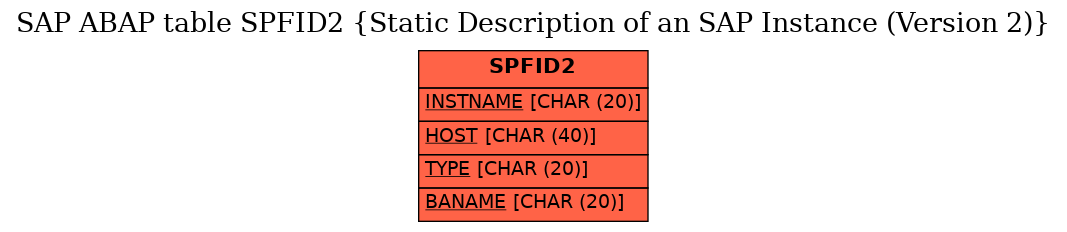

Structure	SPFID2	Table Relationship Diagram
Short Description	Static Description of an SAP Instance (Version 2)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	INSTNAME	☑	PFEINSTNAM	TEXT20	CHAR	20	0	SAP Instance Name
2	HOST	☑	PFEHOSTNAM	TEXT40	CHAR	40	0	Host Name
3	TYPE	☑	PFEINSTTYP	TEXT20	CHAR	20	0	SAP instance type
4	BANAME	☑	PFEBANAME	TEXT20	CHAR	20	0	Name of Operation Mode
5	SYSNAME	☐	PFESYSNAME	CHAR3	CHAR	3	0	SAP System Name
6	SYSNR	☐	PFESYSNR	CHAR2	CHAR	2	0	SAP system number (00 - 99)
7	APSERVER	☐	PFEAPSNAME	TEXT20	CHAR	20	0	Application server
8	STATUS	☐	PFEINSTSTS	CHAR8	CHAR	8	0	Status of instance description
9	CMPON	☐	PFEINSTCMP	CHAR16	CHAR	16	0	Components of instance
10	PFINST	☐	PFEINSTPFL	PFEUNIXPRO	CHAR	88	0	Name of Instance Profile
11	PFSTART	☐	PFEINSTPFS	PFEUNIXPRO	CHAR	88	0	Instance Startup Profile
12	HOMEDIR	☐	PFEINSTHOM	TEXT40	CHAR	40	0	Home Directory of SAP Instance
13	USERNAME	☐	PFEINSTUSR	TEXT20	CHAR	20	0	User Name of Instance Owner
14	PASSWD	☐	PFEINSTPAS	TEXT20	CHAR	20	0	Password of Instance Owner
15	WPNODIA	☐	PFEWPNODIA	CHAR3	CHAR	3	0	No. dialog work processes of instance
16	WPNORES	☐	PFEWPNORES	CHAR3	CHAR	3	0	Number of Reserved Work Processes of an Instance
17	WPNOVB	☐	PFEWPNOVB	CHAR3	CHAR	3	0	Number of Update Work Processes of an Instance
18	WPNOBTC	☐	PFEWPNOBTC	CHAR3	CHAR	3	0	No. background work processes for instance
19	WPNOENQ	☐	PFEWPNOENQ	CHAR3	CHAR	3	0	Number of Enqueue Work Processes of an Instance
20	WPNOSPO	☐	PFEWPNOSPO	CHAR3	CHAR	3	0	Number of Spool Work Processes of an Instance
21	WPNO	☐	PFEWPNO	CHAR3	CHAR	3	0	Total no. of work processes for application server
22	WPMAXNO	☐	PFEWPMAXNO	CHAR7	CHAR	7	0	Maximum Total Number of All Work Processes (Excluding Spool)
23	WPNOBTCA	☐	PFEWPNOBTA	CHAR3	CHAR	3	0	No. of work processes to be kept free for backgrnd. process.
24	SRVDIA	☐	PFESRVDIA	CHAR1	CHAR	1	0	Instance service: Online
25	SRVVB	☐	PFESRVVB	CHAR1	CHAR	1	0	Instance service: Update Process
26	SRVBTC	☐	PFESRVBTC	CHAR1	CHAR	1	0	Instance service: Background processing
27	SRVENQ	☐	PFESRVENQ	CHAR1	CHAR	1	0	Instance service: Lock management
28	SRVSPO	☐	PFESRVSPO	CHAR1	CHAR	1	0	Instance service: Spooler
29	SRVMSG	☐	PFESRVMSG	CHAR1	CHAR	1	0	Instance service: Message server
30	SRVGW	☐	PFESRVGW	CHAR1	CHAR	1	0	Instance service: Gateway
31	SRVDYNWP	☐	PFESRVDYNWP	CHAR1	CHAR	1	0	Instance Service: Dynamic WP Activation
32	OPSYS	☐	PFEOPSYS	TEXT20	CHAR	20	0	'uname' of an application server, corresponds to SY-OPSYS
33	WPNOV2	☐	PFEWPNOV2	CHAR3	CHAR	3	0	Number of V2 update workprocesses of an instance
34	WPNORES1	☐	PFEWPNODIA	CHAR3	CHAR	3	0	No. dialog work processes of instance
35	WPNORES2	☐	PFEWPNODIA	CHAR3	CHAR	3	0	No. dialog work processes of instance
36	SRVV2	☐	PFESRVV2	CHAR1	CHAR	1	0	Instance service: V2 update
37	SRVRES1	☐	PFESRVDIA	CHAR1	CHAR	1	0	Instance service: Online
38	SRVRES2	☐	PFESRVDIA	CHAR1	CHAR	1	0	Instance service: Online
39	PFLINSNAME	☐	PFEPFNAME	CHAR30	CHAR	30	0	Name of profile for system parameterization
40	PFLSTRNAME	☐	PFEPFNAME	CHAR30	CHAR	30	0	Name of profile for system parameterization

History

Last changed by/on	SAP	20140117
SAP Release Created in	710
