SAP ABAP Table QAIMV_O1 (Characteristic Specs. for Download to Complex QM Subsystems)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM (Application Component) Customer Relationship Management
     ⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
       ⤷ QEIF (Package) QM interfaces inspection processing

Basic Data

Table Category	INTTAB	Structure

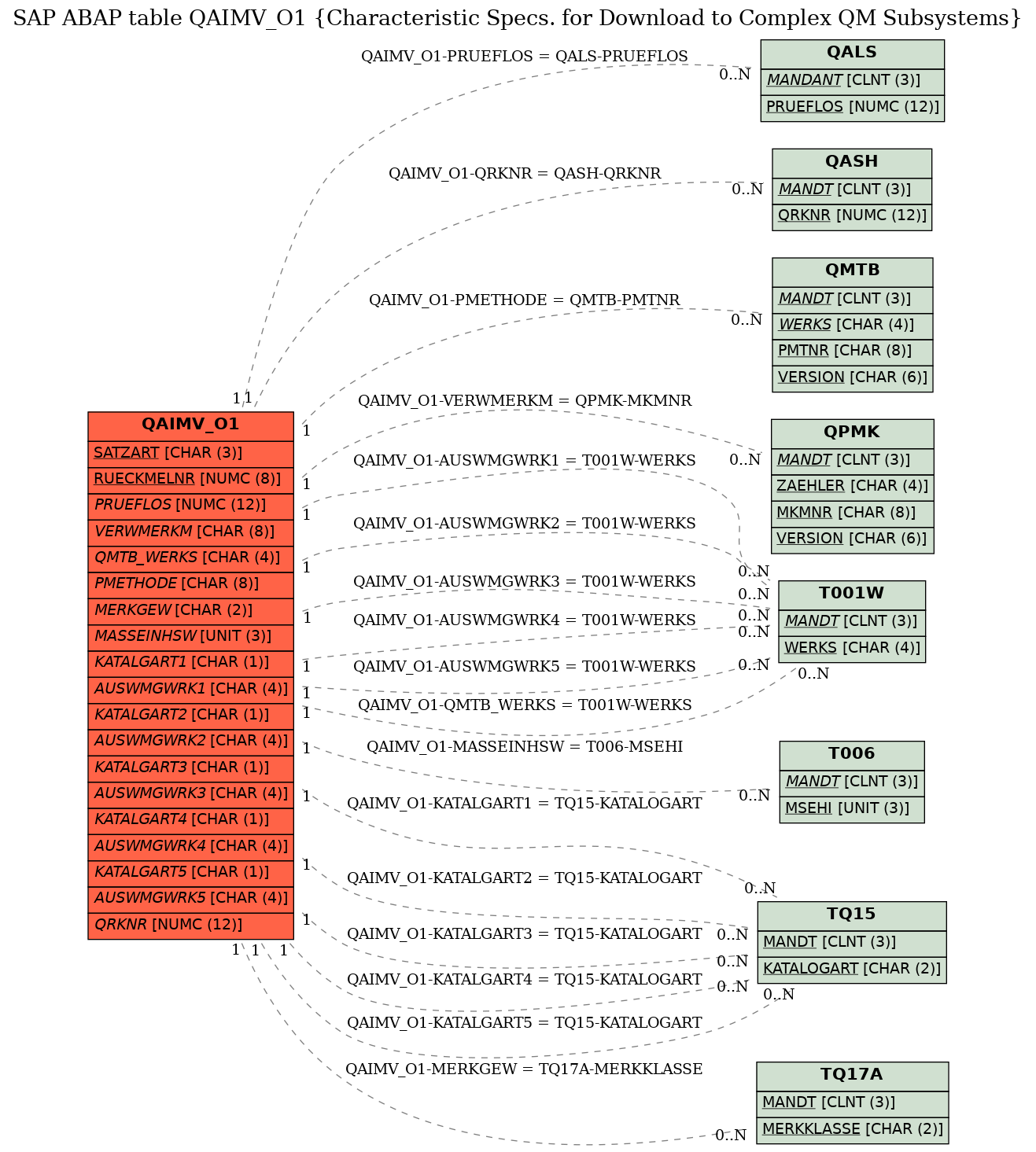

Structure	QAIMV_O1	Table Relationship Diagram
Short Description	Characteristic Specs. for Download to Complex QM Subsystems

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	SATZART	☑	QEIFART	QEIFART	CHAR	3	0	Record Types for QM Interface - Subsystems
2	RUECKMELNR	☑	QRUECKNR	QRUECKNR	NUMC	8	0	Confirmation Number for Inspection Characteristic
3	ERFASSART	☐	QEIFERFAS	QEIFERFAS	CHAR	1	0	Recording Type for Inspection Characteristic
4	KZBEWSUBSY	☐	QEIFBEWSUB	QKZ	CHAR	1	0	Valuate Inspection Characteristic on Subsystem
5	BEWART	☐	QEIFBEWMK	QEIFBEWART	CHAR	1	0	Valuation Type for Characteristic for QM Subsystems
6	KZRZWANG	☐	QEIFRWANG	QRZWANG	CHAR	1	0	Required Confirmation for Inspection Characteristic
7	KZPRUMF	☐	QPUMFKZ	QPUMFKZ	CHAR	1	0	Inspection Scope
8	KZDOKU	☐	QDOKUKZ	QDOKUKZ	CHAR	1	0	Documentation Required for Inspection Results
9	KZSERNR	☐	QEIFSERNR	QKZ	CHAR	1	0	Serial Number To Be Recorded in QM Subsystem
10	KZTSTICHPR	☐	QTSTICHPRO	QKZUMFS	CHAR	1	0	Partial Samples Possible
11	KZRAST	☐	QKZRAST	QKZRAST	CHAR	1	0	Indicator: Sampling Procedure for Inspection Points
12	RASTER	☐	QRASTER	QRASTER	NUMC	3	0	Inspection Frequency (Only for Inspection with Insp. Points)
13	SOLLSTPANZ	☐	QEIFSTPANZ	CHAR5	CHAR	5	0	Number of Planned Partial Samples
14	BEWARTSP	☐	QEIFBEWSP	QEIFBEWART	CHAR	1	0	Valuation Type for Sample for QM Subsystems
15	PRUEFLOS	☐	QPLOS	QPLOS	NUMC	12	0	Inspection Lot Number	QALS
16	PLNFL	☐	PLNFOLGE	PLNFOLGE	CHAR	6	0	Sequence
17	VORNR	☐	VORNR	VORNR	CHAR	4	0	Operation/Activity Number
18	MERKNR	☐	QMERKNRP	QMERKNRP	NUMC	4	0	Inspection Characteristic Number
19	QPMK_WERKS	☐	QEIFPMKWRK	QZAEHLER	CHAR	4	0	Plant for Master Inspection Characteristic
20	VERWMERKM	☐	QMERKNR	QMERKNR	CHAR	8	0	Master Inspection Characteristics	QPMK
21	MKVERSION	☐	QVERSNRMK	QVERSNR	CHAR	6	0	Version Number of the Master Inspection Characteristic
22	QMTB_WERKS	☐	QEIFMTBWRK	WERKS	CHAR	4	0	Plant for Inspection Method	T001W
23	PMETHODE	☐	QPMETHODE	QPMETHODE	CHAR	8	0	Inspection Method	QMTB
24	PMTVERSION	☐	QVERSNRPM	QVERSNR	CHAR	6	0	Version Number of the Inspection Method
25	PMTKURZTXT	☐	QEIFPMTTXT	QKURZTEXT	CHAR	40	0	Short Text for Inspection Method
26	MERKGEW	☐	QMERKGEW	QMERKKLAS	CHAR	2	0	Weighting of the Characteristic	TQ17A
27	GEWKURZTXT	☐	QEIFGEWTXT	QKURZTEXT	CHAR	40	0	Short Text for Characteristic Weighting
28	KURZTEXT	☐	QMKKURZTXT	QKURZTEXT	CHAR	40	0	Short Text for the Inspection Characteristic
29	FORMEL	☐	QEIFFORMEL	QEIFFORMEL	CHAR	120	0	Complete Formula for Linking Insp. Char. to QM Subsystems
30	DUMMY10	☐	QTXT10	QTXT10	CHAR	10	0	Text Line for Additional Information
31	DUMMY20	☐	QTXT20	QTXT20	CHAR	20	0	Text Line for Additional Information
32	DUMMY40	☐	QTXT40	QTXT40	CHAR	40	0	Text Line for Additional Information
33	STELLEN	☐	QEIFSTELLE	NUM02	NUMC	2	0	Number of Decimal Places
34	MASSEINHSW	☐	QEIFPRFMK	MEINS	UNIT	3	0	Unit of Measurement for the Inspection Characteristic	T006
35	SOLLWERT	☐	QSOLLWERTC	QSOLLWERTC	CHAR	16	0	Target Value for a Quantitative Characteristic
36	TOLERANZOB	☐	QTOLOBC	QSOLLWERTC	CHAR	16	0	Upper Specification Limit
37	TOLERANZUN	☐	QTOLUNC	QSOLLWERTC	CHAR	16	0	Lower Specification Limit
38	PLAUSIOBEN	☐	QPLAUSIOBC	QSOLLWERTC	CHAR	16	0	Upper Plausibility Limit
39	PLAUSIUNTE	☐	QPLAUSIUNC	QSOLLWERTC	CHAR	16	0	Lower Plausibility Limit
40	GRENZEOB1	☐	QGRENZO1C	QSOLLWERTC	CHAR	16	0	First Upper Specification Limit
41	GRENZEUN1	☐	QGRENZU1C	QSOLLWERTC	CHAR	16	0	First Lower Specification Limit
42	GRENZEOB2	☐	QGRENZO2C	QSOLLWERTC	CHAR	16	0	Second Upper Specification Limit
43	GRENZEUN2	☐	QGRENZU2C	QSOLLWERTC	CHAR	16	0	Second Lower Specification Limit
44	KATAB1	☐	QKTTAB	QKTTAB	CHAR	1	0	Catalog Entry Is a Selected Set
45	KATALGART1	☐	QKATAUSW	QKATART	CHAR	1	0	Catalog Type of Assigned Code Group or Selected Set	TQ15
46	AUSWMGWRK1	☐	QWERKAUSW	WERKS	CHAR	4	0	Plant of the Assigned Selected Set	T001W
47	AUSWMENGE1	☐	QCGRAUSW	QCGRAUSW	CHAR	8	0	Assigned Code Group or Selected Set
48	KATAB2	☐	QKTTAB	QKTTAB	CHAR	1	0	Catalog Entry Is a Selected Set
49	KATALGART2	☐	QKATAUSW	QKATART	CHAR	1	0	Catalog Type of Assigned Code Group or Selected Set	TQ15
50	AUSWMGWRK2	☐	QWERKAUSW	WERKS	CHAR	4	0	Plant of the Assigned Selected Set	T001W
51	AUSWMENGE2	☐	QCGRAUSW	QCGRAUSW	CHAR	8	0	Assigned Code Group or Selected Set
52	KATAB3	☐	QKTTAB	QKTTAB	CHAR	1	0	Catalog Entry Is a Selected Set
53	KATALGART3	☐	QKATAUSW	QKATART	CHAR	1	0	Catalog Type of Assigned Code Group or Selected Set	TQ15
54	AUSWMGWRK3	☐	QWERKAUSW	WERKS	CHAR	4	0	Plant of the Assigned Selected Set	T001W
55	AUSWMENGE3	☐	QCGRAUSW	QCGRAUSW	CHAR	8	0	Assigned Code Group or Selected Set
56	KATAB4	☐	QKTTAB	QKTTAB	CHAR	1	0	Catalog Entry Is a Selected Set
57	KATALGART4	☐	QKATAUSW	QKATART	CHAR	1	0	Catalog Type of Assigned Code Group or Selected Set	TQ15
58	AUSWMGWRK4	☐	QWERKAUSW	WERKS	CHAR	4	0	Plant of the Assigned Selected Set	T001W
59	AUSWMENGE4	☐	QCGRAUSW	QCGRAUSW	CHAR	8	0	Assigned Code Group or Selected Set
60	KATAB5	☐	QKTTAB	QKTTAB	CHAR	1	0	Catalog Entry Is a Selected Set
61	KATALGART5	☐	QKATAUSW	QKATART	CHAR	1	0	Catalog Type of Assigned Code Group or Selected Set	TQ15
62	AUSWMGWRK5	☐	QWERKAUSW	WERKS	CHAR	4	0	Plant of the Assigned Selected Set	T001W
63	AUSWMENGE5	☐	QCGRAUSW	QCGRAUSW	CHAR	8	0	Assigned Code Group or Selected Set
64	SOLLSTPUMF	☐	QEIFSTUMF	NUM7	NUMC	7	0	Sample Size to Be Inspected in QM Subsystem
65	PROBEMGEH	☐	QEIFMASS	MEINS	UNIT	3	0	Base Unit of Measure for the Inspection Lot	*
66	PROBMGFAK	☐	QEIFSTPFAK	NUM6	NUMC	6	0	Sample Unit of Measurement Factor for QM Subsystem
67	ANNAHMEZ	☐	QEIFANNAMZ	NUMC5	NUMC	5	0	Acceptance Number in Attrib. Insp. for QM Subsystems
68	RUECKWEZ	☐	QEIFRUECKZ	NUMC5	NUMC	5	0	Rejection Number in Attributive Insp. for QM Subsystems
69	KFAKTOR	☐	QKFAKTORC	QKFAKTORC	CHAR	16	0	K-Factor for a Variable Inspection
70	QRKNR	☐	QQRKNR	QQRKNR	NUMC	12	0	Control Chart Number	QASH
71	PHYSPROBE	☐	QPHYSPROBE	QPROBENR	NUMC	6	0	Number of the Partial Sample	*
72	KZKORRTRAN	☐	QEIFKORRTR	QKZ	CHAR	1	0	Correction Transfer Was Carried Out
73	ZAEHL	☐	CIM_COUNT	CIM_COUNT	NUMC	8	0	Internal counter
74	ANTVERF	☐	QEIFANVERF	QEIFANVERF	CHAR	1	0	Fraction Calculation

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	QAIMV_O1	AUSWMGWRK1	T001W	WERKS	KEY	1	CN
2	QAIMV_O1	AUSWMGWRK2	T001W	WERKS	KEY	1	CN
3	QAIMV_O1	AUSWMGWRK3	T001W	WERKS	KEY	1	CN
4	QAIMV_O1	AUSWMGWRK4	T001W	WERKS	KEY	1	CN
5	QAIMV_O1	AUSWMGWRK5	T001W	WERKS	KEY	1	CN
6	QAIMV_O1	KATALGART1	TQ15	KATALOGART	KEY	1	CN
7	QAIMV_O1	KATALGART2	TQ15	KATALOGART	KEY	1	CN
8	QAIMV_O1	KATALGART3	TQ15	KATALOGART	KEY	1	CN
9	QAIMV_O1	KATALGART4	TQ15	KATALOGART	KEY	1	CN
10	QAIMV_O1	KATALGART5	TQ15	KATALOGART	KEY	1	CN
11	QAIMV_O1	MASSEINHSW	T006	MSEHI	KEY	1	CN
12	QAIMV_O1	MERKGEW	TQ17A	MERKKLASSE	KEY	1	CN
13	QAIMV_O1	PMETHODE	QMTB	PMTNR	KEY	1	CN
14	QAIMV_O1	PRUEFLOS	QALS	PRUEFLOS	KEY	1	CN
15	QAIMV_O1	QMTB_WERKS	T001W	WERKS	KEY	1	CN
16	QAIMV_O1	QRKNR	QASH	QRKNR	KEY	1	CN
17	QAIMV_O1	VERWMERKM	QPMK	MKMNR	KEY	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
