SAP ABAP Table IODISP (Database structure for dispatching)

Hierarchy

☛ SAP_APPL (Software Component) Logistics and Accounting
   ⤷ PP-SFC (Application Component) Production Orders
     ⤷ COIS (Package) Order Information System

Basic Data

Table Category	INTTAB	Structure

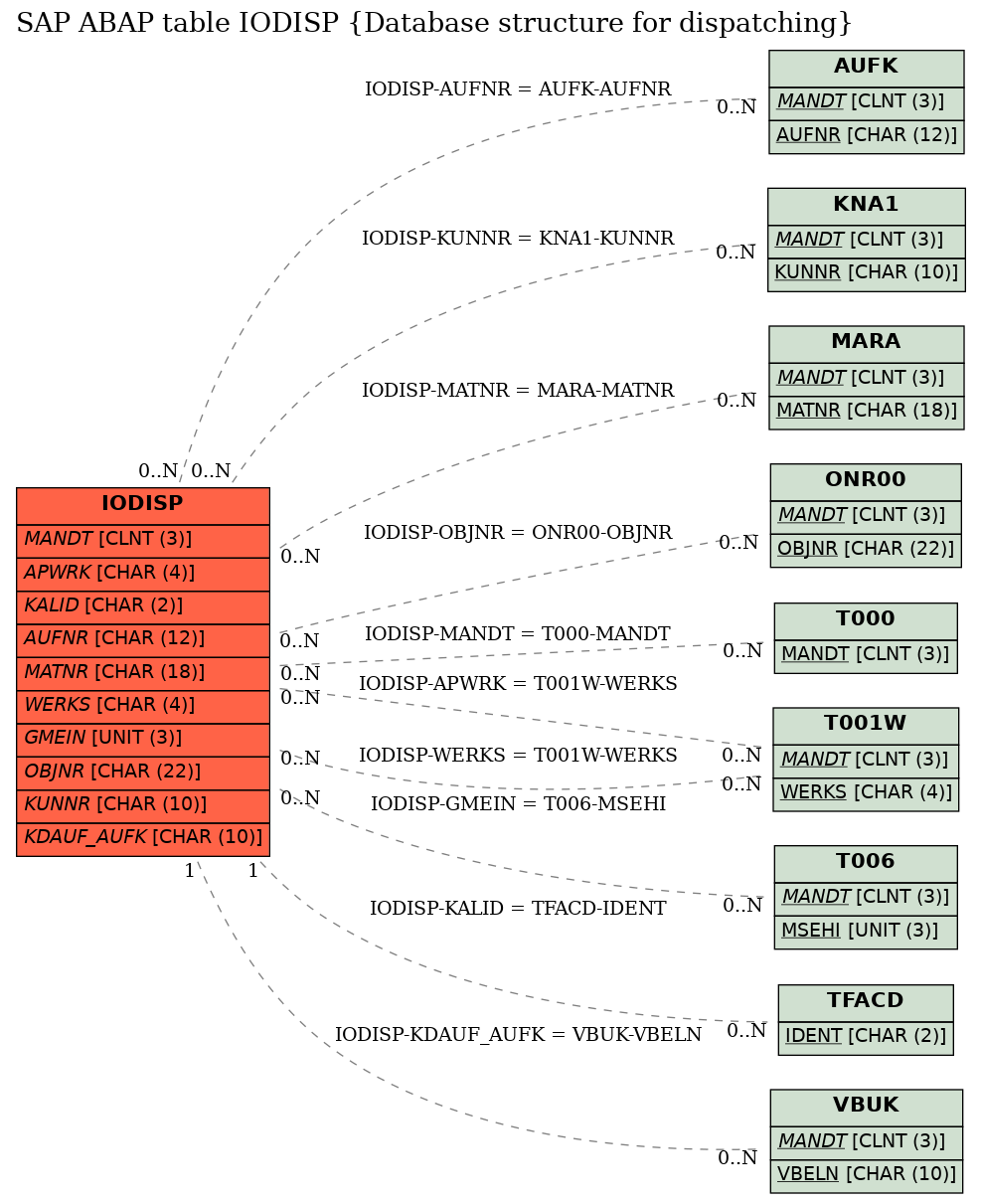

Structure	IODISP	Table Relationship Diagram
Short Description	Database structure for dispatching

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
2	AUFPL	☐	CO_AUFPL	AUFPL	NUMC	10	0	Routing number of operations in the order
3	BDMNG	☐	BDMNG	MENG13	QUAN	13	3	Requirement Quantity
4	ARBID	☐	CR_OBJID	CR_OBJID	NUMC	8	0	Object ID of the resource	*
5	ARBPL	☐	ARBPL	ARBPL	CHAR	8	0	Work center
6	APWRK	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
7	OLD_ARBID	☐	IO_OOBJID	CR_OBJID	NUMC	8	0	Old operating resource obj.identific.(OIS:order dispatchng)	*
8	OLD_ARBPL	☐	IO_OARBPL	ARBPL	CHAR	8	0	Old work center (OIS: order dispatching)
9	OLD_APWRK	☐	IO_OWERKS	WERKS	CHAR	4	0	Old plant (OIS: order dispatching)	*
10	KALID	☐	WFCID	WFCID	CHAR	2	0	Factory Calendar	TFACD
11	.INCLUDE	☐				0	0	Structure for availability check for several orders
12	AUFNR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	AUFK
13	PLNUM	☐	PLNUM	PLNUM	CHAR	10	0	Planned order number	*
14	PRODNET	☐	CO_PRODNET	KREUZ	CHAR	1	0	Indicator: Order is part of collective order
15	LEAD_AUFNR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	*
16	AUART	☐	AUFART	AUFART	CHAR	4	0	Order Type	*
17	AUTYP	☐	AUFTYP	AUFTYP	NUMC	2	0	Order category
18	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	MARA
19	WERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
20	RSNUM	☐	RSNUM	RSNUM	NUMC	10	0	Number of reservation/dependent requirements	*
21	KDAUF	☐	KDAUF	VBELN	CHAR	10	0	Sales Order Number	*
22	KDPOS	☐	KDPOS	NUM06	NUMC	6	0	Item number in Sales Order
23	PSPEL	☐	PS_POSNR	PS_POSNR	NUMC	8	0	WBS Element	*
24	SOBKZ	☐	SOBKZ	SOBKZ	CHAR	1	0	Special Stock Indicator	*
25	GAMNG	☐	GAMNG	MENG13	QUAN	13	3	Total order quantity
26	GMEIN	☐	CO_GMEIN	MEINS	UNIT	3	0	Common unit of measure for all order items	T006
27	GLTRP	☐	CO_GLTRP	DATUM	DATS	8	0	Basic finish date
28	OBJNR	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	ONR00
29	SFCPF	☐	CO_PRODPRF	CO_PRODPRF	CHAR	6	0	Production Scheduling Profile	*
30	DISPO	☐	CO_DISPO	DISPO	CHAR	3	0	MRP controller for the order	*
31	FEVOR	☐	FEVOR	FEVOR	CHAR	3	0	Production Supervisor	*
32	RETCODE	☐	SUBRC	EK08R_RC	NUMC	2	0	Subroutines for return code
33	MSGTY	☐	SYMSGTY	SYCHAR01	CHAR	1	0	Message Type
34	XFEHL	☐	XFEHL	XFELD	CHAR	1	0	Pre-allocated stock
35	VFMNG	☐	CO_VFMNG	MENG13	QUAN	13	3	Committed quantity for order acc. to ATP check components
36	GSBTR	☐	CO_GSBTR	DATUM	DATS	8	0	Overall commitment date
37	BSFAK	☐	CO_BSFAK	RSDQUAN	QUAN	3	0	Confirmation factor confirmed qty. for order quantity
38	PROZENT	☐	QPROZENT	QPROZENT	UNIT	2	0	Unit for the Rate (Percent)
39	BSDIF	☐	BSDIF	CHAR3	CHAR	3	0	Difference betw. rqmts. date and order date in fact.cal.days
40	EINHEIT	☐	DZEITEINH	LAUFZ	UNIT	2	0	Time unit
41	TBSTR	☐	TBSTR	DATUM	DATS	8	0	Partial commitment date
42	TBSMG	☐	TBSMG	MENG13	QUAN	13	3	Quantity partially committed
43	TABIX	☐	TABIX_D	TABIX	INT4	10	0	Field defined as in SY-TABIX
44	KZAVC	☐	KZAVC	KZAVC	CHAR	1	0	Indicator for type of availability check
45	MDPBV	☐	MDPBV	MDPBV	CHAR	1	0	Planned order: confirmation of availability
46	STUFE	☐	AUFST	AUFST	NUMC	2	0	Order level
47	ARSNR	☐	RSNUM	RSNUM	NUMC	10	0	Number of reservation/dependent requirements	*
48	ARSPS	☐	RSPOS	RSPOS	NUMC	4	0	Item Number of Reservation / Dependent Requirements
49	GASMG	☐	GASMG	MENG13	QUAN	13	3	Total scrap quantity in the order
50	PLWRK	☐	PLWRK	WERKS	CHAR	4	0	Planning Plant	*
51	STTXT	☐	CO_STTXT	CHAR40	CHAR	40	0	System Status
52	ASTEX	☐	CO_ASTEX	KREUZ	CHAR	1	0	User status active
53	ASTTX	☐	CO_ASTTX	CHAR40	CHAR	40	0	Field displaying user status
54	KUNNR	☐	KUNNR	KUNNR	CHAR	10	0	Customer Number	KNA1
55	KDAUF_AUFK	☐	KDAUF	VBELN	CHAR	10	0	Sales Order Number	VBUK
56	KDPOS_AUFK	☐	KDPOS	NUM06	NUMC	6	0	Item number in Sales Order
57	CY_SEQNR	☐	CY_SEQNR	CY_SEQNR	NUMC	14	0	Seq. number order
58	APRIO	☐	CO_APRIO	CHAR1	CHAR	1	0	Order priority
59	FTRMS	☐	CO_FTRMS	DATUM	DATS	8	0	Scheduled release date
60	FTRMI	☐	CO_FTRMI	DATUM	DATS	8	0	Actual release date
61	FTRMP	☐	CO_FTRMP	DATUM	DATS	8	0	Planned release date
62	GSTRP	☐	CO_GSTRP	DATUM	DATS	8	0	Basic start date
63	GLTRS	☐	CO_GLTRS	DATUM	DATS	8	0	Scheduled finish
64	GSTRS	☐	CO_GSTRS	DATUM	DATS	8	0	Scheduled start
65	GSTRI	☐	CO_GSTRI	DATUM	DATS	8	0	Actual start date
66	GLTRI	☐	CO_GLTRI	DATUM	DATS	8	0	Actual finish date
67	ARBTX	☐	KTXT40	TEXT40	CHAR	40	0	Work center description
68	RELERR	☐	IORELERR	FLAG	CHAR	1	0	Indicator: Release fields
69	FLG_DSP	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
70	FLG_REL	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
71	FLG_UPD	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
72	KZ_MARK	☐	CHAR1	CHAR1	CHAR	1	0	Single-Character Flag
73	INDEX_NODE	☐	TABIX_D	TABIX	INT4	10	0	Field defined as in SY-TABIX
74	INDEX_INT	☐	TABIX_D	TABIX	INT4	10	0	Field defined as in SY-TABIX

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	IODISP	APWRK	T001W	WERKS
2	IODISP	AUFNR	AUFK	AUFNR
3	IODISP	GMEIN	T006	MSEHI
4	IODISP	KALID	TFACD	IDENT		1	CN
5	IODISP	KDAUF_AUFK	VBUK	VBELN		1	CN
6	IODISP	KUNNR	KNA1	KUNNR
7	IODISP	MANDT	T000	MANDT
8	IODISP	MATNR	MARA	MATNR
9	IODISP	OBJNR	ONR00	OBJNR
10	IODISP	WERKS	T001W	WERKS

History

Last changed by/on	SAP	20131127
SAP Release Created in
