SAP ABAP Table IBPARTNER_GL (IB: IBase Partner for Generic Layer)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IC-INB (Application Component) Installed Base
     ⤷ CRM_IC_APPL_IBASE (Package) CRM Interaction Center: Application/ IBASE

Basic Data

Table Category	INTTAB	Structure

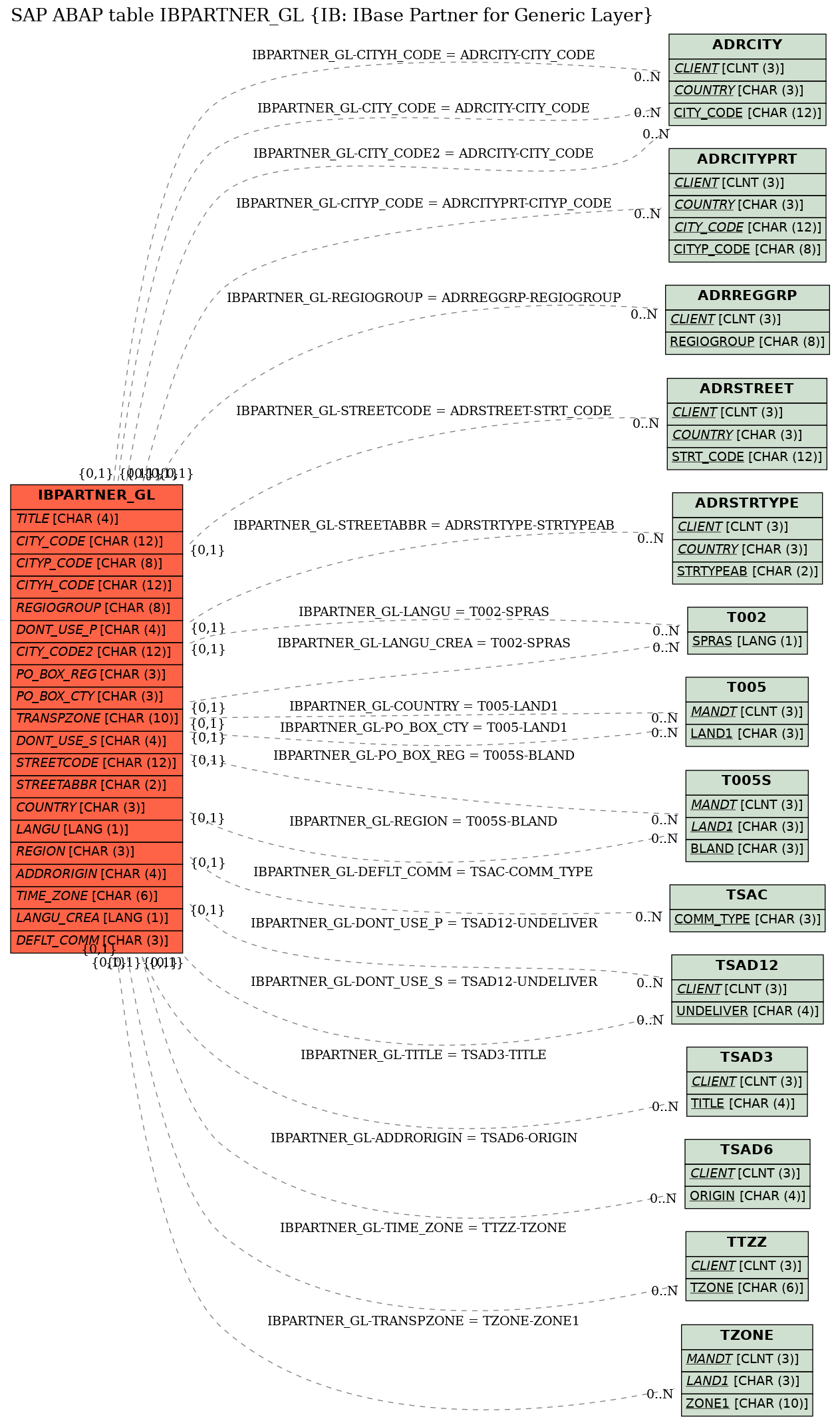

Structure	IBPARTNER_GL	Table Relationship Diagram
Short Description	IB: IBase Partner for Generic Layer

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	IB: Export Data - Partner IBase
2	PARTNERSET	☐	IB_RECNO_16	SYSUUID	RAW	16	0	IBase: Record Number 16 Characters
3	.INCLUDE	☐				0	0	Structure for Issuing Partner from Table Control
4	SELKZ	☐	XFELD	XFELD	CHAR	1	0	Checkbox
5	PARTNER_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
6	LOGICAL_KEY	☐	CRMT_LOGICAL_KEY	CRM_LOGICAL_KEY	CHAR	42	0	Logical Key for Subobject
7	PARTNER_FCT	☐	CRMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function
8	FCT_DESCRIPTION	☐	TEXT30	TEXT30	CHAR	30	0	Text (30 Characters)
9	PARTNER_NUMBER	☐	CRMT_PARTNER_NUMBER	CRM_PARTNER_NUMBER	CHAR	20	0	Partner Number for Use Outside Partner Processing
10	NO_TYPE	☐	CRMT_PARTNER_NO_TYPE	COMT_PARTNER_NO_TYPE	CHAR	2	0	Partner Number Type (e.g. GUID, Pers. No., ...), Internal
11	DISPLAY_TYPE	☐	CRMT_PARTNER_DISPLAY_TYPE	COMT_PARTNER_NO_TYPE	CHAR	2	0	Object Type, for Which Partner Number is to be Shown
12	MAINPARTNER	☐	CRMT_PARTNER_MAIN	CRM_BOOLEAN	CHAR	1	0	Main Partner (For Ambiguous Partner Functions)
13	CALENDAR	☐	CRMT_PARTNER_CALENDAR	CRM_BOOLEAN	CHAR	1	0	Maintain Calendar for the Partner?
14	DISABLED	☐	CRMT_PARTNER_DISABLED	CRM_BOOLEAN	CHAR	1	0	No INBOX Selection for the Partner
15	ADDR_NR	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	*
16	ADDR_NP	☐	AD_PERSNUM	AD_PERSNUM	CHAR	10	0	Person number	*
17	ADDR_TYPE	☐	AD_ADRTYPE	AD_ADRTYPE	CHAR	1	0	Address type (1=Organization, 2=Person, 3=Contact person)
18	ERROR_FLAG	☐	XFELD	XFELD	CHAR	1	0	Checkbox
19	SHORT	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
20	SHORT_WITH_STREET	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
21	DATE_FROM	☐	AD_DATE_FR	DATUM	DATS	8	0	Valid-from date - in current Release only 00010101 possible
22	DATE_TO	☐	AD_DATE_TO	DATUM	DATS	8	0	Valid-to date in current Release only 99991231 possible
23	TITLE	☐	AD_TITLE	AD_TITLE	CHAR	4	0	Form-of-Address Key	TSAD3
24	NAME1	☐	AD_NAME1	TEXT40	CHAR	40	0	Name 1
25	NAME2	☐	AD_NAME2	TEXT40	CHAR	40	0	Name 2
26	NAME3	☐	AD_NAME3	TEXT40	CHAR	40	0	Name 3
27	NAME4	☐	AD_NAME4	TEXT40	CHAR	40	0	Name 4
28	NAME_TXT	☐	AD_NAMETXT	TEXT50	CHAR	50	0	Converted name field (with form of address)
29	NAME_CO	☐	AD_NAME_CO	TEXT40	CHAR	40	0	c/o name
30	CITY1	☐	AD_CITY1	TEXT40	CHAR	40	0	City
31	CITY2	☐	AD_CITY2	TEXT40	CHAR	40	0	District
32	CITY_CODE	☐	AD_CITYNUM	CITY_CODE	CHAR	12	0	City code for city/street file	ADRCITY
33	CITYP_CODE	☐	AD_CITYPNM	CITYP_CODE	CHAR	8	0	District code for City and Street file	ADRCITYPRT
34	HOME_CITY	☐	AD_CITY3	TEXT40	CHAR	40	0	City (different from postal city)
35	CITYH_CODE	☐	AD_CITYHNM	CITY_CODE	CHAR	12	0	Different city for city/street file	ADRCITY
36	CHCKSTATUS	☐	AD_CHECKST	AD_CHECKST	CHAR	1	0	City file test status
37	REGIOGROUP	☐	REGIOGROUP	REGIOGROUP	CHAR	8	0	Regional structure grouping	ADRREGGRP
38	POST_CODE1	☐	AD_PSTCD1	CHAR10	CHAR	10	0	City postal code
39	POST_CODE2	☐	AD_PSTCD2	CHAR10	CHAR	10	0	PO Box postal code
40	POST_CODE3	☐	AD_PSTCD3	CHAR10	CHAR	10	0	Company postal code (for large customers)
41	PCODE1_EXT	☐	AD_PST1XT	CHAR10	CHAR	10	0	(Not Supported)City Postal Code Extension, e.g. ZIP+4+2 Code
42	PCODE2_EXT	☐	AD_PST2XT	CHAR10	CHAR	10	0	(Not Supported) PO Box Postal Code Extension
43	PCODE3_EXT	☐	AD_PST3XT	CHAR10	CHAR	10	0	(Not Supported) Major Customer Postal Code Extension
44	PO_BOX	☐	AD_POBX	CHAR10	CHAR	10	0	PO Box
45	DONT_USE_P	☐	AD_NO_USEP	AD_NO_USE	CHAR	4	0	PO Box Address Undeliverable Flag	TSAD12
46	PO_BOX_NUM	☐	AD_POBXNUM	XFELD	CHAR	1	0	Flag: PO Box without number
47	PO_BOX_LOC	☐	AD_POBXLOC	TEXT40	CHAR	40	0	PO Box city
48	CITY_CODE2	☐	AD_CIT2NUM	CITY_CODE	CHAR	12	0	City PO box code (City file)	ADRCITY
49	PO_BOX_REG	☐	AD_POBXREG	REGIO	CHAR	3	0	Region for PO Box (Country, State, Province, ...)	T005S
50	PO_BOX_CTY	☐	AD_POBXCTY	LAND1	CHAR	3	0	PO box country	T005
51	POSTALAREA	☐	AD_PSTLAR	TEXT15	CHAR	15	0	(Not Supported) Post Delivery District
52	TRANSPZONE	☐	LZONE	ZONE	CHAR	10	0	Transportation zone to or from which the goods are delivered	TZONE
53	STREET	☐	AD_STREET	TEXT60	CHAR	60	0	Street
54	DONT_USE_S	☐	AD_NO_USES	AD_NO_USE	CHAR	4	0	Street Address Undeliverable Flag	TSAD12
55	STREETCODE	☐	AD_STRNUM	STRT_CODE	CHAR	12	0	Street Number for City/Street File	ADRSTREET
56	STREETABBR	☐	AD_STRABBR	STRTYPEAB	CHAR	2	0	(Not Supported) Abbreviation of Street Name	ADRSTRTYPE
57	HOUSE_NUM1	☐	AD_HSNM1	TEXT10	CHAR	10	0	House Number
58	HOUSE_NUM2	☐	AD_HSNM2	TEXT10	CHAR	10	0	House number supplement
59	HOUSE_NUM3	☐	AD_HSNM3	TEXT10	CHAR	10	0	(Not supported) House Number Range
60	STR_SUPPL1	☐	AD_STRSPP1	TEXT40	CHAR	40	0	Street 2
61	STR_SUPPL2	☐	AD_STRSPP2	TEXT40	CHAR	40	0	Street 3
62	STR_SUPPL3	☐	AD_STRSPP3	TEXT40	CHAR	40	0	Street 4
63	LOCATION	☐	AD_LCTN	TEXT40	CHAR	40	0	Street 5
64	BUILDING	☐	AD_BLDNG	TEXT20	CHAR	20	0	Building (Number or Code)
65	FLOOR	☐	AD_FLOOR	TEXT10	CHAR	10	0	Floor in building
66	ROOMNUMBER	☐	AD_ROOMNUM	TEXT10	CHAR	10	0	Room or Appartment Number
67	COUNTRY	☐	LAND1	LAND1	CHAR	3	0	Country Key	T005
68	LANGU	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
69	REGION	☐	REGIO	REGIO	CHAR	3	0	Region (State, Province, County)	T005S
70	SORT1	☐	AD_SORT1	CHAR20	CHAR	20	0	Search Term 1
71	SORT2	☐	AD_SORT2	CHAR20	CHAR	20	0	Search Term 2
72	SORT_PHN	☐	AD_SRTPHN	CHAR20	CHAR	20	0	(Not Supported) Phonetic Search Sort Field
73	ADDRORIGIN	☐	AD_ORIGINA	AD_ORIGIN	CHAR	4	0	(Not Supported) Address Data Source (Key)	TSAD6
74	EXTENSION1	☐	AD_EXTENS1	TEXT40	CHAR	40	0	Extension (only for data conversion) (e.g. data line)
75	EXTENSION2	☐	AD_EXTENS2	TEXT40	CHAR	40	0	Extension (only for data conversion) (e.g. telebox)
76	TIME_ZONE	☐	AD_TZONE	TZNZONE	CHAR	6	0	Address time zone	TTZZ
77	TAXJURCODE	☐	AD_TXJCD	AD_TXJCD	CHAR	15	0	Tax Jurisdiction
78	ADDRESS_ID	☐	AD_ADDR_ID	AD_ADDR_ID	CHAR	10	0	(Not supported) Physical address ID
79	REMARK	☐	AD_REMARK1	TEXT50	CHAR	50	0	Address notes
80	LANGU_CREA	☐	AD_LANGUCR	SPRAS	LANG	1	0	Address record creation original language	T002
81	DEFLT_COMM	☐	AD_COMM	AD_COMM	CHAR	3	0	Communication Method (Key) (Business Address Services)	TSAC
82	SFLAG	☐	XFELD	XFELD	CHAR	1	0	Checkbox
83	PARTNER_PFT	☐	COMT_PARTNER_PFT	COM_PARTNER_PFT	CHAR	4	0	Partner Function Category	*
84	PFT_SUBTYPE	☐	COMT_PARTNER_SUBTYPE	CHAR4	CHAR	4	0	Partner Function Sub-Type
85	EXTERNAL_PARTNER_NUMBER	☐	COMT_PARTNER_NUMBER	COM_PARTNER_NUMBER	CHAR	20	0	Partner Number for Use Outside Partner Processing

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	IBPARTNER_GL	ADDRORIGIN	TSAD6	ORIGIN	REF	C	CN
2	IBPARTNER_GL	CITYH_CODE	ADRCITY	CITY_CODE	REF	C	CN
3	IBPARTNER_GL	CITYP_CODE	ADRCITYPRT	CITYP_CODE	REF	C	CN
4	IBPARTNER_GL	CITY_CODE	ADRCITY	CITY_CODE	REF	C	CN
5	IBPARTNER_GL	CITY_CODE2	ADRCITY	CITY_CODE	REF	C	CN
6	IBPARTNER_GL	COUNTRY	T005	LAND1	REF	C	CN
7	IBPARTNER_GL	DEFLT_COMM	TSAC	COMM_TYPE	REF	C	CN
8	IBPARTNER_GL	DONT_USE_P	TSAD12	UNDELIVER	KEY	C	CN
9	IBPARTNER_GL	DONT_USE_S	TSAD12	UNDELIVER	REF	C	CN
10	IBPARTNER_GL	LANGU	T002	SPRAS	REF	C	CN
11	IBPARTNER_GL	LANGU_CREA	T002	SPRAS	REF	C	CN
12	IBPARTNER_GL	PO_BOX_CTY	T005	LAND1	REF	C	CN
13	IBPARTNER_GL	PO_BOX_REG	T005S	BLAND	REF	C	CN
14	IBPARTNER_GL	REGIOGROUP	ADRREGGRP	REGIOGROUP	REF	C	CN
15	IBPARTNER_GL	REGION	T005S	BLAND	REF	C	CN
16	IBPARTNER_GL	STREETABBR	ADRSTRTYPE	STRTYPEAB	REF	C	CN
17	IBPARTNER_GL	STREETCODE	ADRSTREET	STRT_CODE	REF	C	CN
18	IBPARTNER_GL	TIME_ZONE	TTZZ	TZONE	REF	C	CN
19	IBPARTNER_GL	TITLE	TSAD3	TITLE	REF	C	CN
20	IBPARTNER_GL	TRANSPZONE	TZONE	ZONE1	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	301
