SAP ABAP Table FRMLS_IOT_DATA (RMS-FRM: Data Part (Without Admin. Fields) of Scr. Structure)
Hierarchy
☛
EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
⤷ PLM-RM (Application Component) Recipe Management
⤷ RMSFRMINFMSC (Package) RMS-FRM: General Modules for INF Package
⤷ PLM-RM (Application Component) Recipe Management
⤷ RMSFRMINFMSC (Package) RMS-FRM: General Modules for INF Package
Basic Data
Table Category | INTTAB | Structure |

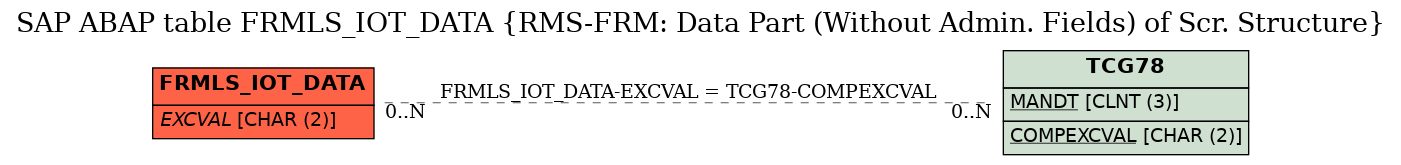

Structure | FRMLS_IOT_DATA | Table Relationship Diagram |
Short Description | RMS-FRM: Data Part (Without Admin. Fields) of Scr. Structure |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | MATNR | FRMLE_MATNR | MATNR | CHAR | 18 | 0 | Material Number of an Item | * | |
2 | SUBID | FRMLE_SUBID | ESDSUBID | CHAR | 12 | 0 | Substance | ||
3 | POSNR | FRMLE_POSNR | FRMLD_POSNR | NUMC | 4 | 0 | Number of a Material or Substance Item | ||
4 | ROLE | FRMLE_ROLE | ESDCOMPCAT | CHAR | 10 | 0 | Component Type (Material, Substance, or Stream Item) | * | |
5 | STREAM_ID | FRMLE_RECN | FRMLD_GUID | CHAR | 32 | 0 | RMS-FRM: Object Identifier | ||
6 | STREAM_FLG | FRMLE_STREAM_FLG | FLAG | CHAR | 1 | 0 | Stream | ||
7 | ALT_POSNR | FRMLE_ALT_POSNR | FRMLD_POSNR | NUMC | 4 | 0 | Sort Number of an Alternative Item | ||
8 | PO_FLG | FRMLE_PO_FLG | FRMLD_FLAG | CHAR | 1 | 0 | Primary Output | ||
9 | COMPTGT | FRMLE_COMPTGT | EHSBD_QUAN6_6 | QUAN | 12 | 6 | Quantity of a Material or Substance Item | ||
10 | OPLOW | FRMLE_OPLOW | FRMLD_OPLOW | CHAR | 2 | 0 | Operator for Lower Limit | ||
11 | COMPLOW | FRMLE_COMPLOW | FRMLD_QUAN6_6 | QUAN | 12 | 6 | Value of Lower Limit of Item Quantity | ||
12 | OPUP | FRMLE_OPUP | FRMLD_OPUP | CHAR | 2 | 0 | Operator for Upper Limit | ||
13 | COMPUPP | FRMLE_COMPUPP | FRMLD_QUAN6_6 | QUAN | 12 | 6 | Value of Upper Limit of Item Quantity | ||
14 | UNIT | FRMLE_COMPUNIT | MEINS | UNIT | 3 | 0 | Unit of Measure of a Material or Substance Item | * | |
15 | EXCVAL | FRMLE_EXCVAL | ESDCOMPEXCVAL | CHAR | 2 | 0 | Exception Value | TCG78 | |
16 | ADDVAL | FRMLE_ADDVAL | CHAR030 | CHAR | 30 | 0 | Freely Available Field of Type Character String w.30 Characs | ||
17 | OVR_FACTOR | FRMLE_OVR_FACTOR | FRMLD_OVR | NUMC | 3 | 0 | Overrun Factor | ||
18 | DEF_EXPL_FLG | FRMLE_DEFEXPL_FLG | FRMLD_DEFEXPL_FLG | CHAR | 1 | 0 | Standard Explosion | ||
19 | .INCLUDE | 0 | 0 | RMS-FRM: Additional Data for Output Functions | |||||
20 | MASS_QTY | FRMLE_MASS_QTY | FRMLD_QUAN6_6 | QUAN | 12 | 6 | Mass of Formula Item | ||
21 | MASS_ERR_FLG | FRMLE_CONV_ERR_FLG | FLAG | CHAR | 1 | 0 | Conversion Error | ||
22 | VOL_QTY | FRMLE_VOL_QTY | FRMLD_QUAN6_6 | QUAN | 12 | 6 | Volume of Formula Item | ||
23 | VOL_ERR_FLG | FRMLE_CONV_ERR_FLG | FLAG | CHAR | 1 | 0 | Conversion Error | ||
24 | VOL_QTY_OVR | FRMLE_VOL_QTY_OVR | FRMLD_QUAN6_6 | QUAN | 12 | 6 | Volume of Formula Item with Overrun | ||
25 | VOL_OVR_ERR_FLG | FRMLE_CONV_ERR_FLG | FLAG | CHAR | 1 | 0 | Conversion Error | ||
26 | TS_QTY | FRMLE_TS_QTY | FRMLD_QUAN6_6 | QUAN | 12 | 6 | Total Solids of Formula Item | ||
27 | TS_ERR_FLG | FRMLE_CONV_ERR_FLG | FLAG | CHAR | 1 | 0 | Conversion Error | ||
28 | TS_UNIT | FRMLE_TS_UNIT | MEINS | UNIT | 3 | 0 | Unit of Meas. of Total Solids of Material or Substance Item | * | |
29 | MASS_% | FRMLE_MASS_PROP | FRMLD_QUAN3_6 | QUAN | 9 | 6 | Percentage Mass of Formula Item | ||
30 | VOL_% | FRMLE_VOL_PROP | FRMLD_QUAN3_6 | QUAN | 9 | 6 | Proportion of Volume of Formula Item | ||
31 | VOL_%_OVR | FRMLE_VOL_PROP_OVR | FRMLD_QUAN3_6 | QUAN | 9 | 6 | Proportion of Volume of Formula Item with Aerated Volume | ||
32 | TS_%_SPEC | FRMLE_TS_SPEC_PROP | FRMLD_QUAN3_6 | QUAN | 9 | 6 | Proportion of Total Solids in a Formula Item | ||
33 | TS_%_MASS_QTY | FRMLE_TS_MASS_PROP | FRMLD_QUAN3_6 | QUAN | 9 | 6 | Proportn of Total Solids in Total Mass of All Formula Items | ||
34 | TS_%_TS_QTY | FRMLE_TS_QTY_PROP | FRMLD_QUAN3_6 | QUAN | 9 | 6 | Total Solids Proportion of Total Solids of all Formula Items | ||
35 | PIECE_QTY | FRMLE_PIECE_QTY | FRMLD_QUAN6_3 | QUAN | 9 | 3 | Quantity of Formula Item in Pieces | ||
36 | FLG_IS_OUT | FRMLE_IS_OUT | XFELD | CHAR | 1 | 0 | Item is Output of Another Formula | ||
37 | DENSITY_QTY | FRMLE_DENSITY | FRMLD_QUAN9_6 | QUAN | 15 | 6 | Density of Formula Item | ||
38 | DENSITY_UNIT | FRMLE_DENSITY_UNIT | MEINS | UNIT | 3 | 0 | Density Unit | * | |
39 | DENSITY_QTY_OVR | FRMLE_DENSITY_OVR | FRMLD_QUAN9_6 | QUAN | 15 | 6 | Density of Aerated Products of Formula Item | ||
40 | DENSITY_UNIT_OVR | FRMLE_DENSITY_UNIT_OVR | MEINS | UNIT | 3 | 0 | Unit of Density of Aerated Products | * | |
41 | DENSITY_UNIT_STEXT_OVR | FRMLE_MSEHT_DENSITY_OVR | TEXT10 | CHAR | 10 | 0 | Text for Unit of Measure of Density with Aeration | ||
42 | PIECE_CF_QTY | FRMLE_PACKED_QTY | FRMLD_QUAN6_6 | QUAN | 12 | 6 | Packed Quantity | ||
43 | PIECE_CF_UNIT | FRMLE_PACKED_UNIT | MEINS | UNIT | 3 | 0 | Unit of Packed Quantity | * | |
44 | SUBRECN_CALC | FRMLE_SUBRECN | ESDRECN | NUMC | 20 | 0 | Substance Key | ||
45 | DENSITY_UNIT_STEXT | FRMLE_MSEHT_DENSITY | TEXT10 | CHAR | 10 | 0 | Text for Unit of Measure of Density | ||
46 | RECONST_RATE | FRMLE_RECONST | FRMLD_QUAN4_3 | QUAN | 7 | 3 | Reconstitution Rate | ||
47 | RECONST_RATE_UNIT | FRMLE_UNIT_RECONST | MEINS | UNIT | 3 | 0 | Unit of Measure of Reconstitution Rate | * | |
48 | MASS_QTY_FLT | FRMLE_MASS_QTY_FLT | FLTP | FLTP | 16 | 16 | Mass of Formula Item (Floating Point Value) | ||
49 | VOL_QTY_FLT | FRMLE_VOL_QTY_FLT | FLTP | FLTP | 16 | 16 | Volume of Formula Item (Floating Point Value) | ||
50 | VOL_QTY_OVR_FLT | FRMLE_VOL_QTY_OVR_FLT | FLTP | FLTP | 16 | 16 | Volume of Formula Item with Overrun (Floating Point Value) | ||
51 | TS_QTY_FLT | FRMLE_TS_QTY_FLT | FLTP | FLTP | 16 | 16 | Total Solids of Formula Item (Floating Point Value) | ||
52 | MASS_%_FLT | FRMLE_MASS_PROP_FLT | FLTP | FLTP | 16 | 16 | Mass of Formula Item as Prop. of Whole Mass (Float.PointVal) | ||
53 | VOL_%_FLT | FRMLE_VOL_PROP_FLT | FLTP | FLTP | 16 | 16 | Proportion of Volume of Formula Item (Floating Point Value) | ||
54 | VOL_%_OVR_FLT | FRMLE_VOL_PROP_OVR_FLT | FLTP | FLTP | 16 | 16 | Proportion of Volume of Formula Item with Aerated Volume | ||
55 | TS_%_SPEC_FLT | FRMLE_TS_SPEC_PROP_FLT | FLTP | FLTP | 16 | 16 | Prop. of Total Solids of Formula Item (Floating Point Value) | ||
56 | TS_%_MASS_QTY_FLT | FRMLE_TS_MASS_PROP_FLT | FLTP | FLTP | 16 | 16 | Proportn of Total Solids in Total Mass of All Formula Items | ||
57 | TS_%_TS_QTY_FLT | FRMLE_TS_QTY_PROP_FLT | FLTP | FLTP | 16 | 16 | Total Solids Proportion of Total Solids of all Formula Items | ||
58 | PIECE_QTY_FLT | FRMLE_PIECE_QTY_FLT | FLTP | FLTP | 16 | 16 | Quantity of Formula Item in Pieces (Floating Point Value) | ||
59 | DENSITY_QTY_FLT | FRMLE_DENSITY_FLT | FLTP | FLTP | 16 | 16 | Density of Formula Item (Floating Point Value) | ||
60 | DENSITY_QTY_OVR_FLT | FRMLE_DENSITY_OVR_FLT | FLTP | FLTP | 16 | 16 | Density of Aerated Product of Formula Item | ||
61 | PIECE_CF_QTY_FLT | FRMLE_QUAN_PER_PIECE_FLT | FLTP | FLTP | 16 | 16 | Quantity per Piece for a Material or Substance Item | ||
62 | RECONST_RATE_FLT | FRMLE_RECONST_FLT | FLTP | FLTP | 16 | 16 | Reconstitution Rate (Floating Point Value) | ||
63 | PACKAGE_UNIT | FRMLE_PACKAGE_UNIT | MEINS | UNIT | 3 | 0 | Packaging Unit | * | |
64 | .INCLUDE | 0 | 0 | RMS-FRM: Additional Texts | |||||
65 | MAKTX | MAKTX | TEXT40 | CHAR | 40 | 0 | Material description | ||
66 | IDENT | FRMLE_IDENT_1 | TEXT132 | CHAR | 132 | 0 | First Substance Identifier | ||
67 | IDENT2 | FRMLE_IDENT_2 | TEXT132 | CHAR | 132 | 0 | Second Substance Identifier | ||
68 | ROLENAME | FRMLE_ROLENAME | TEXT40 | CHAR | 40 | 0 | Description of Component Type | ||
69 | EXCVAL_TXT | FRMLE_EXCVAL_TXT | CHAR40 | CHAR | 40 | 0 | Text for Exception Value | ||
70 | STREAM_TXT | FRMLE_STREAMTX | TEXT60 | CHAR | 60 | 0 | Short Description of Stream | ||
71 | ITEM_DESCR_TEXT | FRMLE_ITEM_DESCR | TEXT132 | CHAR | 132 | 0 | Description of the Material, Substance, or Stream | ||
72 | MARKFLG | FRMLE_FLG | FLAG | CHAR | 1 | 0 | For General Usage | ||
73 | INVISIBLE_TXT | FRMLE_FLG | FLAG | CHAR | 1 | 0 | For General Usage | ||
74 | STAGE | FRMLE_STAGE | RCPD_POBNR | NUMC | 4 | 0 | Item Number of Recipe Stage | ||
75 | OPERATION | FRMLE_OPERATION | RCPD_POBNR | NUMC | 4 | 0 | Item Number of the Operation in the Recipe | ||
76 | ACTION | FRMLE_ACTION | RCPD_POBNR | NUMC | 4 | 0 | Item Number of the Action in the Recipe | ||
77 | STREAM_USED_FLG | FRMLE_STREAM_USED | FRMLD_FLAG | CHAR | 1 | 0 | Stream Is Used as Input | ||
78 | .INCLUDE | 0 | 0 | Customer-Specific Include for I/O Structure of Formula | |||||
79 | __DUMMY | CHAR1 | CHAR1 | CHAR | 1 | 0 | Single-Character Flag |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | FRMLS_IOT_DATA | EXCVAL | TCG78 | COMPEXCVAL |
History
Last changed by/on | SAP | 20130529 |
SAP Release Created in | 220 |
