SAP ABAP Table DMS_DATA_CARRIER (DMS: Data carrier/Storage for DVS)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CA-DMS (Application Component) Document Management System
     ⤷ CV (Package) Application Development: R/3 Document Management

Basic Data

Table Category	INTTAB	Structure

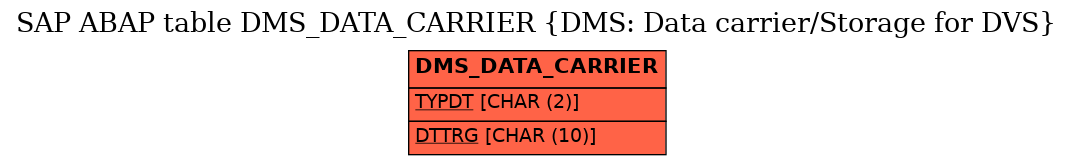

Structure	DMS_DATA_CARRIER	Table Relationship Diagram
Short Description	DMS: Data carrier/Storage for DVS

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	TYPDT	☑	TYPDT	TYPDT	CHAR	2	0	Data carrier type	*
2	ONLIN	☐	ONLIN	XFELD	CHAR	1	0	Online access
3	DPRIN	☐	DPRIN	XFELD	CHAR	1	0	Indicator: printer
4	ARCHV	☐	ARCHV	XFELD	CHAR	1	0	Data carrier is archive system
5	ADRTP	☐	ADRTP	CHAR3	CHAR	3	0	Address type
6	CADSY	☐	CADSY	CV_CADSY	CHAR	10	0	CAD system
7	CVTEXT	☐	CVTEXT	TEXT40	CHAR	40	0	Description
8	FILEP	☐	DEFPATH	TEXT70	CHAR	70	0	Default path
9	DSERV	☐	DSERV	XFELD	CHAR	1	0	Indicator: data carrier is a vault
10	THIRDP	☐	THIRDP	XFELD	CHAR	1	0	Data carrier is external DMS
11	KPRO	☐	DMS_KPRO_USE	XFELD	CHAR	1	0	Document Storage via Knowledge Provider
12	NTADR	☐	NTADR	TEXT20	CHAR	20	0	Network address
13	SERVERPATH	☐	SERVERPATH	TEXT70	CHAR	70	0	Path to vault where application files are stored
14	FTP_CNAME	☐	FTP_CNAME	TEXT255	CHAR	255	0	Name of DVA computer (vault)
15	DTTRG	☑	DTTRG	DTTRG	CHAR	10	0	Name of Data Carrier	*
16	PRFXP	☐	PRFXP	TEXT70	CHAR	70	0	Prefix for access path
17	STORAGE_TYPE	☐	DTTRG	DTTRG	CHAR	10	0	Name of Data Carrier	*
18	INACTIVE	☐	DMS_DATACARRIER_INACTIVE	XFELD	CHAR	1	0	Indicator: data carrier inactive

History

Last changed by/on	SAP	19990326
SAP Release Created in
