SAP ABAP Table COM_DYNP_PARTNER_UI (Structure for Issuing Partner from Table Control)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-PD (Application Component) Partner Processing
     ⤷ COM_PARTNER (Package) General Partner Processing

Basic Data

Table Category	INTTAB	Structure

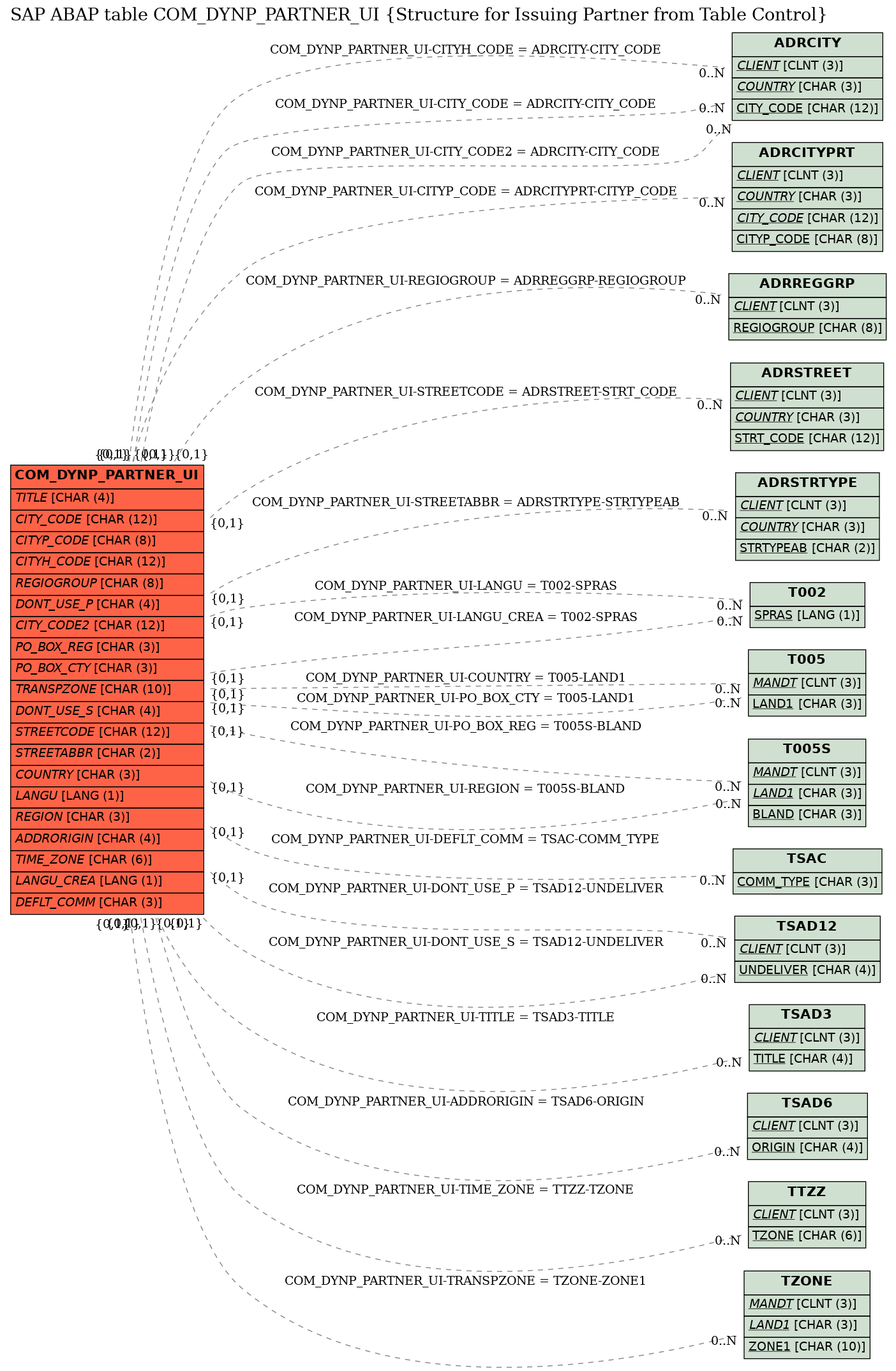

Structure	COM_DYNP_PARTNER_UI	Table Relationship Diagram
Short Description	Structure for Issuing Partner from Table Control

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	SELKZ	☐	XFELD	XFELD	CHAR	1	0	Checkbox
2	PARTNER_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
3	LOGICAL_KEY	☐	CRMT_LOGICAL_KEY	CRM_LOGICAL_KEY	CHAR	42	0	Logical Key for Subobject
4	PARTNER_FCT	☐	CRMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function
5	FCT_DESCRIPTION	☐	TEXT30	TEXT30	CHAR	30	0	Text (30 Characters)
6	PARTNER_NUMBER	☐	CRMT_PARTNER_NUMBER	CRM_PARTNER_NUMBER	CHAR	20	0	Partner Number for Use Outside Partner Processing
7	NO_TYPE	☐	CRMT_PARTNER_NO_TYPE	COMT_PARTNER_NO_TYPE	CHAR	2	0	Partner Number Type (e.g. GUID, Pers. No., ...), Internal
8	DISPLAY_TYPE	☐	CRMT_PARTNER_DISPLAY_TYPE	COMT_PARTNER_NO_TYPE	CHAR	2	0	Object Type, for Which Partner Number is to be Shown
9	MAINPARTNER	☐	CRMT_PARTNER_MAIN	CRM_BOOLEAN	CHAR	1	0	Main Partner (For Ambiguous Partner Functions)
10	CALENDAR	☐	CRMT_PARTNER_CALENDAR	CRM_BOOLEAN	CHAR	1	0	Maintain Calendar for the Partner?
11	DISABLED	☐	CRMT_PARTNER_DISABLED	CRM_BOOLEAN	CHAR	1	0	No INBOX Selection for the Partner
12	ADDR_NR	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	*
13	ADDR_NP	☐	AD_PERSNUM	AD_PERSNUM	CHAR	10	0	Person number	*
14	ADDR_TYPE	☐	AD_ADRTYPE	AD_ADRTYPE	CHAR	1	0	Address type (1=Organization, 2=Person, 3=Contact person)
15	ERROR_FLAG	☐	XFELD	XFELD	CHAR	1	0	Checkbox
16	SHORT	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
17	SHORT_WITH_STREET	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
18	DATE_FROM	☐	AD_DATE_FR	DATUM	DATS	8	0	Valid-from date - in current Release only 00010101 possible
19	DATE_TO	☐	AD_DATE_TO	DATUM	DATS	8	0	Valid-to date in current Release only 99991231 possible
20	TITLE	☐	AD_TITLE	AD_TITLE	CHAR	4	0	Form-of-Address Key	TSAD3
21	NAME1	☐	AD_NAME1	TEXT40	CHAR	40	0	Name 1
22	NAME2	☐	AD_NAME2	TEXT40	CHAR	40	0	Name 2
23	NAME3	☐	AD_NAME3	TEXT40	CHAR	40	0	Name 3
24	NAME4	☐	AD_NAME4	TEXT40	CHAR	40	0	Name 4
25	NAME_TXT	☐	AD_NAMETXT	TEXT50	CHAR	50	0	Converted name field (with form of address)
26	NAME_CO	☐	AD_NAME_CO	TEXT40	CHAR	40	0	c/o name
27	CITY1	☐	AD_CITY1	TEXT40	CHAR	40	0	City
28	CITY2	☐	AD_CITY2	TEXT40	CHAR	40	0	District
29	CITY_CODE	☐	AD_CITYNUM	CITY_CODE	CHAR	12	0	City code for city/street file	ADRCITY
30	CITYP_CODE	☐	AD_CITYPNM	CITYP_CODE	CHAR	8	0	District code for City and Street file	ADRCITYPRT
31	HOME_CITY	☐	AD_CITY3	TEXT40	CHAR	40	0	City (different from postal city)
32	CITYH_CODE	☐	AD_CITYHNM	CITY_CODE	CHAR	12	0	Different city for city/street file	ADRCITY
33	CHCKSTATUS	☐	AD_CHECKST	AD_CHECKST	CHAR	1	0	City file test status
34	REGIOGROUP	☐	REGIOGROUP	REGIOGROUP	CHAR	8	0	Regional structure grouping	ADRREGGRP
35	POST_CODE1	☐	AD_PSTCD1	CHAR10	CHAR	10	0	City postal code
36	POST_CODE2	☐	AD_PSTCD2	CHAR10	CHAR	10	0	PO Box postal code
37	POST_CODE3	☐	AD_PSTCD3	CHAR10	CHAR	10	0	Company postal code (for large customers)
38	PCODE1_EXT	☐	AD_PST1XT	CHAR10	CHAR	10	0	(Not Supported)City Postal Code Extension, e.g. ZIP+4+2 Code
39	PCODE2_EXT	☐	AD_PST2XT	CHAR10	CHAR	10	0	(Not Supported) PO Box Postal Code Extension
40	PCODE3_EXT	☐	AD_PST3XT	CHAR10	CHAR	10	0	(Not Supported) Major Customer Postal Code Extension
41	PO_BOX	☐	AD_POBX	CHAR10	CHAR	10	0	PO Box
42	DONT_USE_P	☐	AD_NO_USEP	AD_NO_USE	CHAR	4	0	PO Box Address Undeliverable Flag	TSAD12
43	PO_BOX_NUM	☐	AD_POBXNUM	XFELD	CHAR	1	0	Flag: PO Box without number
44	PO_BOX_LOC	☐	AD_POBXLOC	TEXT40	CHAR	40	0	PO Box city
45	CITY_CODE2	☐	AD_CIT2NUM	CITY_CODE	CHAR	12	0	City PO box code (City file)	ADRCITY
46	PO_BOX_REG	☐	AD_POBXREG	REGIO	CHAR	3	0	Region for PO Box (Country, State, Province, ...)	T005S
47	PO_BOX_CTY	☐	AD_POBXCTY	LAND1	CHAR	3	0	PO box country	T005
48	POSTALAREA	☐	AD_PSTLAR	TEXT15	CHAR	15	0	(Not Supported) Post Delivery District
49	TRANSPZONE	☐	LZONE	ZONE	CHAR	10	0	Transportation zone to or from which the goods are delivered	TZONE
50	STREET	☐	AD_STREET	TEXT60	CHAR	60	0	Street
51	DONT_USE_S	☐	AD_NO_USES	AD_NO_USE	CHAR	4	0	Street Address Undeliverable Flag	TSAD12
52	STREETCODE	☐	AD_STRNUM	STRT_CODE	CHAR	12	0	Street Number for City/Street File	ADRSTREET
53	STREETABBR	☐	AD_STRABBR	STRTYPEAB	CHAR	2	0	(Not Supported) Abbreviation of Street Name	ADRSTRTYPE
54	HOUSE_NUM1	☐	AD_HSNM1	TEXT10	CHAR	10	0	House Number
55	HOUSE_NUM2	☐	AD_HSNM2	TEXT10	CHAR	10	0	House number supplement
56	HOUSE_NUM3	☐	AD_HSNM3	TEXT10	CHAR	10	0	(Not supported) House Number Range
57	STR_SUPPL1	☐	AD_STRSPP1	TEXT40	CHAR	40	0	Street 2
58	STR_SUPPL2	☐	AD_STRSPP2	TEXT40	CHAR	40	0	Street 3
59	STR_SUPPL3	☐	AD_STRSPP3	TEXT40	CHAR	40	0	Street 4
60	LOCATION	☐	AD_LCTN	TEXT40	CHAR	40	0	Street 5
61	BUILDING	☐	AD_BLDNG	TEXT20	CHAR	20	0	Building (Number or Code)
62	FLOOR	☐	AD_FLOOR	TEXT10	CHAR	10	0	Floor in building
63	ROOMNUMBER	☐	AD_ROOMNUM	TEXT10	CHAR	10	0	Room or Appartment Number
64	COUNTRY	☐	LAND1	LAND1	CHAR	3	0	Country Key	T005
65	LANGU	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
66	REGION	☐	REGIO	REGIO	CHAR	3	0	Region (State, Province, County)	T005S
67	SORT1	☐	AD_SORT1	CHAR20	CHAR	20	0	Search Term 1
68	SORT2	☐	AD_SORT2	CHAR20	CHAR	20	0	Search Term 2
69	SORT_PHN	☐	AD_SRTPHN	CHAR20	CHAR	20	0	(Not Supported) Phonetic Search Sort Field
70	ADDRORIGIN	☐	AD_ORIGINA	AD_ORIGIN	CHAR	4	0	(Not Supported) Address Data Source (Key)	TSAD6
71	EXTENSION1	☐	AD_EXTENS1	TEXT40	CHAR	40	0	Extension (only for data conversion) (e.g. data line)
72	EXTENSION2	☐	AD_EXTENS2	TEXT40	CHAR	40	0	Extension (only for data conversion) (e.g. telebox)
73	TIME_ZONE	☐	AD_TZONE	TZNZONE	CHAR	6	0	Address time zone	TTZZ
74	TAXJURCODE	☐	AD_TXJCD	AD_TXJCD	CHAR	15	0	Tax Jurisdiction
75	ADDRESS_ID	☐	AD_ADDR_ID	AD_ADDR_ID	CHAR	10	0	(Not supported) Physical address ID
76	REMARK	☐	AD_REMARK1	TEXT50	CHAR	50	0	Address notes
77	LANGU_CREA	☐	AD_LANGUCR	SPRAS	LANG	1	0	Address record creation original language	T002
78	DEFLT_COMM	☐	AD_COMM	AD_COMM	CHAR	3	0	Communication Method (Key) (Business Address Services)	TSAC
79	SFLAG	☐	XFELD	XFELD	CHAR	1	0	Checkbox

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	COM_DYNP_PARTNER_UI	ADDRORIGIN	TSAD6	ORIGIN	REF	C	CN
2	COM_DYNP_PARTNER_UI	CITYH_CODE	ADRCITY	CITY_CODE	REF	C	CN
3	COM_DYNP_PARTNER_UI	CITYP_CODE	ADRCITYPRT	CITYP_CODE	REF	C	CN
4	COM_DYNP_PARTNER_UI	CITY_CODE	ADRCITY	CITY_CODE	REF	C	CN
5	COM_DYNP_PARTNER_UI	CITY_CODE2	ADRCITY	CITY_CODE	REF	C	CN
6	COM_DYNP_PARTNER_UI	COUNTRY	T005	LAND1	REF	C	CN
7	COM_DYNP_PARTNER_UI	DEFLT_COMM	TSAC	COMM_TYPE	REF	C	CN
8	COM_DYNP_PARTNER_UI	DONT_USE_P	TSAD12	UNDELIVER	KEY	C	CN
9	COM_DYNP_PARTNER_UI	DONT_USE_S	TSAD12	UNDELIVER	REF	C	CN
10	COM_DYNP_PARTNER_UI	LANGU	T002	SPRAS	REF	C	CN
11	COM_DYNP_PARTNER_UI	LANGU_CREA	T002	SPRAS	REF	C	CN
12	COM_DYNP_PARTNER_UI	PO_BOX_CTY	T005	LAND1	REF	C	CN
13	COM_DYNP_PARTNER_UI	PO_BOX_REG	T005S	BLAND	REF	C	CN
14	COM_DYNP_PARTNER_UI	REGIOGROUP	ADRREGGRP	REGIOGROUP	REF	C	CN
15	COM_DYNP_PARTNER_UI	REGION	T005S	BLAND	REF	C	CN
16	COM_DYNP_PARTNER_UI	STREETABBR	ADRSTRTYPE	STRTYPEAB	REF	C	CN
17	COM_DYNP_PARTNER_UI	STREETCODE	ADRSTREET	STRT_CODE	REF	C	CN
18	COM_DYNP_PARTNER_UI	TIME_ZONE	TTZZ	TZONE	REF	C	CN
19	COM_DYNP_PARTNER_UI	TITLE	TSAD3	TITLE	REF	C	CN
20	COM_DYNP_PARTNER_UI	TRANSPZONE	TZONE	ZONE1	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	30A
