SAP ABAP Table CCM_IC_COMP_SEARCH_POP_LAYOUT (Layout for IBase search dialog box in IC)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-CIC (Application Component) Interaction Center WinClient
     ⤷ CRM_CIC_COMPONENTS (Package) Interaction Center components

Basic Data

Table Category	INTTAB	Structure

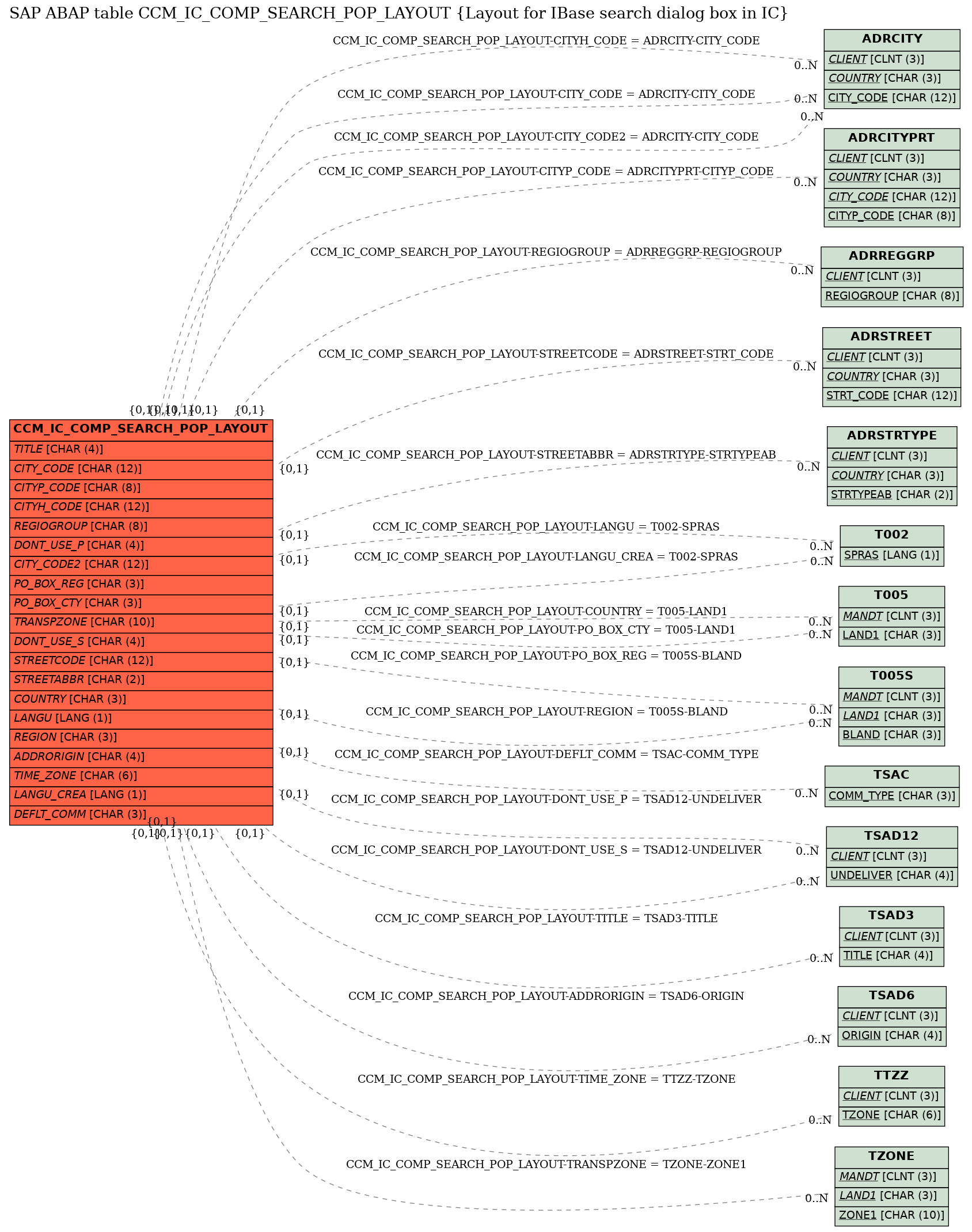

Structure	CCM_IC_COMP_SEARCH_POP_LAYOUT	Table Relationship Diagram
Short Description	Layout for IBase search dialog box in IC

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	IB: Export Data IBase Component for API
2	GUID_COMP	☐	IB_RECNO_16	SYSUUID	RAW	16	0	IBase: Record Number 16 Characters
3	GUID_COMPC	☐	IB_RECNO_16	SYSUUID	RAW	16	0	IBase: Record Number 16 Characters
4	INSTANCE	☐	IB_INSTANCE	IB_INSTANCE	NUMC	18	0	IB: Component (instance)
5	IBASE	☐	IB_IBASE	IB_INSTANCE	NUMC	18	0	IBase: Number of the Installed Base/IBase
6	OBJECTTYP	☐	IB_OBJTYP_INSTANCE	IB_OBJTYP_INSTANCE	CHAR	4	0	IB: Object Type of Component Master Record
7	EXTOBJTYP	☐	IBOBJTYP	CHAR10	CHAR	10	0	IB: External Type of a (Referencing) Object
8	OBJECT_GUID	☐	IB_OBJNR_GUID16	SYSUUID	RAW	16	0	IB: Reference to Object as GUID X16
9	DEVICEID	☐	IB_DEVICEID	IB_DEVICEID	CHAR	40	0	IB: Identification
10	DESCR	☐	IB_INST_DESCR	TEXT40	CHAR	40	0	IB: Component Description
11	PRODUCT_ID	☐	COMT_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Product ID
12	PRODUCT_GUID	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
13	OBJECT_ID	☐	COMT_PRODUCT_OBJECT_ID	COM_PRODUCT_ID	CHAR	40	0	Object ID
14	OBJECT_FAMILY	☐	COMT_PRODUCT_OBJECT_FAMILY	COM_PRODUCT_OBJECT_FAMILY	CHAR	4	0	Object Family	*
15	LOGSYS	☐	COMT_LOGSYS	LOGSYS	CHAR	10	0	Original System	*
16	PRODUCT_TYPE	☐	COMT_PRODUCT_TYPE	COM_PRODUCT_TYPE	CHAR	2	0	Product Type	*
17	IBASE_AS_A_COMP	☐	IB_IBASE	IB_INSTANCE	NUMC	18	0	IBase: Number of the Installed Base/IBase
18	DESCR_COMP	☐	IB_INST_DESCR	TEXT40	CHAR	40	0	IB: Component Description
19	ADDINFO	☐	IB_ADDINFO	CHAR40	CHAR	40	0	IBase: Additional Information Component
20	AMOUNT	☐	MENGV13	MENGV13	QUAN	13	3	Quantity field, length 13, with +/- sign
21	UNIT	☐	MEINS	MEINS	UNIT	3	0	Base Unit of Measure	*
22	SORTF	☐	IB_SORTF	CHAR10	CHAR	10	0	Sort string
23	POSNO	☐	IB_POSNO	CHAR4	CHAR	4	0	IB: Item number
24	OBJNR	☐	IB_OBJNR_16	SYSUUID	RAW	16	0	IB: Component Assignment
25	VALFR	☐	IB_VALFR	BCOS_TSTMP	DEC	15	0	IBase: Valid From
26	VALTO	☐	IB_VALTO	BCOS_TSTMP	DEC	15	0	IBase: Valid To
27	VOID	☐	IB_VOID	XFELD	CHAR	1	0	iBase: Void Komponente
28	DESCR_EXT	☐	COMT_PRSHTEXTX	PRSHTEXT40	CHAR	40	0	Product Description
29	.INCLUDE	☐				0	0
30	ADDRNUMBER	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	*
31	ADDRHANDLE	☐	AD_HANDLE	TEXT140	CHAR	140	0	Handle for Creating Addresses/Persons (Bus. Addr. Services)
32	NATION	☐	AD_NATION	AD_NATION	CHAR	1	0	Version ID for International Addresses	*
33	DATE	☐	AD_DATE	DATUM	DATS	8	0	Date referred to
34	DATE_FROM	☐	AD_DATE_FR	DATUM	DATS	8	0	Valid-from date - in current Release only 00010101 possible
35	DATE_TO	☐	AD_DATE_TO	DATUM	DATS	8	0	Valid-to date in current Release only 99991231 possible
36	TITLE	☐	AD_TITLE	AD_TITLE	CHAR	4	0	Form-of-Address Key	TSAD3
37	NAME1	☐	AD_NAME1	TEXT40	CHAR	40	0	Name 1
38	NAME2	☐	AD_NAME2	TEXT40	CHAR	40	0	Name 2
39	NAME3	☐	AD_NAME3	TEXT40	CHAR	40	0	Name 3
40	NAME4	☐	AD_NAME4	TEXT40	CHAR	40	0	Name 4
41	NAME_TXT	☐	AD_NAMETXT	TEXT50	CHAR	50	0	Converted name field (with form of address)
42	NAME_CO	☐	AD_NAME_CO	TEXT40	CHAR	40	0	c/o name
43	CITY1	☐	AD_CITY1	TEXT40	CHAR	40	0	City
44	CITY2	☐	AD_CITY2	TEXT40	CHAR	40	0	District
45	CITY_CODE	☐	AD_CITYNUM	CITY_CODE	CHAR	12	0	City code for city/street file	ADRCITY
46	CITYP_CODE	☐	AD_CITYPNM	CITYP_CODE	CHAR	8	0	District code for City and Street file	ADRCITYPRT
47	HOME_CITY	☐	AD_CITY3	TEXT40	CHAR	40	0	City (different from postal city)
48	CITYH_CODE	☐	AD_CITYHNM	CITY_CODE	CHAR	12	0	Different city for city/street file	ADRCITY
49	CHCKSTATUS	☐	AD_CHECKST	AD_CHECKST	CHAR	1	0	City file test status
50	REGIOGROUP	☐	REGIOGROUP	REGIOGROUP	CHAR	8	0	Regional structure grouping	ADRREGGRP
51	POST_CODE1	☐	AD_PSTCD1	CHAR10	CHAR	10	0	City postal code
52	POST_CODE2	☐	AD_PSTCD2	CHAR10	CHAR	10	0	PO Box postal code
53	POST_CODE3	☐	AD_PSTCD3	CHAR10	CHAR	10	0	Company postal code (for large customers)
54	PCODE1_EXT	☐	AD_PST1XT	CHAR10	CHAR	10	0	(Not Supported)City Postal Code Extension, e.g. ZIP+4+2 Code
55	PCODE2_EXT	☐	AD_PST2XT	CHAR10	CHAR	10	0	(Not Supported) PO Box Postal Code Extension
56	PCODE3_EXT	☐	AD_PST3XT	CHAR10	CHAR	10	0	(Not Supported) Major Customer Postal Code Extension
57	PO_BOX	☐	AD_POBX	CHAR10	CHAR	10	0	PO Box
58	DONT_USE_P	☐	AD_NO_USEP	AD_NO_USE	CHAR	4	0	PO Box Address Undeliverable Flag	TSAD12
59	PO_BOX_NUM	☐	AD_POBXNUM	XFELD	CHAR	1	0	Flag: PO Box without number
60	PO_BOX_LOC	☐	AD_POBXLOC	TEXT40	CHAR	40	0	PO Box city
61	CITY_CODE2	☐	AD_CIT2NUM	CITY_CODE	CHAR	12	0	City PO box code (City file)	ADRCITY
62	PO_BOX_REG	☐	AD_POBXREG	REGIO	CHAR	3	0	Region for PO Box (Country, State, Province, ...)	T005S
63	PO_BOX_CTY	☐	AD_POBXCTY	LAND1	CHAR	3	0	PO box country	T005
64	POSTALAREA	☐	AD_PSTLAR	TEXT15	CHAR	15	0	(Not Supported) Post Delivery District
65	TRANSPZONE	☐	LZONE	ZONE	CHAR	10	0	Transportation zone to or from which the goods are delivered	TZONE
66	STREET	☐	AD_STREET	TEXT60	CHAR	60	0	Street
67	DONT_USE_S	☐	AD_NO_USES	AD_NO_USE	CHAR	4	0	Street Address Undeliverable Flag	TSAD12
68	STREETCODE	☐	AD_STRNUM	STRT_CODE	CHAR	12	0	Street Number for City/Street File	ADRSTREET
69	STREETABBR	☐	AD_STRABBR	STRTYPEAB	CHAR	2	0	(Not Supported) Abbreviation of Street Name	ADRSTRTYPE
70	HOUSE_NUM1	☐	AD_HSNM1	TEXT10	CHAR	10	0	House Number
71	HOUSE_NUM2	☐	AD_HSNM2	TEXT10	CHAR	10	0	House number supplement
72	HOUSE_NUM3	☐	AD_HSNM3	TEXT10	CHAR	10	0	(Not supported) House Number Range
73	STR_SUPPL1	☐	AD_STRSPP1	TEXT40	CHAR	40	0	Street 2
74	STR_SUPPL2	☐	AD_STRSPP2	TEXT40	CHAR	40	0	Street 3
75	STR_SUPPL3	☐	AD_STRSPP3	TEXT40	CHAR	40	0	Street 4
76	LOCATION	☐	AD_LCTN	TEXT40	CHAR	40	0	Street 5
77	BUILDING	☐	AD_BLDNG	TEXT20	CHAR	20	0	Building (Number or Code)
78	FLOOR	☐	AD_FLOOR	TEXT10	CHAR	10	0	Floor in building
79	ROOMNUMBER	☐	AD_ROOMNUM	TEXT10	CHAR	10	0	Room or Appartment Number
80	COUNTRY	☐	LAND1	LAND1	CHAR	3	0	Country Key	T005
81	LANGU	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
82	REGION	☐	REGIO	REGIO	CHAR	3	0	Region (State, Province, County)	T005S
83	SORT1	☐	AD_SORT1	CHAR20	CHAR	20	0	Search Term 1
84	SORT2	☐	AD_SORT2	CHAR20	CHAR	20	0	Search Term 2
85	SORT_PHN	☐	AD_SRTPHN	CHAR20	CHAR	20	0	(Not Supported) Phonetic Search Sort Field
86	ADDRORIGIN	☐	AD_ORIGINA	AD_ORIGIN	CHAR	4	0	(Not Supported) Address Data Source (Key)	TSAD6
87	EXTENSION1	☐	AD_EXTENS1	TEXT40	CHAR	40	0	Extension (only for data conversion) (e.g. data line)
88	EXTENSION2	☐	AD_EXTENS2	TEXT40	CHAR	40	0	Extension (only for data conversion) (e.g. telebox)
89	TIME_ZONE	☐	AD_TZONE	TZNZONE	CHAR	6	0	Address time zone	TTZZ
90	TAXJURCODE	☐	AD_TXJCD	AD_TXJCD	CHAR	15	0	Tax Jurisdiction
91	ADDRESS_ID	☐	AD_ADDR_ID	AD_ADDR_ID	CHAR	10	0	(Not supported) Physical address ID
92	REMARK	☐	AD_REMARK1	TEXT50	CHAR	50	0	Address notes
93	LANGU_CREA	☐	AD_LANGUCR	SPRAS	LANG	1	0	Address record creation original language	T002
94	DEFLT_COMM	☐	AD_COMM	AD_COMM	CHAR	3	0	Communication Method (Key) (Business Address Services)	TSAC
95	TEL_NUMBER	☐	AD_TLNMBR1	CHAR30	CHAR	30	0	First telephone no.: dialling code+number
96	TEL_EXTENS	☐	AD_TLXTNS1	CHAR10	CHAR	10	0	First Telephone No.: Extension
97	FAX_NUMBER	☐	AD_FXNMBR1	CHAR30	CHAR	30	0	First fax no.: dialling code+number
98	FAX_EXTENS	☐	AD_FXXTNS1	CHAR10	CHAR	10	0	First fax no.: extension
99	ADDR_GROUP	☐	AD_GROUP	AD_GROUP	CHAR	4	0	Address Group (Key) (Business Address Services)	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CCM_IC_COMP_SEARCH_POP_LAYOUT	ADDRORIGIN	TSAD6	ORIGIN	REF	C	CN
2	CCM_IC_COMP_SEARCH_POP_LAYOUT	CITYH_CODE	ADRCITY	CITY_CODE	REF	C	CN
3	CCM_IC_COMP_SEARCH_POP_LAYOUT	CITYP_CODE	ADRCITYPRT	CITYP_CODE	REF	C	CN
4	CCM_IC_COMP_SEARCH_POP_LAYOUT	CITY_CODE	ADRCITY	CITY_CODE	REF	C	CN
5	CCM_IC_COMP_SEARCH_POP_LAYOUT	CITY_CODE2	ADRCITY	CITY_CODE	REF	C	CN
6	CCM_IC_COMP_SEARCH_POP_LAYOUT	COUNTRY	T005	LAND1	REF	C	CN
7	CCM_IC_COMP_SEARCH_POP_LAYOUT	DEFLT_COMM	TSAC	COMM_TYPE	REF	C	CN
8	CCM_IC_COMP_SEARCH_POP_LAYOUT	DONT_USE_P	TSAD12	UNDELIVER	KEY	C	CN
9	CCM_IC_COMP_SEARCH_POP_LAYOUT	DONT_USE_S	TSAD12	UNDELIVER	REF	C	CN
10	CCM_IC_COMP_SEARCH_POP_LAYOUT	LANGU	T002	SPRAS	REF	C	CN
11	CCM_IC_COMP_SEARCH_POP_LAYOUT	LANGU_CREA	T002	SPRAS	REF	C	CN
12	CCM_IC_COMP_SEARCH_POP_LAYOUT	PO_BOX_CTY	T005	LAND1	REF	C	CN
13	CCM_IC_COMP_SEARCH_POP_LAYOUT	PO_BOX_REG	T005S	BLAND	REF	C	CN
14	CCM_IC_COMP_SEARCH_POP_LAYOUT	REGIOGROUP	ADRREGGRP	REGIOGROUP	REF	C	CN
15	CCM_IC_COMP_SEARCH_POP_LAYOUT	REGION	T005S	BLAND	REF	C	CN
16	CCM_IC_COMP_SEARCH_POP_LAYOUT	STREETABBR	ADRSTRTYPE	STRTYPEAB	REF	C	CN
17	CCM_IC_COMP_SEARCH_POP_LAYOUT	STREETCODE	ADRSTREET	STRT_CODE	REF	C	CN
18	CCM_IC_COMP_SEARCH_POP_LAYOUT	TIME_ZONE	TTZZ	TZONE	REF	C	CN
19	CCM_IC_COMP_SEARCH_POP_LAYOUT	TITLE	TSAD3	TITLE	REF	C	CN
20	CCM_IC_COMP_SEARCH_POP_LAYOUT	TRANSPZONE	TZONE	ZONE1	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
