SAP ABAP Table BIW_ISU_DEVICE_I (BW Extract Structure for IS-U Device)

Hierarchy

☛ IS-UT (Software Component) SAP Utilities/Telecommunication
   ⤷ IS-U-IS-ST (Application Component) Statistics
     ⤷ EE71_R461 (Package) IS-U: BW Extractors

Basic Data

Table Category	INTTAB	Structure

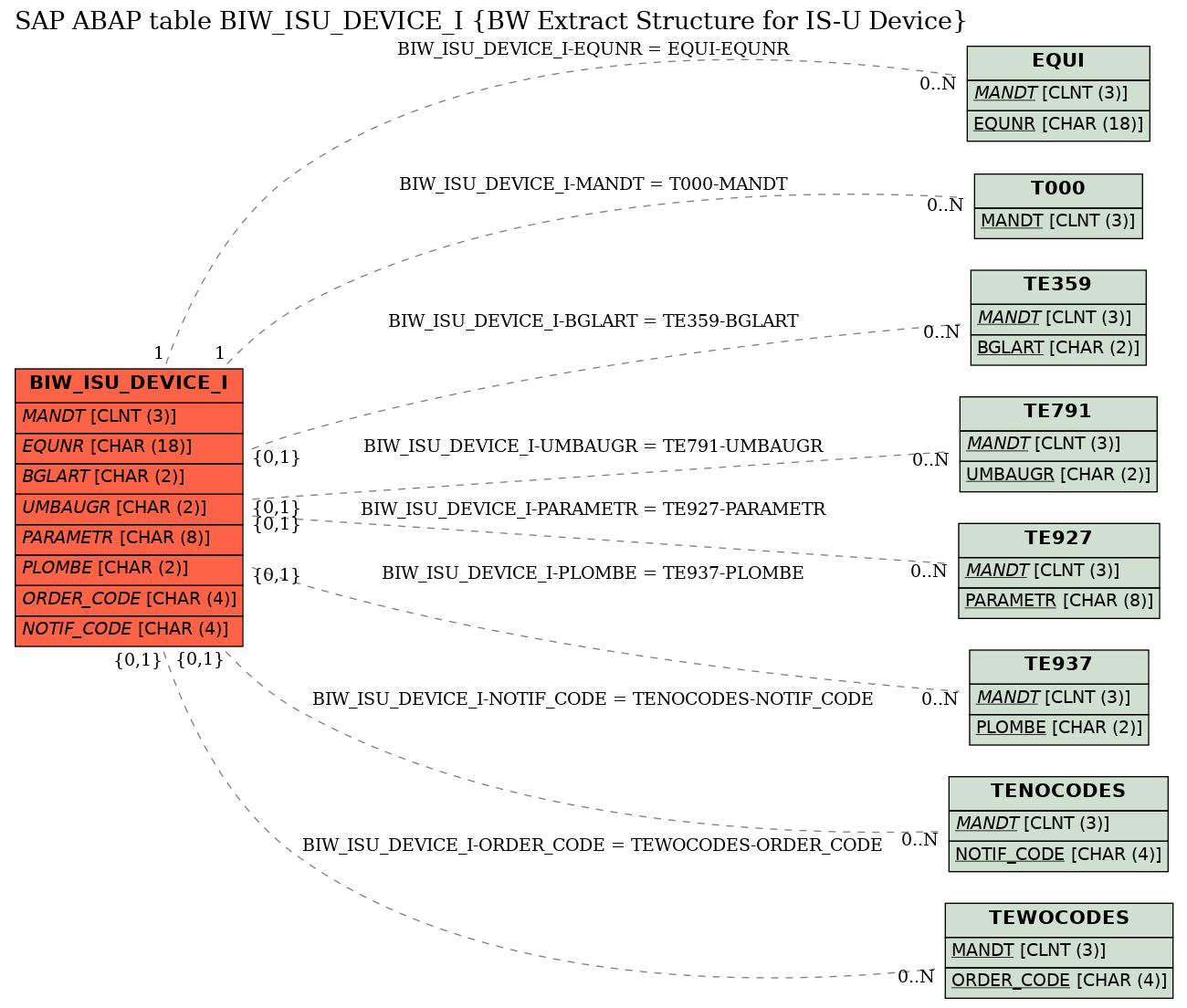

Structure	BIW_ISU_DEVICE_I	Table Relationship Diagram
Short Description	BW Extract Structure for IS-U Device

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Generated Table for View BIW_ISU_EGERS
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	EQUNR	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number	EQUI
4	EAGRUPPE	☐	EAGRUPPE	GEGST	CHAR	8	0	Input/output group
5	KOMGRP	☐	KOMGRP	GEGST	CHAR	8	0	ARCR Command Group
6	LOS	☐	LOS	GEGST	CHAR	8	0	Sample lot
7	MESSDRCK	☐	MESSDRCK	MESSDRCK	DEC	7	4	Measured Pressure (Outlet Pressure) in Bars	*
8	UEBERVER	☐	UEBERVER	UEBERV	DEC	10	3	Transformation ratio
9	BESITZ	☐	BESITZ	BESITZ	NUMC	2	0	Inspection relevance of device	*
10	BGLJAHR	☐	BGLJAHR	JAHR	NUMC	4	0	Certification Year
11	WECHSEL	☐	WECHSEL	JAHR	NUMC	4	0	Advance replacement year
12	BGLSTAT	☐	BGLSTAT	BGLSTAT	CHAR	1	0	Certification status
13	KZSTICH	☐	KZSTICH	KZSTICH	CHAR	1	0	Status of sample device
14	SCHWGRAD	☐	SCHWGRAD	DEC2_1	DEC	3	1	Difficulty level: Factor for meter reader payment
15	PLOMBDAT	☐	PLOMBDAT	DATUM	DATS	8	0	Date of last lead sealing
16	BGLART	☐	BGLART	BGLART	CHAR	2	0	Type of certification	TE359
17	BGLNUM	☐	BGLNUM	CHAR15	CHAR	15	0	Certification number
18	UMBAUDAT	☐	UMBAUDAT	DATUM	DATS	8	0	Modification date
19	UMBAUGR	☐	UMBAUGR	UMBAUGR	CHAR	2	0	Modification reason	TE791
20	EICHFAEL	☐	EICHFAEL	KENNZX	CHAR	1	0	Use calibration validity
21	PARAMETR	☐	PARAMETR	PARAMETR	CHAR	8	0	Parametrization	TE927
22	PLOMBE	☐	PLOMBE	PLOMBE	CHAR	2	0	Seal code	TE937
23	ZSPANNS	☐	E_ZSPANNS	SPANNUNG	DEC	4	1	Register factor: secondary transformer voltage
24	ZSTROMS	☐	E_ZSTROMS	E_ZSTROMS	DEC	5	2	Register factor: secondary transformer current
25	ZSPANNP	☐	E_ZSPANNP	WSPANNP	DEC	6	0	Register factor: primary transformer voltage
26	ZSTROMP	☐	E_ZSTROMP	E_ZSTROMP	DEC	5	1	Register factor: primary transformer current
27	BGLNETZ	☐	BGLNETZ	KENNZX	CHAR	1	0	Certify installed devices
28	ORDER_CODE	☐	ORDERCODE2	CHAR004	CHAR	4	0	Special Order Code for Dev./Dev. Category in Replacement	TEWOCODES
29	APPROVALNR	☐	APPROVALNR	CHAR15	CHAR	15	0	Device inspection number
30	VLZEIT_DEV	☐	VLZEIT_DEV	ALLGVLZEIT	DEC	2	0	Individual cal. validity (years) of dev. subject to certif.
31	NOTIF_CODE	☐	NOTIF_CODE	CHAR004	CHAR	4	0	Notification code	TENOCODES
32	.INCLUDE	☐				0	0	Generated Table for View BIW_ISU_EGERH
33	BIS	☐	BISZEITSCH	DATUM	DATS	8	0	Date at Which a Time Slice Expires
34	AB	☐	ABZEITSCH	DATUM	DATS	8	0	Date from which time slice is valid
35	KOMBINAT	☐	KOMBINAT	KOMBINAT	CHAR	8	0	Combination of a device category
36	LOGIKNR	☐	LOGIKNR	LOGIKNR	NUMC	18	0	Logical device number
37	ZWGRUPPE	☐	E_ZWGRUPPE	GEGST	CHAR	8	0	Register Group
38	EINBDAT	☐	EINBDAT	DATUM	DATS	8	0	Installation date
39	AUSBDAT	☐	AUSBDAT	DATUM	DATS	8	0	Device removal date
40	GERWECHS	☐	GERWECHS	GERWECHS	CHAR	2	0	Activity reason	*
41	DEVLOC	☐	DEVLOC	TPLNR	CHAR	30	0	Device Location	*
42	DEVGRP	☐	DEVGRP	DEVGRP	CHAR	8	0	Device group	*
43	WGRUPPE	☐	WGRUPPE	GEGST	CHAR	8	0	Winding group
44	PRIMWNR1	☐	PRIMWNR	LFDNR2	NUMC	2	0	Winding number of active primary winding
45	SEKWNR1	☐	SEKWNR	LFDNR2	NUMC	2	0	Winding number of active secondary winding
46	PRIMWNR2	☐	PRIMWNR	LFDNR2	NUMC	2	0	Winding number of active primary winding
47	SEKWNR2	☐	SEKWNR	LFDNR2	NUMC	2	0	Winding number of active secondary winding
48	BGLBIS	☐	BGLBIS	JAHR	NUMC	4	0	Next replacement year
49	BGLKENN	☐	BGLKENN	BGLKENN	CHAR	2	0	Determination of dev.req.planning/rep.yr from certification
50	MATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	*
51	WERK	☐	WERKS_D	WERKS	CHAR	4	0	Plant	*
52	LAGER	☐	LGORT_D	LGORT	CHAR	4	0	Storage location	*
53	BAUJJ	☐	BAUJJ	CJAHR	CHAR	4	0	Year of construction
54	ADRNR	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	*
55	CITY_CODE	☐	AD_CITYNUM	CITY_CODE	CHAR	12	0	City code for city/street file	*
56	CITYP_CODE	☐	AD_CITYPNM	CITYP_CODE	CHAR	8	0	District code for City and Street file	*
57	STREETCODE	☐	AD_STRNUM	STRT_CODE	CHAR	12	0	Street Number for City/Street File	*
58	COUNTRY	☐	LAND1	LAND1	CHAR	3	0	Country Key	*
59	REGION	☐	REGIO	REGIO	CHAR	3	0	Region (State, Province, County)	*
60	STATANZ	☐	STATANZ	STATANZ	INT4	10	0	Number in statistics
61	REGPOLIT	☐	REGPOLIT	REGPOLIT	CHAR	8	0	Political regional structure element	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BIW_ISU_DEVICE_I	BGLART	TE359	BGLART	REF	C	CN
2	BIW_ISU_DEVICE_I	EQUNR	EQUI	EQUNR	KEY	1	CN
3	BIW_ISU_DEVICE_I	MANDT	T000	MANDT	KEY	1	CN
4	BIW_ISU_DEVICE_I	NOTIF_CODE	TENOCODES	NOTIF_CODE	KEY	C	CN
5	BIW_ISU_DEVICE_I	ORDER_CODE	TEWOCODES	ORDER_CODE	KEY	C	CN
6	BIW_ISU_DEVICE_I	PARAMETR	TE927	PARAMETR	REF	C	CN
7	BIW_ISU_DEVICE_I	PLOMBE	TE937	PLOMBE	REF	C	CN
8	BIW_ISU_DEVICE_I	UMBAUGR	TE791	UMBAUGR	REF	C	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
