SAP ABAP Table SKBED (Capacity requirements for sub-operation - log. DB)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-CIC (Application Component) Interaction Center WinClient
⤷ CO (Package) R/3 Application development: PP Production orders
⤷ CRM-CIC (Application Component) Interaction Center WinClient
⤷ CO (Package) R/3 Application development: PP Production orders
Basic Data
Table Category | INTTAB | Structure |
Structure | SKBED | Table Relationship Diagram |
Short Description | Capacity requirements for sub-operation - log. DB |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | .INCLUDE | 0 | 0 | Capacity Requirements Records | |||||
2 | MANDT | MANDT | MANDT | CLNT | 3 | 0 | Client | T000 | |
3 | BEDID | BEDID | BEDID | NUMC | 12 | 0 | ID of the capacity requirements record | KBKO | |
4 | BEDZL | CIM_COUNT | CIM_COUNT | NUMC | 8 | 0 | Internal counter | ||
5 | CANUM | CY_COUNT | CY_COUNT | NUMC | 4 | 0 | Counters for cap. rqmts. records (various caps. + indiv.caps | * | |
6 | .INCLUDE | 0 | 0 | KBED Include structure (cap. reqmnts records) | |||||
7 | ARBID | ARBPLATZ | NUM08 | NUMC | 8 | 0 | Work center ID | ||
8 | TYPKZ | TYPKZ | TYPKZ | CHAR | 1 | 0 | Type of object causing the load (order category) | ||
9 | OBJKZ | OBJKZ | OBJKZ | CHAR | 1 | 0 | Indicator: Remaining split record | ||
10 | KAPID | KAPID | KAPID | NUMC | 8 | 0 | Capacity ID | KAKO | |
11 | BEDKZ | BEDKZ | X | CHAR | 1 | 0 | Indicator: Remaining split record | ||
12 | KRUESOLL | CY_KRUESOL | KAPBED | FLTP | 16 | 16 | Scheduled cap. requirements for the op. segment "setup" | ||
13 | KRUEREST | CY_KRUERES | KAPBED | FLTP | 16 | 16 | Remaining capacity rqmts. for operation segment "Setup" | ||
14 | KBEASOLL | CY_KBEASOL | KAPBED | FLTP | 16 | 16 | Process target capacity requirements for operation segment | ||
15 | KBEAREST | CY_KBEARES | KAPBED | FLTP | 16 | 16 | Remaining capacity rqmts.for operation segment "Processing" | ||
16 | KABRSOLL | CY_KABRSOL | KAPBED | FLTP | 16 | 16 | Scheduled cap. requirements for the op. segment teardown | ||
17 | KABRREST | CY_KABRRES | KAPBED | FLTP | 16 | 16 | Remaining capacity requirements for op. segment "tear down" | ||
18 | KEINH | CY_KEINH | MEINS | UNIT | 3 | 0 | Unit of of measure for displaying capacity requirements | T006 | |
19 | FSTAD | FSTAD | DATUM | DATS | 8 | 0 | Earliest start / date | ||
20 | FSTAU | FSTAU | T | TIMS | 6 | 0 | Earliest start / time | ||
21 | FENDD | FENDD | DATUM | DATS | 8 | 0 | Earliest finish /date | ||
22 | FENDU | FENDU | T | TIMS | 6 | 0 | Earliest finish /time | ||
23 | SSTAD | SSTAD | DATUM | DATS | 8 | 0 | Latest start / date | ||
24 | SSTAU | SSTAU | T | TIMS | 6 | 0 | Latest start / time | ||
25 | SENDD | SENDD | DATUM | DATS | 8 | 0 | Latest finish / date | ||
26 | SENDU | SENDU | T | TIMS | 6 | 0 | Latest finish / time | ||
27 | ISTAD | ISTAD | DATUM | DATS | 8 | 0 | Actual start / date | ||
28 | ISTAU | ISTAU | T | TIMS | 6 | 0 | Actual start / time | ||
29 | IENDD | IENDD | DATUM | DATS | 8 | 0 | Actual finish / date | ||
30 | IENDU | IENDU | T | TIMS | 6 | 0 | Actual finish / time | ||
31 | PENDD | PENDD | DATUM | DATS | 8 | 0 | Forecast finish / date | ||
32 | PENDU | PENDU | T | TIMS | 6 | 0 | Forecast finish / time | ||
33 | ISPLI | ISPLI | SPLITTANZ | DEC | 3 | 0 | Actual number of splits | ||
34 | KPVER | CR_VERTL | CR_VERTL | CHAR | 8 | 0 | Distribution of capacity requirements (Planned/prod.order) | TC29 | |
35 | OBSTA | OBSTA | J_OBJNR | CHAR | 22 | 0 | Object status (order status) | ONR00 | |
36 | AUFPL | CO_AUFPL | AUFPL | NUMC | 10 | 0 | Routing number of operations in the order | ||
37 | APLZL | CO_APLZL | CO_APLZL | NUMC | 8 | 0 | General counter for order | AFVC | |
38 | PLNUM | PLNUM | PLNUM | CHAR | 10 | 0 | Planned order number | PLAF | |
39 | PLNTY | PLNTY | PLNTY | CHAR | 1 | 0 | Task List Type | TCA01 | |
40 | PLNNR | PLNNR | PLNNR | CHAR | 8 | 0 | Key for Task List Group | ||
41 | PLNAL | PLNAL | ALTNR | CHAR | 2 | 0 | Group Counter | ||
42 | ZAEHL | CIM_COUNT | CIM_COUNT | NUMC | 8 | 0 | Internal counter | ||
43 | PLNFL | PLNFOLGE | PLNFOLGE | CHAR | 6 | 0 | Sequence | ||
44 | ZAEHF | CIM_COUNT | CIM_COUNT | NUMC | 8 | 0 | Internal counter | ||
45 | PLNKN | PLNKN | KNTNR | NUMC | 8 | 0 | Number of the task list node | ||
46 | ZAEHP | CIM_COUNT | CIM_COUNT | NUMC | 8 | 0 | Internal counter | ||
47 | SPLKN | SPLNKN | KNTNR | NUMC | 8 | 0 | Number of the task list node of the sub-operation | ||
48 | SZAEHL | CIM_COUNT | CIM_COUNT | NUMC | 8 | 0 | Internal counter | ||
49 | SAFNR | SAFNR | SAFNR | CHAR | 10 | 0 | SOP order number | ||
50 | VORNR | VORNR | VORNR | CHAR | 4 | 0 | Operation/Activity Number | ||
51 | OTYPE | OTYPE | OTYPE | CHAR | 2 | 0 | Object Type | T778O | |
52 | PERNR | PERNR_D | PERNR | NUMC | 8 | 0 | Personnel Number | ||
53 | CANUMF | CANUMF | NUM4 | NUMC | 4 | 0 | Counter for the main capacity requirements record | ||
54 | SPLIT | CY_SPLIT | INT1 | INT1 | 3 | 0 | Split number | ||
55 | KBSTA | CY_KBSTA | J_OBJNR | CHAR | 22 | 0 | Status of a capacity requirements (object number) | ONR00 | |
56 | FSSBD | FSSBD | DATUM | DATS | 8 | 0 | Earliest scheduled start: Processing (date) | ||
57 | FSSBZ | FSSBZ | ATIME | TIMS | 6 | 0 | Earliest scheduled start: Processing (time) | ||
58 | FSSAD | FSSAD | DATUM | DATS | 8 | 0 | Earliest scheduled start: Teardown (date) | ||
59 | FSSAZ | FSSAZ | ATIME | TIMS | 6 | 0 | Earliest scheduled start: Teardown (time) | ||
60 | SSSBD | SSSBD | DATUM | DATS | 8 | 0 | Latest scheduled start: Processing (date) | ||
61 | SSSBZ | SSSBZ | ATIME | TIMS | 6 | 0 | Latest scheduled start: Processing (time) | ||
62 | SSSAD | SSSAD | DATUM | DATS | 8 | 0 | Latest scheduled start: Teardown (date) | ||
63 | SSSAZ | SSSAZ | ATIME | TIMS | 6 | 0 | Latest scheduled start: Teardown (time) | ||
64 | MGVRG | MGVRG | MENG13 | QUAN | 13 | 3 | Operation Quantity | ||
65 | MEINH | VORME | MEINS | UNIT | 3 | 0 | Unit of measure for activity | T006 | |
66 | RSTUF | RSTUF | REDST | NUMC | 1 | 0 | Reduction level which reduces operation lead time | ||
67 | PLSCN | PLSCN | PLSCN | NUMC | 3 | 0 | Planning Scenario of Long-Term Planning | PLSC | |
68 | BSTKZ | CY_BSTKZ | CY_BSTKZ | CHAR | 1 | 0 | Indicator rqmts.record is confirmed (cap.availability check) | ||
69 | BEDZLF | BEDZLF | CIM_COUNT | NUMC | 8 | 0 | BEDZL of Main Operation (for Phases and Their Main Ops) | ||
70 | PHASE_KZ | PHASE_KZ | PHASE_KZ | CHAR | 1 | 0 | Indicator: Phase | ||
71 | MAXBD_KZ | MAXBD_KZ | XFELD | CHAR | 1 | 0 | Indicator: Capacity fully committed | ||
72 | ANZMA | ANZMS | ANZMA | DEC | 5 | 2 | Number of employees |

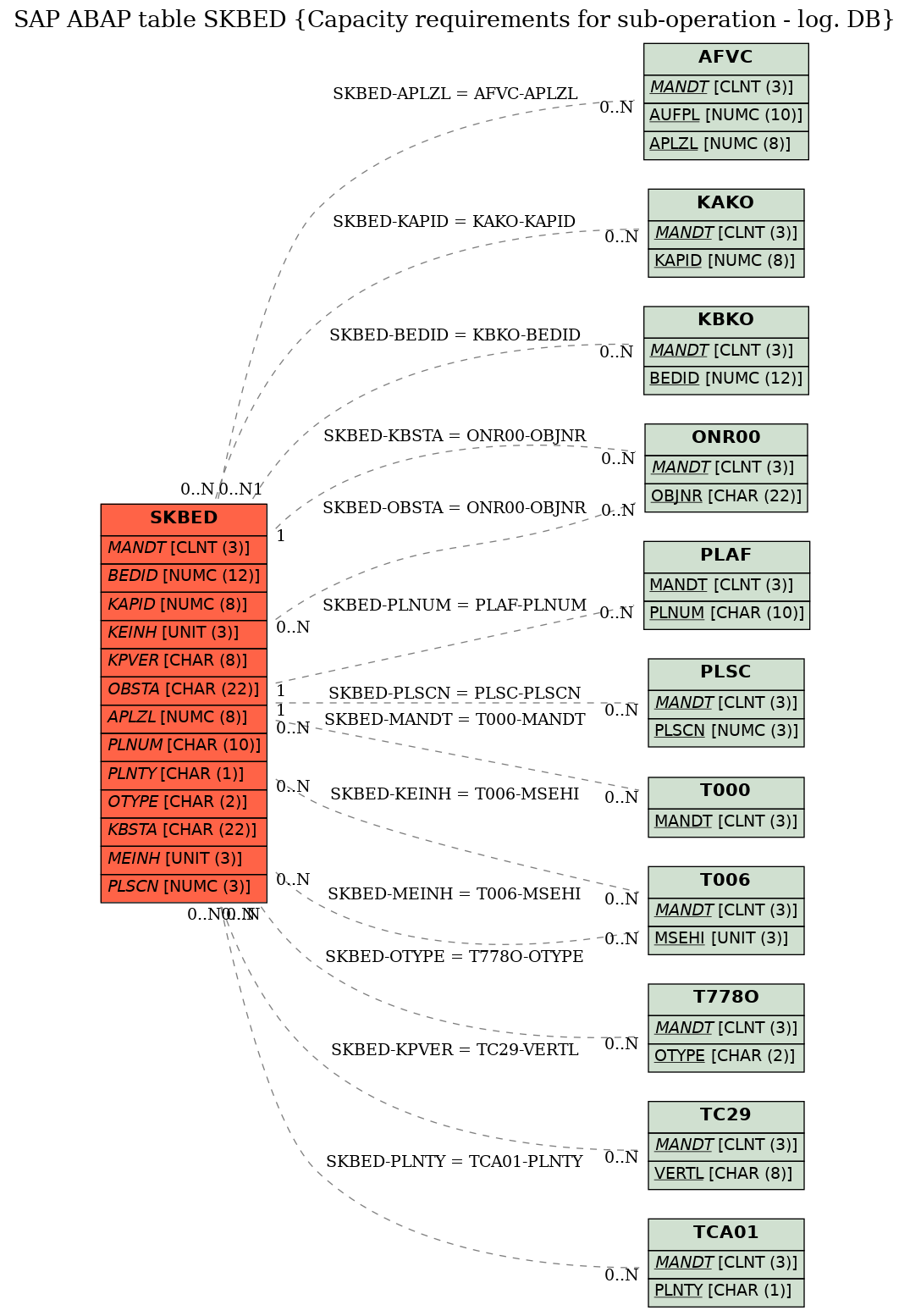

Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | SKBED | APLZL | AFVC | APLZL | |||
2 | SKBED | BEDID | KBKO | BEDID | KEY | 1 | CN |
3 | SKBED | KAPID | KAKO | KAPID | |||
4 | SKBED | KBSTA | ONR00 | OBJNR | KEY | 1 | CN |
5 | SKBED | KEINH | T006 | MSEHI | |||
6 | SKBED | KPVER | TC29 | VERTL | |||
7 | SKBED | MANDT | T000 | MANDT | |||
8 | SKBED | MEINH | T006 | MSEHI | |||
9 | SKBED | OBSTA | ONR00 | OBJNR | |||
10 | SKBED | OTYPE | T778O | OTYPE | |||
11 | SKBED | PLNTY | TCA01 | PLNTY | |||
12 | SKBED | PLNUM | PLAF | PLNUM | KEY | 1 | CN |
13 | SKBED | PLSCN | PLSC | PLSCN | REF | 1 | CN |
History
Last changed by/on | SAP | 20130529 |
SAP Release Created in | 470 |
