SAP ABAP Table ROIJ_BPD_IO (Nomination Partner Information IO Structure)

Hierarchy

☛ IS-OIL (Software Component) IS-OIL
   ⤷ IS-OIL-DS-TSW (Application Component) Trader's and Scheduler's Workbench
     ⤷ OIJ (Package) TSW Traders and Schedulers Workbench

Basic Data

Table Category	INTTAB	Structure

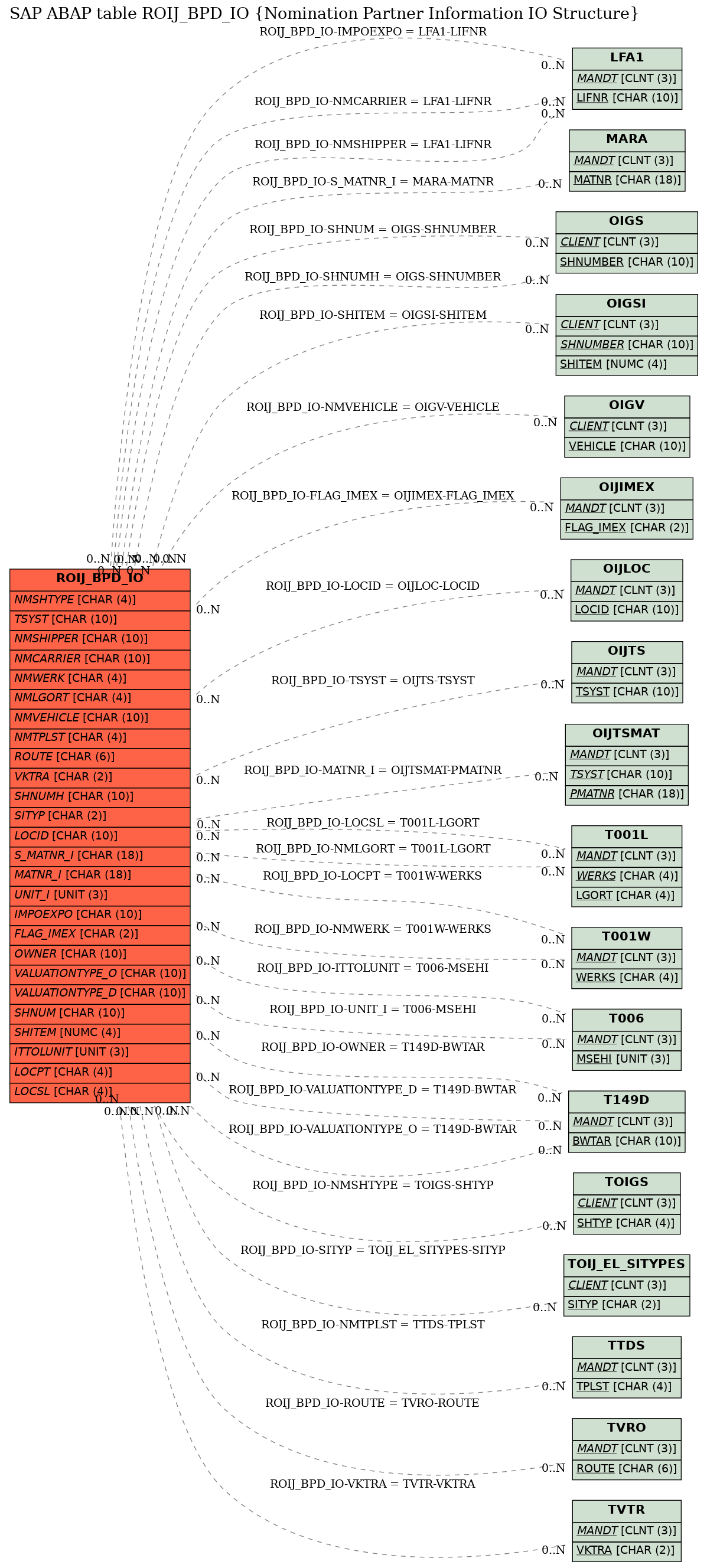

Structure	ROIJ_BPD_IO	Table Relationship Diagram
Short Description	Nomination Partner Information IO Structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	NOMNR	☐	OIJ_NOMNR	OIJ_NOMNR	CHAR	20	0	Nomination number
2	NMSHTYPE	☐	OIG_TDSTYP	OIG_TDSTYP	CHAR	4	0	TD shipment type	TOIGS
3	TSYST	☐	OIJ_TSYST	OIJ_TSYST	CHAR	10	0	Transport system	OIJTS
4	NMSHIPPER	☐	OIJ_SHIPNR	LIFNR	CHAR	10	0	Shipper	LFA1
5	NMCARRIER	☐	OIJ_CARRNR	LIFNR	CHAR	10	0	Transport system Carrier	LFA1
6	CYCLE	☐	OIJ_CYCLE	CHAR10	CHAR	10	0	Nomination Pipeline cycle ID
7	NMWERK	☐	OIJ_WERK	WERKS	CHAR	4	0	Transport system In-transit Plant	T001W
8	NMLGORT	☐	OIJ_LGORT	LGORT	CHAR	4	0	Transport system In-transit Storage Location	T001L
9	NMVEHICLE	☐	OIG_VHLNMR	OIG_VHLNMR	CHAR	10	0	TD Vehicle Number	OIGV
10	NMVESSEL	☐	OIG_VEHID	OIG_LICNMR	CHAR	18	0	TD vehicle identifier
11	NMTPLST	☐	TPLST	TPLST	CHAR	4	0	Transportation planning point	TTDS
12	ROUTE	☐	ROUTE	ROUTE	CHAR	6	0	Route	TVRO
13	VKTRA	☐	VKTRA	VKTRA	CHAR	2	0	Mode of transport	TVTR
14	UNIT	☐	OIJ_NMUNIT	MEINS	UNIT	3	0	Nomination(pipe) UoM	*
15	SHNUMH	☐	OIG_SHNUM	OIG_SHNUM	CHAR	10	0	TD shipment number	OIGS
16	SITYP	☐	OIJ_SITYP	OIJ_SITYP	CHAR	2	0	Schedule type	TOIJ_EL_SITYPES
17	SCHED_TST_FROM	☐	OIJ_SCHED_F	TZNTSTMPS	DEC	15	0	Scheduled / Acceptance / Pipe Batch Start Timestamp
18	SCHED_TST_TO	☐	OIJ_SCHED_T	TZNTSTMPS	DEC	15	0	Scheduled / Acceptance / Pipe Batch End Timestamp
19	LOCID	☐	OIJ_LOCID	OIJ_LOCID	CHAR	10	0	Location ID	OIJLOC
20	S_MATNR_I	☐	OIJ_SMATNR	MATNR	CHAR	18	0	Scheduled material	MARA
21	MATNR_I	☐	OIJ_MATNRI	MATNR	CHAR	18	0	Demand material	OIJTSMAT
22	MENGE	☐	OIJ_MENGE	MENG13	QUAN	13	3	Scheduled qty
23	UNIT_I	☐	OIJ_UNITI	MEINS	UNIT	3	0	Scheduled UoM	T006
24	DOCIND	☐	OIJ_DOCIND	OIJ_DOCIND	CHAR	1	0	Reference document indicator (PSX)
25	DOCNR	☐	OIJ_DOCNR	OIJ_DOCNR	CHAR	10	0	Nomination Reference Document
26	DOCITM	☐	OIJ_DOCITM	NUM06	NUMC	6	0	Nomination Reference Document Item
27	TANK	☐	OIJ_TANKAGE	OIJ_PARTNR	CHAR	10	0	Tankage Partner
28	CONS	☐	OIJ_CONSIGNEE	OIJ_PARTNR	CHAR	10	0	Consignee Partner
29	PARTNR	☐	OIJ_PARTNR	OIJ_PARTNR	CHAR	10	0	Location Partner
30	CONPAT	☐	OIJ_CONPAT	OIJ_PARTNR	CHAR	10	0	Contract Partner
31	INSPE	☐	OIJ_INSPECTOR	OIJ_PARTNR	CHAR	10	0	Inspector
32	IMPOEXPO	☐	OIJ_IMEXPO	LIFNR	CHAR	10	0	Import / Export Partner	LFA1
33	FLAG_IMEX	☐	OIJ_IMEXFL	OIJ_IMEXFL	CHAR	2	0	Import / Export Partner Indicator	OIJIMEX
34	OWNER	☐	BWTAR_D	BWTAR	CHAR	10	0	Valuation type	T149D
35	CHARG_O	☐	OIJ_CHARGO	CHARG	CHAR	10	0	Batch origin Location	*
36	CHARG_D	☐	OIJ_CHARGD	CHARG	CHAR	10	0	Batch destination Location	*
37	RVP	☐	OIJ_RVP	DEC2_1	DEC	3	1	RVP value
38	VALUATIONTYPE_O	☐	OIJ_BWTAR_O	BWTAR	CHAR	10	0	Valuation Type Origin Loc.	T149D
39	VALUATIONTYPE_D	☐	OIJ_BWTAR_D	BWTAR	CHAR	10	0	Valuation Type Destination Loc.	T149D
40	SHNUM	☐	OIG_SHNUM	OIG_SHNUM	CHAR	10	0	TD shipment number	OIGS
41	SHITEM	☐	OIG_SHITM	OIG_SHITM	NUMC	4	0	Shipment item	OIGSI
42	PRORATEQTY	☐	OIJ_PRRA_QTY	MENG13	QUAN	13	3	Prorated Quantity
43	ASSIGNEDQTY	☐	OIJ_ASSG_QTY	MENG13	QUAN	13	3	Assigned Quantity
44	ITBOTOL	☐	OIJ_BOTOL	DEC3_1	DEC	4	1	Quantity tolerance over (percentage)
45	ITBUTOL	☐	OIJ_BUTOL	DEC3_1	DEC	4	1	Quantity tolerance under (%)
46	ITBOTOLABS	☐	OIJ_TOLABO	MENG13	QUAN	13	3	Absolute tolerance qty over
47	ITBUTOLABS	☐	OIJ_TOLABS	MENG13	QUAN	13	3	Absolute tolerance qty under
48	ITTOLUNIT	☐	OIJ_TOLUOM	MEINS	UNIT	3	0	Absolute tolerance UoM	T006
49	UNLIMITED	☐	UEBTK	XFELD	CHAR	1	0	Indicator: Unlimited Overdelivery Allowed
50	LDRATE	☐	OIJ_EL_LDRATE	MENG13	QUAN	13	3	Planned load/discharge rate
51	LDQUOM	☐	OIJ_EL_LDQUOM	MEINS	UNIT	3	0	Planned load/discharge rate quantity UoM	*
52	LDTUOM	☐	OIJ_EL_LDTUOM	MEINS	UNIT	3	0	Planned load/discharge rate time UOM	*
53	THIRD_NOMNR	☐	OIJ_3RD_NOMNR	OIJ_NOMNR	CHAR	20	0	Partner Nomination number
54	LOCPT	☐	OIJ_LOCPT	WERKS	CHAR	4	0	Location Partner Plant	T001W
55	LOCSL	☐	OIJ_LOCSL	LGORT	CHAR	4	0	Location Partner Storage Location	T001L
56	MENGE_R	☐	OIJ_MENGE_R	MENG13	QUAN	13	3	Scheduled Quantity Rate
57	UNIT_I_T	☐	OIJ_UNITI_T	MEINS	UNIT	3	0	Scheduled UoM Time	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	ROIJ_BPD_IO	FLAG_IMEX	OIJIMEX	FLAG_IMEX
2	ROIJ_BPD_IO	IMPOEXPO	LFA1	LIFNR
3	ROIJ_BPD_IO	ITTOLUNIT	T006	MSEHI
4	ROIJ_BPD_IO	LOCID	OIJLOC	LOCID
5	ROIJ_BPD_IO	LOCPT	T001W	WERKS
6	ROIJ_BPD_IO	LOCSL	T001L	LGORT
7	ROIJ_BPD_IO	MATNR_I	OIJTSMAT	PMATNR
8	ROIJ_BPD_IO	NMCARRIER	LFA1	LIFNR
9	ROIJ_BPD_IO	NMLGORT	T001L	LGORT
10	ROIJ_BPD_IO	NMSHIPPER	LFA1	LIFNR
11	ROIJ_BPD_IO	NMSHTYPE	TOIGS	SHTYP
12	ROIJ_BPD_IO	NMTPLST	TTDS	TPLST
13	ROIJ_BPD_IO	NMVEHICLE	OIGV	VEHICLE
14	ROIJ_BPD_IO	NMWERK	T001W	WERKS
15	ROIJ_BPD_IO	OWNER	T149D	BWTAR
16	ROIJ_BPD_IO	ROUTE	TVRO	ROUTE
17	ROIJ_BPD_IO	SHITEM	OIGSI	SHITEM
18	ROIJ_BPD_IO	SHNUM	OIGS	SHNUMBER
19	ROIJ_BPD_IO	SHNUMH	OIGS	SHNUMBER
20	ROIJ_BPD_IO	SITYP	TOIJ_EL_SITYPES	SITYP
21	ROIJ_BPD_IO	S_MATNR_I	MARA	MATNR
22	ROIJ_BPD_IO	TSYST	OIJTS	TSYST
23	ROIJ_BPD_IO	UNIT_I	T006	MSEHI
24	ROIJ_BPD_IO	VALUATIONTYPE_D	T149D	BWTAR
25	ROIJ_BPD_IO	VALUATIONTYPE_O	T149D	BWTAR
26	ROIJ_BPD_IO	VKTRA	TVTR	VKTRA

History

Last changed by/on	SAP	20050224
SAP Release Created in	46C
