SAP ABAP Table RNDIA_CHECKBOX_LTYPE (IS-H: Structure NDIA plus Checkbox for SAP List Viewer)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM (Application Component) Customer Relationship Management
     ⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
       ⤷ NPVS (Package) Application development patient management system

Basic Data

Table Category	INTTAB	Structure

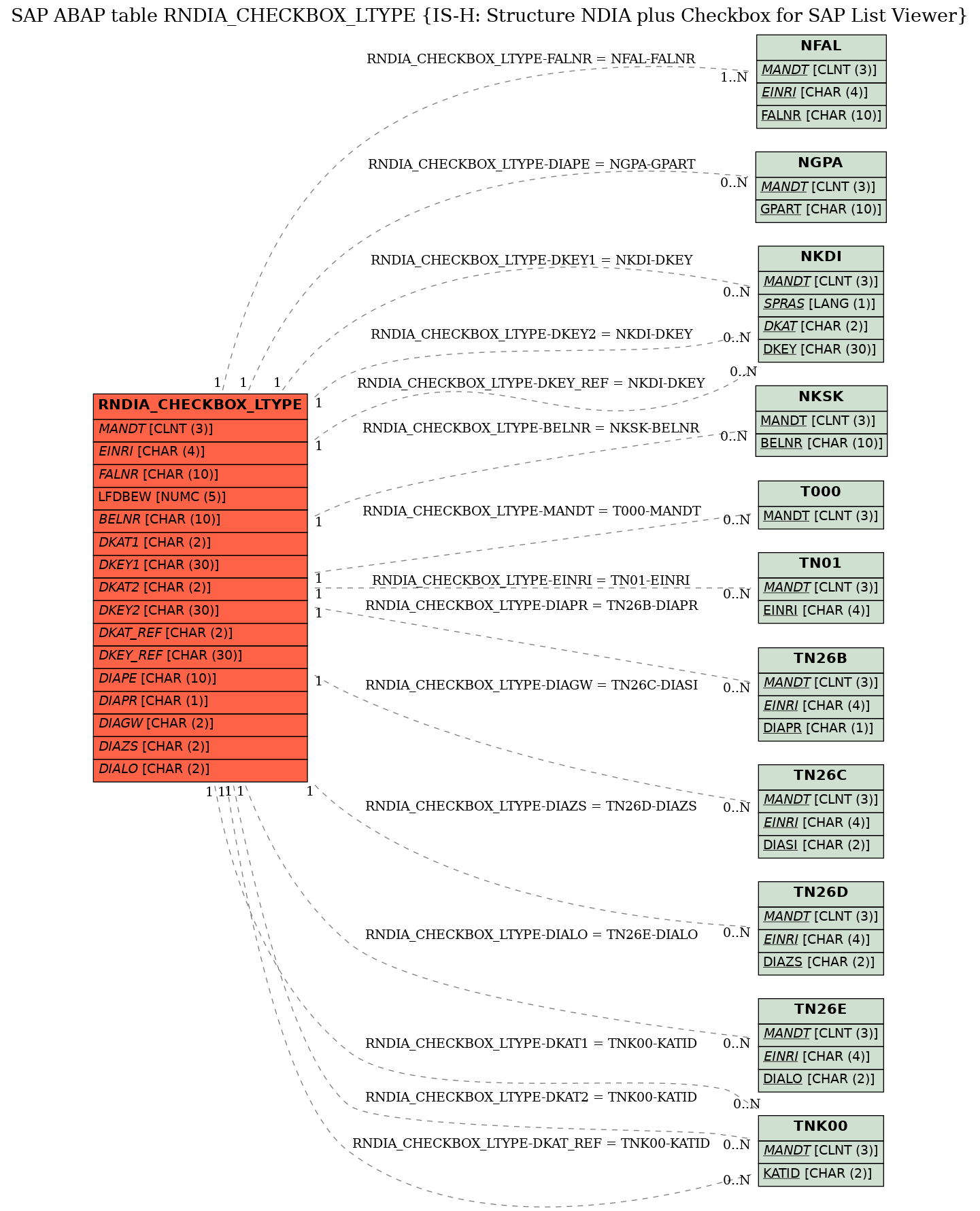

Structure	RNDIA_CHECKBOX_LTYPE	Table Relationship Diagram
Short Description	IS-H: Structure NDIA plus Checkbox for SAP List Viewer

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CHECKBOX	☐	ISH_ON_OFF	ISH_ON_OFF	CHAR	1	0	IS-H: Boolscher Datentyp für ON (= 'X') und OFF (=' ')
2	.INCLUDE	☐				0	0	IS-H: Diagnoses
3	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
4	EINRI	☐	EINRI	EINRI	CHAR	4	0	IS-H: Institution	TN01
5	FALNR	☐	FALNR	FALNR	CHAR	10	0	IS-H: Case Number	NFAL
6	LFDNR	☐	LFDDIA	LFDDIA	NUMC	3	0	IS-H: Sequence Number of Diagnosis
7	LFDBEW	☐	LFDBEW	LFDBEW	NUMC	5	0	IS-H: Sequence Number of Movement	*
8	BELNR	☐	KS_BELNR	KS_BELNR	CHAR	10	0	IS-H: Document Number of IV Document/Treatment Certificate	NKSK
9	DKAT1	☐	DIAKAT	KATID	CHAR	2	0	IS-H: Identification Key of Diagnosis Coding Catalog	TNK00
10	DKEY1	☐	DIAID	DIAID	CHAR	30	0	IS-H: Diagnosis Code	NKDI
11	DKAT2	☐	DIAKAT	KATID	CHAR	2	0	IS-H: Identification Key of Diagnosis Coding Catalog	TNK00
12	DKEY2	☐	DIAID	DIAID	CHAR	30	0	IS-H: Diagnosis Code	NKDI
13	DKAT_REF	☐	REF_DIAKAT	KATID	CHAR	2	0	IS-H: Catalog ID of Reference Catalog for Statistics	TNK00
14	DKEY_REF	☐	REF_DIAID	DIAID	CHAR	30	0	IS-H: Reference Diagnosis Code for Statistics	NKDI
15	DITXT	☐	ISH_DITEXT	TEXT50	CHAR	50	0	IS-H: Free-Text Diagnosis
16	DILTX	☐	RI_LGTXT	XFELD	CHAR	1	0	Indicator that Long Text Exists
17	DIADT	☐	DIADT	RI_DATUM	DATS	8	0	IS-H: Date on which Diagnosis Was Created
18	DIAZT	☐	DIAZT	UHRZT	TIMS	6	0	IS-H: Time at which Diagnosis Created
19	DIAPE	☐	DIA_PERS	RI_KUNNR	CHAR	10	0	IS-H: Identification of Diagnosing Person	NGPA
20	ANZOP	☐	ANZOP	NUM02	NUMC	2	0	IS-H: Number of Surgeries Occasioned by Dept. Main Diagnosis
21	EWDIA	☐	KZ_EINWD	XFELD	CHAR	1	0	IS-H: Referral Diagnosis Indicator
22	BHDIA	☐	KZ_BEHLD	XFELD	CHAR	1	0	IS-H: Treatment Diagnosis Indicator
23	AFDIA	☐	KZ_AUFND	XFELD	CHAR	1	0	IS-H: Admission Diagnosis Indicator
24	ENDIA	☐	KZ_ENTLD	XFELD	CHAR	1	0	IS-H: "Discharge Diagnosis" Indicator
25	FHDIA	☐	KZ_FAHPD	XFELD	CHAR	1	0	IS-H: "Department Main Diagnosis" Indicator
26	KHDIA	☐	KZ_KHHPD	XFELD	CHAR	1	0	IS-H: Hospital Main Diagnosis Indicator
27	OPDIA	☐	KZ_OPERD	XFELD	CHAR	1	0	IS-H: Surgery Diagnosis Indicator
28	SPERR	☐	RI_SPERR	XFELD	CHAR	1	0	Blocking Indicator
29	KZTXT	☐	TEXT_DIA	TEXT50	CHAR	50	0	IS-H: Comment on Diagnosis
30	LGTXT	☐	RI_LGTXT	XFELD	CHAR	1	0	Indicator that Long Text Exists
31	DIASI	☐	DIASI	DIASI	CHAR	1	0	IS-H: Diagnostic Certainty
32	ERDAT	☐	RI_ERDAT	RI_DATUM	DATS	8	0	IS-H: Date when Record Created
33	ERTIM	☐	RI_ERTIM	UHRZT	TIMS	6	0	IS-H: Time Record Created
34	ERUSR	☐	RI_ERNAM	USNAM	CHAR	12	0	IS-H: Name of Employee who Created Record
35	UPDAT	☐	RI_UPDAT	RI_DATUM	DATS	8	0	IS-H: Date of Last Change
36	UPUSR	☐	RI_UPNAM	USNAM	CHAR	12	0	IS-H: Name of Person who Last Changed Data
37	STORN	☐	RI_STORN	XFELD	CHAR	1	0	IS-H: Cancellation Indicator
38	STUSR	☐	STORN_USER	USNAM	CHAR	12	0	IS-H: Name of User who Canceled Data Record
39	STDAT	☐	STORN_DAT	RI_DATUM	DATS	8	0	Date of Cancellation
40	ARDIA	☐	N2_KZARDIA	XFELD	CHAR	1	0	Working Diagnosis Indicator
41	PODIA	☐	N2_KZPODIA	XFELD	CHAR	1	0	Preoperative Diagnosis Indicator
42	TUDIA	☐	N2_KZTUDIA	XFELD	CHAR	1	0	IS-H: Cause of Death Indicator
43	DIABZ	☐	N2_DIABZ	XFELD	CHAR	1	0	Diagnosis Reference
44	DIAPR	☐	N2_DIAPR	N2_DIAPR	CHAR	1	0	Medical Secondary Diagnosis Indicator	TN26B
45	DIAGW	☐	N2_DIASI	N2_DIASI	CHAR	2	0	Diagnostic Certainty	TN26C
46	DIAZS	☐	N2_DIAZS	N2_DIAZS	CHAR	2	0	Diagnostic Suppl.	TN26D
47	DIALO	☐	N2_DIALO	N2_DIALO	CHAR	2	0	IS-H: Localization of Diagnosis	TN26E
48	EXTID	☐	N2_EXTID	N2_EXTID	CHAR	8	0	Internal Identifier of the Diagnosis Coding Tool
49	DIAFP	☐	N2_DIAFP	N2_DIAFP	CHAR	8	0	Flat Rate per Case
50	REFKY	☐	DIA_REFKEY	ISH_REFKY	CHAR	20	0	IS-H: Reference Code of Diagnosis from External System
51	DRG_DIA_SEQNO	☐	ISH_DRG_DIA_NB	LFD_NR_DRG_DIA	NUMC	6	0	IS-H: Consecutive Numbering of DRG Diagnosis
52	DRG_CATEGORY	☐	ISH_DRG_DIA_CATEGORY	ISH_DRG_DIA_CAT_TYPE	CHAR	1	0	IS-H: Category of DRG Diagnosis (Principal, Secondary)
53	DRG_CC	☐	ISH_DRG_DIA_CC	ISH_ON_OFF	CHAR	1	0	IS-H: Comorbidity and Complication (DRG Diagnosis)
54	DRG_RELVANT	☐	ISH_DRG_DIA_RELEVANT	ISH_ON_OFF	CHAR	1	0	IS-H: Used to Determine DRG
55	DTYP1	☐	ISH_ICD10_DIATYP	ISH_DIATYP	CHAR	1	0	Type for ICD-10 Diagnoses
56	DTYP2	☐	ISH_ICD10_DIATYP	ISH_DIATYP	CHAR	1	0	Type for ICD-10 Diagnoses
57	DTYP_REF	☐	ISH_ICD10_DIATYP	ISH_DIATYP	CHAR	1	0	Type for ICD-10 Diagnoses
58	ALTERN_DIATXT	☐	ISH_ALTERN_DIATXT	TXT132	CHAR	132	0	IS-H: Alternative Diagnosis Text (from External System)
59	TCODE	☐	ISH_TCODE	TCODE	CHAR	20	0	IS-H: Report Control: Transaction Code for Application	*
60	DIA_LINK	☐	ISH_DIA_LINK	LFDDIA	NUMC	3	0	IS-H: Link to Another Diagnosis
61	CCL	☐	ISH_CCL	ISH_CCL_TYPE	NUMC	3	0	IS-H: Complication Level of Diagnoses (for DRGs)
62	TIMESTAMP	☐	ISH_TIMESTAMP	TZNTSTMPS	DEC	15	0	IS-H: Time Stamp in Short Form (YYYYMMDDhhmmss)
63	DIAG_EXCF	☐	ISH_DIA_EXCEPTION_FACTS	TEXT240	CHAR	240	0	IS-H: Diagnosenausnahmetatbestand
64	QUALF	☐	ISH_DIA_QUALF	ISH_DIA_QUALF	CHAR	5	0	Diagnosis Qualifier	*
65	DRG_IMPACT	☐	ISH_DIA_DRG_IMPACT	ISH_DRG_IMPACT	CHAR	2	0	Impact of Diagnosis on DRG Determination
66	D1TXT_CONC	☐	ISH_DIATXT_CONC	TEXT120	CHAR	120	0	IS-H: Concatenated Diagnosis Text from Diagnosis Catalog

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RNDIA_CHECKBOX_LTYPE	BELNR	NKSK	BELNR	KEY	1	CN
2	RNDIA_CHECKBOX_LTYPE	DIAGW	TN26C	DIASI	KEY	1	CN
3	RNDIA_CHECKBOX_LTYPE	DIALO	TN26E	DIALO	KEY	1	CN
4	RNDIA_CHECKBOX_LTYPE	DIAPE	NGPA	GPART	KEY	1	CN
5	RNDIA_CHECKBOX_LTYPE	DIAPR	TN26B	DIAPR	KEY	1	CN
6	RNDIA_CHECKBOX_LTYPE	DIAZS	TN26D	DIAZS	KEY	1	CN
7	RNDIA_CHECKBOX_LTYPE	DKAT1	TNK00	KATID	REF	1	CN
8	RNDIA_CHECKBOX_LTYPE	DKAT2	TNK00	KATID	REF	1	CN
9	RNDIA_CHECKBOX_LTYPE	DKAT_REF	TNK00	KATID	REF	1	CN
10	RNDIA_CHECKBOX_LTYPE	DKEY1	NKDI	DKEY	REF	1	CN
11	RNDIA_CHECKBOX_LTYPE	DKEY2	NKDI	DKEY	REF	1	CN
12	RNDIA_CHECKBOX_LTYPE	DKEY_REF	NKDI	DKEY	REF	1	CN
13	RNDIA_CHECKBOX_LTYPE	EINRI	TN01	EINRI	KEY	1	CN
14	RNDIA_CHECKBOX_LTYPE	FALNR	NFAL	FALNR	KEY	1	N
15	RNDIA_CHECKBOX_LTYPE	MANDT	T000	MANDT	KEY	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in	462
