SAP ABAP Table FRMLS_EXPL_SYNC (Explosion Structure for Synchronization)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PLM-RM (Application Component) Recipe Management
     ⤷ RMSFRMINFMSC (Package) RMS-FRM: General Modules for INF Package

Basic Data

Table Category	INTTAB	Structure
Structure	FRMLS_EXPL_SYNC	Table Relationship Diagram
Short Description	Explosion Structure for Synchronization

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	IO Structure for Explosion-Relevant Views
2	.INCLUDE	☐				0	0	RMS-FRM: IO Tab for Dialogs with Compositions
3	LINENO	☐	FRMLE_COUNT	NUMC04	NUMC	4	0	General Counter
4	LINEMOD	☐	FRMLE_LINEMODE	CHAR1	CHAR	1	0	Processing Status/Mode of a Record/Step Loop Line
5	.INCLUDE	☐				0	0	RMS-FRM: Keys for Structure Part of Formula
6	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
7	RECN	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
8	RECNMST	☐	FRMLE_RECN_MASTER	FRMLD_GUID	CHAR	32	0	Higher-Level Object Identifier
9	RECNROOT	☐	FRMLE_RECNROOT	FRMLD_GUID	CHAR	32	0	Formula Header Object
10	RECNALGRP	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
11	RECN_DATA	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
12	SUBRECN	☐	FRMLE_SUBRECN	ESDRECN	NUMC	20	0	Substance Key
13	ACTN	☐	ESEACTN	ESDACTN	NUMC	20	0	Sequential Number of the Change State
14	MATNR	☐	FRMLE_MATNR	MATNR	CHAR	18	0	Material Number of an Item	*
15	SUBID	☐	FRMLE_SUBID	ESDSUBID	CHAR	12	0	Substance
16	.INCLUDE	☐				0	0	RMS-FRM: General Data for List Item (for Subst.and Material)
17	POSNR	☐	FRMLE_POSNR	FRMLD_POSNR	NUMC	4	0	Number of a Material or Substance Item
18	ROLE	☐	FRMLE_ROLE	ESDCOMPCAT	CHAR	10	0	Component Type (Material, Substance, or Stream Item)	*
19	STD_ALT_FLG	☐	FRMLE_STDALT_FLG	FRMLD_FLAG	CHAR	1	0	Standard Item
20	FLG_ALT_EXIST	☐	FRMLE_ALT_EXIST	XFELD	CHAR	1	0	Alternative Items Exist
21	ALT_POSNR	☐	FRMLE_ALT_POSNR	FRMLD_POSNR	NUMC	4	0	Sort Number of an Alternative Item
22	PO_FLG	☐	FRMLE_PO_FLG	FRMLD_FLAG	CHAR	1	0	Primary Output
23	.INCLUDE	☐				0	0	RMS-FRM: Value Range of a Component
24	COMPTGT	☐	FRMLE_COMPTGT	EHSBD_QUAN6_6	QUAN	12	6	Quantity of a Material or Substance Item
25	COMPTGT_ERR_FLG	☐	FRMLE_ERR_FLG	FLAG	CHAR	1	0	Error When Converting Units
26	OPLOW	☐	FRMLE_OPLOW	FRMLD_OPLOW	CHAR	2	0	Operator for Lower Limit
27	COMPLOW	☐	FRMLE_COMPLOW	FRMLD_QUAN6_6	QUAN	12	6	Value of Lower Limit of Item Quantity
28	OPUP	☐	FRMLE_OPUP	FRMLD_OPUP	CHAR	2	0	Operator for Upper Limit
29	COMPUPP	☐	FRMLE_COMPUPP	FRMLD_QUAN6_6	QUAN	12	6	Value of Upper Limit of Item Quantity
30	UNIT	☐	FRMLE_COMPUNIT	MEINS	UNIT	3	0	Unit of Measure of a Material or Substance Item	*
31	EXCVAL	☐	FRMLE_EXCVAL	ESDCOMPEXCVAL	CHAR	2	0	Exception Value	TCG78
32	ADDVAL	☐	FRMLE_ADDVAL	CHAR030	CHAR	30	0	Freely Available Field of Type Character String w.30 Characs
33	COMPTGT_FLT	☐	FRMLE_FLT	FLTP	FLTP	16	16	Floating-Point Value
34	COMPLOW_FLT	☐	FRMLE_COMPLOW_FLT	FLTP	FLTP	16	16	Lower Limit Value of Item Quantity (Floating Point Value)
35	COMPUPP_FLT	☐	FRMLE_COMPUPP_FLT	FLTP	FLTP	16	16	Upper Limit Value of Item Quantity (Floating Point Value)
36	OVR_FACTOR	☐	FRMLE_OVR_FACTOR	FRMLD_OVR	NUMC	3	0	Overrun Factor
37	DEF_EXPL_FLG	☐	FRMLE_DEFEXPL_FLG	FRMLD_DEFEXPL_FLG	CHAR	1	0	Standard Explosion
38	FLG_1_N_MAT	☐	FRMLE_1_N_MAT	XFELD	CHAR	1	0	Group Item
39	FLG_HAS_1_N_MAT	☐	FRMLE_HAS_1_N_MAT	XFELD	CHAR	1	0	Group Items Exist
40	FLG_OUT	☐	FRMLE_FLG_OUT	XFELD	CHAR	1	0	Item Is Output of a Formula
41	STREAM_FLG	☐	FRMLE_STREAM_FLG	FLAG	CHAR	1	0	Stream
42	STREAM_ID	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
43	.INCLUDE	☐				0	0	Basic Information for Exploded Formula
44	FRML_LEVEL	☐	FRMLE_LEVEL	CHAR10	CHAR	10	0	View of a Formula
45	EXPL_STAGE	☐	FRMLE_EXPL_STAGE		INT4	10	0	Explosion Level
46	RCP_GUID	☐	PVS_GUID	SYSUUID	RAW	16	0	Internal Identification for PVS Objects
47	RCP_NAM	☐	RMSAE_OBJNAM	RMSAD_VRSNAM	CHAR	40	0	Complete Key of an Object Version
48	STAGE_GUID	☐	PVS_GUID	SYSUUID	RAW	16	0	Internal Identification for PVS Objects
49	STAGE	☐	FRMLE_STAGE	RCPD_POBNR	NUMC	4	0	Item Number of Recipe Stage
50	OPERATION_GUID	☐	PVS_GUID	SYSUUID	RAW	16	0	Internal Identification for PVS Objects
51	OPERATION	☐	FRMLE_OPERATION	RCPD_POBNR	NUMC	4	0	Item Number of the Operation in the Recipe
52	ACTION_GUID	☐	PVS_GUID	SYSUUID	RAW	16	0	Internal Identification for PVS Objects
53	ACTION	☐	FRMLE_ACTION	RCPD_POBNR	NUMC	4	0	Item Number of the Action in the Recipe
54	CMPSTCAT	☐	FRMLE_CMPSTCAT	FRMLD_CMPSTCAT	CHAR	10	0	Composition Formula View
55	RECN_STARTFRML	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
56	RECN_EXPL_SON	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
57	STAGE%	☐	FRMLE_COMPTGT_STAGE_PCT_FLT	FLTP	FLTP	16	16	Proportion in Percent in the Formula (Floating-Point Value)
58	COMPTGT_ORIG	☐	FRMLE_COMPTGT_ORIG	FRMLD_QUAN6_6	QUAN	12	6	Original Quantity of Material or Substance Item
59	UNIT_ORIG	☐	FRMLE_UNIT	MEINS	UNIT	3	0	Unit of Measure	*
60	COMPTGT_FLT_ORIG	☐	FRMLE_COMPTGT_ORIG_FLT	FLTP	FLTP	16	16	Original Quantity of Item (Floating-Point Value)
61	COMPTGT_SCALE	☐	FRMLE_COMPTGT_SCALE	FLTP	FLTP	16	16	Scaled Target Quantity
62	UNIT_SCALE	☐	FRMLE_UNIT	MEINS	UNIT	3	0	Unit of Measure	*
63	FLG_EXPL_STOP	☐	FRMLE_EXPL_STOP	FRMLD_FLAG	CHAR	1	0	Explosion Stop
64	FLG_NO_AUTH	☐	FRMLE_AUTH_STOP	FRMLD_AUTH_STOP	CHAR	1	0	Stop Explosion Due to Lack of Authorization
65	FLG_REWORK	☐	FRMLE_REWORK	FLAG	CHAR	1	0	Component Is Reused
66	FLG_REAC	☐	FRMLE_REAC_EXP	FRMLD_EXPL_FLG	CHAR	1	0	Formula Explosion Ends in Formulas with Reaction
67	FLG_SET_UNUSED	☐	FRMLE_FLG_SET_UNUSED	FRMLD_FLAG	CHAR	1	0	Formula Found Is Not Included
68	RECN_OUP	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
69	SUBRECN_SPLIT	☐	FRMLE_SUBRECN_SPLIT	ESDRECN	NUMC	20	0	Record Number Before Splitting into Components
70	COMPTGT_FLT_ABS	☐	FRMLE_FLT	FLTP	FLTP	16	16	Floating-Point Value

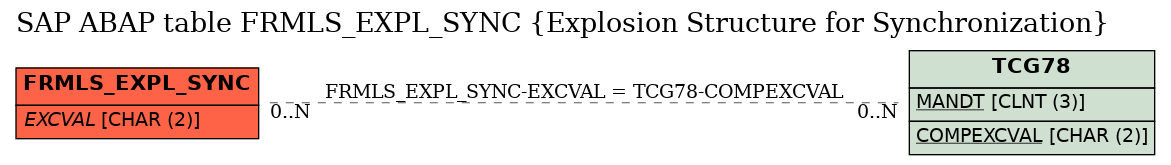

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	FRMLS_EXPL_SYNC	EXCVAL	TCG78	COMPEXCVAL

History

Last changed by/on	SAP	20130529
SAP Release Created in	600
