SAP ABAP Table CRAPO_RESOURCE (Append Structure for APO Resource Header Data)

Hierarchy

☛ SAP_APPL (Software Component) Logistics and Accounting
   ⤷ SCM-BAS (Application Component) SCM Basis
     ⤷ CIF4 (Package) 3Core Interface for APO - Modules for Releases from 4.0B

Basic Data

Table Category	APPEND	Append structure

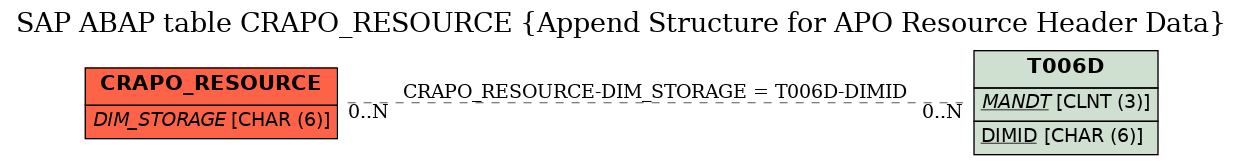

Append structure	CRAPO_RESOURCE	Table Relationship Diagram
Short Description	Append Structure for APO Resource Header Data

Delivery and Maintenance

Pool/cluster	KAKO
Delivery Class
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	TYPE	☐	CRES_RESOURCETYPE	CRES_RESOURCETYPE	NUMC	2	0	Resource Type
2	RESTYPE	☐	CRES_RESOURCE_CATEGORY	CRESRESTYPE	CHAR	1	0	Resource Category
3	CAPACITY_A	☐	CRES_CAPACITYV1_DISP	QUAN_13	QUAN	13	3	Capacity of Bucket Resource
4	CAPACITY_A_UNIT	☐	CRES_CAPACITYV_UNIT	MEINS	UNIT	3	0	Unit of Measurement for the Capacity of a Bucket Resource	*
5	NUM_OF_PERIODS	☐	CRES_NUM_OF_PERIODS	NUM3	NUMC	3	0	Number of Periods to Which the Capacity Refers
6	PERIOD	☐	CRES_PERIOD	CRES_PERIOD	NUMC	2	0	Period Type
7	BUFFERTIME	☐	CRES_BUFFERTIME	INT4	INT4	10	0	Resource-Dependent Time Buffer
8	BUFFERTIME_UNIT	☐	CRES_BUFFERTIME_UNIT	MEINS	UNIT	3	0	Unit of Measurement for Time Buffer	*
9	IS_BOTTLENECK	☐	CRES_BOTTLENECK	FLAG	CHAR	1	0	This Resource is a Bottleneck Resource
10	UNDERLOAD	☐	CRES_UNDERLOAD	NUMC3	NUMC	3	0	Minimum Capacity Load for the Resource
11	OVERLAP_BUCKETS	☐	CRES_OVERLAP_BUCKETS	FLAG	CHAR	1	0	Activities can Overlap into Another Period
12	START_ON_GRID	☐	CRES_START_ON_GRID	FLAG	CHAR	1	0	Activities can Only Begin at the Start of the Bucket
13	MIN_OVERLAP	☐	CRES_MIN_OVERLAP	INT4	INT4	10	0	Maximum Overlap of Activities
14	MIN_OVERLAP_UNIT	☐	CRES_MIN_OVERLAP_UNIT	MEINS	UNIT	3	0	Unit of Measurement for Maximum Overlap of Two Activities	*
15	LOSS_FACTOR	☐	CRES_LOSS_FACTOR	CRES_PERCENT	NUMC	3	0	Loss Factor in Percent when Deriving Bucket Capacity
16	SORT	☐	CRES_SORT	TEXT30	CHAR	30	0	Freely Selectable Character Sequence for Sorting Resources
17	SYNC_START	☐	CRES_SYNC_START	CRES_SYNC_START	NUMC	1	0	Synchronization of Activities when Overlapping Occurs
18	DEFINE_BUCKETS	☐	CRES_DEFINE_BUCKETS	FLAG	CHAR	1	0	Definition of the Bucket Capacity of a Mixed Resource
19	LC_DAYS_MINUS	☐	CRES_GEN_LC_BACKWARDS	NUMC4	NUMC	4	0	Validity of Available Capacity (In Past)
20	LC_DAYS_PLUS	☐	CRES_GEN_LC_FORWARD	NUMC4	NUMC	4	0	Validity of Available Resource Capacity (In the Future)
21	STORAGE_CAPABLE	☐	CRES_STORAGE_CAPABLE	FLAG	CHAR	1	0	Resource has Storage Characteristics
22	MIN_STORAGE	☐	CRES_MIN_STORAGE	CRES_QUAN15_3	QUAN	15	3	Minimum Production Quantity
23	MAX_STORAGE	☐	CRES_MAX_STORAGE	CRES_QUAN15_3	QUAN	15	3	Maximum Stock Level
24	STORAGE_UNIT	☐	CRES_STORAGE_UNIT	MEINS	UNIT	3	0	Stock Unit	*
25	DIM_STORAGE	☐	CRES_DIMENSION_STORAGE	DIMID	CHAR	6	0	Dimension of Storage Characteristic of a Resource	T006D
26	STORAGE_TO_ZERO	☐	CRES_STORAGE_TO_ZERO	FLAG	CHAR	1	0	Handling of Remaining Fill Level
27	SNPLC	☐	CRES_SNPLC	FLAG	CHAR	1	0	Resource is not Relevant to SNP
28	UTIL_BUCKET	☐	CRES_UTIL_BUCKET	DEC3_3	DEC	6	3	Utilization Rate for Bucket-Oriented Capacity [%]
29	CAMPAIGN_PPDS	☐	CRES_CAMPAIGN_PPDS	FLAG	CHAR	1	0	Resource is Campaign-Relevant
30	CAMPAIGN_SNP	☐	CRES_CAMPAIGN_SNP	CRES_CAMPAIGN_SNP	CHAR	1	0	Cross-Period Lot Sizes
31	TSTREAM_EXTERNAL	☐	CRES_TSTREAM_EXTERNAL	FLAG	CHAR	1	0	Capacity Data for Time Stream Originates in External System
32	FINITY_LEVEL	☐	CRES_FINITY_LEVEL	NUMC4	NUMC	4	0	Finiteness Level of Resource
33	BR_QUANT	☐	CRES_BASE_RATE	QUAN_13	QUAN	13	3	Number of Units of Measure for Base Rate
34	BR_QUNIT	☐	CRES_RATE_QUNIT	MEINS	UNIT	3	0	Unit of Measure for Production Rate	*
35	BR_TIME	☐	CRES_RATE_TIME	CRES_RATE_TIME	QUAN	5	2	Number of Time Units for Production Rate
36	BR_TUNIT	☐	CRES_RATE_TUNIT	MEINS	UNIT	3	0	Time Unit of Production Rate	*
37	RITT_FLG	☐	CRES_RITT_FLG	FLAG	CHAR	1	0	/SAPAPO/RITT_FLG
38	MDRMODEL	☐	CRES_MDR_NAME	CHAR40	CHAR	40	0	Defintion Name for the Product-Dependent Rate
39	PP_DEF_BUCKETS	☐	CRES_PP_DEFINE_BUCKETS	CRES_PP_DEFINE_BUCKETS	CHAR	1	0	Definition of PP/DS Bucket Capacity
40	PP_BUCKET_SCHEMA	☐	CRES_PP_BUCKET_SCHEMA	CRES_PP_BUCKET_SCHEMA	NUMC	2	0	PP/DS Bucket Schema
41	PP_BUCKET_FACT	☐	CRES_PP_BUCKET_FACTOR	NUMC3	NUMC	3	0	Factor: Relation. of Avl. Bucket Cap. to Avl. Time-Cont Cap.
42	MIX_PLAN_TYPE	☐	CRES_MIX_PLAN_TYPE	CRES_MIX_PLAN_TYPE	NUMC	1	0	Finite Capacity of a Mixed Resource

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRAPO_RESOURCE	DIM_STORAGE	T006D	DIMID

History

Last changed by/on	SAP	20130529
SAP Release Created in
