SAP ABAP Table CACS_TGRIND_AES (Target Agreements: Individual Target Rules for AES)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ ICM (Application Component) Incentive and Commission Management (ICM)
     ⤷ CACSTA (Package) ICM: Target Agreements AES Usage

Basic Data

Table Category	TRANSP	Transparent table

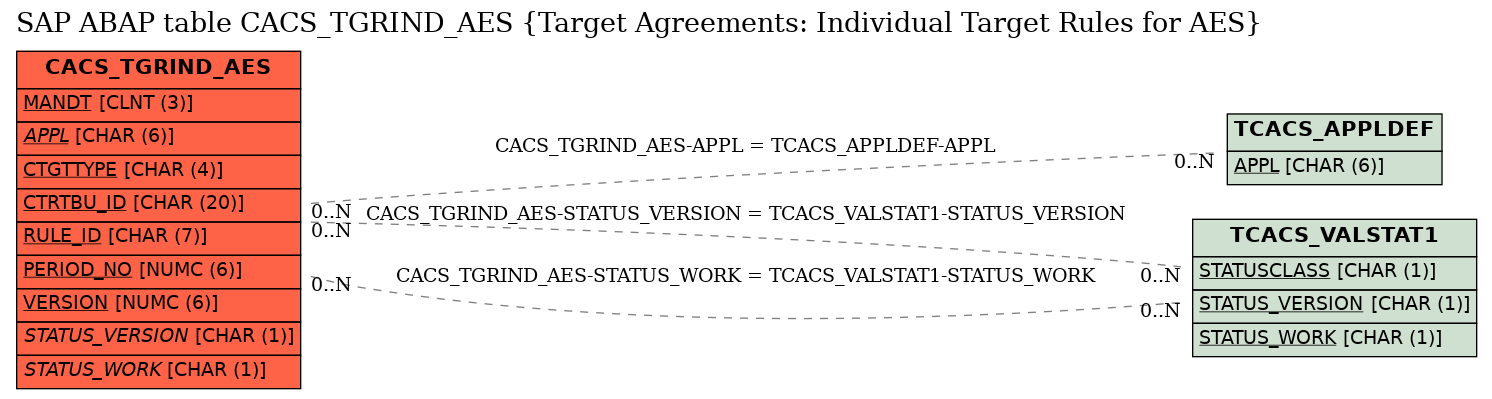

Transparent table	CACS_TGRIND_AES	Table Relationship Diagram
Short Description	Target Agreements: Individual Target Rules for AES

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	APPL	☑	CACSAPPL	CACSAPPL	CHAR	6	0	Commission Application (ICM)	TCACS_APPLDEF
3	CTGTTYPE	☑	CACS_TGTTYPE	CACS_TGTTYPE	CHAR	4	0	Target Agreements: Complex Target Type	*
4	CTRTBU_ID	☑	CACS_CTRTBU_ID	ISIS_CONTRACT_ID	CHAR	20	0	Commission Contract Number
5	RULE_ID	☑	CACSPRDRULE	CACSPRDRULE	CHAR	7	0	Period Rule
6	PERIOD_NO	☑	CACSPERIOD	NUMC6	NUMC	6	0	Period Number
7	VERSION	☑	CACSVERSION	CACSVERSION	NUMC	6	0	Version of Master Data or Customizing Object
8	.INCLUDE	☐				0	0	Tgt Agrmnt: Include Structure for AES Appraisal Documents
9	PLVAR	☐	PLVAR	PLVAR	CHAR	2	0	Plan Version	*
10	.INCLUDE	☐				0	0	Appraisal Document ID
11	APPRAISAL_ID	☐	HAP_APPRAISAL_ID	SYSUUID_C	CHAR	32	0	Appraisal Document ID
12	PART_AP_ID	☐	HAP_PART_AP_ID		NUMC	4	0	Part Appraisal ID
13	.INCLUDE	☐				0	0	Version Management for Master Data
14	.INCLUDE	☐				0	0	Version Management for Customizing Data
15	BUSI_BEGIN	☐	CACS_BUSITIME_B	CACSTIMESTAMP	NUMC	14	0	Effective from
16	BUSI_END	☐	CACS_BUSITIME_E	CACSTIMESTAMP	NUMC	14	0	Effective Until (Time Stamp: YYYY.MM.DD hh:mm:ss)
17	TECH_BEGIN	☐	CACS_TECHTIME_B	CACSTIMESTAMP	NUMC	14	0	Technically Valid From
18	TECH_END	☐	CACS_TECHTIME_E	CACSTIMESTAMP	NUMC	14	0	Technically Valid To (Time Stamp: JJJJ.MM.TT hh:mm:ss)
19	FLG_CANCEL_OBJ	☐	CACSCANCOBJ	BOOLEAN_FLG	CHAR	1	0	Indicator: Object is Invalid
20	FLG_CANCEL_VERS	☐	CACSCANCVERS	BOOLEAN_FLG	CHAR	1	0	Indicator: Version is Invalid
21	.INCLUDE	☐				0	0	Comn: Process Administration/Version Management
22	.INCLUDE	☐				0	0	Change Log for Object
23	CHG_TCODE	☐	CACSCDTC	TCODE	CHAR	20	0	Transaction in Which the Change Was Made	*
24	CHG_USR	☐	CACSCHUSR	USNAM	CHAR	12	0	Last user to change object
25	TRI_METH_TYP	☐	CACSTRIMETHTYP	CACSOPTYPE	CHAR	1	0	Triggering Method
26	TRI_METH_TARGET	☐	CACSTRIMETHTAR	CACSTRITARGET	CHAR	1	0	Processing Target of Triggering Method
27	STATUS_VERSION	☐	CACSSTATUSVERS	CACSSTATUSVERS	CHAR	1	0	Object Version Status	TCACS_VALSTAT1
28	STATUS_WORK	☐	CACSSTATUSWORK	CACSSTATUSWORK	CHAR	1	0	Object Version Processing Status	TCACS_VALSTAT1

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CACS_TGRIND_AES	APPL	TCACS_APPLDEF	APPL
2	CACS_TGRIND_AES	STATUS_VERSION	TCACS_VALSTAT1	STATUS_VERSION
3	CACS_TGRIND_AES	STATUS_WORK	TCACS_VALSTAT1	STATUS_WORK

History

Last changed by/on	SAP	20130529
SAP Release Created in	600
