SAP ABAP Table TARCHENGINEDEFLT (Archiving Engine: Defaults)

Hierarchy

☛ SAP_ABA (Software Component) Cross-Application Component
   ⤷ CA-FS-ARE (Application Component) Archiving Engine
     ⤷ ARFA_ARCHIVING_METADATA (Package) Archiving Metadata

Basic Data

Table Category	TRANSP	Transparent table

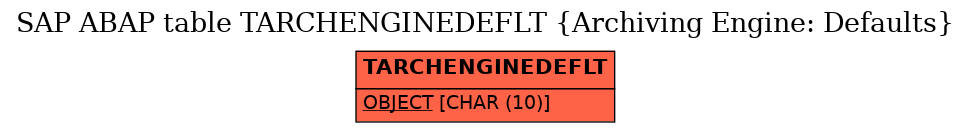

Transparent table	TARCHENGINEDEFLT	Table Relationship Diagram
Short Description	Archiving Engine: Defaults

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT	☑	TYP_AR_OBJECT	TYP_AR_SCENARIO	CHAR	10	0	Technical Name of Scenario
2	.INCLUDE	☐				0	0	Defaults for Archiving Engine
3	RFC_GROUP	☐	TYP_ARE_RFCGROUP	RZLLI_ACN	CHAR	20	0	Server Group
4	MAXTASKS	☐	TYP_ARE_MAX_TASKS	INT4	INT4	10	0	Maximum Number of Tasks
5	MAXCOUNT	☐	TYP_P_MAXCOUNT		INT4	10	0	Maximum Number of Business Objects
6	PACKAGESIZE	☐	TYP_P_PACKAGESIZE		INT4	10	0	Package Size
7	FOLLOW_UP_PERIOD	☐	TYP_FOLLOW_UP_PERIOD	TYP_FOLLOW_UP_PERIOD	INT4	10	0	Resubmission Period
8	FOLLOW_UP_UNIT	☐	TYP_FOLLOW_UP_UNIT	TYP_FOLLOW_UP_UNIT	CHAR	1	0	Unit of measure
9	RESIDENCE	☐	TYP_RESIDENCE	TYP_RESIDENCE	INT4	10	0	Standard Residence Time
10	RESIDENCE_UNIT	☐	TYP_RESIDENCE_UNIT	TYP_RESIDENCE_UNIT	CHAR	1	0	Unit
11	IGNITION	☐	TYP_UI_IGNITION	XFELD	CHAR	1	0	Preprocessing
12	ARCHIVE	☐	TYP_UI_ARCHIVE	XFELD	CHAR	1	0	Archive
13	ANALYZE	☐	TYP_UI_ANALYZE	XFELD	CHAR	1	0	Analysis
14	WRITE_AR	☐	TYP_UI_WRITE	XFELD	CHAR	1	0	Write
15	DELETE_AR	☐	TYP_UI_DELETE	XFELD	CHAR	1	0	Delete
16	RELOAD	☐	TYP_UI_RELOAD	XFELD	CHAR	1	0	Reload
17	DELETE_WO_ARCHIV	☐	TYP_UI_DELETE_WO_ARCHIVING	XFELD	CHAR	1	0	Delete Without Archiving
18	ANALYZE_MIGRATIO	☐	TYP_UI_ANALYZE_MIGRATION	XFELD	CHAR	1	0	Migration Analysis (Do Not Use)
19	DELETE_MIGRATION	☐	TYP_UI_DELETE_MIGRATION	XFELD	CHAR	1	0	Delete Migration (Do Not Use)
20	DISPLAY_ARCHIVE	☐	TYP_UI_DISPLAY_ARCHIVE	XFELD	CHAR	1	0	Display from Archive
21	BACKGROUND	☐	TYP_FUNC_BACKGROUND	XFELD	CHAR	1	0	Background Processing
22	UNDO_STATUS	☐	TYP_FUNC_UNDO_STATUS	XFELD	CHAR	1	0	Reset Status to the Previous Level
23	CONSTRAINTS	☐	TYP_FUNC_CONSTRAINTS	XFELD	CHAR	1	0	Dynamic Selections
24	MONITOR	☐	TYP_FUNC_MONITOR	XFELD	CHAR	1	0	Archiving Monitor
25	ADAPTIVE_MULTITA	☐	TYP_FUNC_ADAPTIVE_MULTITASKING	XFELD	CHAR	1	0	Adaptive Multitasking
26	CHECK_SYSTEM	☐	TYP_FUNC_CHECK_SYSTEM	XFELD	CHAR	1	0	Check System Settings
27	OBJECTSPEC_CUST	☐	TYP_FUNC_OBJECTSPECIFIC_CUST	XFELD	CHAR	1	0	Archiving Engine Configurator
28	RESIDENCE_ASSIGN	☐	TYP_FUNC_RESIDENCE_ASSIGNMENT	XFELD	CHAR	1	0	Residence Time Definition
29	ARCHIVING_FACTOR	☐	TYP_FUNC_ARCHIVING_FACTORY	XFELD	CHAR	1	0	Archiving Factory
30	LOG	☐	TYP_FUNC_LOG	XFELD	CHAR	1	0	Log
31	DIAGNOSIS	☐	TYP_DIAGNOSIS	XFELD	CHAR	1	0	Diagnosis
32	RESIDENCE_MIN	☐	TYP_RESIDENCE_MIN	TYP_RESIDENCE	INT4	10	0	Minimum Residence Time
33	ALLOW_DEL_WO_AR	☐	TYP_AR_ALLOW_DELETION_WO_AR	TYP_AR_ALLOW_DELETION_WO_AR	CHAR	1	0	Allow Deletion

History

Last changed by/on	SAP	20110908
SAP Release Created in	710
