SAP ABAP Table SCMC_NODE_PERF (Additional Attributes for Performance Nodes)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷ BC-CCM-MON (Application Component) Monitoring
⤷ SCMC_CACHE (Package) CCMS Monitoring Console : Domain Model Cache
⤷ BC-CCM-MON (Application Component) Monitoring
⤷ SCMC_CACHE (Package) CCMS Monitoring Console : Domain Model Cache
Basic Data
Table Category | TRANSP | Transparent table |

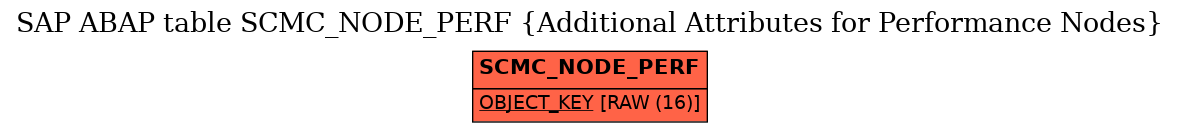

Transparent table | SCMC_NODE_PERF | Table Relationship Diagram |
Short Description | Additional Attributes for Performance Nodes |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | L | Table for storing temporary data, delivered empty |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | OBJECT_KEY | SCMC_CACHE_KEY | SYSUUID | RAW | 16 | 0 | Key for Cache Entries | ||
2 | .INCLUDE | 0 | 0 | Alert: Performance Type | |||||
3 | .INCLUDE | 0 | 0 | Alert: global monitoring type identifier | |||||
4 | MTSYSID | SYSYSID | SYCHAR08 | CHAR | 8 | 0 | Name of SAP System | ||
5 | MTMCNAME | ALMCNAME | TEXT40 | CHAR | 40 | 0 | Alert: Name of Monitoring Context | ||
6 | MTNUMRANGE | ALTIDNUMRG | CHAR3 | CHAR | 3 | 0 | Alert: monitoring type number range (perm., temp, ...) | ||
7 | MTUID | ALTIDUID | CHAR10 | CHAR | 10 | 0 | ALert: Unique Identifier for Monitoring Types (used in TID) | ||
8 | MTCLASS | ALTIDMTCL | CHAR3 | CHAR | 3 | 0 | Alert: monitoring type class (perf., single msg.,...) | ||
9 | MTINDEX | ALTIDINDEX | CHAR10 | CHAR | 10 | 0 | Alert: internal handle for TID | ||
10 | EXTINDEX | ALTIDINDEX | CHAR10 | CHAR | 10 | 0 | Alert: internal handle for TID | ||
11 | .INCLUDE | 0 | 0 | Alert: Performance MTE Customization | |||||
12 | CUSTSTAT | ALCUSTSTAT | INT4 | 10 | 0 | Alert: Customizing Status | |||
13 | RELVALTYPE | ALPRELVALT | INT4 | 10 | 0 | Alert: MT Performance specific Custom.: Relevant Value Type | |||
14 | THRESHDIR | ALPERTHRDR | INT4 | 10 | 0 | Alert: MT Performance specific Custom.: - threshold direct. | |||
15 | THRESHSTAT | ALPERTHRST | INT4 | 10 | 0 | Alert: MT Performance specific Custom.: threshold status | |||
16 | ACTIVTHG2Y | ALPACTHG2Y | INT4 | 10 | 0 | Alert: MT Performance Customization: Active Threshold G 2 Y | |||
17 | ACTIVTHY2R | ALPACTHY2R | INT4 | 10 | 0 | Alert: MT Performance Customization: Active Threshold Y 2 R | |||
18 | ACTIVTHY2G | ALPACTHY2G | INT4 | 10 | 0 | Alert: MT Performance Customization: Active Threshold Y 2 G | |||
19 | ACTIVTHR2Y | ALPACTHR2Y | INT4 | 10 | 0 | Alert: MT Performance Customization: Active Threshold R 2 Y | |||
20 | DEFAUTHG2Y | ALPDETHG2Y | INT4 | 10 | 0 | Alert: MT Performance Customization: Default Threshold G 2 Y | |||
21 | DEFAUTHY2R | ALPDETHY2R | INT4 | 10 | 0 | Alert: MT Performance Customization: Default Threshold Y 2 R | |||
22 | DEFAUTHY2G | ALPDETHY2G | INT4 | 10 | 0 | Alert: MT Performance Customization: Default Threshold Y 2 G | |||
23 | DEFAUTHR2Y | ALPDETHR2Y | INT4 | 10 | 0 | Alert: MT Performance Customization: Default Threshold R 2 Y | |||
24 | MSGCLASS | XMILOGCOMP | TEXT16 | CHAR | 16 | 0 | XMI logging: company name of external management tool | ||
25 | MSGID | XMILOGMID | XMSGID | CHAR | 30 | 0 | Message ID for an XMI log entry | ||
26 | CUSGRPNAME | ALCUSGROUP | TEXT40 | CHAR | 40 | 0 | Alert: Customization: Name of Customization Group | ||
27 | VALUNIT | ALUNIT | TEXT4 | CHAR | 4 | 0 | ALert: Unit for Perfomance Values | ||
28 | DECIMALS | ALDECIMALS | INT4 | 10 | 0 | ALert: Decimal part of Performance Values | |||
29 | .INCLUDE | 0 | 0 | Alert: Performance MT specific value part | |||||
30 | PERFCNTHIG | ALPERFCNT | INT4 | 10 | 0 | Alert: MT Performance specific Values: Counter | |||
31 | PERFCNTLOW | ALPERFCNT | INT4 | 10 | 0 | Alert: MT Performance specific Values: Counter | |||
32 | PERFEVTHIG | ALPERFEVT | INT4 | 10 | 0 | Alert: MT Performance specific Values: Events | |||
33 | PERFEVTLOW | ALPERFEVT | INT4 | 10 | 0 | Alert: MT Performance specific Values: Events | |||
34 | ALRELEVVAL | ALPERALVAL | INT4 | 10 | 0 | Alert: MT Performance specific Values: Alert-Relevant Value | |||
35 | ALRELVALDT | ALDATE | DATUM | DATS | 8 | 0 | Alert: date | ||
36 | ALRELVALTI | ALTIME | TIME | TIMS | 6 | 0 | Alert: Time value in timeformat | ||
37 | ALRELVDUMM | ALDUMMYC2 | CHAR2 | CHAR | 2 | 0 | Alert: Dummy field. Purpose: Alignment of date/time 16 byte | ||
38 | LASTALSTAT | ALPLASTALS | INT4 | 10 | 0 | Alert: MT Performance specific Values: Last Alert Status | |||
39 | LASTPERVAL | ALPLASTPV | INT4 | 10 | 0 | Alert: MT Performance specific Values: Last Performance Valu | |||
40 | AVG00PVAL | ALPAVGPVAL | INT4 | 10 | 0 | Alert: MT Performance specific Values: Avg Performance Value | |||
41 | AVG01PVAL | ALPAVGPVAL | INT4 | 10 | 0 | Alert: MT Performance specific Values: Avg Performance Value | |||
42 | AVG05PVAL | ALPAVGPVAL | INT4 | 10 | 0 | Alert: MT Performance specific Values: Avg Performance Value | |||
43 | AVG15PVAL | ALPAVGPVAL | INT4 | 10 | 0 | Alert: MT Performance specific Values: Avg Performance Value | |||
44 | AVG01SVAL | ALPAVGSVAL | INT4 | 10 | 0 | Alert: MT Performance specific Values: Avg Sum Value | |||
45 | AVG05SVAL | ALPAVGSVAL | INT4 | 10 | 0 | Alert: MT Performance specific Values: Avg Sum Value | |||
46 | AVG15SVAL | ALPAVGSVAL | INT4 | 10 | 0 | Alert: MT Performance specific Values: Avg Sum Value | |||
47 | AVG01CVAL | ALPAVGCVAL | INT4 | 10 | 0 | Alert: MT Performance specific Values: Avg Count Value | |||
48 | AVG05CVAL | ALPAVGCVAL | INT4 | 10 | 0 | Alert: MT Performance specific Values: Avg Count Value | |||
49 | AVG15CVAL | ALPAVGCVAL | INT4 | 10 | 0 | Alert: MT Performance specific Values: Avg Count Value | |||
50 | MAXPFVALUE | ALPMAXPVAL | INT4 | 10 | 0 | Alert: MT Performance specific Values: Max Performance Value | |||
51 | MAXPFDATE | ALDATE | DATUM | DATS | 8 | 0 | Alert: date | ||
52 | MAXPFTIME | ALTIME | TIME | TIMS | 6 | 0 | Alert: Time value in timeformat | ||
53 | MAXPFDUMMY | ALDUMMYC2 | CHAR2 | CHAR | 2 | 0 | Alert: Dummy field. Purpose: Alignment of date/time 16 byte | ||
54 | MINPFVALUE | ALPMINPVAL | INT4 | 10 | 0 | Alert: MT Performance specific Values: Min Performance Value | |||
55 | MINPFDATE | ALDATE | DATUM | DATS | 8 | 0 | Alert: date | ||
56 | MINPFTIME | ALTIME | TIME | TIMS | 6 | 0 | Alert: Time value in timeformat | ||
57 | MINPFDUMMY | ALDUMMYC2 | CHAR2 | CHAR | 2 | 0 | Alert: Dummy field. Purpose: Alignment of date/time 16 byte | ||
58 | RC | ALRETCODE | INT4 | 10 | 0 | Alert: Return Code |
History
Last changed by/on | SAP | 20130604 |
SAP Release Created in | 640 |
