SAP ABAP Table QAPSH (Control chart for the inspection point, header)

Hierarchy

☛ SAP_APPL (Software Component) Logistics and Accounting
   ⤷ QM-QC-IS (Application Component) Information System
     ⤷ QG01 (Package) QM quality inspection analysis

Basic Data

Table Category	INTTAB	Structure

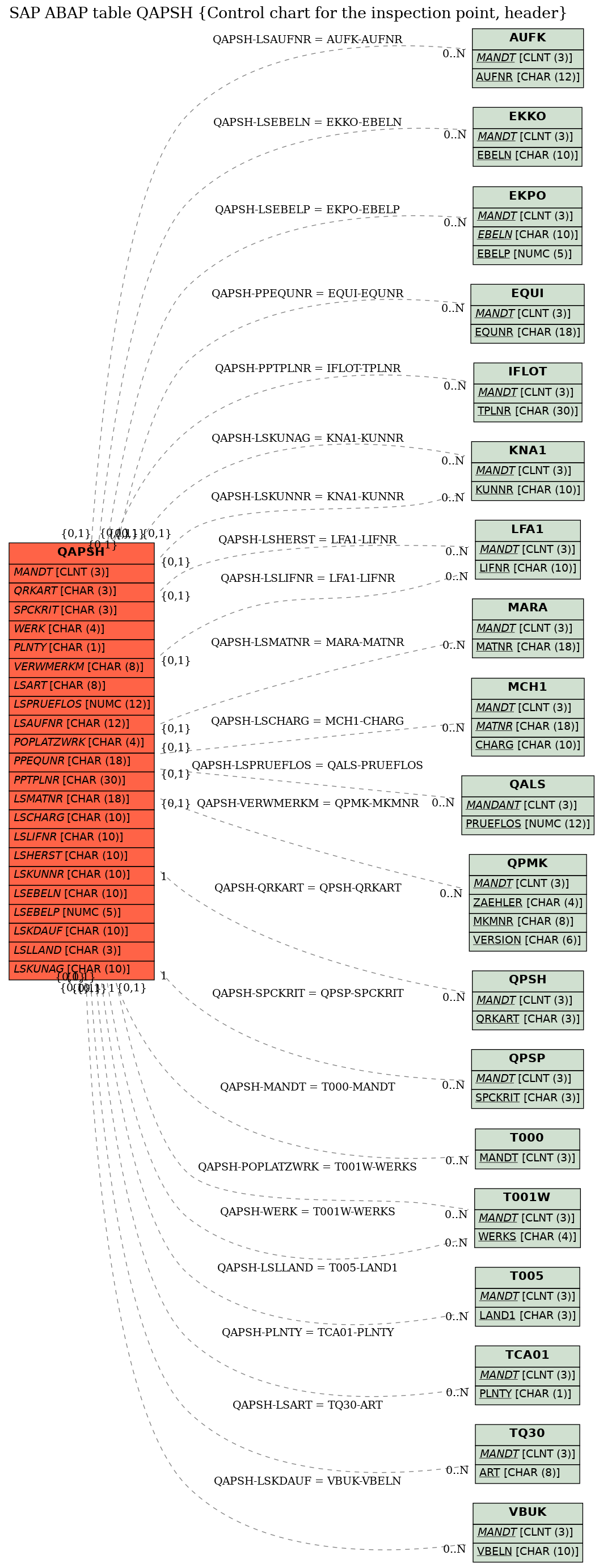

Structure	QAPSH	Table Relationship Diagram
Short Description	Control chart for the inspection point, header

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Quality control chart
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	QRKNR	☐	QQRKNR	QQRKNR	NUMC	12	0	Control Chart Number	*
4	QRKART	☐	QQRKART	QQRKART	CHAR	3	0	Control Chart Type	QPSH
5	SPCKRIT	☐	QSPCKRIT	QSPCKRIT	CHAR	3	0	SPC Criterion	QPSP
6	WERK	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
7	.INCLUDE	☐				0	0	Control chart characteristic key
8	PLNTY	☐	PLNTY	PLNTY	CHAR	1	0	Task List Type	TCA01
9	PLNNR	☐	PLNNR	PLNNR	CHAR	8	0	Key for Task List Group
10	PLNAL	☐	PLNAL	ALTNR	CHAR	2	0	Group Counter
11	PLNFL	☐	PLNFOLGE	PLNFOLGE	CHAR	6	0	Sequence
12	PLNKN	☐	PLNKN	KNTNR	NUMC	8	0	Number of the task list node
13	PLMKNR	☐	QMERKNRP	QMERKNRP	NUMC	4	0	Inspection Characteristic Number
14	.INCLUDE	☐				0	0	Control chart master inspection characteristic key
15	QPMK_WERKS	☐	QZAEHLER	QZAEHLER	CHAR	4	0	Plant for the Master Inspection Characteristic
16	VERWMERKM	☐	QMERKNR	QMERKNR	CHAR	8	0	Master Inspection Characteristics	QPMK
17	LSART	☐	QPART	QPART	CHAR	8	0	Inspection Type	TQ30
18	LSHERKUNFT	☐	QHERK	QHERK	CHAR	2	0	Inspection Lot Origin	*
19	LSPRUEFLOS	☐	QPLOS	QPLOS	NUMC	12	0	Inspection Lot Number	QALS
20	LSAUFNR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	AUFK
21	POPLATZ	☐	QPRPLATZ	ARBPL	CHAR	8	0	Work Center
22	POPLATZWRK	☐	WERKS_D	WERKS	CHAR	4	0	Plant	T001W
23	PPEQUNR	☐	EQUNR	EQUNR	CHAR	18	0	Equipment Number	EQUI
24	PPTPLNR	☐	TPLNR	TPLNR	CHAR	30	0	Functional Location	IFLOT
25	LSMATNR	☐	MATNR	MATNR	CHAR	18	0	Material Number	MARA
26	LSCHARG	☐	CHARG_D	CHARG	CHAR	10	0	Batch Number	MCH1
27	LSLIFCH	☐	LICHN	LICHN	CHAR	15	0	Vendor Batch Number
28	LSLIFNR	☐	LIFNR	LIFNR	CHAR	10	0	Account Number of Vendor or Creditor	LFA1
29	LSHERST	☐	QLIFNR	LIFNR	CHAR	10	0	Number of Manufacturer	LFA1
30	LSKUNNR	☐	QKUNWE	KUNNR	CHAR	10	0	Customer (Ship-To Party)	KNA1
31	LSEBELN	☐	EBELN	EBELN	CHAR	10	0	Purchasing Document Number	EKKO
32	LSEBELP	☐	EBELP	EBELP	NUMC	5	0	Item Number of Purchasing Document	EKPO
33	LSKDAUF	☐	KDAUF	VBELN	CHAR	10	0	Sales Order Number	VBUK
34	LSKDPOS	☐	KDPOS	NUM06	NUMC	6	0	Item number in Sales Order
35	LSLLAND	☐	LLAND	LAND1	CHAR	3	0	Destination Country	T005
36	LSKUNAG	☐	KUNAG	KUNNR	CHAR	10	0	Sold-to party	KNA1
37	VORNR	☐	VORNR	VORNR	CHAR	4	0	Operation/Activity Number
38	KURZTEXT	☐	QKURZTEXT	QKURZTEXT	CHAR	40	0	Short Text
39	STATUS	☐	QQRKSTATUS	QQRKSTATUS	NUMC	1	0	Control Chart Status
40	ENAME	☐	ERNAM	USNAM	CHAR	12	0	Name of Person who Created the Object
41	EDATUM	☐	ERDAT	DATUM	DATS	8	0	Date on which the record was created
42	EZEIT	☐	QZEITERSTL	QZEIT	TIMS	6	0	Time at which data record was created
43	ANAME	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
44	ADATUM	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
45	AZEIT	☐	QZEITAEND	QZEIT	TIMS	6	0	Time at which data record was last changed
46	SOLLWERT	☐	QSOLLWERTE	QSOLLWERTE	FLTP	16	16	Target Value for a Quantitative Characteristic
47	TOLERANZOB	☐	QTOLOB	QSOLLWERTE	FLTP	16	16	Upper Specification Limit
48	TOLERANZUN	☐	QTOLUN	QSOLLWERTE	FLTP	16	16	Lower Tolerance Limit
49	GRENZEOB1	☐	QGRENZOB1	QSOLLWERTE	FLTP	16	16	First Upper Specification Limit
50	GRENZEUN1	☐	QGRENZUN1	QSOLLWERTE	FLTP	16	16	First Lower Specification Limit
51	GRENZEOB2	☐	QGRENZOB2	QSOLLWERTE	FLTP	16	16	Second Upper Specification Limit
52	GRENZEUN2	☐	QGRENZUN2	QSOLLWERTE	FLTP	16	16	Second Lower Specification Limit
53	STELLEN	☐	QSTELLEN	QSTELLEN	INT1	3	0	Number of Places to the Right of a Decimal Point (Accuracy)
54	SOLLWNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
55	TOLOBNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
56	TOLUNNI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
57	GRENZOB1NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
58	GRENZUN1NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
59	GRENZOB2NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
60	GRENZUN2NI	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
61	DUMMY10	☐	QTXT10	QTXT10	CHAR	10	0	Text Line for Additional Information
62	DUMMY20	☐	QTXT20	QTXT20	CHAR	20	0	Text Line for Additional Information
63	DUMMY40	☐	QTXT40	QTXT40	CHAR	40	0	Text Line for Additional Information

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	QAPSH	LSART	TQ30	ART	REF	C	CN
2	QAPSH	LSAUFNR	AUFK	AUFNR	REF	C	CN
3	QAPSH	LSCHARG	MCH1	CHARG	REF	C	CN
4	QAPSH	LSEBELN	EKKO	EBELN	REF	C	CN
5	QAPSH	LSEBELP	EKPO	EBELP	REF	C	CN
6	QAPSH	LSHERST	LFA1	LIFNR	REF	C	CN
7	QAPSH	LSKDAUF	VBUK	VBELN	REF	C	CN
8	QAPSH	LSKUNAG	KNA1	KUNNR	REF	C	CN
9	QAPSH	LSKUNNR	KNA1	KUNNR	REF	C	CN
10	QAPSH	LSLIFNR	LFA1	LIFNR	REF	C	CN
11	QAPSH	LSLLAND	T005	LAND1	REF	C	CN
12	QAPSH	LSMATNR	MARA	MATNR	REF	C	CN
13	QAPSH	LSPRUEFLOS	QALS	PRUEFLOS	REF	C	CN
14	QAPSH	MANDT	T000	MANDT	KEY	1	CN
15	QAPSH	PLNTY	TCA01	PLNTY	REF	C	CN
16	QAPSH	POPLATZWRK	T001W	WERKS	REF	C	CN
17	QAPSH	PPEQUNR	EQUI	EQUNR		C	CN
18	QAPSH	PPTPLNR	IFLOT	TPLNR		C	CN
19	QAPSH	QRKART	QPSH	QRKART	REF	1	CN
20	QAPSH	SPCKRIT	QPSP	SPCKRIT	REF	1	CN
21	QAPSH	VERWMERKM	QPMK	MKMNR	KEY	C	CN
22	QAPSH	WERK	T001W	WERKS	REF	C	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
