SAP ABAP Table PVSGI_RCP (Field Catalog iPPE User Interface - Recipe Part)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PLM-RM (Application Component) Recipe Management
     ⤷ CPPERCP (Package) RMS-RCP: iPPE Objects for Appl. Type RCP (Recipe, Header)

Basic Data

Table Category	INTTAB	Structure

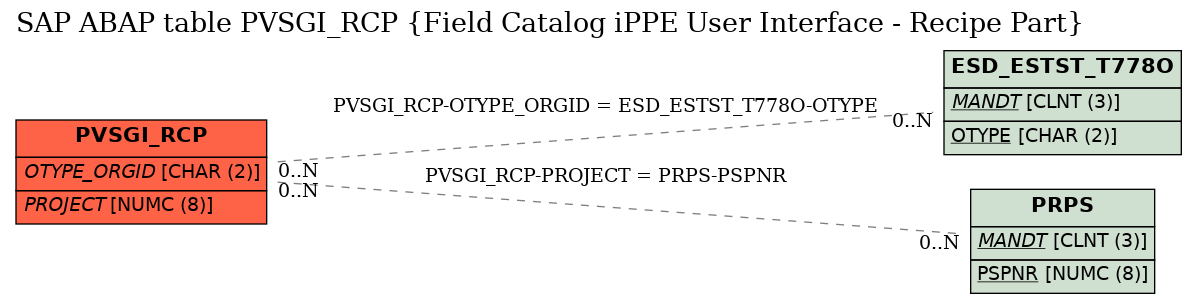

Structure	PVSGI_RCP	Table Relationship Diagram
Short Description	Field Catalog iPPE User Interface - Recipe Part

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Attributes for Variants Type "Recipe"
2	ISTATUS	☐	PVS_J_STATUS	J_STATUS	CHAR	5	0	Individual Status of Object
3	STATUS_CHG_COUNT	☐	RSPOPCOPY	RSPOCPYCNT	INT1	3	0	Copy counter
4	OBJNR	☐	PVS_J_OBJNR	J_OBJNR	CHAR	22	0	Object Number	*
5	ISTATUS_OLD	☐	J_STATUS	J_STATUS	CHAR	5	0	Object status
6	RCPDCNT	☐	RCPCHST	PVS_RCPCHST	CHAR	10	0	Change State in Recipe
7	RCPVERS	☐	PVS_RCPVERS	PVS_RCPVERSION	CHAR	10	0	Version of the General Recipe
8	VALFROM	☐	PVS_ADATUM	DATUM	DATS	8	0	Valid-From Date
9	VALTO	☐	PVS_BDATUM	DATUM	DATS	8	0	Valid-To Date
10	LOTMIN	☐	PVS_MINLOTSIZE	MENG13	QUAN	13	3	Lower Limit of Lot-Size Range
11	LOTMAX	☐	PVS_MAXLOTSIZE	MENG13	QUAN	13	3	Upper Limit of Lot-Size Range
12	LOTUNIT	☐	PVS_QUNIT	MEINS	UNIT	3	0	Unit of Measure	*
13	PV_PLANT	☐	WERKS_D	WERKS	CHAR	4	0	Plant	*
14	PV_MAT	☐	MATNR	MATNR	CHAR	18	0	Material Number	*
15	PV_NR	☐	PVS_VERID	VERID	CHAR	4	0	Production Version	*
16	OTYPE_ORGID	☐	OTYPE	OTYPE	CHAR	2	0	Object Type	ESD_ESTST_T778O
17	REALO	☐	ESEREALO	CHAR45	CHAR	45	0	Responsible
18	RCP_TIMSTMP	☐	PVS_TIMSTMP	TZNTSTMPL	DEC	21	7	UTC Time Stamp in Long Form (YYYYMMDDhhmmss,mmmuuun)
19	.INCLUDE	☐				0	0	Administrative Data Recipe Table
20	RCP_CREADAT	☐	PVS_ANDAT	DATUM	DATS	8	0	Date of Application
21	RCP_CREABY	☐	PVS_ANNAM	USNAM	CHAR	12	0	User who created record
22	RCP_CHNGDAT	☐	PVS_AEDAT	DATUM	DATS	8	0	Date of Last Change
23	RCP_CHNGBY	☐	PVS_AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
24	.INCLUDE	☐				0	0	RMS-RCP: New Fields for Structure PVRCPDD f. RMS Version 2.0
25	REFQUANT	☐	RCPE_REFQUANT	RCPD_REFQUANT	QUAN	13	3	Reference Quantity
26	PROJECT	☐	PS_POSNR	PS_POSNR	NUMC	8	0	WBS Element	PRPS
27	DEV_TIME	☐	RCPE_DEVTIME	RCPD_DEVTIME	NUMC	6	0	Recipe Development Time
28	PROD_TIME	☐	RCPE_PRODTIME	RCPD_PRODTIME	NUMC	6	0	Productive Time of Recipe
29	CONF_FLAG	☐	RCPE_CONFFLAG	RCPD_CONFFLAG	CHAR	1	0	Confidential
30	REFLANG	☐	RCPE_OLANG	SPRAS	LANG	1	0	Reference Language	*
31	PVTXCNT	☐	PVS_TXTCOUNT	NUMC5	NUMC	5	0	Counter for Text Tables
32	RESCREATXCNT	☐	PVS_TXTCOUNT	NUMC5	NUMC	5	0	Counter for Text Tables
33	COPY_FROM	☐	RCPE_CPYFROM	RCPD_CPYFROM	RAW	16	0	Origin
34	.INCLUDE	☐				0	0	RMS-RCP: New Fields for PVRCPDD Structure for RMS 2.2
35	COPY_FROM_RCP	☐	RCPE_CPYFROM_RCP	RCPD_CPYFROM	RAW	16	0	Copied from
36	PREF_RCP_FLG	☐	RCPE_PREF_RCP	RCPD_PREF_RCP	CHAR	1	0	Preferred Recipe
37	CONS_FLG	☐	RCPE_CONS_FLG	RCPD_CONS_FLG	CHAR	1	0	Consistent
38	ISTATUS_TEXT	☐	J_TXT04	TEXT4	CHAR	4	0	Individual status of an object (short form)
39	ESTATUS_LINE	☐	J_STEXT	TEXT40	CHAR	40	0	System status line

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	PVSGI_RCP	OTYPE_ORGID	ESD_ESTST_T778O	OTYPE
2	PVSGI_RCP	PROJECT	PRPS	PSPNR

History

Last changed by/on	SAP	20060313
SAP Release Created in
