SAP ABAP Table PSHLPDB_HIER_TMP (Table to store temporary hierarchy data)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PS (Application Component) Project System
     ⤷ PS_HLP_CACHE (Package) Handling Large Projects:-Cache

Basic Data

Table Category	TRANSP	Transparent table

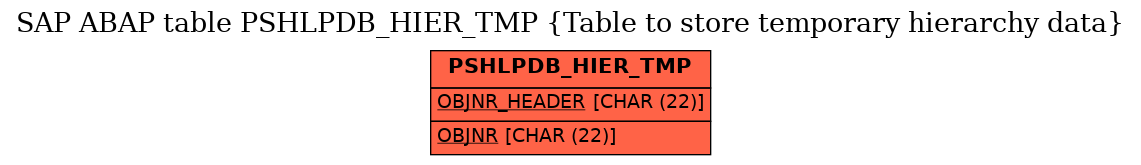

Transparent table	PSHLPDB_HIER_TMP	Table Relationship Diagram
Short Description	Table to store temporary hierarchy data

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJNR_HEADER	☑	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	*
2	OBJNR	☑	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	*
3	OBJNR_PARENT	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	*
4	ICON	☐	TV_IMAGE	TV_IMAGE	CHAR	46	0	Tree Control: Icon / Image
5	ID	☐	SEU_ID	SEU_ID	NUMC	6	0	Internal: Node ID
6	PARENT	☐	SEU_ID	SEU_ID	NUMC	6	0	Internal: Node ID
7	TYPE	☐	SEU_TYPE	SEU_TYPE	CHAR	4	0	Node type
8	NAME	☐	RSTH_NAME	KEYID	CHAR	50	0	Name of a Hierarchy Object
9	TLEVEL	☐	SEU_LEVEL	SEU_LEVEL	NUMC	2	0	Node level
10	POSID	☐	PS_POSID	PS_POSID	CHAR	24	0	Work Breakdown Structure Element (WBS Element)
11	VORNR	☐	VORNR	VORNR	CHAR	4	0	Operation/Activity Number
12	UVORN	☐	UVORN	VORNR	CHAR	4	0	Suboperation
13	AUFPL	☐	CO_AUFPL	AUFPL	NUMC	10	0	Routing number of operations in the order
14	APLZL	☐	CO_APLZL	CO_APLZL	NUMC	8	0	General counter for order	*
15	MLST_ZAEHL	☐	MLST_ZAEHL	NUM12	NUMC	12	0	Number of milestone
16	AUFNR	☐	AUFNR	AUFNR	CHAR	12	0	Order Number	*
17	AUFNT	☐	CO_TEILNET	AUFNR	CHAR	12	0	Number of superior network	*
18	APLZT	☐	CO_APLZL	CO_APLZL	NUMC	8	0	General counter for order	*
19	PROJ_EXT	☐	PS_PSPID	PS_PSPID	CHAR	24	0	Project definition
20	PSPEL	☐	PS_PSP_ELE	PS_POSNR	NUMC	8	0	Work breakdown structure element (WBS element)	*
21	PRONR	☐	PS_PSP_PRO	PS_PSPNR	NUMC	8	0	Project definition	*
22	PROJN	☐	PS_PSP_ELE	PS_POSNR	NUMC	8	0	Work breakdown structure element (WBS element)	*
23	RSNUM	☐	RSNUM	RSNUM	NUMC	10	0	Number of reservation/dependent requirements	*
24	RSPOS	☐	RSPOS	RSPOS	NUMC	4	0	Item Number of Reservation / Dependent Requirements
25	WERKS	☐	WERKS_D	WERKS	CHAR	4	0	Plant	*
26	VBUKR	☐	PS_VBUKR	BUKRS	CHAR	4	0	Company code for the project	*
27	PBUKR	☐	PS_PBUKR	BUKRS	CHAR	4	0	Company code for WBS element	*
28	VERNR	☐	PS_VERNR	PS_VERNR	NUMC	8	0	Number of the responsible person (project manager)	*
29	AUART	☐	AUFART	AUFART	CHAR	4	0	Order Type	*
30	STEUS	☐	STEUS	STEUS	CHAR	4	0	Control key	*
31	STATUS_CODE	☐	ACTCMB_DELE	ACTCMB_DOM	INT1	3	0	Status Combination
32	DISPLAY	☐	FLAG	FLAG	CHAR	1	0	General Flag
33	CHANGE	☐	FLAG	FLAG	CHAR	1	0	General Flag
34	NODE_KEY	☐	LVC_NKEY		CHAR	12	0	ALV Tree Control: Node Key
35	POST1	☐	PS_POST1	TEXT40	CHAR	40	0	PS: Short description (first text line)
36	EXPANDER	☐	EXPANDER_ELE	EXPANDER_DOM	CHAR	1	0	Hierarchy Expandable
37	EXPANDED	☐	EXPANDED_ELE	CHAR_TYP	CHAR	1	0	Hierarchy Expanded
38	SHORT_TEXT	☐	SHORT_TEXT_ELE	SHORT_TEXT_ELE	CHAR	1	0	Short Text
39	LOAD_UNAME	☐	LOAD_UNAME	UNAME	CHAR	12	0	User Who Loaded Data in TREX-Based Cache
40	LOAD_DATE	☐	LOAD_DATE		DATS	8	0	Date on Which Data Was Cached in TREX-Based Cache
41	EXPIRY_DATE	☐	PS_EXPIRY_DATE		DATS	8	0	Date from Which Cached Data Is Invalid

History

Last changed by/on	SAP	20130529
SAP Release Created in	606
