SAP ABAP Table HCMT_BSP_PA_XX_R0050 (Single Screen for IT0050)

Hierarchy

☛ EA-HRRXX (Software Component) Sub component EA-HRRXX of EA-HR
   ⤷ PA-PA (Application Component) Personnel Administration
     ⤷ PAOC_PAD_UI_XX (Package) User Interface for Personnel Administration - General Parts

Basic Data

Table Category	INTTAB	Structure

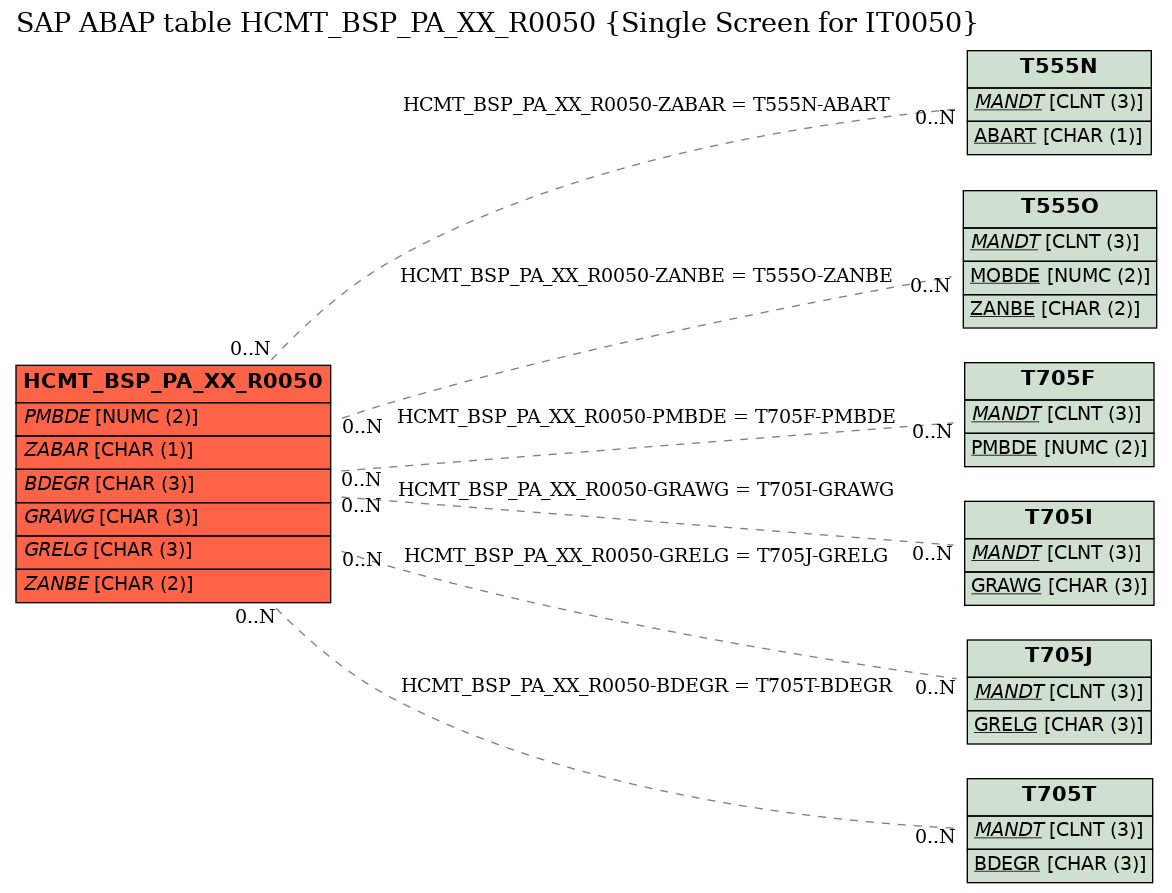

Structure	HCMT_BSP_PA_XX_R0050	Table Relationship Diagram
Short Description	Single Screen for IT0050

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	HCM_OBJECT_KEY		CHAR	100	0	HCM Object Key
2	.INCLUDE	☐				0	0	Header Fields of an Infotype Version
3	.INCLUDE	☐				0	0	Header Fields of an Infotype Version
4	PERNR	☐	PERNR_D	PERNR	NUMC	8	0	Personnel Number
5	AEDTM	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
6	UNAME	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
7	SPRPS	☐	SPRPS	SPRPS	CHAR	1	0	Lock Indicator for HR Master Data Record
8	SPRTX	☐	SPRPSTEXT	SPRPSTEXT	CHAR	40	0	Lock indicator for HR master record (text)
9	ITBLD	☐	ITBLD	CHAR2	CHAR	2	0	Infotype Screen Control
10	BEGDA	☐	PAD_BEGDA	DATUM	DATS	8	0	Valid-From Date
11	ENDDA	☐	PAD_ENDDA	DATUM	DATS	8	0	Valid To Date
12	ZAUSW	☐	DZAUSW	ZAUSW	NUMC	8	0	Time Recording ID Number
13	ZAUVE	☐	DZAUVE	PT_ZAUVE	CHAR	1	0	ID version
14	PMBDE	☐	PMBDE	PMBDE	NUMC	2	0	Work time event type group	T705F
15	ZABAR	☐	DZABAR	ZABAR	CHAR	1	0	Employee grouping for the time evaluation rule	T555N
16	ATEXT	☐	TEXT20	TEXT20	CHAR	20	0	Text (20 Characters)
17	BDEGR	☐	BDEGR	BDEGR	CHAR	3	0	Grouping for Connection to Subsystem	T705T
18	GLMAX	☐	GLMAX	DEC3_2	DEC	5	2	Flextime maximum
19	GRAWG	☐	GRAWG	GRAWG	CHAR	3	0	Grouping of Attendance/Absence Reasons	T705I
20	GLMIN	☐	GLMIN	DEC3_2	DEC	5	2	Flextime minimum
21	GRELG	☐	GRELG	GRELG	CHAR	3	0	Grouping for Employee Expenses	T705J
22	ZTZUA	☐	DZTZUA	DECV3_2	DEC	5	2	Time Bonus/Deduction
23	ZANBE	☐	DZANBE	ZANBE	CHAR	2	0	Access control group	T555O
24	ZMGEN	☐	DZMGEN	CHAR1	CHAR	1	0	Standard overtime
25	ZMAIL	☐	DZMAIL	CHAR1	CHAR	1	0	Mail indicator
26	ZUSKZ	☐	DZUSKZ	CHAR1	CHAR	1	0	Additional indicator
27	ZPINC	☐	DZPINC	CHAR4	CHAR	4	0	Personal code
28	ZDGBE	☐	DZDGBE	CHAR1	CHAR	1	0	Off-site work athorization
29	.INCLUDE	☐				0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	HCMT_BSP_PA_XX_R0050	BDEGR	T705T	BDEGR
2	HCMT_BSP_PA_XX_R0050	GRAWG	T705I	GRAWG
3	HCMT_BSP_PA_XX_R0050	GRELG	T705J	GRELG
4	HCMT_BSP_PA_XX_R0050	PMBDE	T705F	PMBDE
5	HCMT_BSP_PA_XX_R0050	ZABAR	T555N	ABART
6	HCMT_BSP_PA_XX_R0050	ZANBE	T555O	ZANBE

History

Last changed by/on	SAP	20110809
SAP Release Created in	100
