SAP ABAP Table FRMLS_IOT_SRCH (RMS-FRM: Structure for Search Methods)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PLM-RM (Application Component) Recipe Management
     ⤷ RMSFRMINFMSC (Package) RMS-FRM: General Modules for INF Package

Basic Data

Table Category	INTTAB	Structure

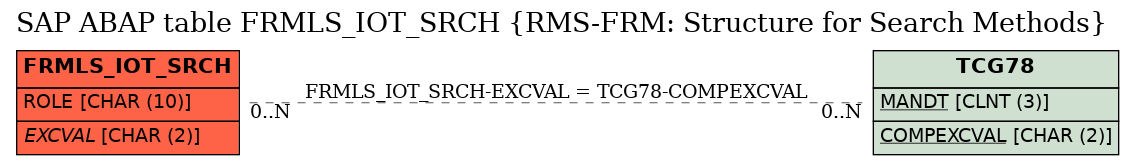

Structure	FRMLS_IOT_SRCH	Table Relationship Diagram
Short Description	RMS-FRM: Structure for Search Methods

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	RMS-FRM: IO Tab for Dialogs with Compositions
2	LINENO	☐	FRMLE_COUNT	NUMC04	NUMC	4	0	General Counter
3	LINEMOD	☐	FRMLE_LINEMODE	CHAR1	CHAR	1	0	Processing Status/Mode of a Record/Step Loop Line
4	.INCLUDE	☐				0	0	RMS-FRM: Keys for Structure Part of Formula
5	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
6	RECN	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
7	RECNMST	☐	FRMLE_RECN_MASTER	FRMLD_GUID	CHAR	32	0	Higher-Level Object Identifier
8	RECNROOT	☐	FRMLE_RECNROOT	FRMLD_GUID	CHAR	32	0	Formula Header Object
9	RECNALGRP	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
10	RECN_DATA	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
11	SUBRECN	☐	FRMLE_SUBRECN	ESDRECN	NUMC	20	0	Substance Key
12	ACTN	☐	ESEACTN	ESDACTN	NUMC	20	0	Sequential Number of the Change State
13	MATNR	☐	FRMLE_MATNR	MATNR	CHAR	18	0	Material Number of an Item	*
14	SUBID	☐	FRMLE_SUBID	ESDSUBID	CHAR	12	0	Substance
15	.INCLUDE	☐				0	0	RMS-FRM: General Data for List Item (for Subst.and Material)
16	POSNR	☐	FRMLE_POSNR	FRMLD_POSNR	NUMC	4	0	Number of a Material or Substance Item
17	ROLE	☐	FRMLE_ROLE	ESDCOMPCAT	CHAR	10	0	Component Type (Material, Substance, or Stream Item)	*
18	STD_ALT_FLG	☐	FRMLE_STDALT_FLG	FRMLD_FLAG	CHAR	1	0	Standard Item
19	FLG_ALT_EXIST	☐	FRMLE_ALT_EXIST	XFELD	CHAR	1	0	Alternative Items Exist
20	ALT_POSNR	☐	FRMLE_ALT_POSNR	FRMLD_POSNR	NUMC	4	0	Sort Number of an Alternative Item
21	PO_FLG	☐	FRMLE_PO_FLG	FRMLD_FLAG	CHAR	1	0	Primary Output
22	.INCLUDE	☐				0	0	RMS-FRM: Value Range of a Component
23	COMPTGT	☐	FRMLE_COMPTGT	EHSBD_QUAN6_6	QUAN	12	6	Quantity of a Material or Substance Item
24	COMPTGT_ERR_FLG	☐	FRMLE_ERR_FLG	FLAG	CHAR	1	0	Error When Converting Units
25	OPLOW	☐	FRMLE_OPLOW	FRMLD_OPLOW	CHAR	2	0	Operator for Lower Limit
26	COMPLOW	☐	FRMLE_COMPLOW	FRMLD_QUAN6_6	QUAN	12	6	Value of Lower Limit of Item Quantity
27	OPUP	☐	FRMLE_OPUP	FRMLD_OPUP	CHAR	2	0	Operator for Upper Limit
28	COMPUPP	☐	FRMLE_COMPUPP	FRMLD_QUAN6_6	QUAN	12	6	Value of Upper Limit of Item Quantity
29	UNIT	☐	FRMLE_COMPUNIT	MEINS	UNIT	3	0	Unit of Measure of a Material or Substance Item	*
30	EXCVAL	☐	FRMLE_EXCVAL	ESDCOMPEXCVAL	CHAR	2	0	Exception Value	TCG78
31	ADDVAL	☐	FRMLE_ADDVAL	CHAR030	CHAR	30	0	Freely Available Field of Type Character String w.30 Characs
32	COMPTGT_FLT	☐	FRMLE_FLT	FLTP	FLTP	16	16	Floating-Point Value
33	COMPLOW_FLT	☐	FRMLE_COMPLOW_FLT	FLTP	FLTP	16	16	Lower Limit Value of Item Quantity (Floating Point Value)
34	COMPUPP_FLT	☐	FRMLE_COMPUPP_FLT	FLTP	FLTP	16	16	Upper Limit Value of Item Quantity (Floating Point Value)
35	OVR_FACTOR	☐	FRMLE_OVR_FACTOR	FRMLD_OVR	NUMC	3	0	Overrun Factor
36	DEF_EXPL_FLG	☐	FRMLE_DEFEXPL_FLG	FRMLD_DEFEXPL_FLG	CHAR	1	0	Standard Explosion
37	FLG_1_N_MAT	☐	FRMLE_1_N_MAT	XFELD	CHAR	1	0	Group Item
38	FLG_HAS_1_N_MAT	☐	FRMLE_HAS_1_N_MAT	XFELD	CHAR	1	0	Group Items Exist
39	FLG_OUT	☐	FRMLE_FLG_OUT	XFELD	CHAR	1	0	Item Is Output of a Formula
40	STREAM_FLG	☐	FRMLE_STREAM_FLG	FLAG	CHAR	1	0	Stream
41	STREAM_ID	☐	FRMLE_RECN	FRMLD_GUID	CHAR	32	0	RMS-FRM: Object Identifier
42	.INCLUDE	☐				0	0	RMS-FRM: Additional Texts
43	MAKTX	☐	MAKTX	TEXT40	CHAR	40	0	Material description
44	IDENT	☐	FRMLE_IDENT_1	TEXT132	CHAR	132	0	First Substance Identifier
45	IDENT2	☐	FRMLE_IDENT_2	TEXT132	CHAR	132	0	Second Substance Identifier
46	ROLENAME	☐	FRMLE_ROLENAME	TEXT40	CHAR	40	0	Description of Component Type
47	EXCVAL_TXT	☐	FRMLE_EXCVAL_TXT	CHAR40	CHAR	40	0	Text for Exception Value
48	STREAM_TXT	☐	FRMLE_STREAMTX	TEXT60	CHAR	60	0	Short Description of Stream
49	ITEM_DESCR_TEXT	☐	FRMLE_ITEM_DESCR	TEXT132	CHAR	132	0	Description of the Material, Substance, or Stream
50	FLG_NEG	☐	FRMLE_NEG	XFELD	CHAR	1	0	Exclude from Selection (Negation)
51	SEARCH_MODE	☐	FRMLE_SRCH_MODE	FRMLD_SRCH_MODE	CHAR	1	0	Type of Material or Substance Item

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	FRMLS_IOT_SRCH	EXCVAL	TCG78	COMPEXCVAL

History

Last changed by/on	SAP	20130529
SAP Release Created in	471
