SAP ABAP Table COMT_BSP_IOBJ_LOCAT_ADDRHIST (Location Addresses for Individual Objects)
Hierarchy
☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MD-PRO-OBJ (Application Component) Objects
     ⤷ CRM_IOBJECT_LOCATION (Package) IObject Location
Basic Data
Table Category INTTAB    Structure

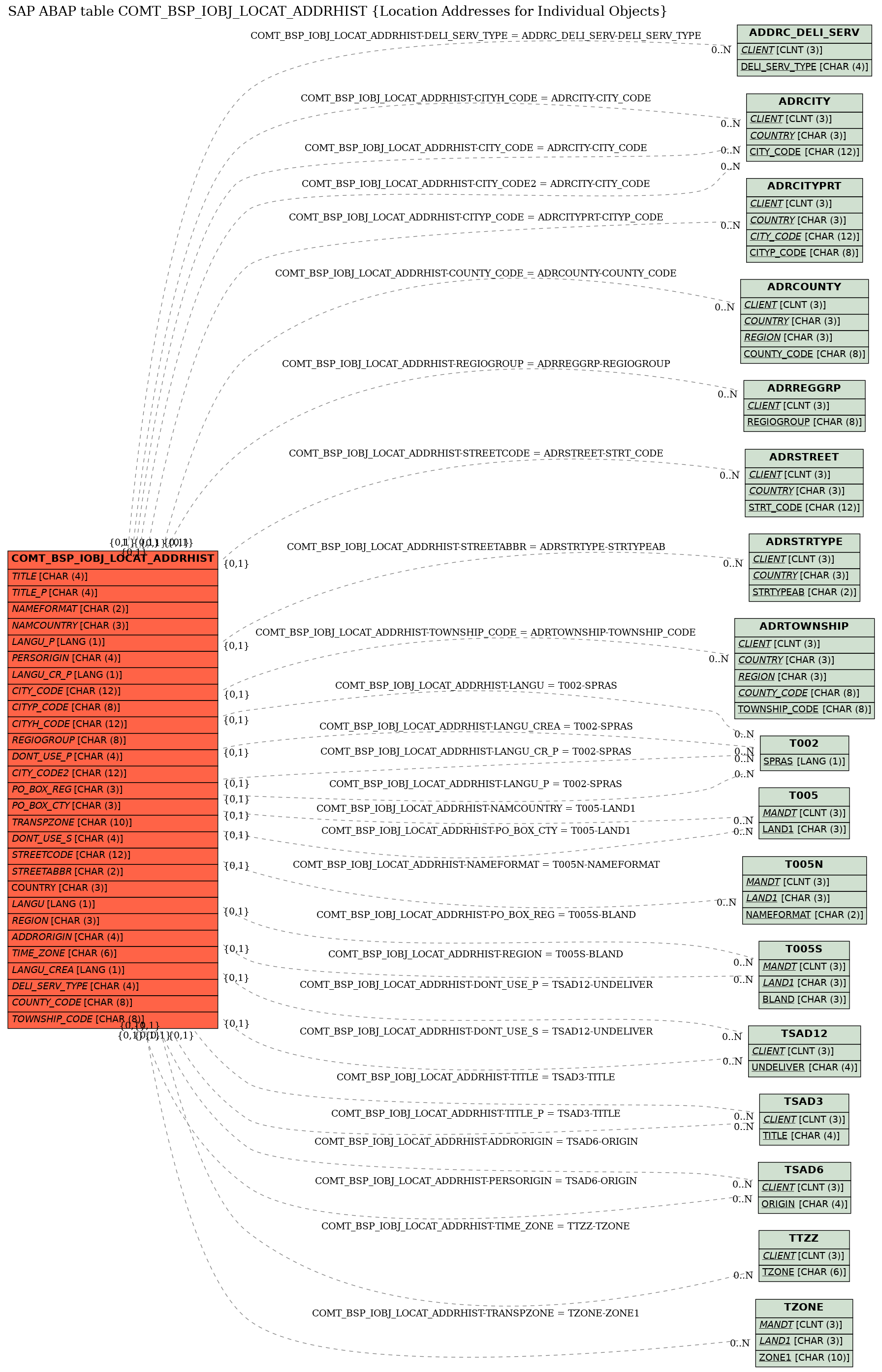

Structure COMT_BSP_IOBJ_LOCAT_ADDRHIST   Table Relationship Diagram
Short Description Location Addresses for Individual Objects
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 .INCLUDE       0   0   Dialog Structure for Addresses
2 OBJECT_KEY CRMT_BSP_OBJECTKEY   CHAR 100   0   Object Key
3 .INCLUDE       0   0   Dialog-Relevant Information
4 ADDRESS_TYPE AD_ADRTYPE AD_ADRTYPE CHAR 1   0   Address type (1=Organization, 2=Person, 3=Contact person)
5 DROPDOWN_EXPAND CRMT_BSP_AD_DROPDOWN_EXPAND XFELD CHAR 1   0   Default Display/Detail Display of Addresses
6 DROPDOWN_NATION CRMT_BSP_AD_DROPDOWN_NATION AD_NATION CHAR 1   0   Display of Address Version of an Address *
7 DROPDOWN_COMM CRMT_BSP_AD_DROPDOWN_COMM AD_COMM CHAR 3   0   Display of Communication Types for an Address *
8 NATION AD_NATION AD_NATION CHAR 1   0   Version ID for International Addresses *
9 .INCLUDE       0   0   Include structure with name attributes of the ADRC address
10 TITLE AD_TITLE AD_TITLE CHAR 4   0   Form-of-Address Key TSAD3
11 NAME1 AD_NAME1 TEXT40 CHAR 40   0   Name 1
12 NAME2 AD_NAME2 TEXT40 CHAR 40   0   Name 2
13 NAME3 AD_NAME3 TEXT40 CHAR 40   0   Name 3
14 NAME4 AD_NAME4 TEXT40 CHAR 40   0   Name 4
15 NAME_TXT AD_NAMETXT TEXT50 CHAR 50   0   Converted name field (with form of address)
16 .INCLUDE       0   0   Include Structure with ADRP Attributes Incl. Descriptions
17 .INCLUDE       0   0   Include structure with ADRP attributes
18 TITLE_P AD_TITLE AD_TITLE CHAR 4   0   Form-of-Address Key TSAD3
19 NAME_FIRST AD_NAMEFIR TEXT40 CHAR 40   0   First name
20 NAME_LAST AD_NAMELAS TEXT40 CHAR 40   0   Last name
21 NAME2_P AD_NAME2_P TEXT40 CHAR 40   0   Name of person at birth
22 NAMEMIDDLE AD_NAMEMID TEXT40 CHAR 40   0   Middle name or second forename of a person
23 NAME_LAST2 AD_NAMLAS2 TEXT40 CHAR 40   0   Second surname of a person
24 NAME_TEXT AD_NAMTEXT TEXT80 CHAR 80   0   Full Name of Person
25 CONVERTED AD_NAMCONV AD_NAMCONV CHAR 1   0   Status of Field 'Full Name' NAME_TEXT
26 TITLE_ACA1 AD_TITLE1 AD_TITLE1 CHAR 4   0   Academic Title: Key *
27 TITLE_ACA2 AD_TITLE2 AD_TITLE1 CHAR 4   0   Second academic title (key) *
28 PREFIX1 AD_PREFIX AD_PREFIX CHAR 4   0   Name Prefix (Key) *
29 PREFIX2 AD_PREFIX2 AD_PREFIX CHAR 4   0   2nd name prefix (key) *
30 TITLE_SPPL AD_TITLES AD_TITLES CHAR 4   0   Name supplement, e.g. noble title (key) *
31 NICKNAME AD_NICKNAM TEXT40 CHAR 40   0   Nickname or name used
32 INITIALS AD_INITS CHAR10 CHAR 10   0   "Middle Initial" or personal initials
33 NAMEFORMAT AD_FORMAT AD_NAMFORM CHAR 2   0   Name format T005N
34 NAMCOUNTRY AD_NAMCTRY LAND1 CHAR 3   0   Country for name format rule T005
35 PROFESSION AD_PROFESS TEXT40 CHAR 40   0   Profession
36 SEX AD_SEX AD_SEX CHAR 1   0   Gender key
37 LANGU_P SPRAS SPRAS LANG 1   0   Language Key T002
38 SORT1_P AD_SORT1UL TEXT20 CHAR 20   0   Search Term 1
39 SORT2_P AD_SORT2UL TEXT20 CHAR 20   0   Search Term 2
40 SORT_PHN_P AD_SRTPHN CHAR20 CHAR 20   0   (Not Supported) Phonetic Search Sort Field
41 PERSORIGIN AD_ORIGINP AD_ORIGIN CHAR 4   0   Personal data source (key) TSAD6
42 LANGU_CR_P AD_LANGUCR SPRAS LANG 1   0   Address record creation original language T002
43 NAMCOUNTRY_DESCRIPTION LANDX TEXT15 CHAR 15   0   Country Name
44 .INCLUDE       0   0   Include structure wit ADCP attributes
45 SO_KEY AD_SO_KEY AD_SO_KEY CHAR 10   0   SAP-Office key
46 DEPARTMENT AD_DPRTMNT TEXT40 CHAR 40   0   Department
47 FUNCTION AD_FNCTN TEXT40 CHAR 40   0   Function
48 BUILDING_C AD_BLDNG_P TEXT10 CHAR 10   0   Building (number or code)
49 FLOOR_C AD_FLOOR TEXT10 CHAR 10   0   Floor in building
50 ROOMNUM_C AD_ROOMNUM TEXT10 CHAR 10   0   Room or Appartment Number
51 ID_CODE AD_ID_CODE TEXT10 CHAR 10   0   Short name for correspondence
52 IH_MAIL AD_IH_MAIL TEXT10 CHAR 10   0   Int. mail postal code
53 SORT1_C AD_SORTOLD CHAR20 CHAR 20   0   (Not Supported) Search Term
54 SORT2_C AD_SORTOLD CHAR20 CHAR 20   0   (Not Supported) Search Term
55 SORT_PHN_C AD_SRTPHN CHAR20 CHAR 20   0   (Not Supported) Phonetic Search Sort Field
56 .INCLUDE       0   0   Include Structure with ADRC Attributes and Descriptions
57 .INCLUDE       0   0   Include structure with ADRC attributes without name fields
58 NAME_CO AD_NAME_CO TEXT40 CHAR 40   0   c/o name
59 CITY1 AD_CITY1 TEXT40 CHAR 40   0   City
60 CITY2 AD_CITY2 TEXT40 CHAR 40   0   District
61 CITY_CODE AD_CITYNUM CITY_CODE CHAR 12   0   City code for city/street file ADRCITY
62 CITYP_CODE AD_CITYPNM CITYP_CODE CHAR 8   0   District code for City and Street file ADRCITYPRT
63 HOME_CITY AD_CITY3 TEXT40 CHAR 40   0   City (different from postal city)
64 CITYH_CODE AD_CITYHNM CITY_CODE CHAR 12   0   Different city for city/street file ADRCITY
65 CHCKSTATUS AD_CHECKST AD_CHECKST CHAR 1   0   City file test status
66 REGIOGROUP REGIOGROUP REGIOGROUP CHAR 8   0   Regional structure grouping ADRREGGRP
67 POST_CODE1 AD_PSTCD1 CHAR10 CHAR 10   0   City postal code
68 POST_CODE2 AD_PSTCD2 CHAR10 CHAR 10   0   PO Box postal code
69 POST_CODE3 AD_PSTCD3 CHAR10 CHAR 10   0   Company postal code (for large customers)
70 PCODE1_EXT AD_PST1XT CHAR10 CHAR 10   0   (Not Supported)City Postal Code Extension, e.g. ZIP+4+2 Code
71 PCODE2_EXT AD_PST2XT CHAR10 CHAR 10   0   (Not Supported) PO Box Postal Code Extension
72 PCODE3_EXT AD_PST3XT CHAR10 CHAR 10   0   (Not Supported) Major Customer Postal Code Extension
73 PO_BOX AD_POBX CHAR10 CHAR 10   0   PO Box
74 DONT_USE_P AD_NO_USEP AD_NO_USE CHAR 4   0   PO Box Address Undeliverable Flag TSAD12
75 PO_BOX_NUM AD_POBXNUM XFELD CHAR 1   0   Flag: PO Box without number
76 PO_BOX_LOC AD_POBXLOC TEXT40 CHAR 40   0   PO Box city
77 CITY_CODE2 AD_CIT2NUM CITY_CODE CHAR 12   0   City PO box code (City file) ADRCITY
78 PO_BOX_REG AD_POBXREG REGIO CHAR 3   0   Region for PO Box (Country, State, Province, ...) T005S
79 PO_BOX_CTY AD_POBXCTY LAND1 CHAR 3   0   PO box country T005
80 POSTALAREA AD_PSTLAR TEXT15 CHAR 15   0   (Not Supported) Post Delivery District
81 TRANSPZONE LZONE ZONE CHAR 10   0   Transportation zone to or from which the goods are delivered TZONE
82 STREET AD_STREET TEXT60 CHAR 60   0   Street
83 DONT_USE_S AD_NO_USES AD_NO_USE CHAR 4   0   Street Address Undeliverable Flag TSAD12
84 STREETCODE AD_STRNUM STRT_CODE CHAR 12   0   Street Number for City/Street File ADRSTREET
85 STREETABBR AD_STRABBR STRTYPEAB CHAR 2   0   (Not Supported) Abbreviation of Street Name ADRSTRTYPE
86 HOUSE_NUM1 AD_HSNM1 TEXT10 CHAR 10   0   House Number
87 HOUSE_NUM2 AD_HSNM2 TEXT10 CHAR 10   0   House number supplement
88 HOUSE_NUM3 AD_HSNM3 TEXT10 CHAR 10   0   (Not supported) House Number Range
89 STR_SUPPL1 AD_STRSPP1 TEXT40 CHAR 40   0   Street 2
90 STR_SUPPL2 AD_STRSPP2 TEXT40 CHAR 40   0   Street 3
91 STR_SUPPL3 AD_STRSPP3 TEXT40 CHAR 40   0   Street 4
92 LOCATION AD_LCTN TEXT40 CHAR 40   0   Street 5
93 BUILDING AD_BLDNG TEXT20 CHAR 20   0   Building (Number or Code)
94 FLOOR AD_FLOOR TEXT10 CHAR 10   0   Floor in building
95 ROOMNUMBER AD_ROOMNUM TEXT10 CHAR 10   0   Room or Appartment Number
96 COUNTRY LAND1 LAND1 CHAR 3   0   Country Key *
97 LANGU SPRAS SPRAS LANG 1   0   Language Key T002
98 REGION REGIO REGIO CHAR 3   0   Region (State, Province, County) T005S
99 SORT1 AD_SORT1UL TEXT20 CHAR 20   0   Search Term 1
100 SORT2 AD_SORT2UL TEXT20 CHAR 20   0   Search Term 2
101 SORT_PHN AD_SRTPHN CHAR20 CHAR 20   0   (Not Supported) Phonetic Search Sort Field
102 ADDRORIGIN AD_ORIGINA AD_ORIGIN CHAR 4   0   (Not Supported) Address Data Source (Key) TSAD6
103 EXTENSION1 AD_EXTENS1 TEXT40 CHAR 40   0   Extension (only for data conversion) (e.g. data line)
104 EXTENSION2 AD_EXTENS2 TEXT40 CHAR 40   0   Extension (only for data conversion) (e.g. telebox)
105 TIME_ZONE AD_TZONE TZNZONE CHAR 6   0   Address time zone TTZZ
106 TAXJURCODE AD_TXJCD AD_TXJCD CHAR 15   0   Tax Jurisdiction
107 ADDRESS_ID AD_ADDR_ID AD_ADDR_ID CHAR 10   0   (Not supported) Physical address ID
108 REMARK AD_REMARK1 TEXT50 CHAR 50   0   Address notes
109 LANGU_CREA AD_LANGUCR SPRAS LANG 1   0   Address record creation original language T002
110 PO_BOX_LOBBY AD_PO_BOX_LBY TEXT40 CHAR 40   0   PO Box Lobby
111 DELI_SERV_TYPE AD_DELIVERY_SERVICE_TYPE AD_DELIVERY_SERVICE_TYPE CHAR 4   0   Type of Delivery Service ADDRC_DELI_SERV
112 DELI_SERV_NUMBER AD_DELIVERY_SERVICE_NUMBER CHAR10 CHAR 10   0   Number of Delivery Service
113 COUNTY_CODE AD_CNTYNUM CNTY_CODE CHAR 8   0   County code for county ADRCOUNTY
114 COUNTY AD_COUNTY TEXT40 CHAR 40   0   County
115 TOWNSHIP_CODE AD_TWSHPNUM TWSHP_CODE CHAR 8   0   Township code for Township ADRTOWNSHIP
116 TOWNSHIP AD_TOWNSHIP TEXT40 CHAR 40   0   Township
117 COUNTRY_DESCRIPTION LANDX TEXT15 CHAR 15   0   Country Name
118 REGION_DESCRIPTION BEZEI20 TEXT20 CHAR 20   0   Description
119 TRANSPZONE_DESCRIPTION BEZEI20 TEXT20 CHAR 20   0   Description
120 REGIOGROUP_DESCRIPTION TEXT50 TEXT50 CHAR 50   0   Text Field
121 PO_BOX_CTY_DESCRIPTION LANDX TEXT15 CHAR 15   0   Country Name
122 PO_BOX_REG_DESCRIPTION BEZEI20 TEXT20 CHAR 20   0   Description
123 .INCLUDE       0   0   Include Structure for the Communication Data of an Address
124 TEL_COUNTRY AD_COMCTRY LAND1 CHAR 3   0   Country for telephone/fax number *
125 TEL_COUNTRY_DESCRIPTION LANDX TEXT15 CHAR 15   0   Country Name
126 TEL_NUMBER AD_TLNMBR CHAR30 CHAR 30   0   Telephone no.: dialling code+number
127 TEL_EXTENS AD_TLXTNS CHAR10 CHAR 10   0   Telephone no.: Extension
128 MOB_COUNTRY AD_COMCTRY LAND1 CHAR 3   0   Country for telephone/fax number *
129 MOB_COUNTRY_DESCRIPTION LANDX TEXT15 CHAR 15   0   Country Name
130 MOB_NUMBER AD_MBNMBR1 CHAR30 CHAR 30   0   First Mobile Telephone No.: Dialing Code + Number
131 MOB_EXTENS AD_MBXTNS1 CHAR10 CHAR 10   0   First Mobile Telephone No.: Extension
132 FAX_COUNTRY AD_COMCTRY LAND1 CHAR 3   0   Country for telephone/fax number *
133 FAX_COUNTRY_DESCRIPTION LANDX TEXT15 CHAR 15   0   Country Name
134 FAX_NUMBER AD_FXNMBR CHAR30 CHAR 30   0   Fax number: dialling code+number
135 FAX_EXTENS AD_FXXTNS CHAR10 CHAR 10   0   Fax no.: Extension
136 SMTP_ADDR AD_SMTPADR AD_SMTPADR CHAR 241   0   E-Mail Address
137 URI_TYPE AD_URITYPE AD_URITYPE CHAR 3   0   URI type flag
138 URI_SCREEN AD_URISCR AD_URISCR CHAR 132   0   URI, e.g. Homepage or ftp Address
139 DEFLT_COMM CRMT_BSP_AD_DCOMM AD_COMM CHAR 3   0   Standard Communication Method (Key) *
140 .INCLUDE       0   0   Product: Sets - Administration Data
141 VALID_FROM COMT_VALID_FROM BCOS_TSTMP DEC 15   0   Valid From (Time Stamp)
142 VALID_TO COMT_VALID_TO BCOS_TSTMP DEC 15   0   Valid To (Time Stamp)
143 UPNAME COMT_UPNAME UNAME CHAR 12   0   Name of the User Who Last Changed the Set
144 HISTEX COMT_HISTEX COM_BOOLEAN CHAR 1   0   History Exists
145 ADDR_NUM COMT_ADDRESS_NUM COMT_ADDRESS_NUM CHAR 10   0   Address Number
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 COMT_BSP_IOBJ_LOCAT_ADDRHIST ADDRORIGIN TSAD6 ORIGIN REF C CN
2 COMT_BSP_IOBJ_LOCAT_ADDRHIST CITYH_CODE ADRCITY CITY_CODE REF C CN
3 COMT_BSP_IOBJ_LOCAT_ADDRHIST CITYP_CODE ADRCITYPRT CITYP_CODE REF C CN
4 COMT_BSP_IOBJ_LOCAT_ADDRHIST CITY_CODE ADRCITY CITY_CODE REF C CN
5 COMT_BSP_IOBJ_LOCAT_ADDRHIST CITY_CODE2 ADRCITY CITY_CODE REF C CN
6 COMT_BSP_IOBJ_LOCAT_ADDRHIST COUNTY_CODE ADRCOUNTY COUNTY_CODE REF C CN
7 COMT_BSP_IOBJ_LOCAT_ADDRHIST DELI_SERV_TYPE ADDRC_DELI_SERV DELI_SERV_TYPE 1 CN
8 COMT_BSP_IOBJ_LOCAT_ADDRHIST DONT_USE_P TSAD12 UNDELIVER KEY C CN
9 COMT_BSP_IOBJ_LOCAT_ADDRHIST DONT_USE_S TSAD12 UNDELIVER REF C CN
10 COMT_BSP_IOBJ_LOCAT_ADDRHIST LANGU T002 SPRAS REF C CN
11 COMT_BSP_IOBJ_LOCAT_ADDRHIST LANGU_CREA T002 SPRAS REF C CN
12 COMT_BSP_IOBJ_LOCAT_ADDRHIST LANGU_CR_P T002 SPRAS REF C CN
13 COMT_BSP_IOBJ_LOCAT_ADDRHIST LANGU_P T002 SPRAS REF C CN
14 COMT_BSP_IOBJ_LOCAT_ADDRHIST NAMCOUNTRY T005 LAND1 REF C CN
15 COMT_BSP_IOBJ_LOCAT_ADDRHIST NAMEFORMAT T005N NAMEFORMAT REF C CN
16 COMT_BSP_IOBJ_LOCAT_ADDRHIST PERSORIGIN TSAD6 ORIGIN REF C CN
17 COMT_BSP_IOBJ_LOCAT_ADDRHIST PO_BOX_CTY T005 LAND1 REF C CN
18 COMT_BSP_IOBJ_LOCAT_ADDRHIST PO_BOX_REG T005S BLAND REF C CN
19 COMT_BSP_IOBJ_LOCAT_ADDRHIST REGIOGROUP ADRREGGRP REGIOGROUP REF C CN
20 COMT_BSP_IOBJ_LOCAT_ADDRHIST REGION T005S BLAND REF C CN
21 COMT_BSP_IOBJ_LOCAT_ADDRHIST STREETABBR ADRSTRTYPE STRTYPEAB REF C CN
22 COMT_BSP_IOBJ_LOCAT_ADDRHIST STREETCODE ADRSTREET STRT_CODE REF C CN
23 COMT_BSP_IOBJ_LOCAT_ADDRHIST TIME_ZONE TTZZ TZONE REF C CN
24 COMT_BSP_IOBJ_LOCAT_ADDRHIST TITLE TSAD3 TITLE REF C CN
25 COMT_BSP_IOBJ_LOCAT_ADDRHIST TITLE_P TSAD3 TITLE REF C CN
26 COMT_BSP_IOBJ_LOCAT_ADDRHIST TOWNSHIP_CODE ADRTOWNSHIP TOWNSHIP_CODE REF C CN
27 COMT_BSP_IOBJ_LOCAT_ADDRHIST TRANSPZONE TZONE ZONE1 REF C CN
History
Last changed by/on SAP  20141013
SAP Release Created in 500
