SAP ABAP Table COMP_DAT (Input fields for object comparison)
Hierarchy
☛ BBPCRM (Software Component) BBPCRM
   ⤷ PP-SFC (Application Component) Production Orders
     ⤷ COCM (Package) Application development Order Change Management
Basic Data
Table Category INTTAB    Structure

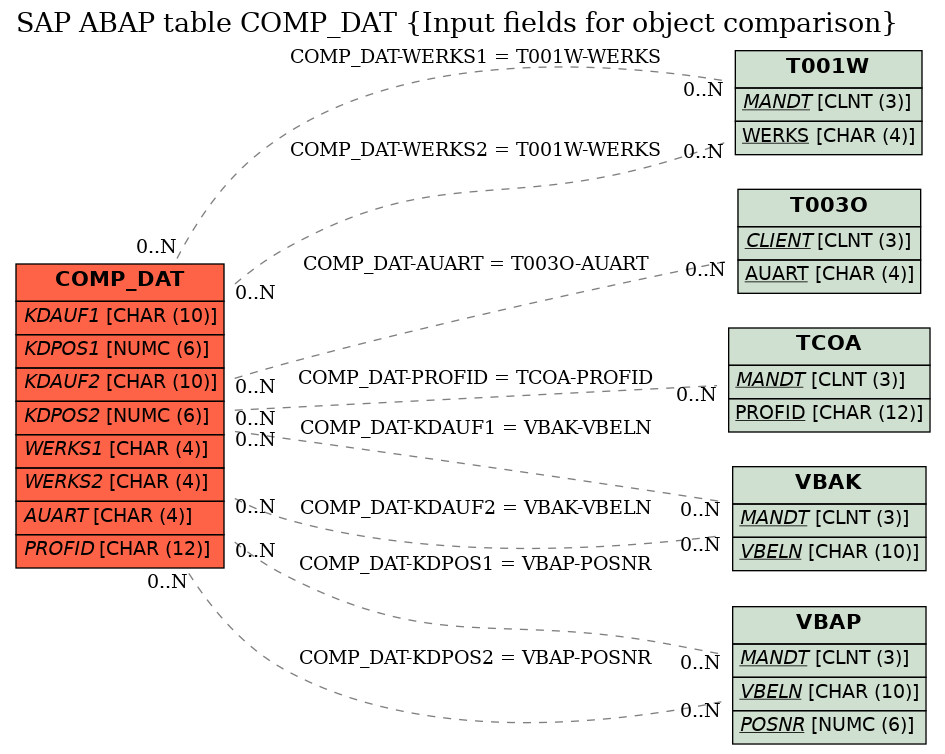

Structure COMP_DAT   Table Relationship Diagram
Short Description Input fields for object comparison
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 KDAUF1 CO_KDAUF VBELN CHAR 10   0   Sales order number VBAK
2 KDPOS1 CO_KDPOS POSNR NUMC 6   0   Sales order item VBAP
3 KDAUF2 CO_KDAUF VBELN CHAR 10   0   Sales order number VBAK
4 KDPOS2 CO_KDPOS POSNR NUMC 6   0   Sales order item VBAP
5 AUFNR1 CO_AUFNR AUFNR CHAR 12   0   Order number *
6 AUFNR2 CO_AUFNR AUFNR CHAR 12   0   Order number *
7 MATNR1 MATNR MATNR CHAR 18   0   Material Number *
8 MATNR2 MATNR MATNR CHAR 18   0   Material Number *
9 AUFLD1 CO_AUFLD DATUM DATS 8   0   Date of BOM Explosion/Routing Transfer
10 AUFLD2 CO_AUFLD DATUM DATS 8   0   Date of BOM Explosion/Routing Transfer
11 WERKS1 WERKS_D WERKS CHAR 4   0   Plant T001W
12 WERKS2 WERKS_D WERKS CHAR 4   0   Plant T001W
13 AUART AUFART AUFART CHAR 4   0   Order Type T003O
14 PROFID CO_PROF_ST CO_PROF_ST CHAR 12   0   Order information sytem: overall profile TCOA
15 ARTTEXT AUARTTEXT TEXT40 CHAR 40   0   Short Text
16 PRFTEXT KTEXT40 TEXT40 CHAR 40   0   General description
17 MENGE CO_PSMNG MENG13 QUAN 13   3   Order item quantity
18 MEINS MEINS MEINS UNIT 3   0   Base Unit of Measure *
19 FLG_COMP CO_FLG_COMP CHAR1 CHAR 1   0   Indicator: Only make comparison
20 FLG_SIM1 CO_FLG_SIM CHAR1 CHAR 1   0   Indicator: Selection of a Simulation Order
21 FLG_SIM2 CO_FLG_SIM CHAR1 CHAR 1   0   Indicator: Selection of a Simulation Order
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 COMP_DAT AUART T003O AUART
2 COMP_DAT KDAUF1 VBAK VBELN
3 COMP_DAT KDAUF2 VBAK VBELN
4 COMP_DAT KDPOS1 VBAP POSNR
5 COMP_DAT KDPOS2 VBAP POSNR
6 COMP_DAT PROFID TCOA PROFID
7 COMP_DAT WERKS1 T001W WERKS
8 COMP_DAT WERKS2 T001W WERKS
History
Last changed by/on SAP  20050411
SAP Release Created in
