SAP ABAP Table BAPITSWNOM02_O (TSW Nomination Header Data out)

Hierarchy

☛ IS-OIL (Software Component) IS-OIL
   ⤷ IS-OIL-DS-TSW (Application Component) Trader's and Scheduler's Workbench
     ⤷ OIJ_IF (Package) TSW Trader's and Scheduler's Workbench - new Interfaces/BAPI

Basic Data

Table Category	INTTAB	Structure

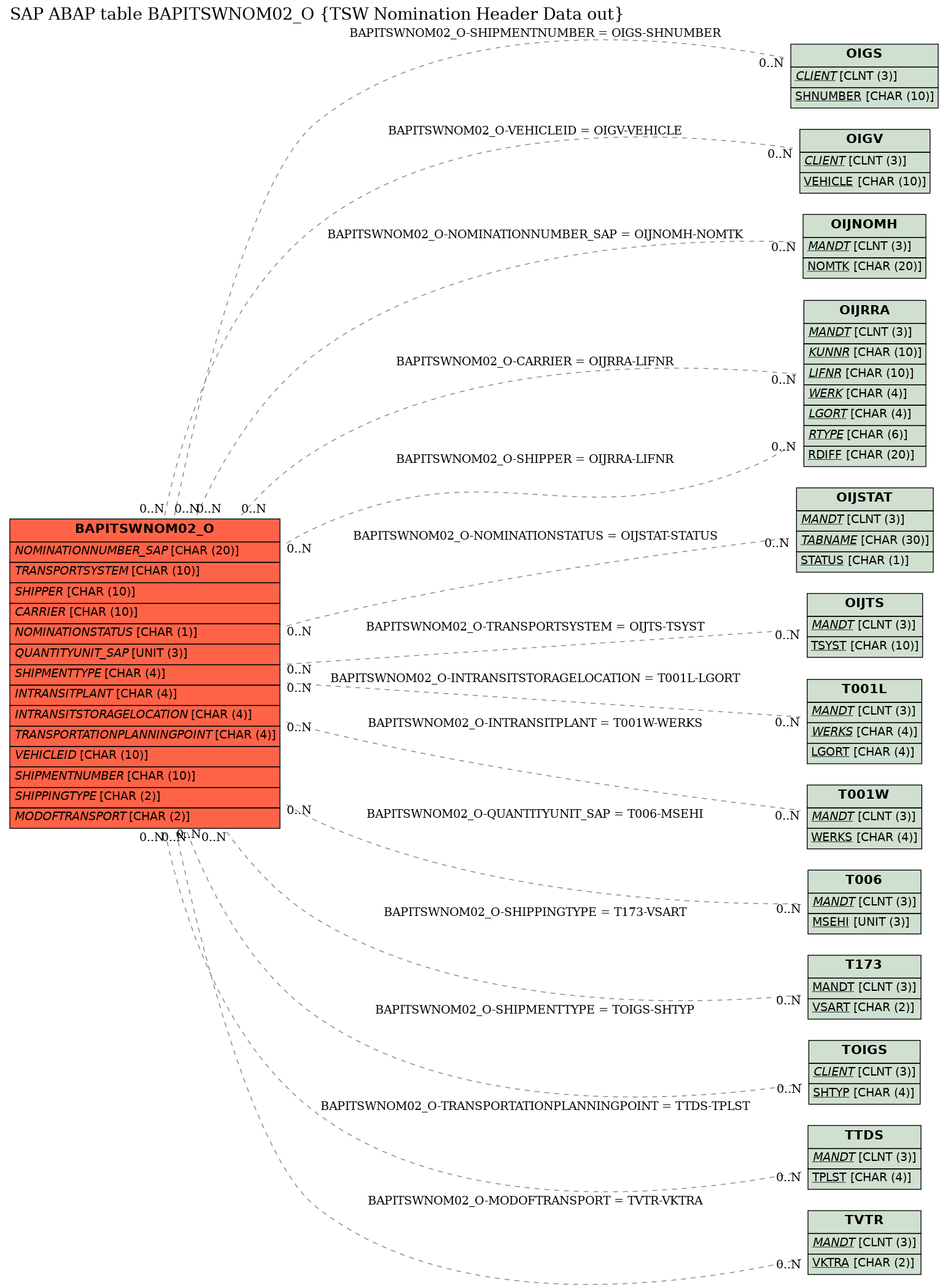

Structure	BAPITSWNOM02_O	Table Relationship Diagram
Short Description	TSW Nomination Header Data out

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	NOMINATIONNUMBER_SAP	☐	OIJ_NOMTK	OIJ_NOMTK	CHAR	20	0	Nomination (technical) Key	OIJNOMH
2	NOMINATIONNUMBER_EXT	☐	OIJ_NOMNR	OIJ_NOMNR	CHAR	20	0	Nomination number
3	TRANSPORTSYSTEM	☐	OIJ_TSYST	OIJ_TSYST	CHAR	10	0	Transport system	OIJTS
4	SHIPPER	☐	OIJ_SHIPNR	LIFNR	CHAR	10	0	Shipper	OIJRRA
5	CARRIER	☐	OIJ_CARRNR	LIFNR	CHAR	10	0	Transport system Carrier	OIJRRA
6	CYCLEID	☐	OIJ_CYCLE	CHAR10	CHAR	10	0	Nomination Pipeline cycle ID
7	NOMINATIONSTATUS	☐	OIJ_NOMST	OIJ_ISTAT	CHAR	1	0	Nomination header status	OIJSTAT
8	LOADQUANTITY	☐	OIJ_QTYIN	MENG13	QUAN	13	3	Qty received in TS
9	DISCHARGEQUANTITY	☐	OIJ_QTYOUT	MENG13	QUAN	13	3	Qty delivered from TS
10	QUANTITYUNIT_SAP	☐	OIJ_NMUNIT	MEINS	UNIT	3	0	Nomination(pipe) UoM	T006
11	QUANTITYUNIT_ISO	☐	ISOCD_UNIT	ISOCD_UNIT	CHAR	3	0	ISO code for unit of measurement	*
12	WORKLISTINDICATOR	☐	OIJ_WORKLT	XFELD	CHAR	1	0	Worklist entry indicator
13	NOMINATIONSENDDATE	☐	OIJ_SENDAT	DATUM	DATS	8	0	Last header action date
14	NOMINATIONSENDTIME	☐	OIJ_SENTIM	UZEIT	TIMS	6	0	Last header action time
15	SENDERNAME	☐	OIJ_SENNAM	USNAM	CHAR	12	0	Last user who worked on object
16	SHIPMENTTYPE	☐	OIG_TDSTYP	OIG_TDSTYP	CHAR	4	0	TD shipment type	TOIGS
17	EVENTSEQUENCENUMBER	☐	OIG_EVSEQU	OIG_DLNMCK	CHAR	1	0	TD Event sequence number (unique)
18	EVENTGROUP	☐	OIG_EVGRP	OIG_EVGRP	CHAR	4	0	TD - event default group
19	INTRANSITPLANT	☐	OIJ_WERK	WERKS	CHAR	4	0	Transport system In-transit Plant	T001W
20	INTRANSITSTORAGELOCATION	☐	OIJ_LGORT	LGORT	CHAR	4	0	Transport system In-transit Storage Location	T001L
21	TRANSPORTATIONPLANNINGPOINT	☐	TPLST	TPLST	CHAR	4	0	Transportation planning point	TTDS
22	VEHICLEID	☐	OIG_VHLNMR	OIG_VHLNMR	CHAR	10	0	TD Vehicle Number	OIGV
23	VEHICLEREFERENCEID	☐	OIG_VEHID	OIG_LICNMR	CHAR	18	0	TD vehicle identifier
24	BALANCECHECKINDICATOR	☐	OIJ_BALCH	XFELD	CHAR	1	0	Balance check indicator (default)
25	ITEMSCOUNTER	☐	OIJ_COUNT	NUM04	NUMC	4	0	OIL-TSW: Nom. item counter
26	PLANNEDITEMS	☐	OIJ_COUNT	NUM04	NUMC	4	0	OIL-TSW: Nom. item counter
27	SCHEDULEDITEMS	☐	OIJ_COUNT	NUM04	NUMC	4	0	OIL-TSW: Nom. item counter
28	REJECTEDITEMS	☐	OIJ_COUNT	NUM04	NUMC	4	0	OIL-TSW: Nom. item counter
29	CONFIRMEDITEMS	☐	OIJ_COUNT	NUM04	NUMC	4	0	OIL-TSW: Nom. item counter
30	PARTIALLYCOMPLETEDITEMS	☐	OIJ_COUNT	NUM04	NUMC	4	0	OIL-TSW: Nom. item counter
31	COMPLETEDITEMS	☐	OIJ_COUNT	NUM04	NUMC	4	0	OIL-TSW: Nom. item counter
32	SHIPMENTNUMBER	☐	OIG_SHNUM	OIG_SHNUM	CHAR	10	0	TD shipment number	OIGS
33	BOOKTSFLAG	☐	OIJ_BOOKTS	XFELD	CHAR	1	0	Book TS indicator
34	SHIPPINGTYPE	☐	VERSART	VERSART	CHAR	2	0	Shipping type	T173
35	MODOFTRANSPORT	☐	VKTRA	VKTRA	CHAR	2	0	Mode of transport	TVTR
36	BLOCKINGINDICATOR	☐	OIJ_BLOIND	XFELD	CHAR	1	0	Blocking indicator
37	DELETIONINDICATOR	☐	OIJ_DELIND	XFELD	CHAR	1	0	Deletion indicator
38	APOSHIPMENTGUID	☐	GUID_22	SYSUUID_22	CHAR	22	0	GUID in 'CHAR' format with upper-/lowercase (!)
39	APOSHIPMENTNUM	☐	TKNUM	TKNUM	CHAR	10	0	Shipment Number	*
40	ROUTE	☐	ROUTE	ROUTE	CHAR	6	0	Route	*
41	NOMINATIONTYPE	☐	OIJ_NOMTYP	OIJ_NOMTYP	CHAR	4	0	Nomination type	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAPITSWNOM02_O	CARRIER	OIJRRA	LIFNR
2	BAPITSWNOM02_O	INTRANSITPLANT	T001W	WERKS
3	BAPITSWNOM02_O	INTRANSITSTORAGELOCATION	T001L	LGORT
4	BAPITSWNOM02_O	MODOFTRANSPORT	TVTR	VKTRA
5	BAPITSWNOM02_O	NOMINATIONNUMBER_SAP	OIJNOMH	NOMTK
6	BAPITSWNOM02_O	NOMINATIONSTATUS	OIJSTAT	STATUS
7	BAPITSWNOM02_O	QUANTITYUNIT_SAP	T006	MSEHI
8	BAPITSWNOM02_O	SHIPMENTNUMBER	OIGS	SHNUMBER
9	BAPITSWNOM02_O	SHIPMENTTYPE	TOIGS	SHTYP
10	BAPITSWNOM02_O	SHIPPER	OIJRRA	LIFNR
11	BAPITSWNOM02_O	SHIPPINGTYPE	T173	VSART
12	BAPITSWNOM02_O	TRANSPORTATIONPLANNINGPOINT	TTDS	TPLST
13	BAPITSWNOM02_O	TRANSPORTSYSTEM	OIJTS	TSYST
14	BAPITSWNOM02_O	VEHICLEID	OIGV	VEHICLE

History

Last changed by/on	SAP	20050224
SAP Release Created in	46C
