SAP ABAP Table /ISDFPS/T351 (Distribution of Maintenance Strategies: Maintenance Strategy)
Hierarchy
☛ EA-DFPS (Software Component) SAP Enterprise Extension Defense Forces & Public Security
   ⤷ IS-DFS-PDR (Application Component) Master Data Distribution
     ⤷ /ISDFPS/UPS_EXTENSIONS_ASSET (Package) Asset Objects in UPS
Basic Data
Table Category INTTAB    Structure

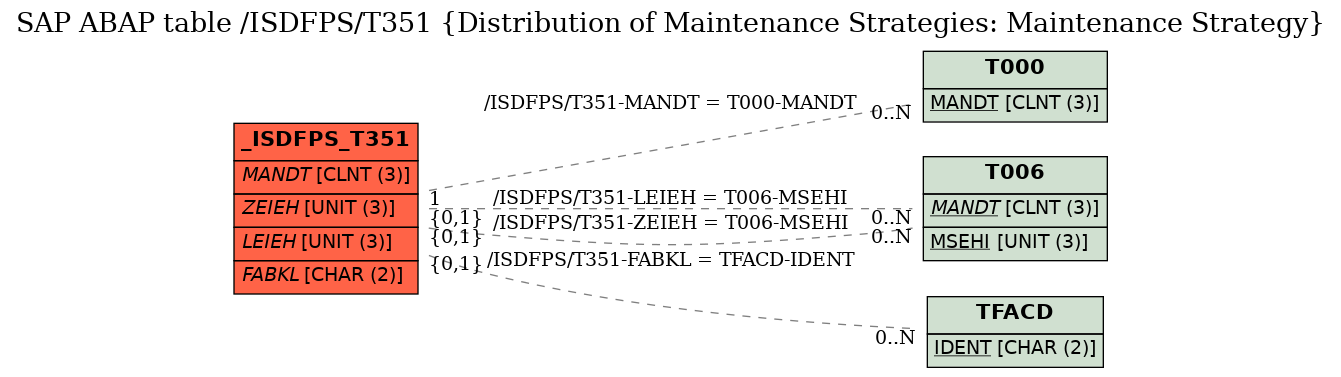

Structure /ISDFPS/T351   Table Relationship Diagram
Short Description Distribution of Maintenance Strategies: Maintenance Strategy
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 .INCLUDE       0   0   Maintenance strategy
2 MANDT MANDT MANDT CLNT 3   0   Client T000
3 STRAT STRAT WSTRA CHAR 6   0   Maintenance strategy *
4 ZEIEH DZEIEH MEINS UNIT 3   0   Unit for the performance of maintenance tasks T006
5 LEIEH LEIEH MEINS UNIT 3   0   Maintenance strategy activity unit T006
6 ZYK1G DZYK1_GES FLTP FLTP 16   16   Total cycle duration of a maintenance strategy
7 ZYK2G DZYK2_GES FLTP FLTP 16   16   Total cycle duration of a maintenance strategy
8 ZYK1K DZYK1_GGT FLTP FLTP 16   16   Smallest step between two maintenance packages
9 ZYK2K DZYK2_GGT FLTP FLTP 16   16   Smallest step between two performance-based MaintPackages
10 ANZP1 ANZPAK1 NUM2 NUMC 2   0   Number of MaintPackages in the MaintStrategy
11 ANZP2 ANZPAK2 NUM2 NUMC 2   0   Number of MaintPackages in the MaintStrategy (peformance)
12 TOLE1 TOLERPLUS NUM3 NUMC 3   0   Tolerance for Late Completion (%)
13 TOLE2 TOLERNEG NUM3 NUMC 3   0   Tolerance for Early Completion (%)
14 VERS1 VERSCHPLUS NUM3 NUMC 3   0   Shift Factor for Late Completion
15 VERS2 VERSCHNEG NUM3 NUMC 3   0   Shift Factor for Early Completion
16 TERMK TERMKNZ TERMKNZ CHAR 1   0   Scheduling indicator
17 HORIZ HORIZONT NUM3 NUMC 3   0   Call horizon for maintenance plan calls
18 HORIZ_QUALIFIER EAM_CC_CALLHORIZON_QUALIFIER EAM_CC_CALLHORIZON_QUALIFIER CHAR 1   0   Calculation Type of Call Horizon
19 FABKL FABKL WFCID CHAR 2   0   Factory calendar key TFACD
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 /ISDFPS/T351 FABKL TFACD IDENT REF C CN
2 /ISDFPS/T351 LEIEH T006 MSEHI REF C CN
3 /ISDFPS/T351 MANDT T000 MANDT KEY 1 CN
4 /ISDFPS/T351 ZEIEH T006 MSEHI REF C CN
History
Last changed by/on SAP  20130529
SAP Release Created in 470
