SAP ABAP Table VN1TPM (IS-H*MED: Medical Enhancements for the Service Catalog Items)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM (Application Component) Customer Relationship Management
⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
⤷ NORD (Package) R/3MED: Services processing EDV-G
⤷ CRM (Application Component) Customer Relationship Management
⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
⤷ NORD (Package) R/3MED: Services processing EDV-G
Basic Data
Table Category | INTTAB | Structure |

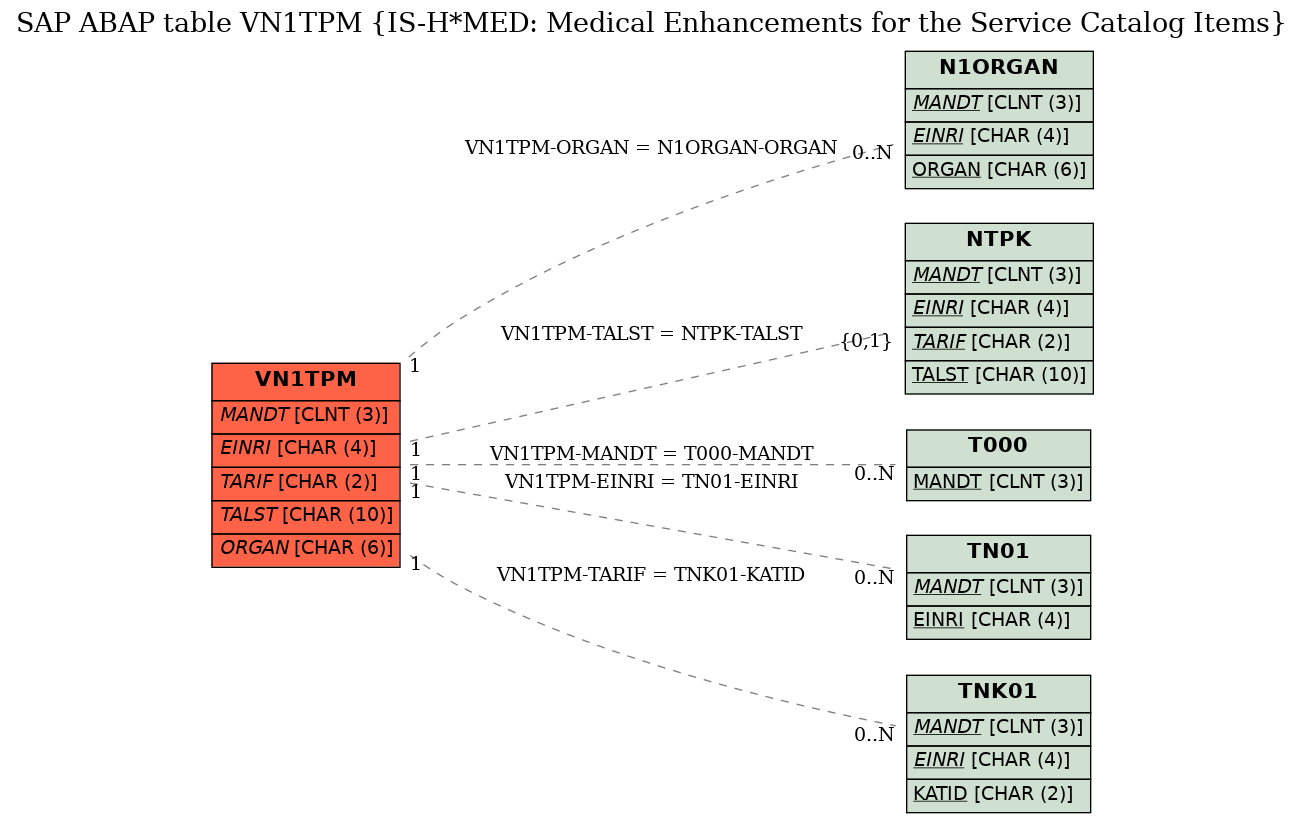

Structure | VN1TPM | Table Relationship Diagram |
Short Description | IS-H*MED: Medical Enhancements for the Service Catalog Items |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | .INCLUDE | 0 | 0 | IS-H*MED: Medical Enhancements for the Service Catalog Items | |||||
2 | MANDT | MANDT | MANDT | CLNT | 3 | 0 | Client | T000 | |
3 | EINRI | EINRI | EINRI | CHAR | 4 | 0 | IS-H: Institution | TN01 | |
4 | TARIF | TARID | TARID | CHAR | 2 | 0 | IS-H: Service Catalog Identification Key | TNK01 | |
5 | TALST | TARLS | TARLS | CHAR | 10 | 0 | IS-H: Service in Service Catalog | NTPK | |
6 | APRI | N1APRI_D | N1APRI | NUMC | 3 | 0 | Prioritization for Request/Movement (Internal) | ||
7 | DAUER | N1DAUER_MIN | N1DAUER_MIN | NUMC | 4 | 0 | IS-H*MED: Duration in Minutes | ||
8 | IFG | N1IFG_INT | NUMC2 | NUMC | 2 | 0 | Degree of Infection - Internal Format | ||
9 | ANERF | N1ANERFORD | N1ANERF | CHAR | 1 | 0 | Anesthetist Required (Master Data) | ||
10 | PATEIN | N1PATEIN2 | N1PATEIN2 | CHAR | 1 | 0 | Consent of Patient (for Master Data) | ||
11 | PATNUE | N1PATNUE | XFELD | CHAR | 1 | 0 | Patient Fasting Indicator | ||
12 | LIDI | N1LID_INT | NUM3 | NUMC | 3 | 0 | Position ID Internal | ||
13 | VORBZEIT | N1VORBZEIT | ISH_DZEIT | NUMC | 4 | 0 | Preparation Time for a Service | ||
14 | NACHBZEIT | N1NACHBZEIT | ISH_DZEIT | NUMC | 4 | 0 | Clean-Up Time for a Service | ||
15 | WLTYP | N1WLTYP | CHAR6 | CHAR | 6 | 0 | Waiting List Type | ||
16 | AZVKG | N1AZVKG | NUMC2 | NUMC | 2 | 0 | Number of Preregistrations Displayed | ||
17 | APCH | N1APCH | N1C001 | CHAR | 1 | 0 | Request Profile Changeable | ||
18 | .INCLUDE | 0 | 0 | IS-H*MED: Radiology Fields of the Table N1TPM | |||||
19 | KM | N1KM | N1KM | CHAR | 1 | 0 | Contrast Medium Application | ||
20 | SM | N1SM | XFELD | CHAR | 1 | 0 | Pacemaker | ||
21 | MI | N1METIMP | XFELD | CHAR | 1 | 0 | Metal Implants | ||
22 | LOK | N1LOKINP | N1LOKIMP | CHAR | 1 | 0 | Entry of Localization in the Request | ||
23 | TDRAD | N1TDRAD | XFELD | CHAR | 1 | 0 | Techn. Examination Data of the Radiology Obligat. | ||
24 | MTRAD | N1MTRAD | XFELD | CHAR | 1 | 0 | Material Must Be Filled In | ||
25 | ORGAN | N1ORGAN_DE | N1ORGAN_DE | CHAR | 6 | 0 | Description of an Organ | N1ORGAN | |
26 | BILD | N1BILD | XFELD | CHAR | 1 | 0 | Image-Producing Process | ||
27 | WLRELEVANT | N1RELEVANT | XFELD | CHAR | 1 | 0 | Not Relevant to Worklist | ||
28 | REQ_SER | N1REQ_SER | XFELD | CHAR | 1 | 0 | Contains No Requestable Services | ||
29 | .INCLUDE | 0 | 0 | Structures for generating change document update programs | |||||
30 | KZ | CDCHNGIND | CDCHNGIND | CHAR | 1 | 0 | Change type (U, I, E, D) |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | VN1TPM | EINRI | TN01 | EINRI | KEY | 1 | CN |
2 | VN1TPM | MANDT | T000 | MANDT | KEY | 1 | CN |
3 | VN1TPM | ORGAN | N1ORGAN | ORGAN | REF | 1 | CN |
4 | VN1TPM | TALST | NTPK | TALST | KEY | 1 | C |
5 | VN1TPM | TARIF | TNK01 | KATID | KEY | 1 | CN |
History
Last changed by/on | SAP | 20050224 |
SAP Release Created in | 463B |
